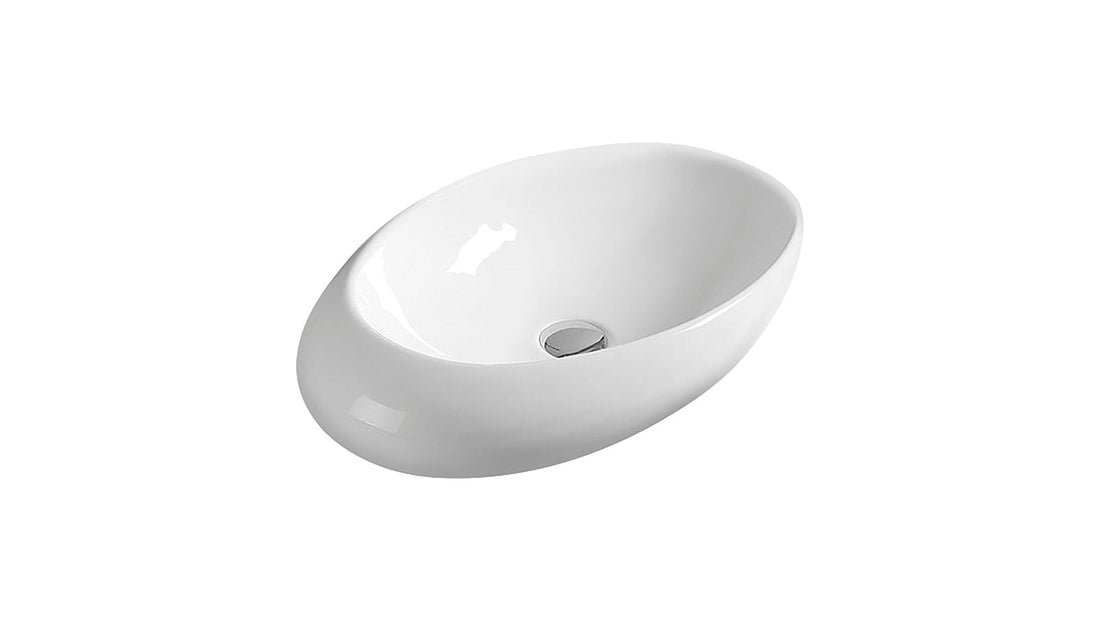

Replacing a Countertop Vessel Basin: Worktop and Plumbing Checks

Replacing a countertop vessel basin can refresh a bathroom while retaining useful furniture, but the new bowl needs to work with more than the visible space on the top. Existing holes, support, tap position and plumbing can restrict the choice. A similar width does not guarantee a direct replacement, and a larger bowl does not automatically cover an unsuitable cut-out safely. This guide explains how to survey the existing installation and decide what can sensibly be reused before ordering.

Establish what is being replaced

Identify whether the existing item is a fully countertop vessel, a semi-recessed basin or an integrated furniture basin. These use different relationships with the worktop and cabinet. A vessel generally stands above the surface, while a semi-recessed or furniture basin can depend on a particular cut-out and support arrangement. Do not choose a replacement from appearance alone when the existing fitting method is unclear.

Photograph the basin from above, the side and underneath. Record the model if it can be identified safely from paperwork or a visible marking. Note the material and condition of the worktop and cabinet, including any swelling, cracks or staining around the plumbing. If the furniture has been damaged by water, replacing the bowl alone may not resolve the problem. Ask the installer to assess the supporting structure before treating it as reusable.

Measure the existing holes and support

Measure the worktop holes and their positions from fixed reference edges, not just from the old basin. Record the waste opening, any tap hole and any larger cut-out beneath the bowl. Include the distance to the front, rear and side edges. The old basin may hide preparation that is larger or differently shaped than expected, so the installer may need to inspect the actual opening before confirming a replacement.

Do not assume a new basin can bridge an oversized hole simply because its outer rim covers it. The base needs the support and fixing arrangement required by its manufacturer, and the remaining worktop must be suitable. A decorative cover-up is not a structural solution. If the existing preparation cannot support the preferred replacement, a new worktop or a different basin may be the more reliable route.

Compare the base, not only the bowl width

The 520 × 340mm white vessel and 505 × 355mm white vessel have similar overall scale but may not share the same base and waste position. Compare the technical drawings with the actual worktop preparation. A change in the bowl's widest outline can look modest while moving the mounting surface enough to affect support or leave an old hole exposed. The base detail is central to a replacement assessment.

Check the external height too. A different bowl can raise or lower the finished rim relative to the existing tap and users. The 195mm-high white vessel has a different profile from lower models in the range, so it should not be chosen purely because its width appears to fit. Keep the proposed rim height and the tap outlet position on the same side-view drawing to assess comfortable use.

Decide whether the tap can stay

Record how the current tap is mounted and measure its outlet height, reach and available control movement. A tap fitted through the old basin may not transfer to a new model without a compatible tap hole. A worktop-mounted tap may remain physically in place but direct water poorly into a differently shaped bowl. Do not assume that retaining the tap is the simplest option until the whole combination has been checked.

Use our high-rise basin mixer measuring guide for a separate worktop-mounted tap, or the wall-mounted basin tap positioning guide where relevant. An existing wall spout can be a significant fixed point in the layout. Compare the new bowl against its actual outlet and finished wall position before choosing a model that would require concealed plumbing changes.

Check the waste and overflow arrangement

Identify whether the new basin has an overflow and confirm its required waste fitting. Do not transfer the old waste solely because it fits through the visible opening or matches the tap finish. The waste must suit the new basin's design and installation instructions. Where product information appears inconsistent, ask the supplier to clarify the exact model before buying fittings or proceeding with installation.

The basin tap holes, wastes and overflow guide provides broader background, but the selected basin's current instructions remain essential. Record whether the waste, trap and tap are included or supplied separately. A replacement project can stall because a small fitting was assumed to be in the box. Have the installer prepare a complete parts list rather than ordering only the ceramic bowl.

Check the route inside the cabinet

The new waste position may move the trap towards a drawer, shelf or structural rail. Photograph and measure the existing plumbing route, then compare it with the proposed basin. A small movement at the surface can make a substantial difference inside compact furniture. Do not assume the pipework can simply be bent or extended without affecting drainage, access or the cabinet layout. The installer should confirm the appropriate route and fittings.

Keep serviceable components accessible. A replacement that looks tidy from outside but traps the waste behind permanent joinery can make later maintenance difficult. If a drawer modification is proposed, check the furniture manufacturer's requirements rather than cutting around the pipework by default. Where the existing cabinet is unsuitable, compare appropriate vanity units and a compatible top as part of the replacement plan.

Retaining or replacing the worktop

A sound existing top may be reusable if its material, support and preparation suit the new installation. Check for moisture damage around every cut edge and fitting, not just the visible surface. A swollen board or cracked area should be assessed before adding a new basin. Surface appearance can disguise damage underneath, particularly where the old bowl and sealant have covered the affected area for some time.

If a new top is needed, choose it alongside the basin and tap rather than ordering each separately. Confirm the required support, edge distances, cutting method and sealing instructions for that material. A stone, composite or timber-based top may need different preparation. Do not use the basin's overall dimensions as a cut-out template. Have the actual products and manufacturer information available for the fabricator or installer before irreversible work begins.

Changing shape during a replacement

A change from round to rectangular, or from a broad bowl to a compact one, can alter which parts of the old top are visible. The 350mm round white vessel and 455 × 325mm rectangular white vessel should be compared by base and preparation as well as outline. An old sealant line, discolouration or unused tap hole may remain visible even if the new basin is technically supported.

Assess the visual result honestly before committing to reuse. A new top can sometimes produce a cleaner and more dependable installation than attempting to hide several old holes or marks. Equally, there is no need to replace sound furniture automatically if a correctly matched basin works. Let the survey determine the scope rather than deciding in advance that every original component must stay or that all of it must be removed.

Confirm countertop versus semi-recessed options

The collection includes 570 × 405mm semi-recessed basins and 530 × 440mm semi-recessed basins alongside countertop vessels. These are different installation categories and should not be treated as drop-in substitutes for a bowl standing on the top. Check the front projection, furniture relationship and required preparation for the exact model. A semi-recessed design can be appropriate for a planned arrangement, but conversion needs a full assessment.

Similarly, a furniture basin designed to form the whole top of a matching unit may depend on that unit's dimensions and support. Do not assume that a nominal 500mm or 600mm name means it will fit any cabinet of the same approximate width. Use the technical information and compatible furniture specification. The safest buying decision is based on the intended assembly rather than an approximate match between headline sizes.

Plan the fitting day

Have the basin and all required fittings checked before the existing wash area is taken out of service. Inspect the delivered ceramic for damage and confirm the exact model and finish. Agree with the installer which components will be reused and which will be replaced, and allow for the possibility that concealed damage may be discovered when the old basin is removed. A clear plan reduces avoidable time without a working basin.

Protect the furniture and surrounding finishes during removal and fitting. Water should be isolated and plumbing work carried out appropriately. Follow the basin, worktop and sealant manufacturers' instructions rather than reusing a method from a different material. Do not force a ceramic basin onto uneven support or use excessive tightening to compensate for an unsuitable fitting. The installer should resolve the underlying fit before completing the joints.

Test the complete replacement

After installation and the required curing period, have the plumbing checked for leaks and the basin tested in normal use. Inspect underneath while water is running and draining, and confirm that drawers and doors still move freely. Check that the tap control is accessible and that the outlet works comfortably with the new bowl. A basin that looks correct from above can still have a hidden plumbing or furniture conflict.

Keep the new product reference, fitting instructions and details of any worktop changes. If a concern appears later, photographs and the exact model help the supplier or installer investigate. Watch for recurring water around the base, changes in drainage or swelling in the furniture, and address the cause promptly. A successful replacement should preserve practical use and maintenance access as well as improve the bathroom's appearance.

Frequently asked questions

Can I replace a vessel with another of the same width?

Not on width alone. Compare the base, waste position, height, tap arrangement and support requirements with the existing preparation.

Will a larger basin safely cover an old cut-out?

Only if the new basin and remaining worktop have the support and fitting arrangement required by their manufacturers. Covering the hole visually does not establish structural suitability.

Can I keep the old tap and waste?

Possibly, but both must be compatible with the new basin. Check tap mounting and outlet geometry, plus the basin's overflow and waste requirements, before deciding to reuse them.

Is a semi-recessed basin a direct replacement for a countertop bowl?

No. It uses a different relationship with the top and furniture. The exact installation must be assessed before converting between types.

Should I order before the installer has seen the existing holes?

Have the existing preparation assessed first where it affects compatibility. The old bowl can conceal a larger cut-out or damage that changes the replacement options.

What should I send to JJ for a replacement enquiry?

Send photographs, the existing model if known, worktop-hole measurements, furniture details and the proposed basin reference. Contact JJ Building Materials on 01202 113233 to clarify product information before the installation is finalised.
