High-Rise Basin Mixer Taps: Measuring Height, Reach and Clearance

A countertop basin and a tall mixer can make a lovely pairing, provided there is enough room for both to work properly. The tap needs to clear the bowl, reach into it and leave comfortable space for your hands. Buying the tallest tap you can find does not solve all three questions.

Use this guide to measure the arrangement before drilling a worktop or ordering a vessel basin. JJ Building Materials' taps and mixers range includes high-rise basin mixers in several shapes and finishes. Your shortlist should begin with dimensions and compatibility; the colour can follow once you know what fits.

Compare the bathroom vanity units collection as part of the complete arrangement, checking which furniture is intended for your chosen basin and countertop. Do not assume every unit accepts a separately drilled tap.

Start with the countertop basin in position

A high-rise mixer usually stands beside a vessel basin on the worktop. That means the basin's height above the counter affects the tap choice directly. Measure from the surface where the tap will actually mount, allowing for any different levels or raised sections in the furniture.

Also mark the bowl's outside edge, inside edge and intended position on the counter. A thick rim can make a substantial difference to usable reach. The tap must project beyond the outside of the basin and deliver water comfortably inside the bowl, rather than just clearing the ceramic.

If the basin has not arrived, use its manufacturer's dimensional drawing and check whether dimensions are nominal. Do not make a permanent cut-out from a lifestyle photograph. The installer should confirm the final positions against the actual products and their fitting instructions.

Separate total height from outlet height

Total tap height tells you how tall the fitting is overall. Outlet height tells you where water leaves it. The two can be quite different, especially when the handle sits above the spout. A tall silhouette can still have an outlet that sits too close to a deep vessel's rim.

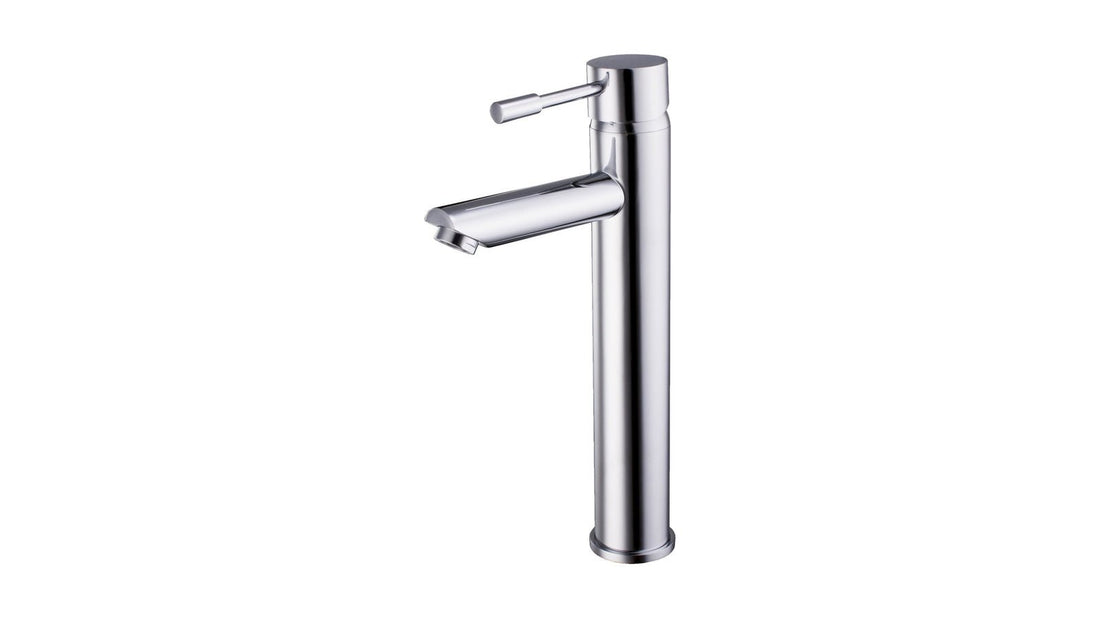

The Windon chrome high-rise mono basin mixer without waste is listed with overall product dimensions, but use its technical drawing to establish outlet clearance for your basin. Treat the dimensions in a product title as a starting point, not as a labelled installation diagram.

Allow space for hands as well as a visible gap above the rim. Imagine washing, rinsing a cloth and cleaning around the tap. The right arrangement feels usable without making you reach too far forward or twist your wrists around the spout.

Measure reach from the correct reference point

Spout reach is generally shown from a defined point on the tap to the outlet. Confirm the reference on the drawing rather than assuming it starts at the back edge of the body. You then need to relate that measurement to the tap-hole centre and the basin's position.

A simple plan view is helpful. Draw the tap-hole centre, the tap base and the inside of the bowl. Mark where the outlet will sit. This makes it easier to see whether the tap needs to move closer to the basin or whether a different spout would be a better fit.

Moving the tap forward is not always possible. There must be enough sound worktop material around its mounting hole, and the base must sit flat. Follow the furniture and tap instructions for hole size, edge clearances and fastening. Ask the installer before committing to a layout with very little room.

Leave room behind and beside the handle

Handle movement is easy to overlook when you are concentrating on the spout. A lever may move towards the wall or sideways as the temperature changes. Check its full operating envelope, including the position needed for cleaning and servicing.

A mirror, splashback or shelf can introduce another obstacle. Consider both the finished surfaces and anything that projects from them. A tap that technically fits beneath a shelf may still be awkward to operate, wipe down or remove later.

For a fluted accent in a warm finish, compare the Cyprus brushed brass high-rise basin mixer. Assess the handle and spout layout against your measurements just as carefully as the finish. Decorative details should not distract from the way the tap will be used.

Check the space underneath the worktop

The visible arrangement is only half the fit. Under the counter, the fixing and supply connections need room beside the basin waste, drawer boxes and cabinet rails. A wide vessel can leave an apparently generous top surface while its waste occupies the most useful space below.

Ask the installer to check the mounting thickness permitted by the tap. Stone, timber and composite tops can have different thicknesses and preparation requirements. The right drill, cut-out and edge treatment depend on the material; do not assume a furniture top can be drilled anywhere without affecting its strength or finish.

Think about future access too. If a drawer can be removed for servicing, record how. Avoid packing the cupboard so tightly that the connections cannot be inspected. A well-planned installation should remain manageable after the bathroom is in daily use.

Control splashing through proportion and positioning

Extra height is not automatically an improvement. The water's drop into the bowl, outlet direction, flow and basin profile work together. A shallow vessel may need a different arrangement from a deep bowl even if their external widths are similar.

Position the outlet so the stream enters the usable bowl rather than striking the rim. Do not assume it must sit directly above the waste in every case. Use the product drawings and the installer's judgement, then check the finished operation at realistic flow settings.

If splashing is a concern, ask about the selected model's outlet arrangement and compatible flow-control components. Do not fit an arbitrary restrictor or aerator simply because it looks the right size. The correct part must suit the tap and the water supply.

Compare high-rise styles without losing track of fit

The Binsey brushed brass high-rise mono basin mixer offers another contemporary option for a vessel basin. Compare its drawing with the Cyprus model rather than assuming that similar overall heights mean identical reach or outlet clearance.

If you prefer a darker focal point, look at the Windon matt black high-rise basin mixer. For a warmer alternative, the Windon brushed bronze high-rise mono mixer gives a different finish direction. Keep the same measurement checklist beside every shortlisted product so that colour does not become the only deciding factor.

Take nearby finishes into account: the basin waste, cabinet handles and shower fittings can all be visible together. Similar finish names do not promise an exact match across ranges. Compare references or samples where colour consistency is important to the design.

Confirm supply requirements and package contents

Check the exact model's operating requirements against your hot and cold supplies. Ask your plumber where there is uncertainty. A high-rise body describes the physical format; it does not establish a universal minimum pressure or guarantee suitability for every plumbing system.

Look carefully at what is included. The Windon chrome model highlighted here is described as supplied without a waste. Other listings may have a different package, so use the selected product's information rather than assuming that every mono mixer arrives with the same accessories.

Choose the basin waste according to the basin's design and overflow provision. Then check the trap and cabinet space as a separate part of the installation. A tap, waste and trap may share a finish yet still need individual compatibility checks.

Try a full-size layout before making holes

Cut paper shapes to represent the basin footprint and tap base, then place them on the proposed top. Mark the outlet and handle movement. This gives a useful first check of spacing, especially in a small vanity unit where every centimetre matters.

Stand in front of the arrangement and imagine normal use. Is the basin too far back? Can you reach the control without leaning? Is there a narrow gap that will be difficult to clean? Small adjustments at this stage are much easier than changes after the worktop is cut.

Keep the final setting-out drawing with the product references. If someone else orders the furniture or fits the plumbing, clear notes reduce the chance that each person works from a different assumption.

High-rise basin mixer FAQs

Do all countertop basins need a tall mixer?

No. Some basins have their own tap ledge, and others can be paired with a suitable wall-mounted tap. A separate high-rise mixer is one option, chosen according to the basin and furniture arrangement.

How tall should the tap be above the basin?

Check the outlet height above the mounting surface and compare it with the actual rim height. Leave usable hand space, but avoid selecting by a universal gap that ignores the bowl shape and outlet design.

Can a high-rise mixer go behind a small basin?

Only if the counter has enough room for the base, mounting hole, handle movement and required clearances. Check beneath the top as well. A compact bowl does not guarantee a straightforward fit.

Is a taller tap more likely to splash?

It can splash if the outlet position and water drop are poorly matched to the bowl, but height alone does not decide the result. Reach, flow and basin geometry must be considered together.

Can I reuse my existing waste?

Possibly, if it remains compatible with the basin and is in suitable condition. Confirm its dimensions and overflow arrangement. If you are changing finishes, decide whether the visible waste should change too.

What information should I send when asking for advice?

Send the basin and tap references, the worktop thickness, a plan of the available space and photographs of the underside. Include any known supply information so the installer can assess practical compatibility.

Once those details are settled, choosing a finish becomes much easier. Browse the range with your measurements to hand, or call JJ Building Materials on 01202 113233 for help identifying the product information you need.
