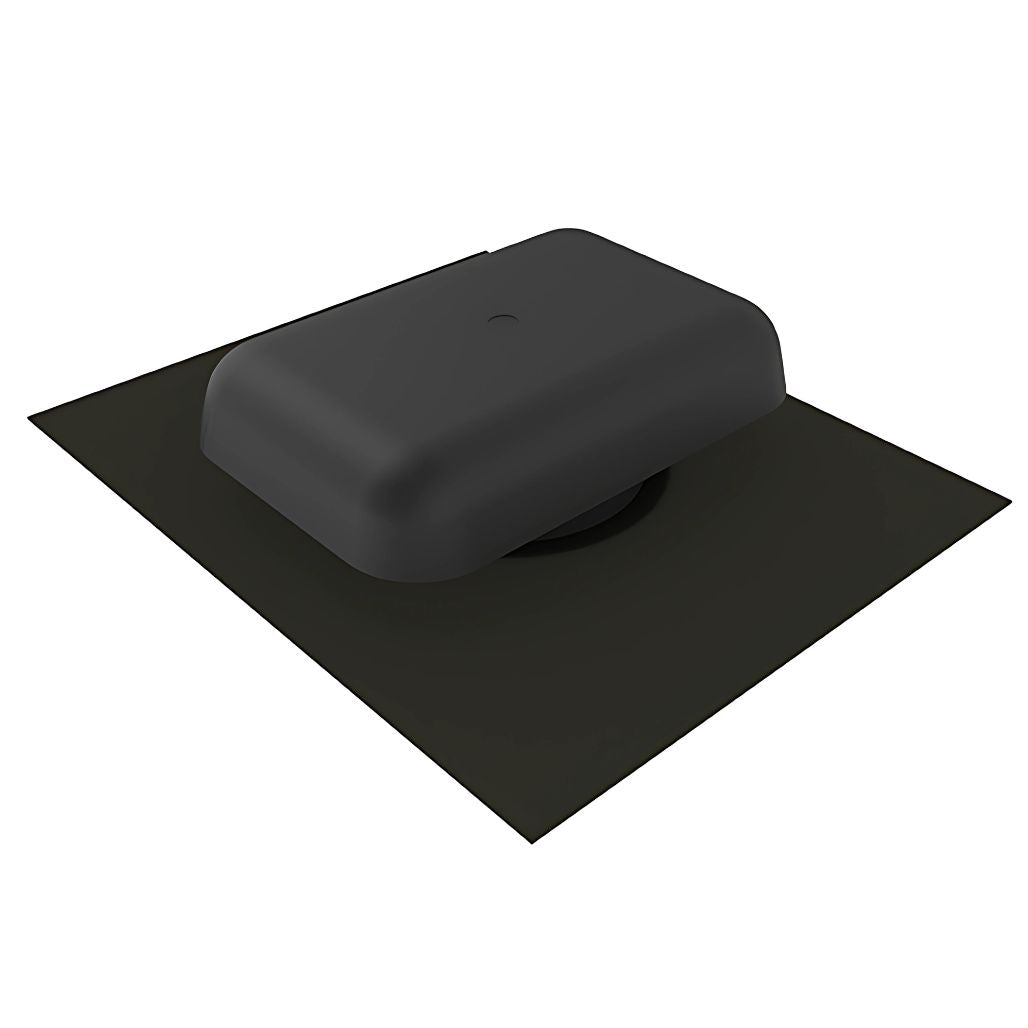

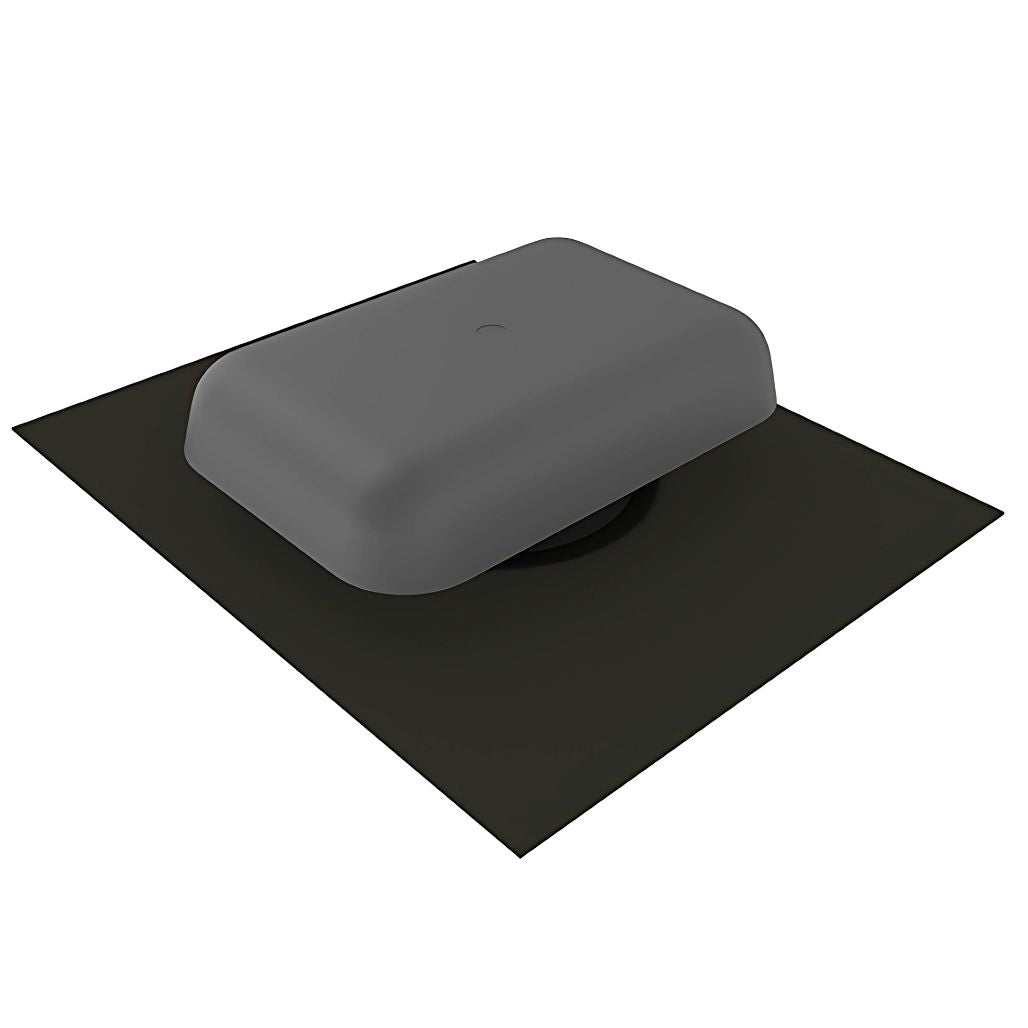

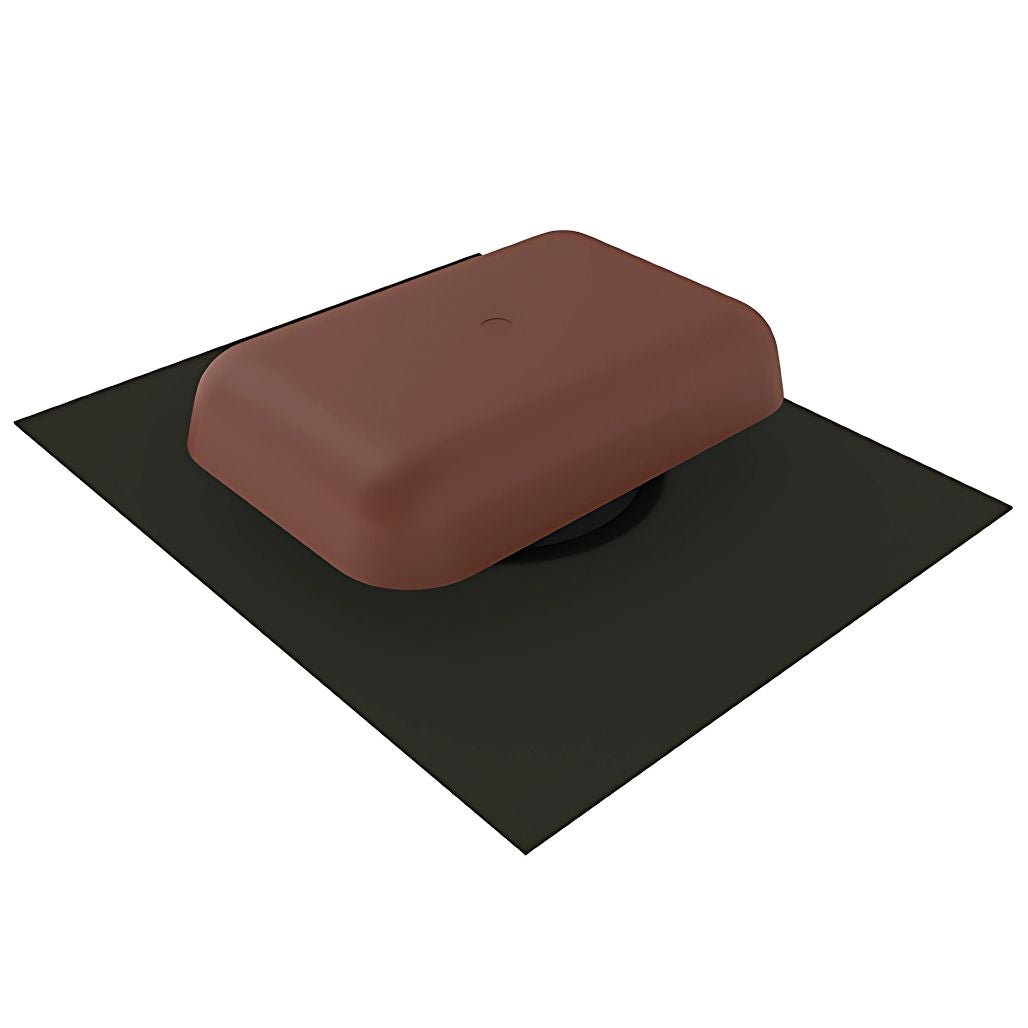

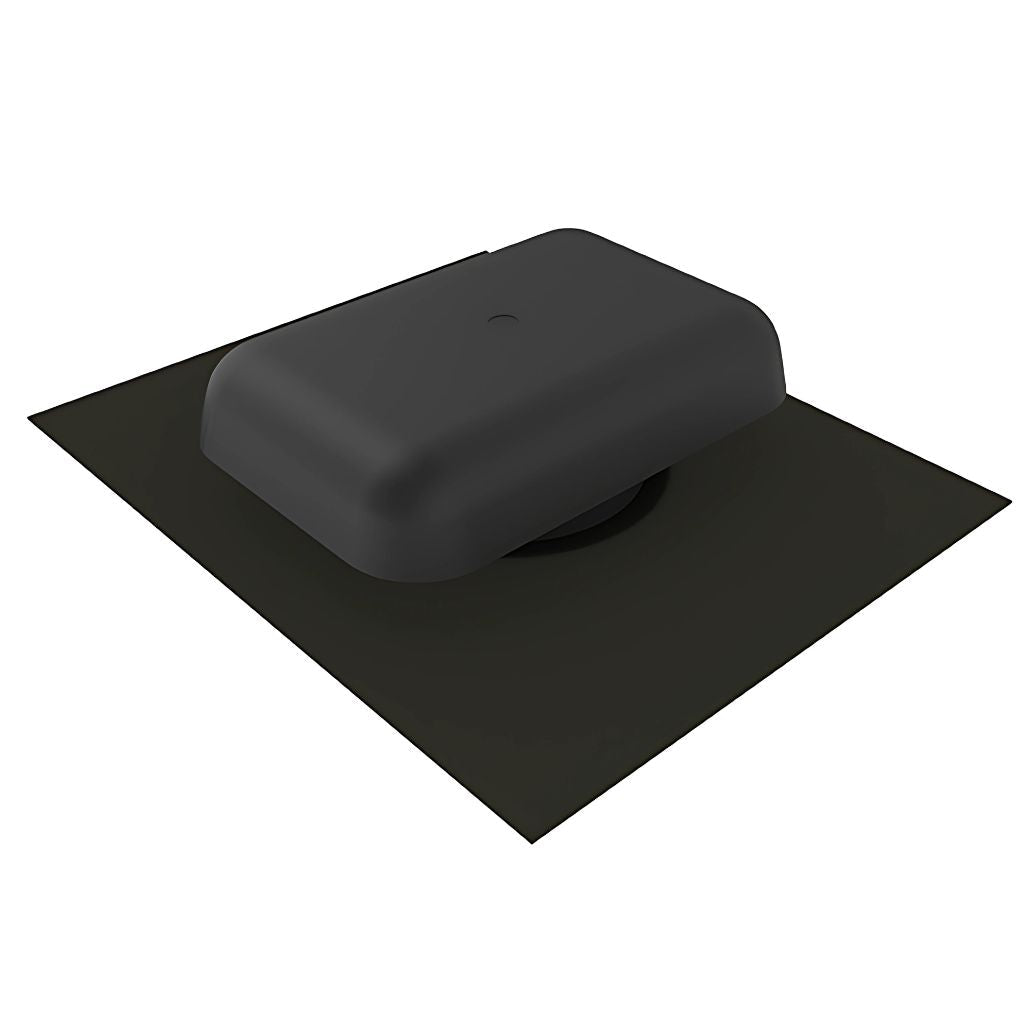

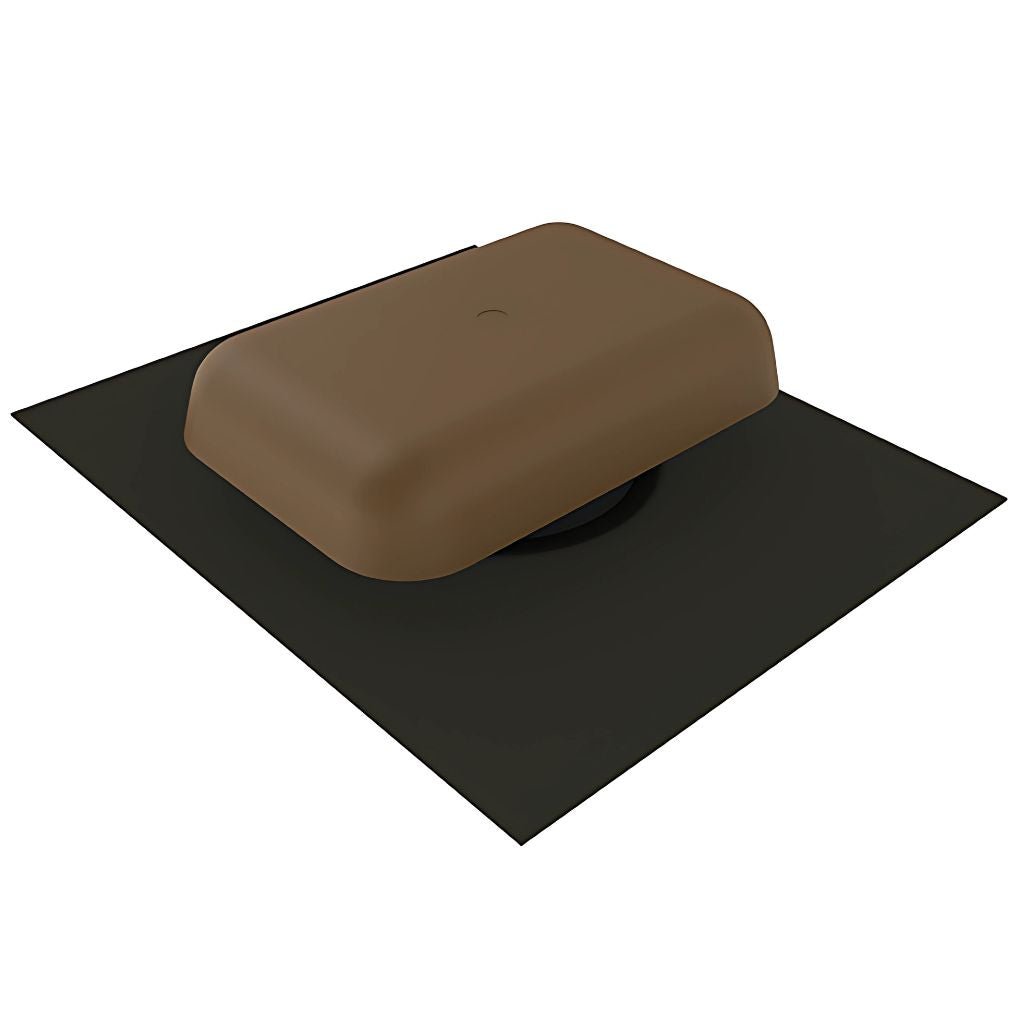

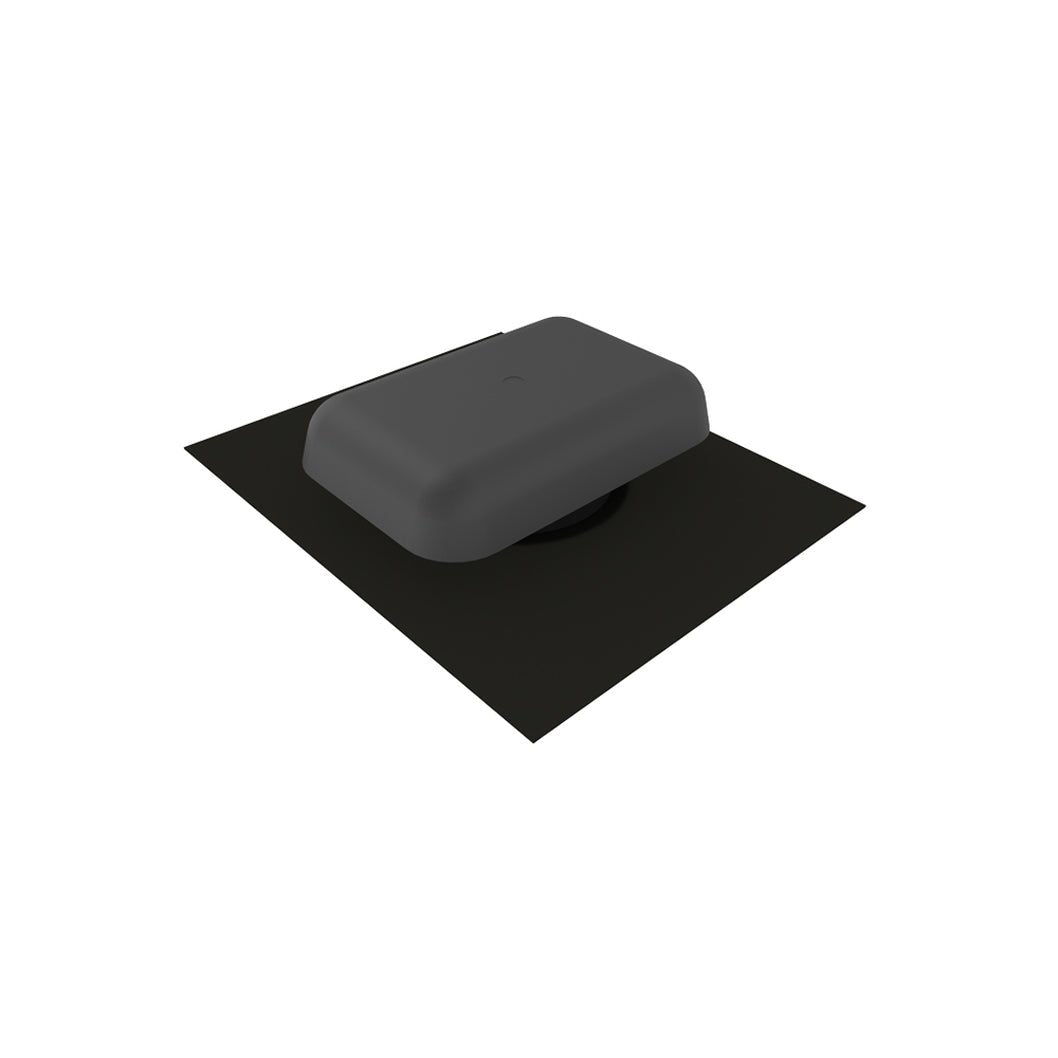

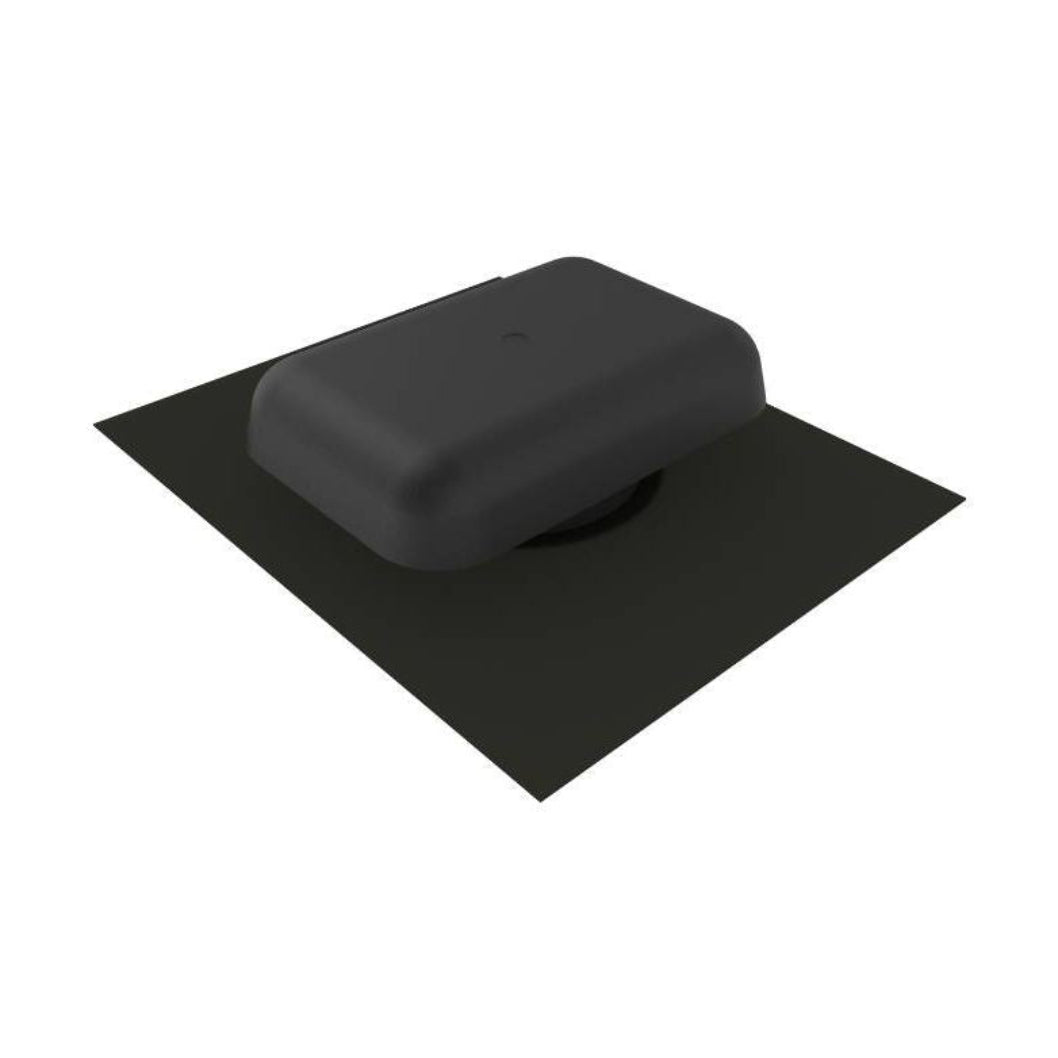

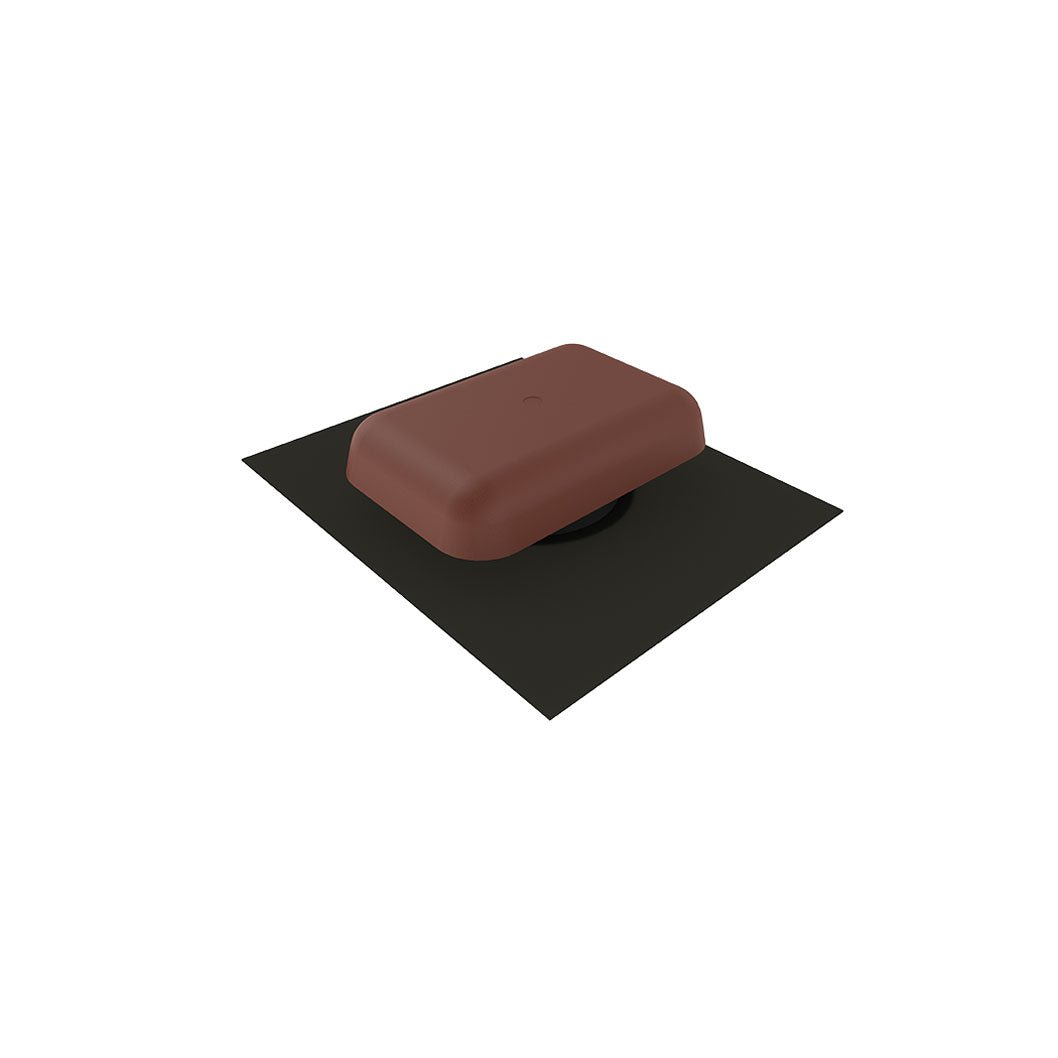

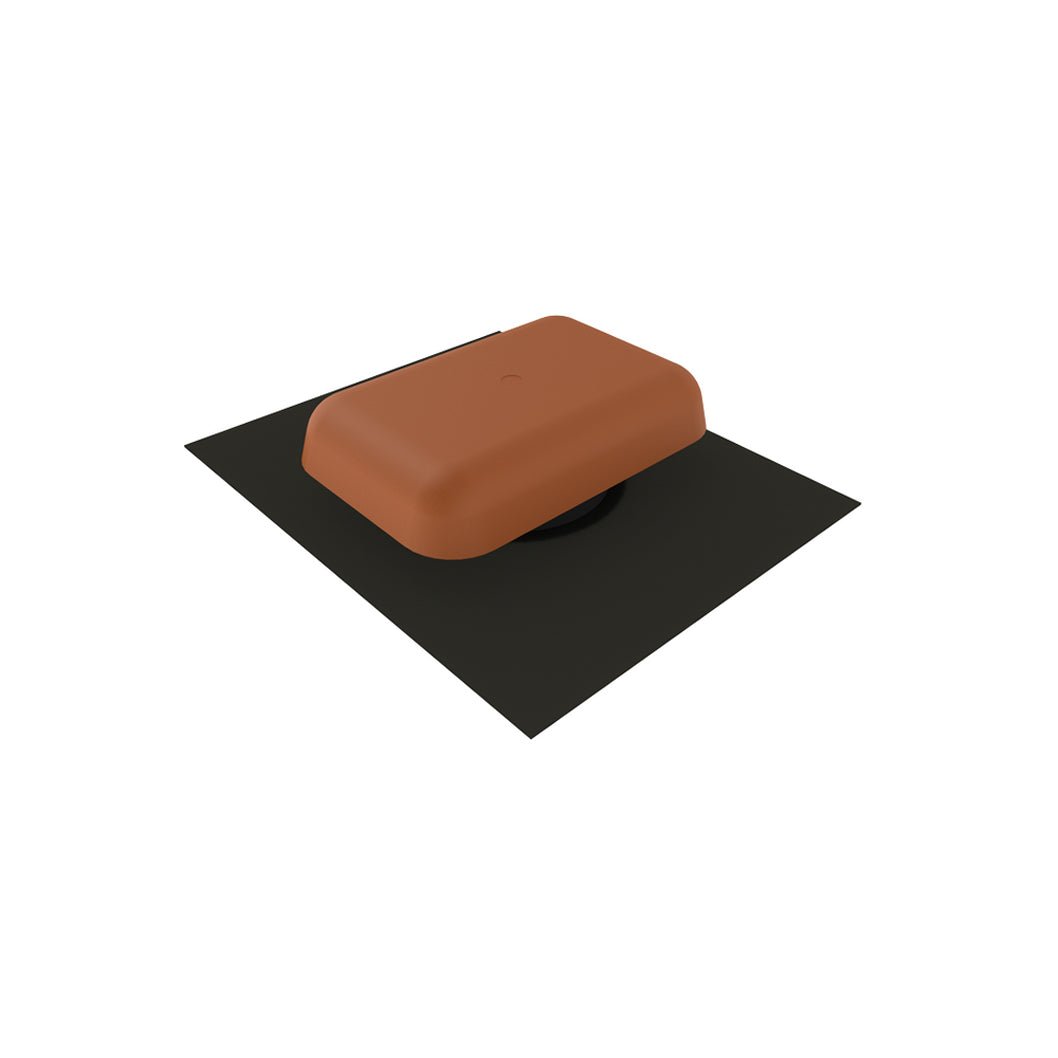

Timloc Universal Tile Vent

Universal Roof Tile Vent

The Universal Roof Tile Vent (RTV-UNI) is a high-quality, versatile vent designed to provide effective roof space ventilation or connect directly to a ducted ventilation system. Suitable for use with any type of tile or slate roof covering, it ensures consistent airflow and protection against moisture build-up — helping to maintain a healthy roof structure in both new and existing buildings.

Versatile and Practical Design

This universal vent can be used on roofs with a minimum pitch of 12.5°, offering flexibility across a wide range of roof types. It enables direct ventilation into the roof space or can be connected to an internal ducted system, making it suitable for bathrooms, kitchens, and general roof void ventilation.

Strong, Weatherproof Performance

Engineered with performance in mind, the Universal Roof Tile Vent features an integrated lead-alternative flashing for a watertight seal on all tile profiles. Its shaped base channels rainwater safely back onto the roof, preventing water ingress while maintaining excellent airflow. The UV-stabilised polypropylene top ensures durability and long-lasting protection, even under continuous sunlight exposure.

Product Details

Brand/Product Code: RTV-UNI Material: UV-stabilised polypropylene top with DEKS Fast Flash lead alternative base Finish: Textured, injection-moulded Colour Options: Terracotta, Brown, Grey, Red, and Black Minimum Roof Pitch: 12.5° Max Free Ventilation Area: 20,000mm² (cut at 170mm diameter) 16,000mm² (cut at 150mm diameter) 11,000mm² (cut at 125mm diameter) 8,400mm² (cut at 110mm diameter)

Compliance & Standards

Independently tested by BRE for deluge and wind-driven rain to PD CEN/TR15601:2012 Complies with BS EN 490:2011 (+A1:2017) and BS 5250:2021 Meets BS 5534:2014 (+A2:2018) for slating and tiling Manufactured under BS EN ISO 9001:2015 and BS EN ISO 14001:2015 Fully compliant with the Building Regulations 2010 and NHBC requirements

Key Features & Benefits

Suitable for tile or slate roofs of all profiles Built-in lead-alternative flashing for a customisable, secure fit Manages rainwater flow effectively to prevent ingress UV-stabilised for long-term colour and durability Lightweight and easy to install Ensures compliance with UK Building Regulations

Frequently Asked Questions

1. Can the Universal Roof Tile Vent be used with all roof types?

Yes — it’s compatible with **all tile and slate roof coverings**, thanks to the flexible, lead-free flashing sheet that adapts to different roof profiles.

2. What kind of ventilation does this provide?

It can be used for **direct roof space ventilation** or connected to an **internal ducted system** to ventilate areas such as bathrooms, kitchens, or lofts.

3. Is it easy to install?

Yes. The vent is **lightweight, easy to handle**, and designed for quick installation. The integrated flashing ensures a watertight fit without the need for additional components.

4. Does it comply with building regulations?

Absolutely. It complies with **Building Regulations 2010**, **BS 5250:2021**, **BS 5534:2014**, and **NHBC** standards, ensuring it meets all performance and safety requirements.
