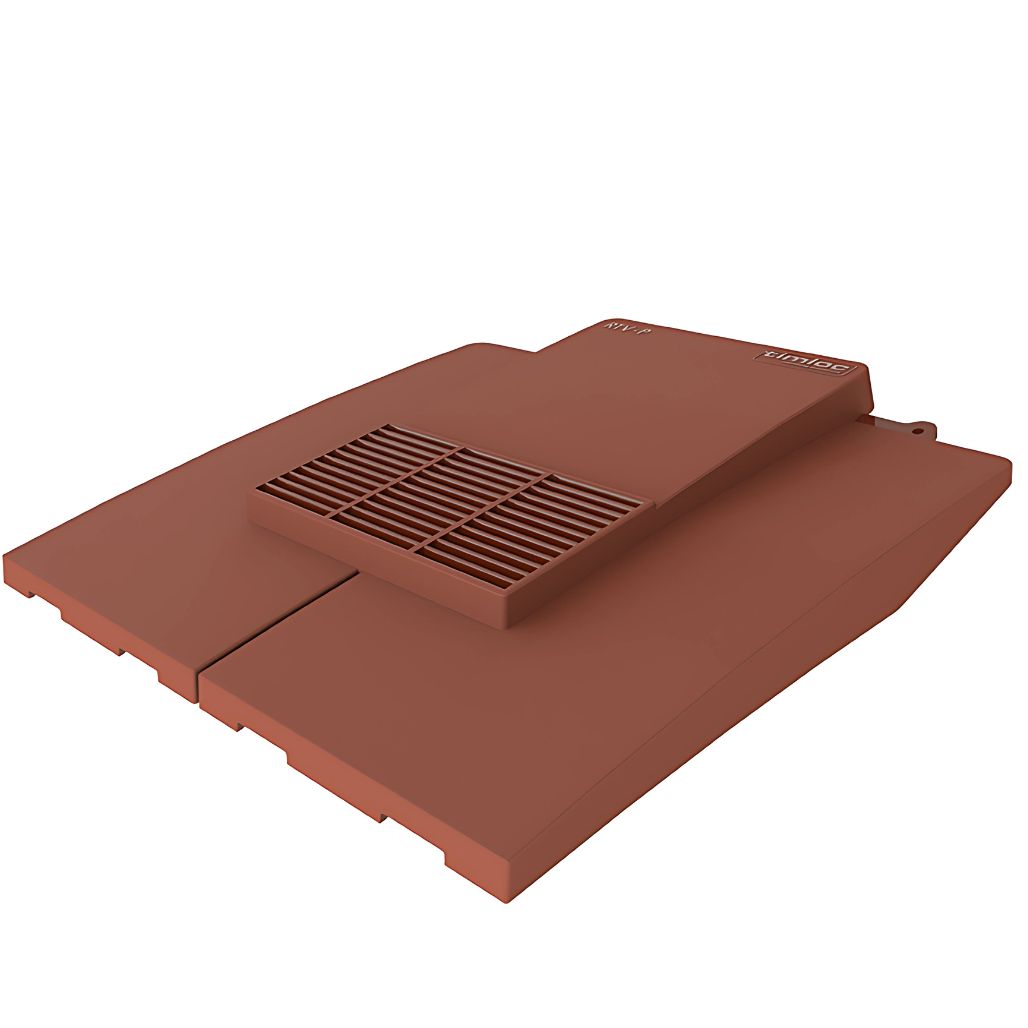

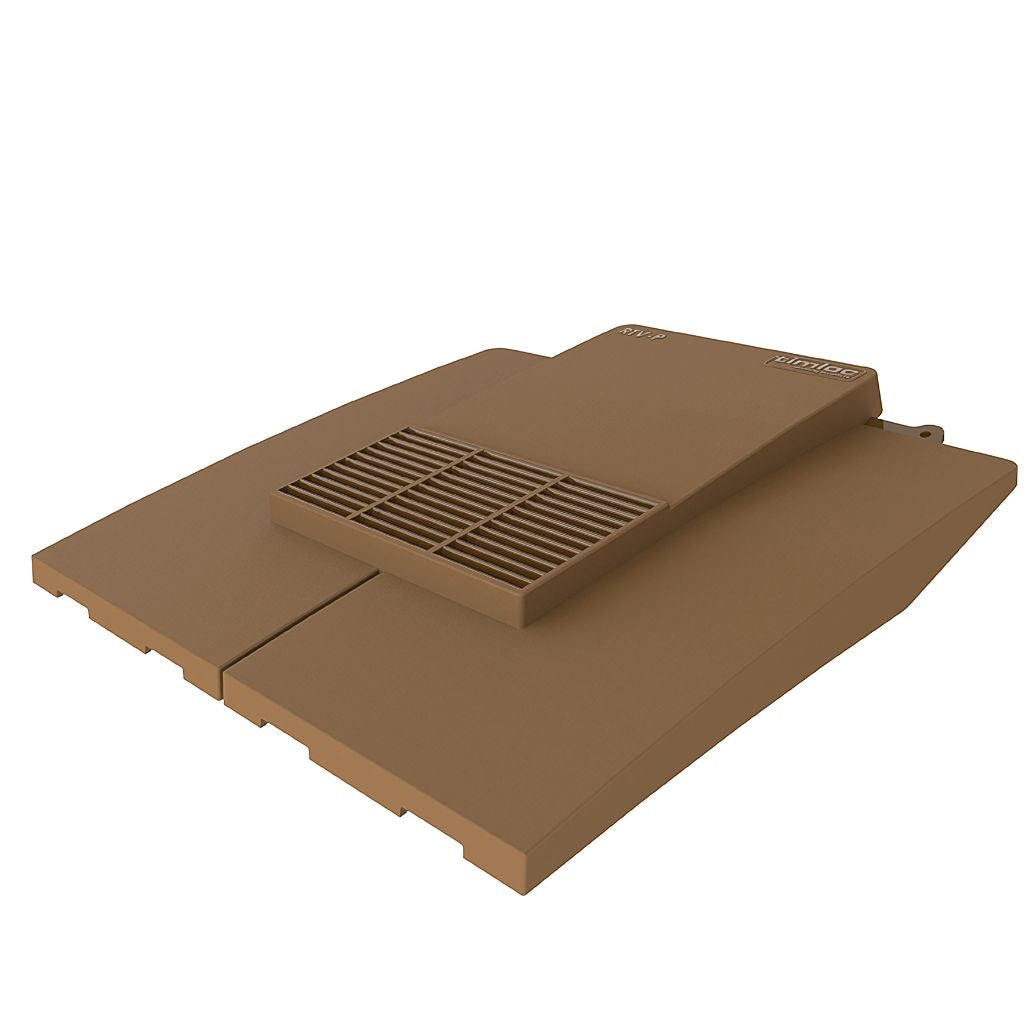

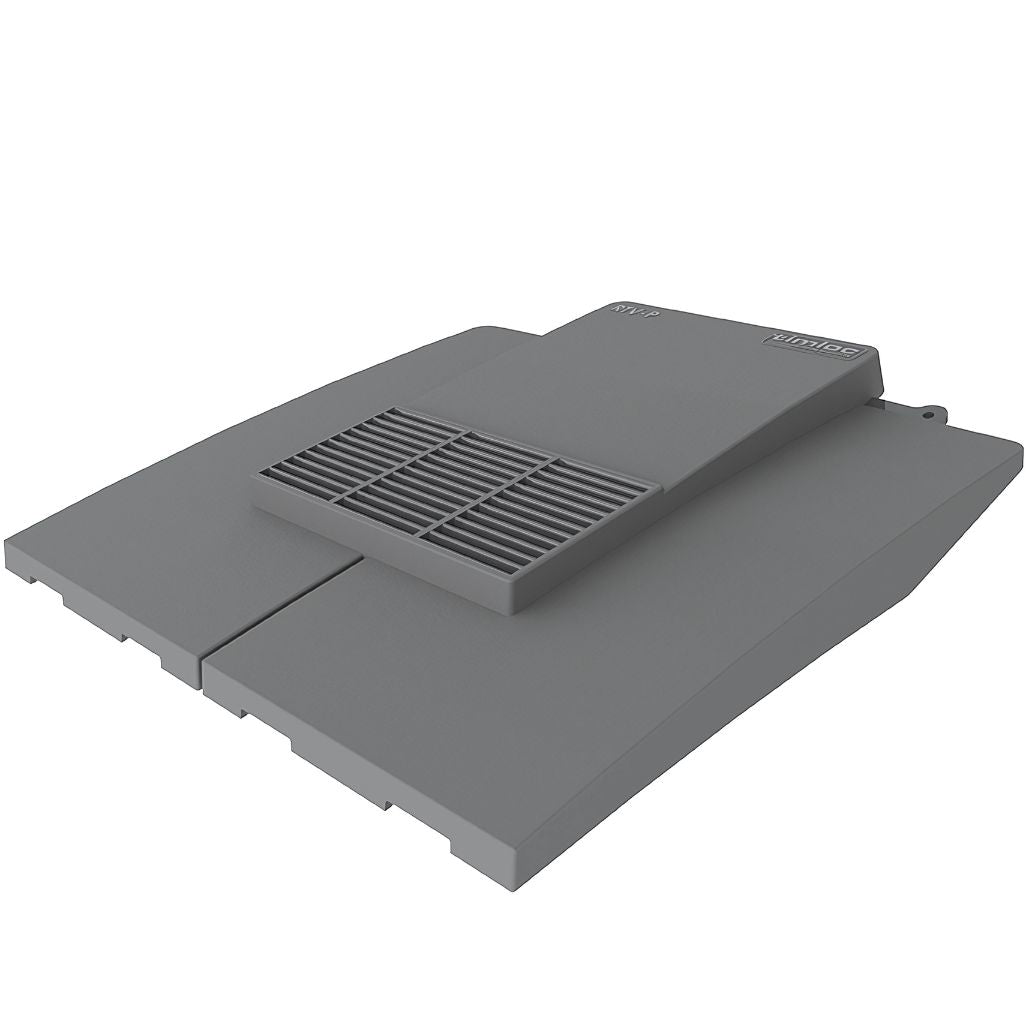

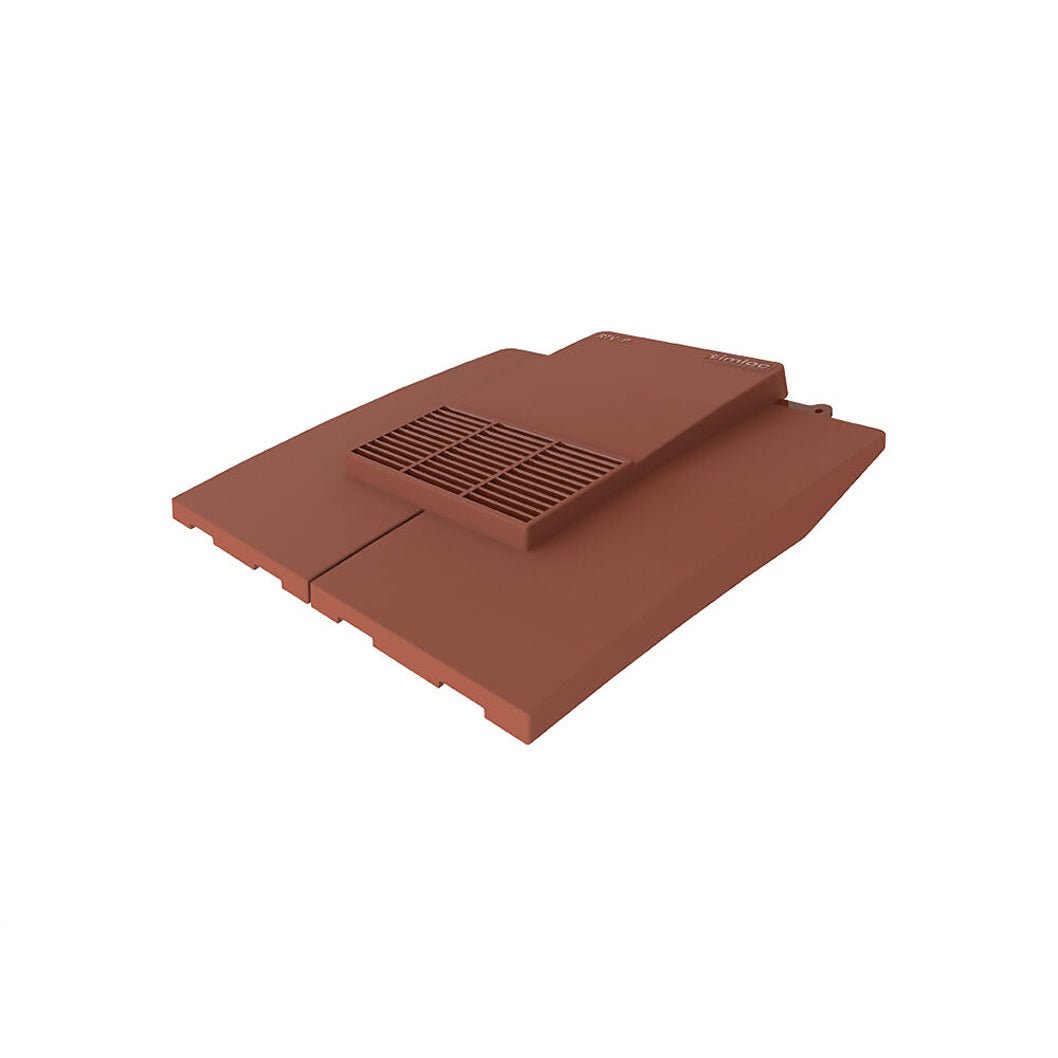

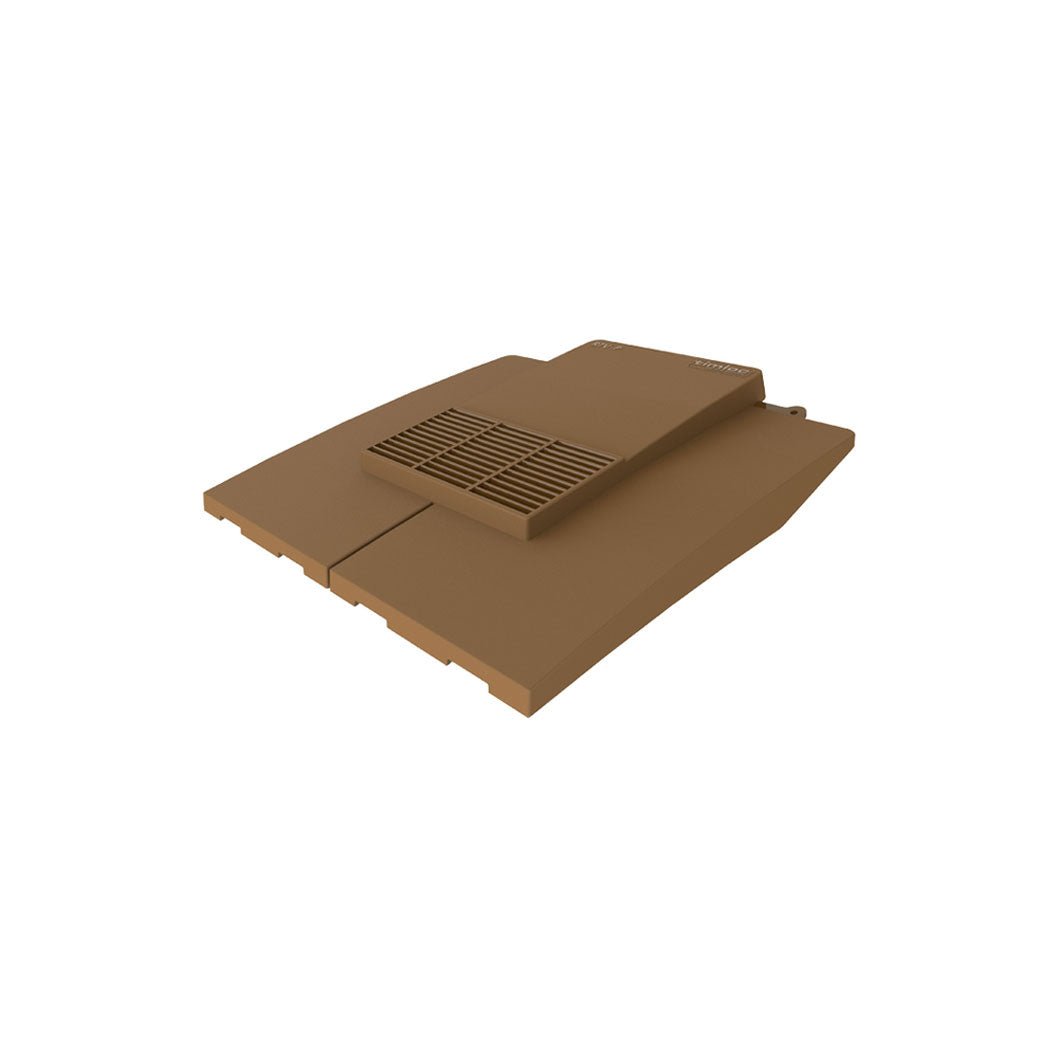

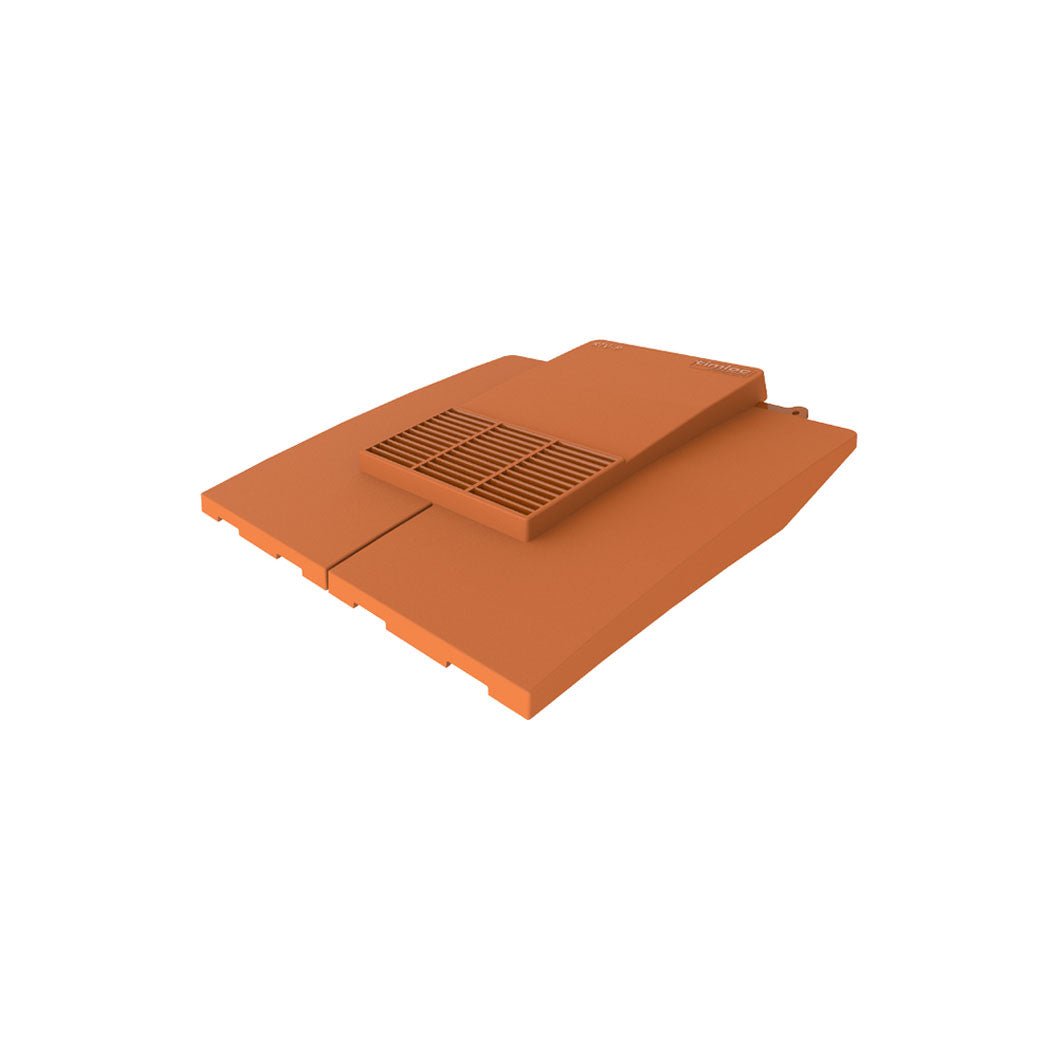

Timloc Plain Tile Roof Vent

The Timloc Plain Roof Tile Vent is a discreet and practical solution for introducing ventilation into your roof space. Whether you’re looking to improve airflow directly into a loft or connect to a ducted ventilation system inside the building, this tile vent is designed to integrate seamlessly into roofs finished with plain tiles. With a sleek design that replaces three standard roof tiles, the vent maintains a continuous, unobtrusive appearance while delivering efficient airflow where it’s needed most. It’s ideal for residential properties where roof aesthetics are just as important as performance.

Versatile and Discreet Ventilation

Suitable for roof pitches of 35° and above, this tile vent offers a free ventilation area of 7,000mm², helping to reduce condensation and maintain a healthy roof space. It can be installed as part of a direct-to-roof-space ventilation solution, or connected to a ducted system to help extract moist air from kitchens, bathrooms, or utility rooms. The vent is shaped to channel rainwater safely back onto the tiles, protecting the vent opening from water ingress. Its design also includes a 4mm-spaced external grille that prevents larger insects, debris, and vermin from entering.

Built for Durability and Ease of Installation

Constructed with a UV-stabilised top, the vent is engineered to withstand long-term exposure to sunlight without discolouring or becoming brittle. It’s lightweight, easy to handle, and simple to install—making it a popular choice for both professional roofers and tradespeople. Once in place, the vent blends in with the surrounding tiles, preserving the clean lines and visual appeal of the roof from any angle.

Key Features

Designed for roofs with plain tiles Suitable for roof pitches 35° and above Allows direct ventilation into roof space or connection to ducted systems Replaces three plain tiles for visual consistency 7,000mm² free airflow area Channels rainwater away from vent opening 4mm grille prevents entry of debris, insects, and vermin UV-stabilised for long-term sun exposure Lightweight and easy to install

Frequently Asked Questions

1. Can this vent be used with any type of roof tile?

No, this vent is specifically designed for use with **plain roof tiles**. It’s shaped and sized to replace three standard tiles while maintaining a consistent appearance.

2. Does the vent allow water or pests into the roof space?

Not at all. The vent includes a **4mm external grille** that prevents the entry of rainwater, large insects, vermin, and debris. It also channels rain safely back onto the roof surface to protect the opening.

3. Can this be connected to an internal ventilation system?

Yes! The vent can be connected to a **ducted ventilation system**, making it ideal for extracting moist air from inside areas like kitchens or bathrooms directly through the roof.
