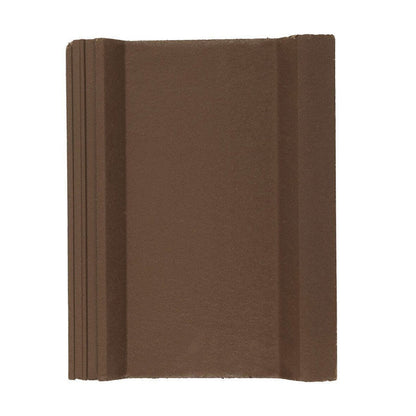

Marley Tile-Wessex Interlocking Concrete

Marley Wessex Interlocking Concrete Tile

The Marley Wessex Interlocking Concrete Tile is designed to deliver excellent performance on low-pitch roofs while maintaining a clean, modern appearance. Its engineered profile ensures secure interlock and reliable weather protection, making it a trusted choice for both new builds and refurbishment projects. With a generous tile size of 420mm x 330mm and a minimum pitch requirement of just 15°, the Wessex tile allows for greater design flexibility without compromising durability. Its smooth, sleek finish creates a refined look that suits contemporary architectural styles as well as more traditional settings.

Colour Options

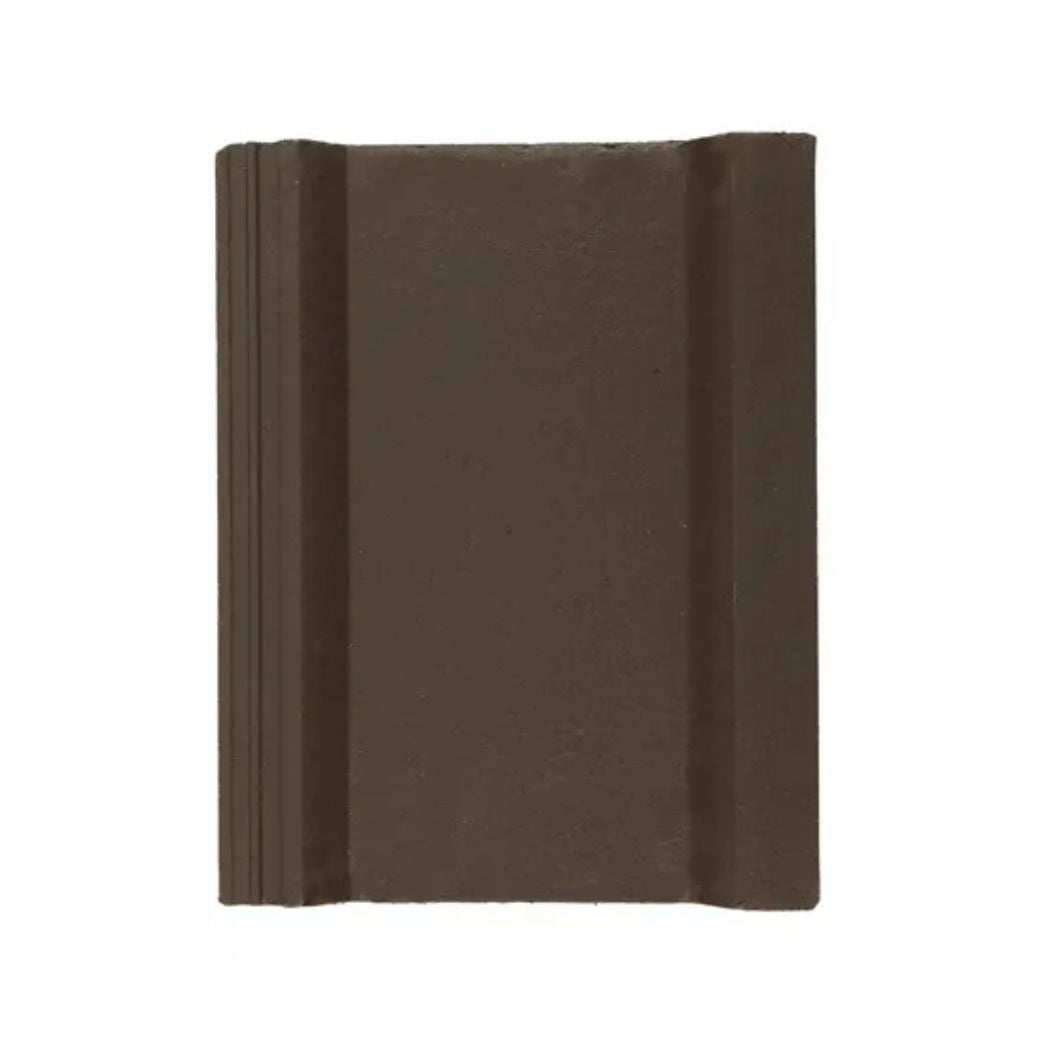

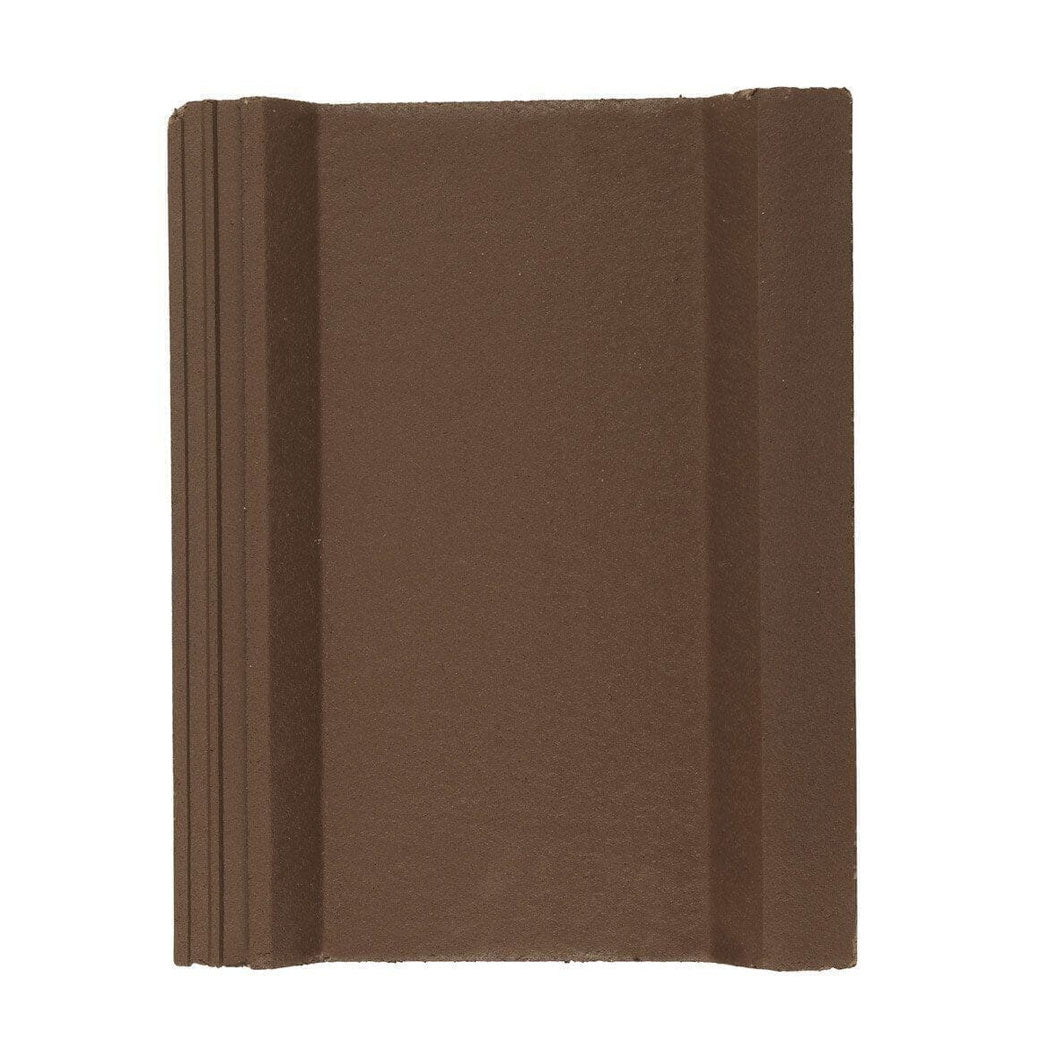

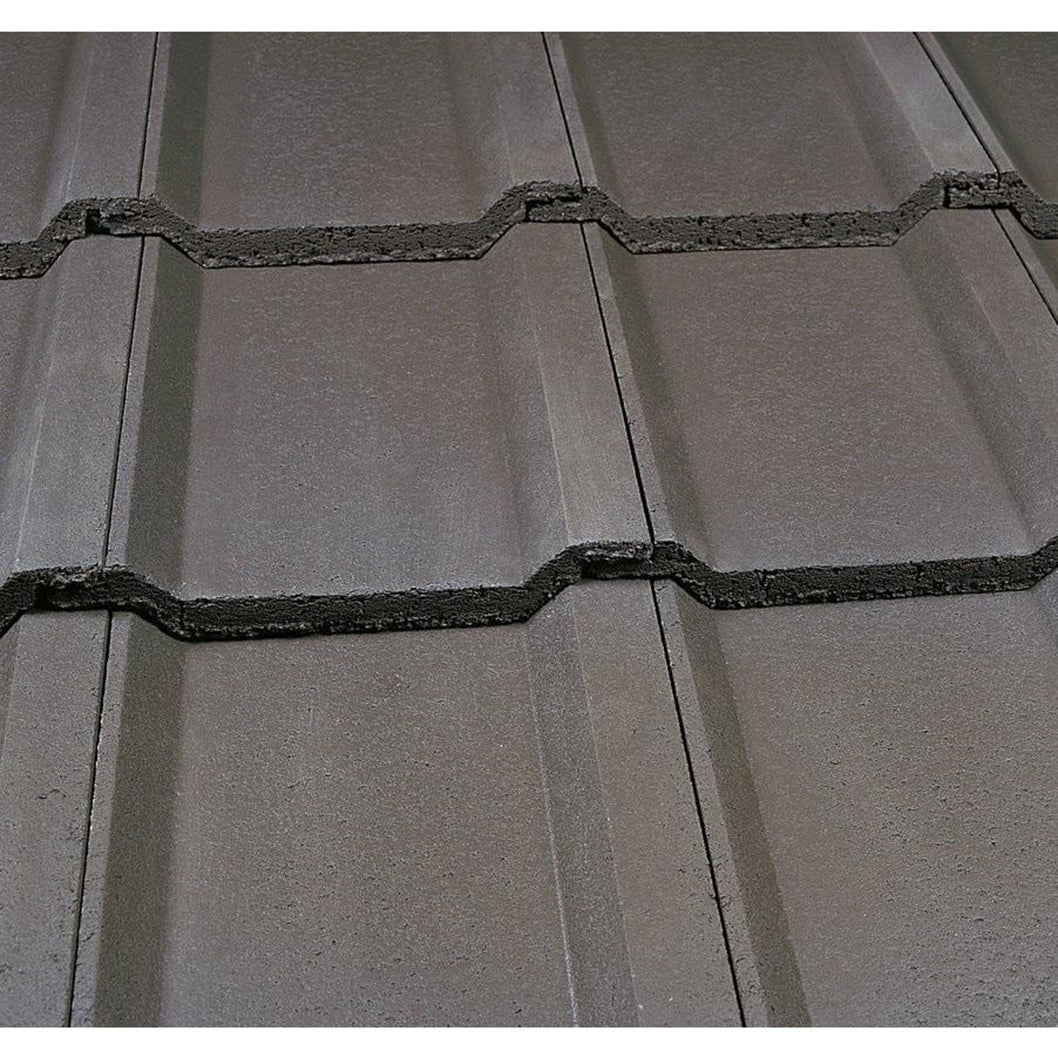

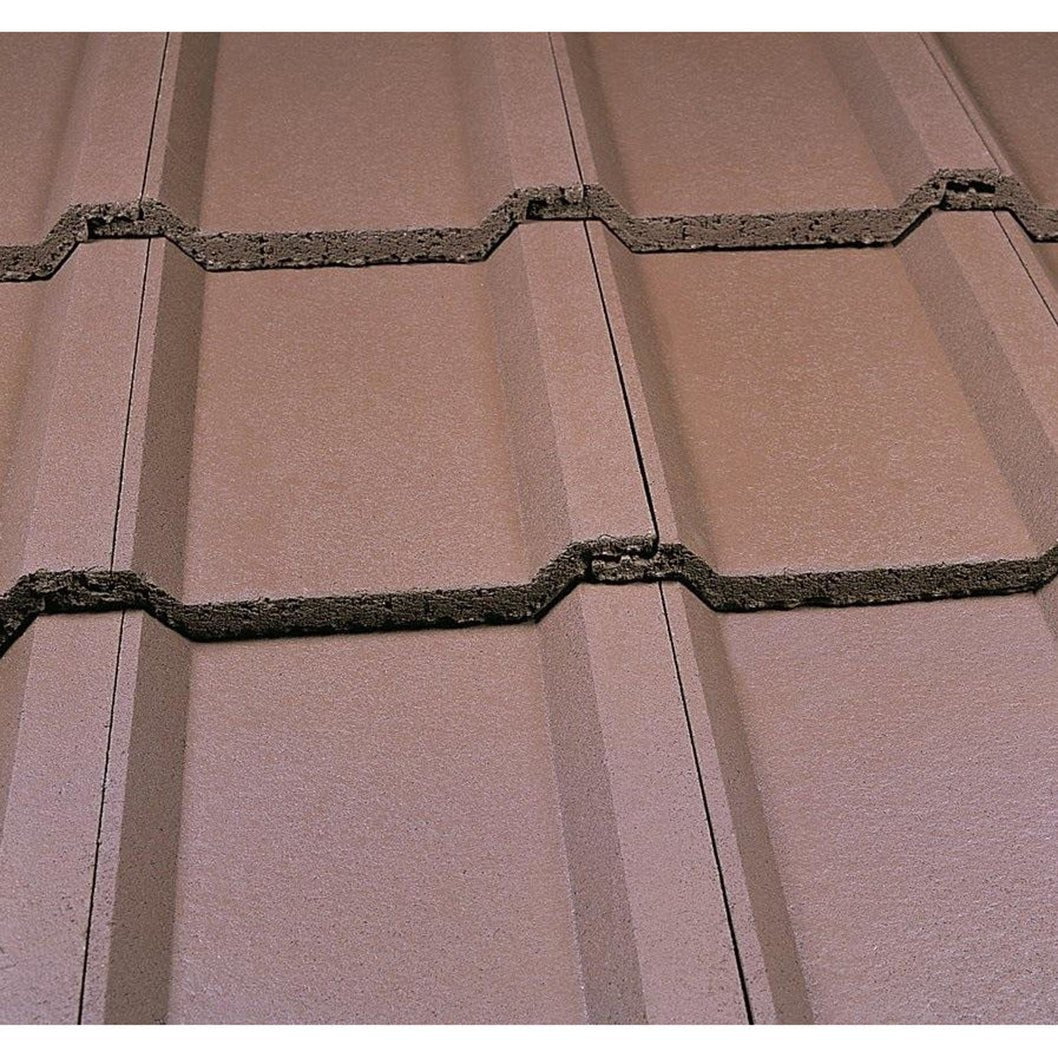

Available in two timeless, understated concrete finishes: Smooth Grey – A classic neutral tone that suits virtually any property style. Smooth Brown – Warm and subtle, perfect for creating a natural, earthy aesthetic.

Performance & Practical Benefits

The Wessex tile offers excellent coverage and efficiency, requiring as few as 9.7 tiles per m² at a 75mm headlap. Its interlocking design improves installation speed and accuracy while ensuring strong performance even in demanding weather conditions. For structural compatibility, the tile’s hanging length of 403mm and flexible gauge options make it suitable for a wide range of roofing layouts. When installed correctly, the system ensures excellent wind resistance and long-term reliability.

Technical Specifications

Tile Size: 420mm x 330mm Minimum Pitch: 15° Maximum Pitch: 44° Minimum Headlap: 75mm Maximum Gauge: 345mm Cover Width: 298mm (nominal) Covering Capacity: 9.7 tiles/m² at 75mm headlap 10.5 tiles/m² at 100mm headlap Weight of Tiling: 50 kg/m² at 75mm headlap 53 kg/m² at 100mm headlap Battens Required: 2.9 lin.m/m² at 75mm headlap 3.1 lin.m/m² at 100mm headlap Recommended Batten Size: 38 x 25mm (rafters ? 450mm centres) 50 x 25mm (rafters ? 600mm centres) Fixings: Eaves, verge and tile clips Hanging Length: 403mm

FAQs

Are Wessex tiles suitable for low-pitch roofs?

Yes. They are specifically engineered for low-pitch applications and can be installed on roofs with pitches starting at just 15 degrees.

Do these tiles require special fixings?

Standard eaves, verge and tile clips are recommended to ensure secure installation and compliance with modern roofing standards.

How many tiles will I need per square metre?

Depending on the headlap, you will need 9.7 tiles/m² at 75mm or 10.5 tiles/m² at 100mm.
