Marley Modern Interlocking Concrete Roof Tile

Marley Wessex Interlocking Concrete Tile

The Marley Wessex Interlocking Concrete Tile is crafted for performance, durability and design flexibility. Engineered with a distinctive profile that excels on low-pitch and vertical applications, this tile offers exceptional weather protection and a sleek, modern finish. Its interlocking design improves installation efficiency while delivering long-term reliability for both new-build projects and reroofing work. With a tile size of 420mm x 330mm and a versatile pitch range between 17.5° and 90°, the Wessex tile supports a wide variety of roof designs. Whether used on standard pitched roofs or steep vertical elevations, it maintains excellent wind resistance, water shedding capability and structural stability.

Available Colours

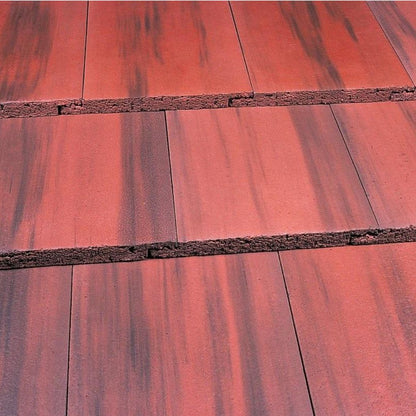

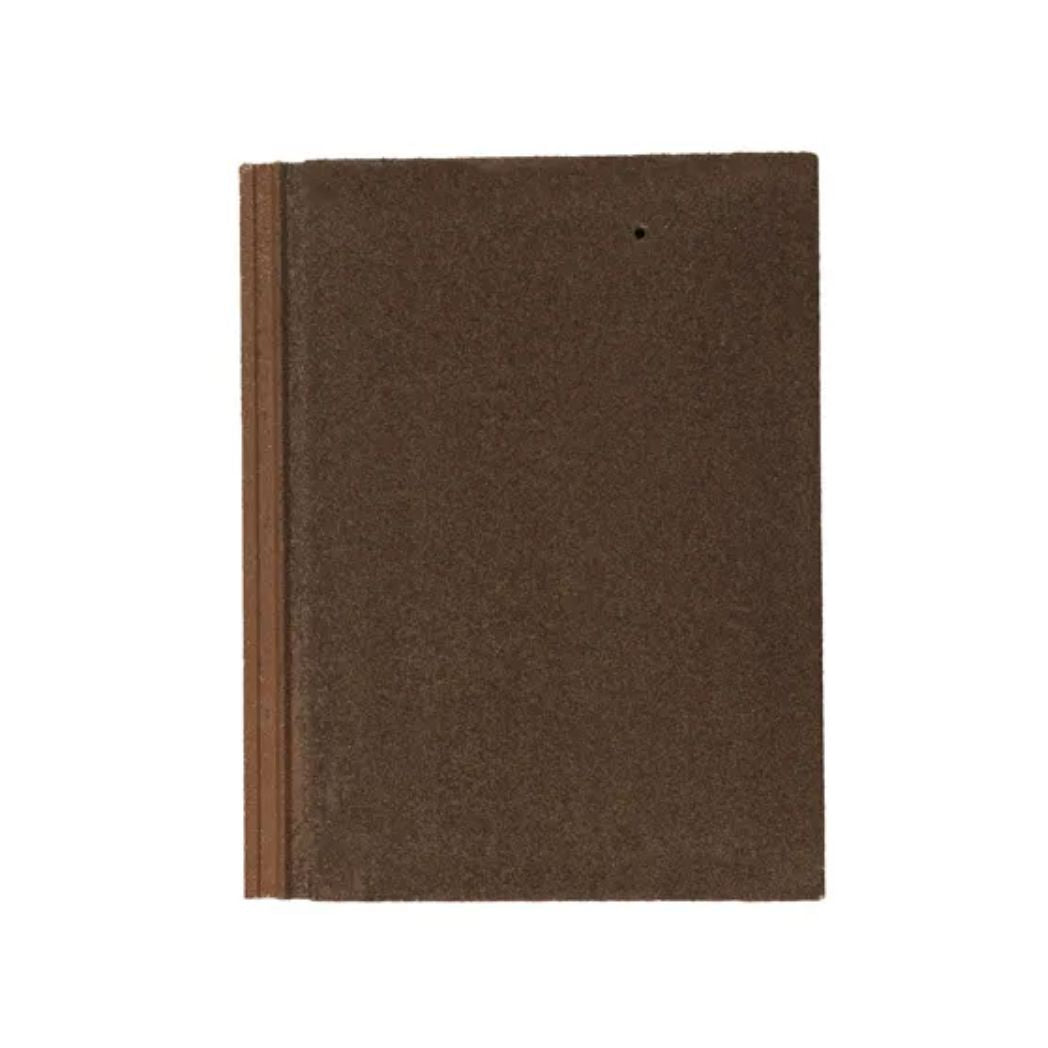

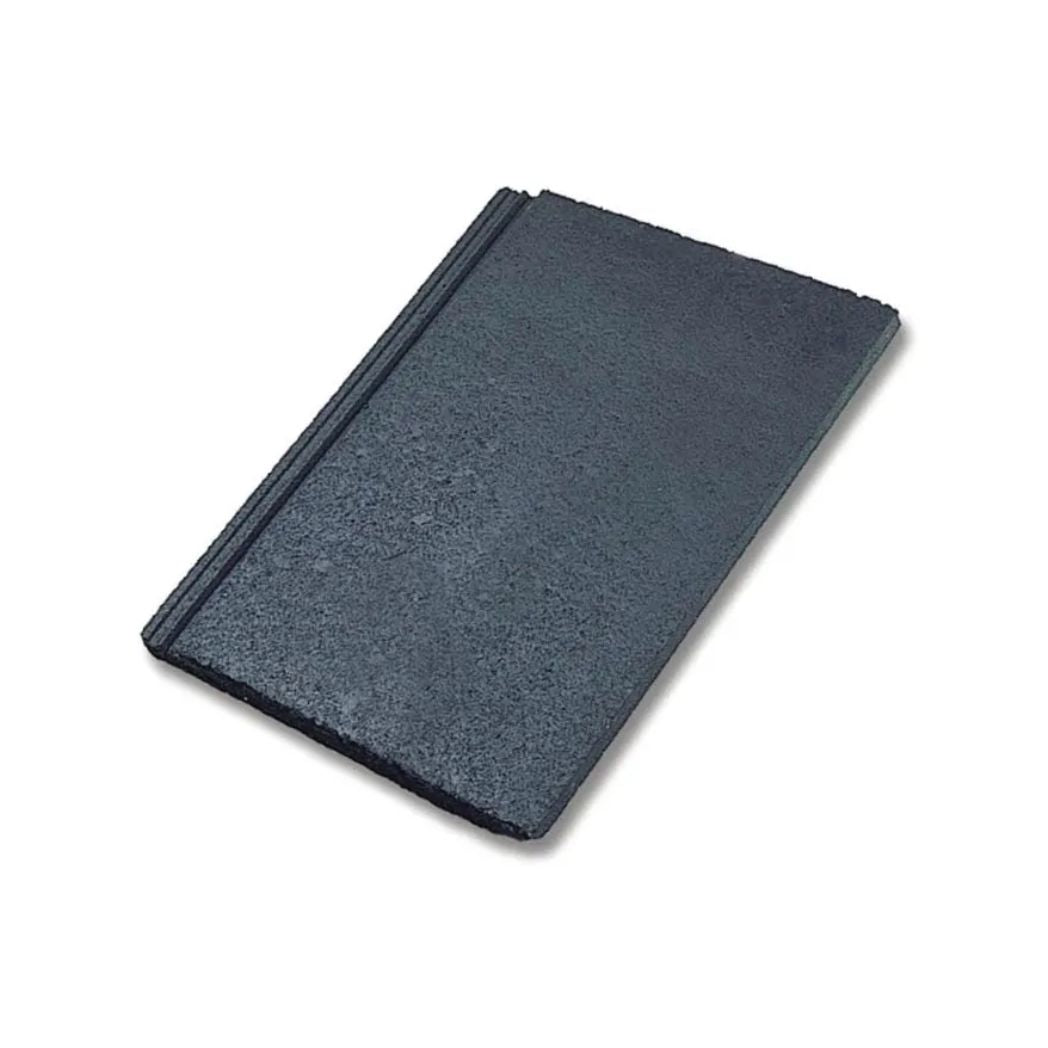

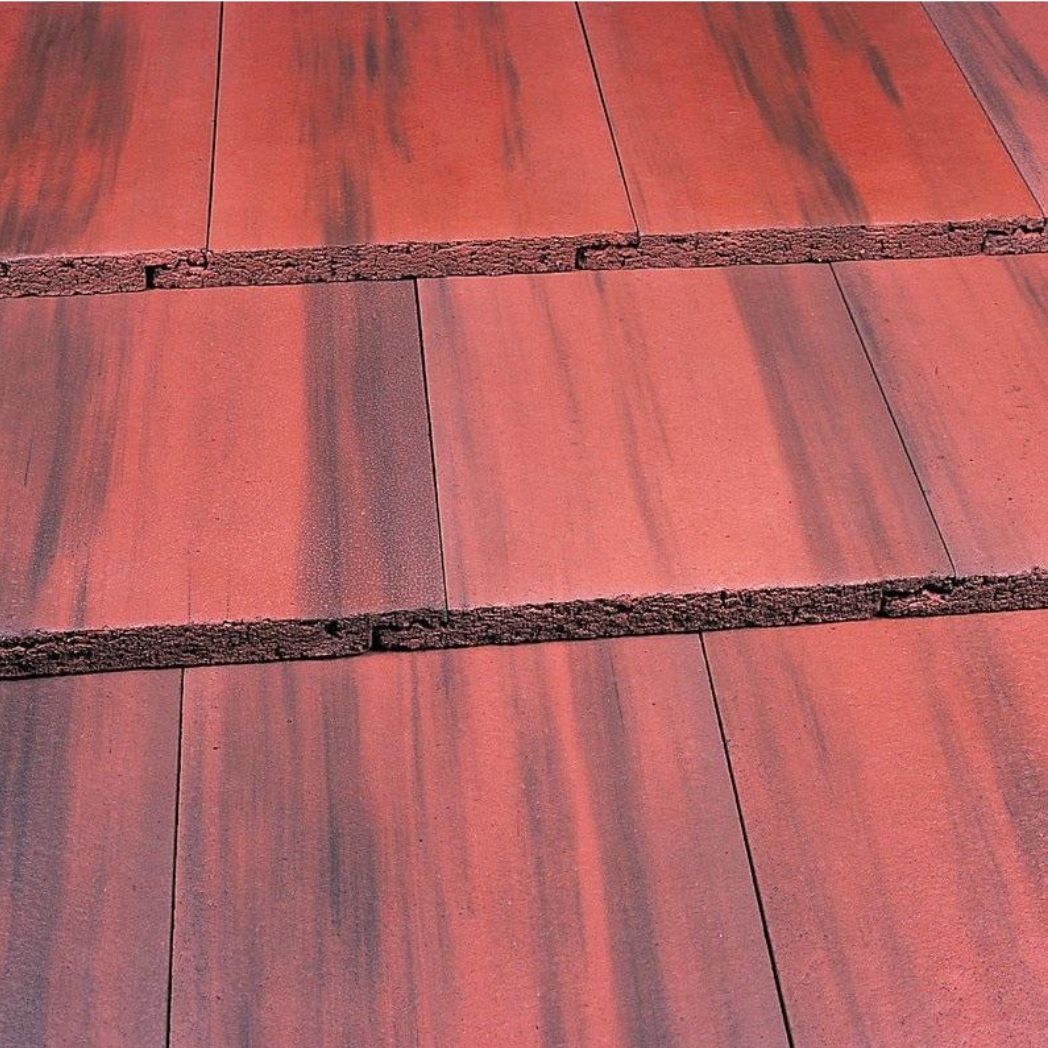

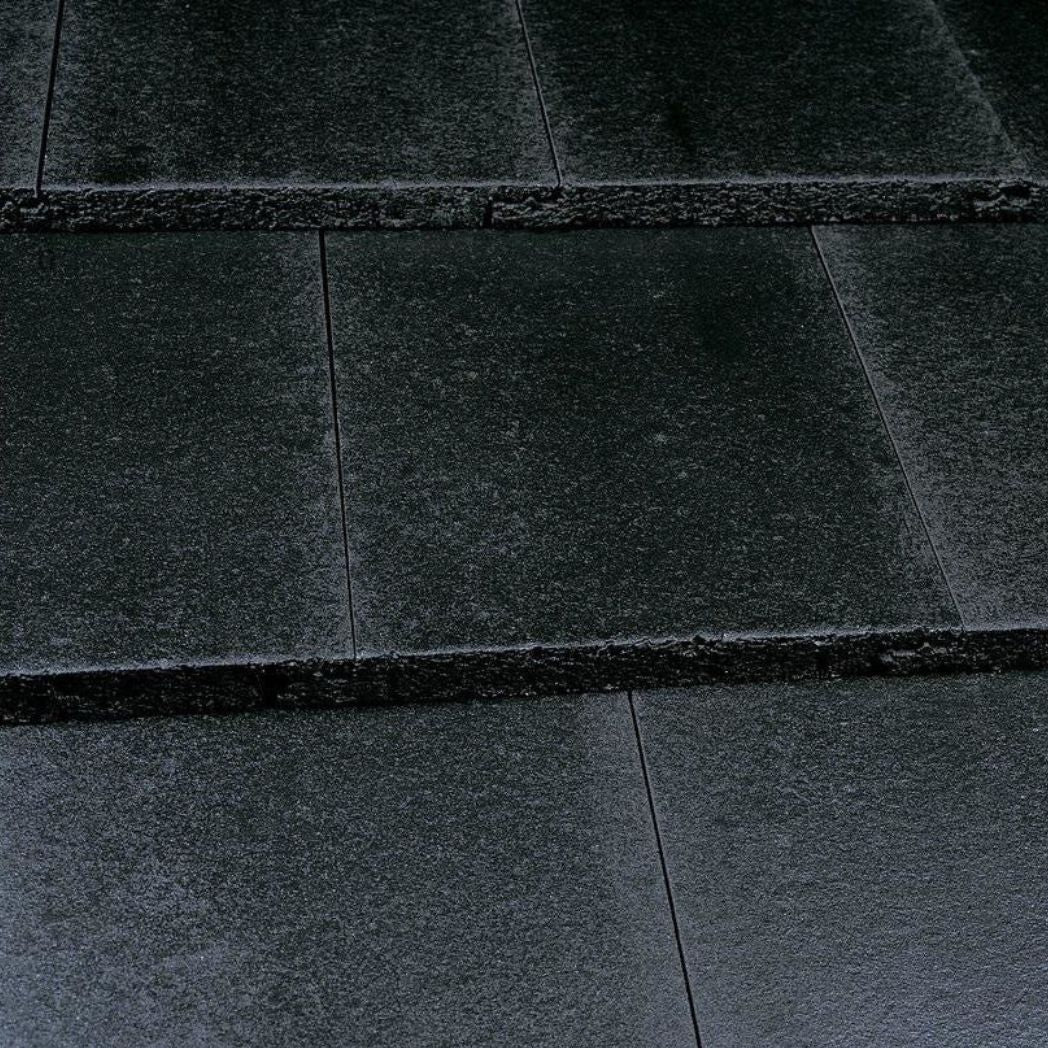

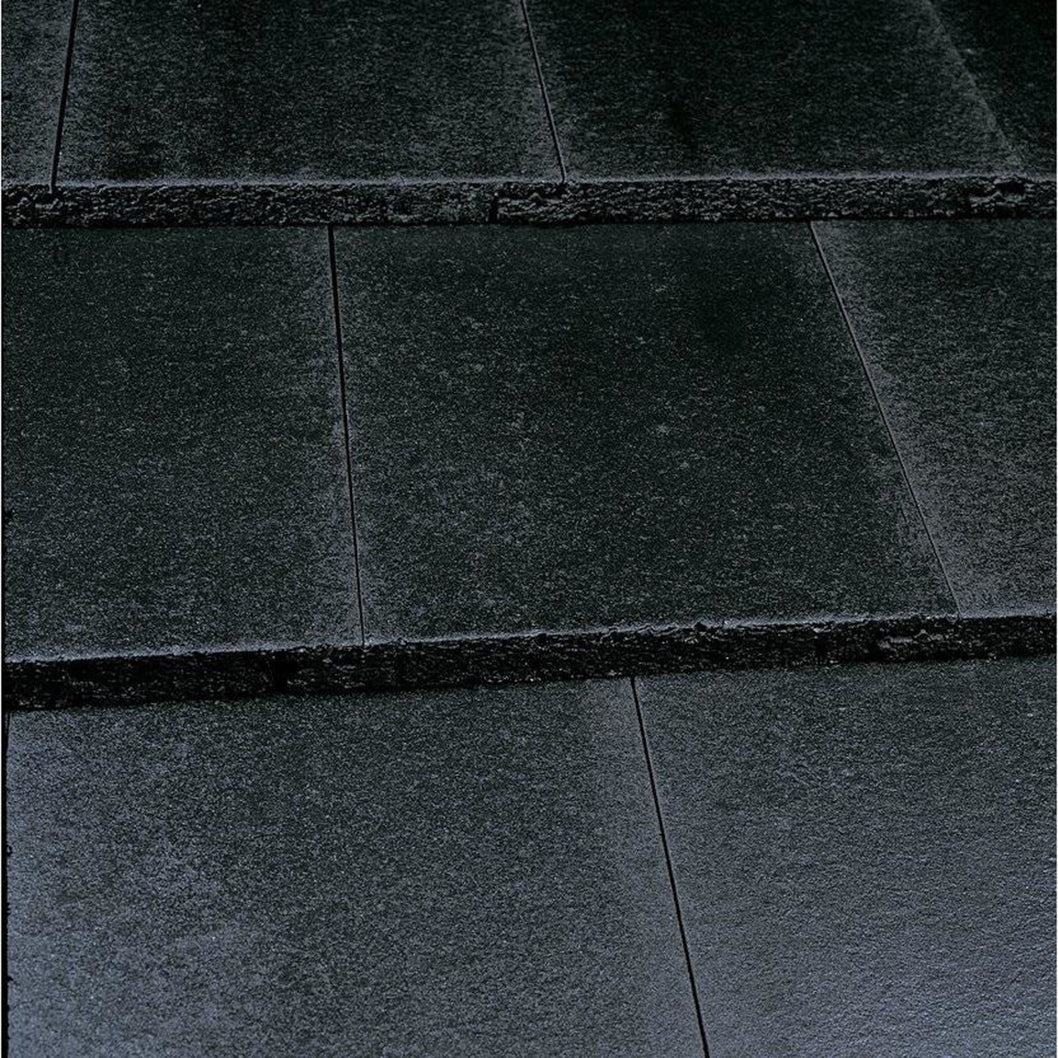

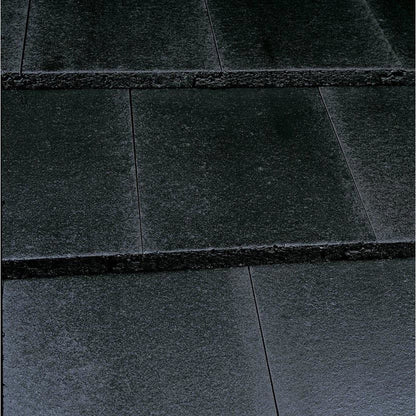

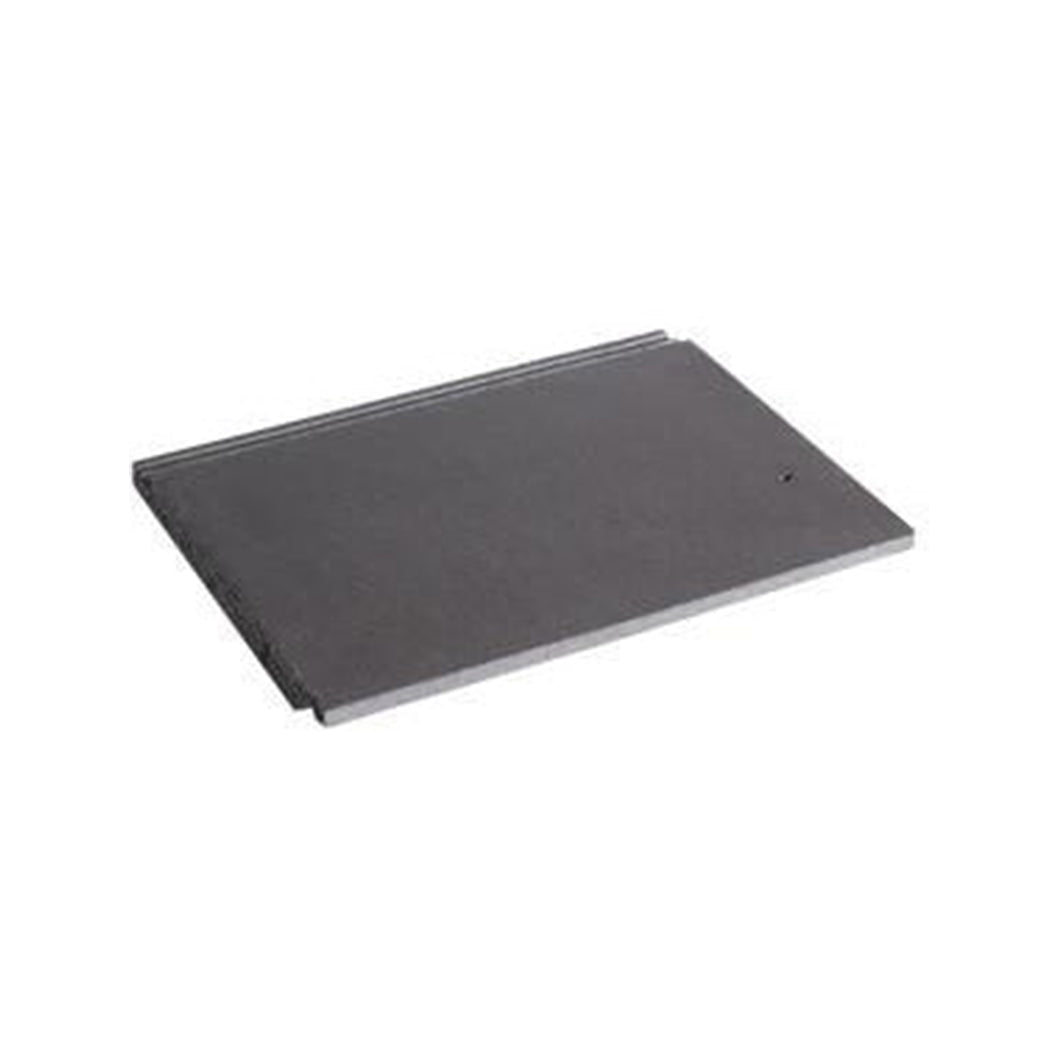

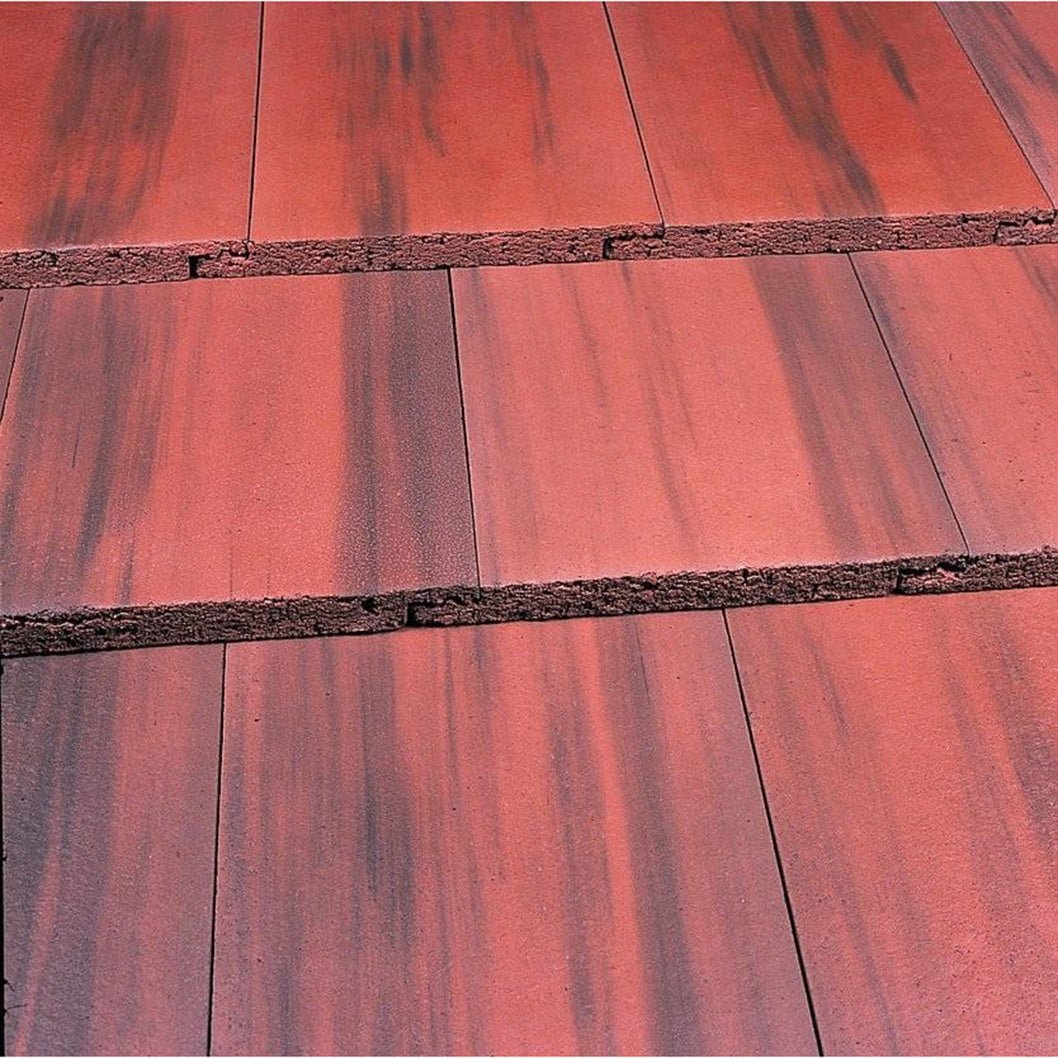

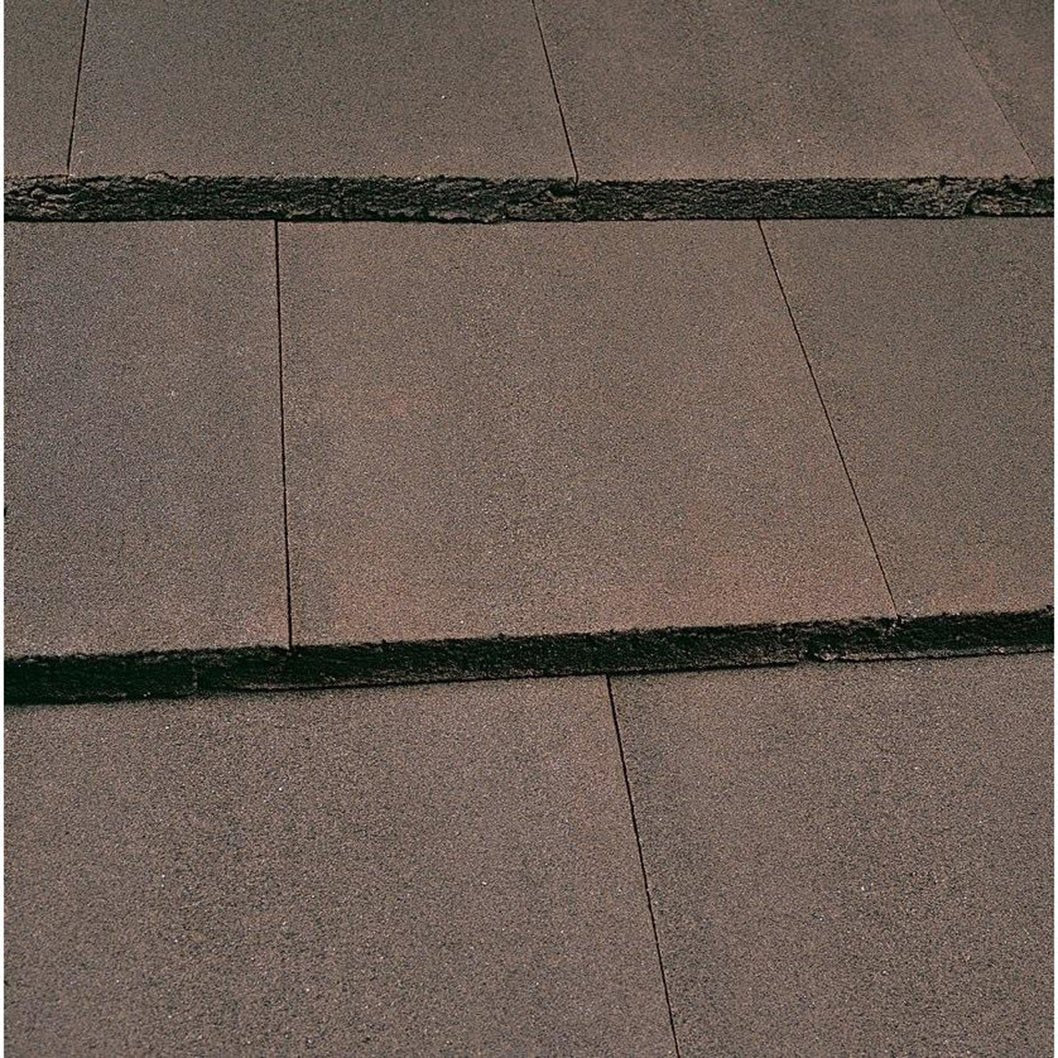

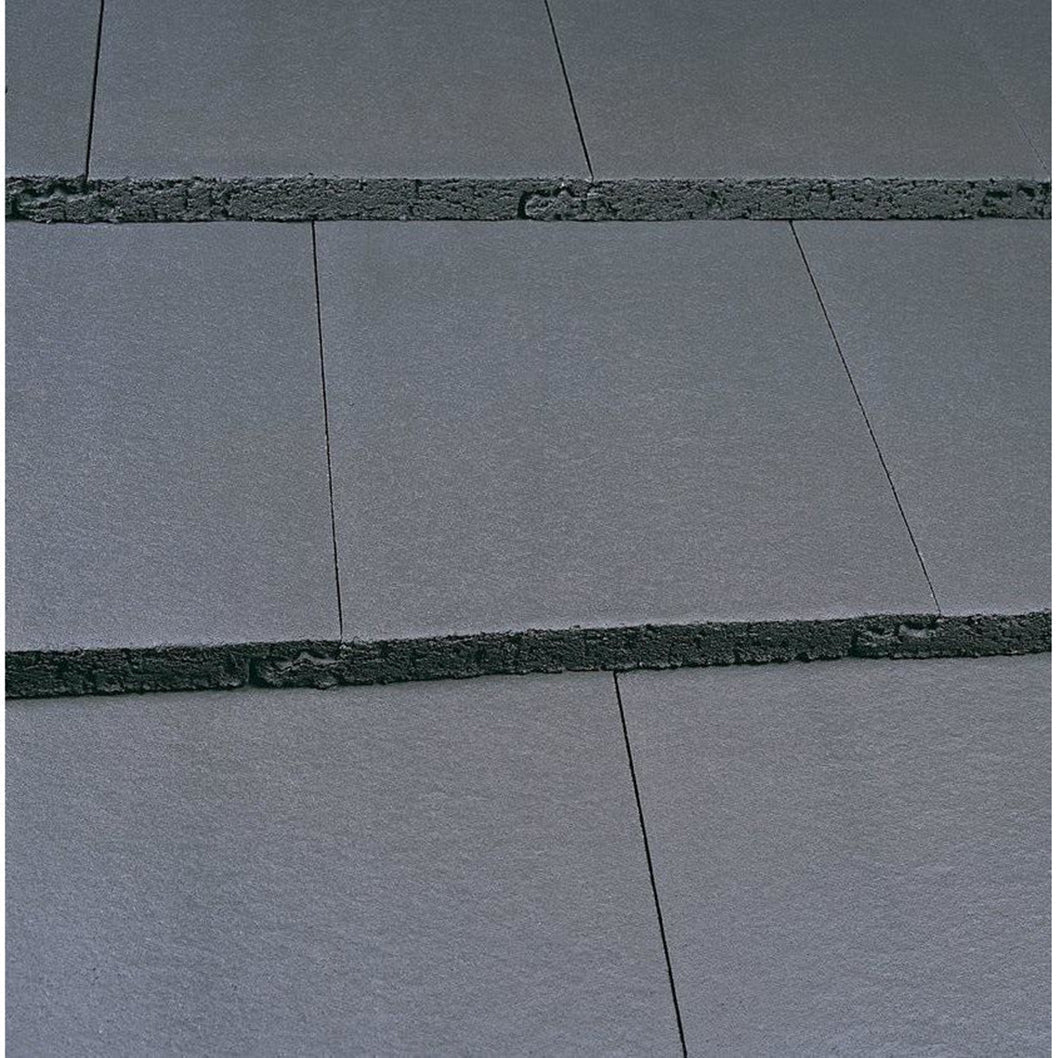

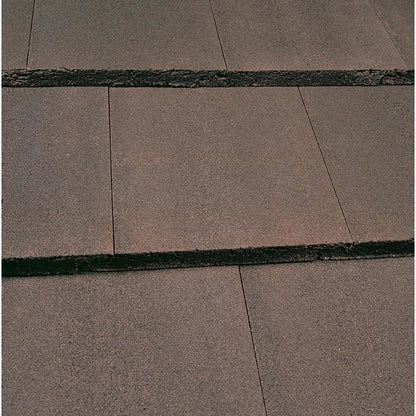

Choose from four attractive and timeless colours designed to complement both contemporary and traditional buildings: Smooth Grey – A crisp, refined finish ideal for modern architecture. Antique Brown – Warm and characterful with classic heritage appeal. Anthracite – A deep, striking shade perfect for bold design statements. Old English Dark Red – A traditional, rich tone full of depth and charm.

Performance & Practical Benefits

The Wessex tile offers outstanding covering efficiency, requiring only 9.9 tiles/m² at a 75mm headlap. Its durable concrete construction provides excellent resistance against harsh weather and environmental wear. These tiles also offer good dimensional accuracy, ensuring a clean and consistent finish across the roofscape. The tile’s hanging length of 397mm and flexible headlap options make it easy to adapt to various roofing conditions. Coupled with reliable fixing options, including tile nails and clips, the system delivers secure performance even in demanding environments.

Technical Specifications

Tile Size: 420mm x 330mm Minimum Pitch: 22.5° Smooth (75mm headlap) 17.5° Smooth (100mm headlap) 30° Granular (75mm headlap) 25° Granular (100mm headlap) Maximum Pitch: 90° Minimum Headlap: 75mm (22.5° and above) Maximum Gauge: 345mm Cover Width: 292mm (nominal) Covering Capacity: 9.9 tiles/m² at 75mm headlap 10.7 tiles/m² at 100mm headlap Weight of Tiling: 50kg/m² at 75mm headlap 54kg/m² at 100mm headlap Battens Required: 2.9 lin.m/m² at 75mm headlap 3.1 lin.m/m² at 100mm headlap Recommended Batten Sizes: 38 x 25mm (rafters ? 450mm centres) 50 x 25mm (rafters ? 600mm centres) Tile Nails: 50mm x 3.35mm Fixings: Eaves, verge & tile clips Hanging Length: 397mm (nominal)

FAQs

Are Marley Wessex tiles suitable for low-pitch roofs?

Yes. They can be used on pitches as low as 17.5° for smooth finishes when installed with a 100mm headlap, making them ideal for challenging or modern roof designs.

What fixing methods are recommended?

These tiles are typically fixed using 50mm x 3.35mm nails, along with eaves, verge and tile clips to ensure a secure and compliant installation.

How many tiles are required per square metre?

Depending on the headlap, you will need 9.9 tiles per m² at 75mm or 10.7 tiles per m² at 100mm.
