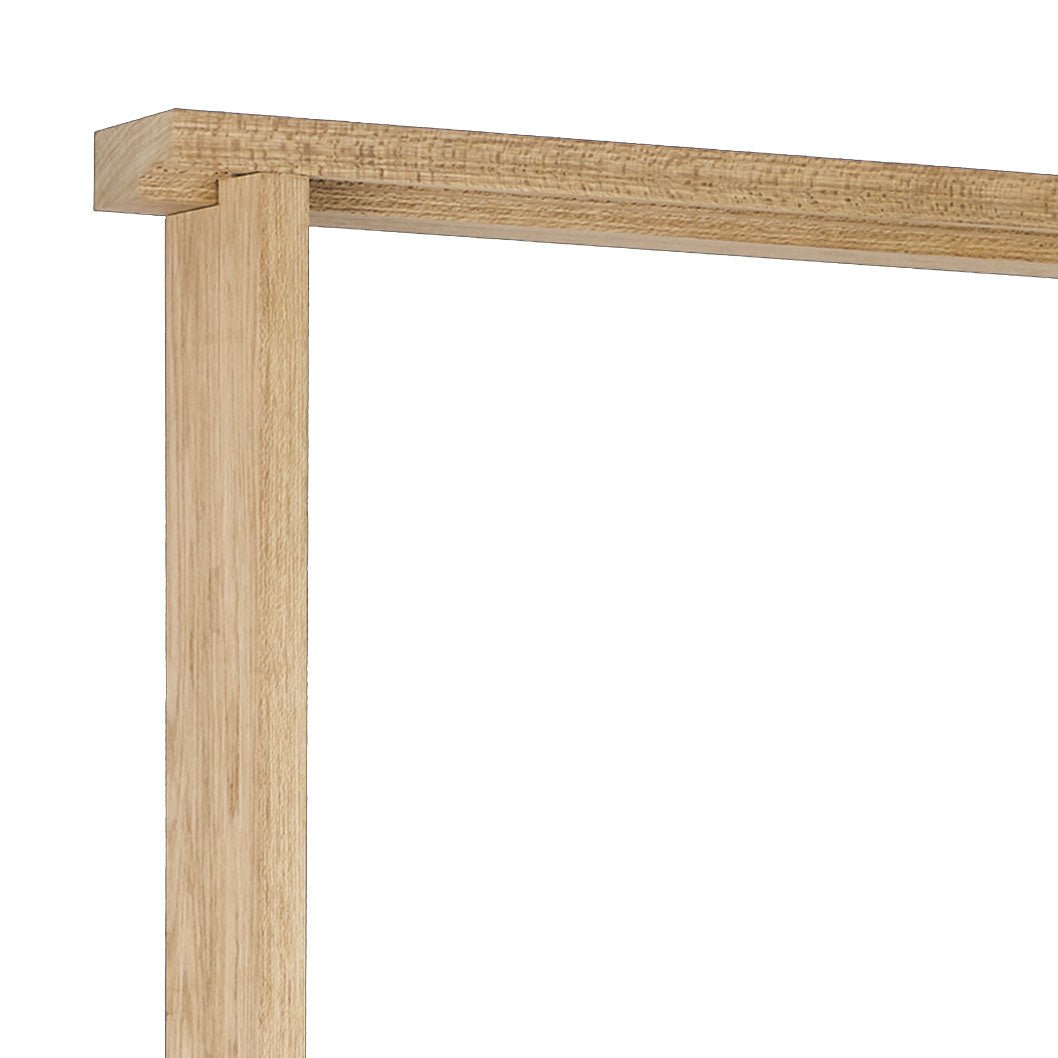

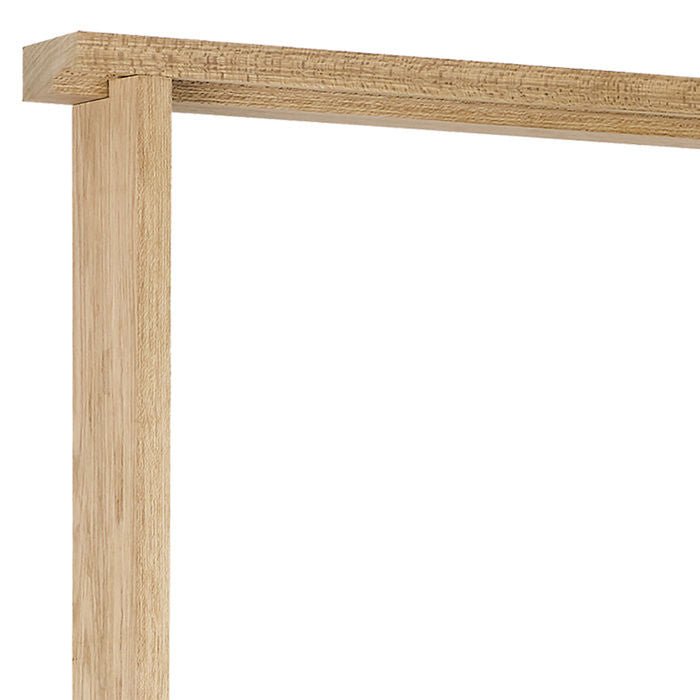

LPD Doors Universal Door Lining Oak Fire FD60

LPD Doors Universal Oak Fire Door Lining FD60

The LPD Doors Universal Oak Fire Door Lining FD60 is designed to provide a reliable and professional frame solution for FD60 fire door installations. Manufactured with a solid engineered core and finished in unfinished oak, this lining combines strength, durability, and flexibility for a wide range of internal fire door applications.

Suitable For FD60 Fire Door Systems

These fire-rated door linings are designed for use with FD60 fire doors and can provide up to 60 minutes of fire resistance when correctly installed as part of a compliant fire door system. Each lining is trenched with two 15 x 4mm grooves to accommodate intumescent strips, helping to improve fire and smoke protection around the door. A loose stop is also supplied for easier fitting and adjustment during installation.

Natural Oak Finish Ready For Customisation

Supplied unfinished, these oak fire door linings can be stained, varnished, or painted to suit your chosen interior style and fire door finish. The natural oak appearance makes them ideal for both traditional and contemporary interiors. Available in both 108mm and 133mm widths, these linings provide flexibility for different wall thicknesses and installation requirements.

Solid Engineered Construction

Manufactured using a solid engineered core, these FD60 door linings are built to provide excellent stability, strength, and long-lasting performance. They are designed specifically for internal fire door installations where additional fire protection is required.

Product Specifications

UNIDL60108FDOAK
Product code: UNIDL60108FDOAK
Product type: Door Lining FD60
Height: 2100mm
Width: 108mm
Thickness: 32mm
Weight: 15kg
Finish type: Unfinished
Core type: Solid Engineered
Fire rating: 60 Minutes

UNIDL60133FDOAK
Product code: UNIDL60133FDOAK
Product type: Door Lining FD60
Height: 2100mm
Width: 133mm
Thickness: 32mm
Weight: 15kg
Finish type: Unfinished
Core type: Solid Engineered
Fire rating: 60 Minutes

FAQs

What is an FD60 fire door lining used for?

An FD60 fire door lining is designed for use with FD60 fire doors and helps provide up to 60 minutes of fire resistance when installed correctly.

Does this lining include grooves for intumescent strips?

Yes, the lining is trenched with two 15 x 4mm grooves for fitting intumescent strips.

Can the unfinished oak surface be treated or painted?

Yes, the unfinished oak surface can be stained, varnished, or painted to match your interior décor and fire door finish.
