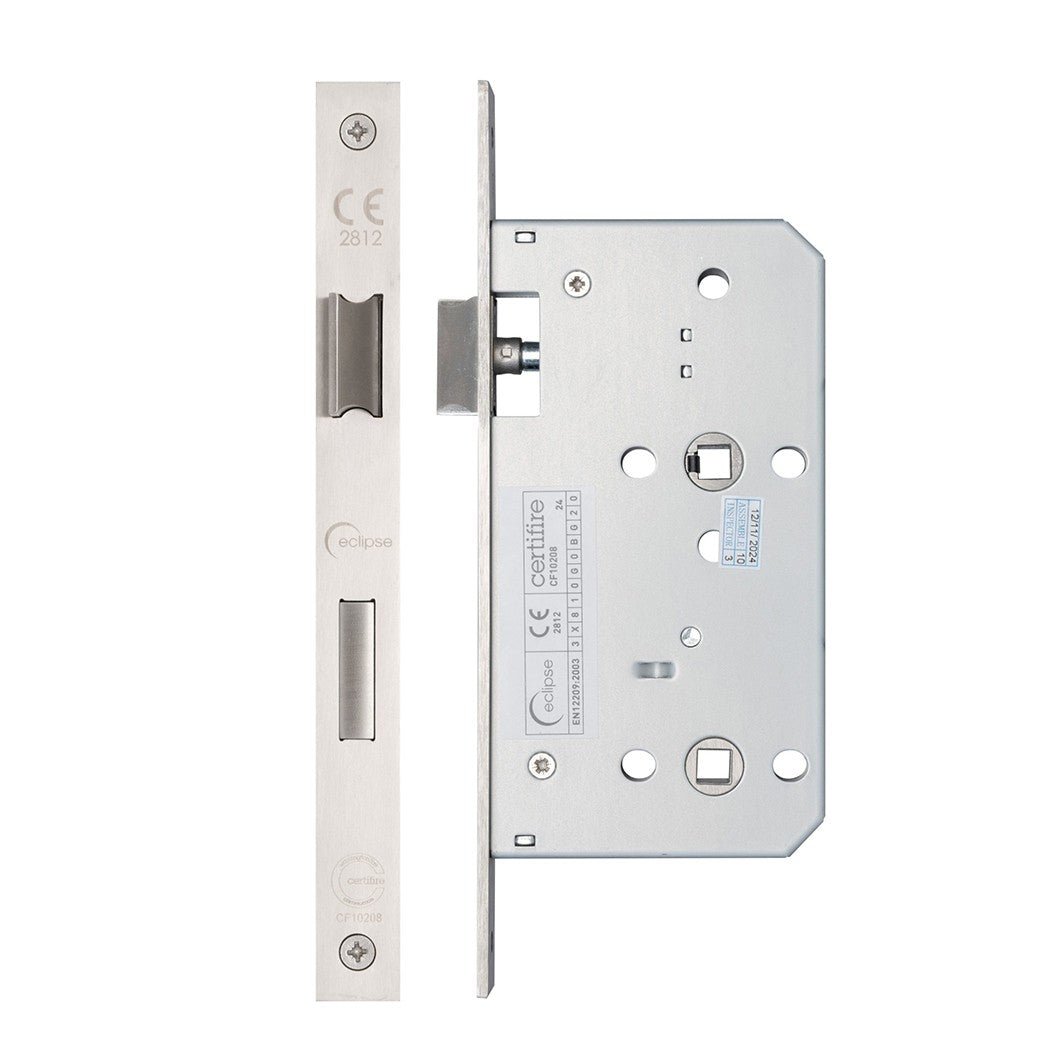

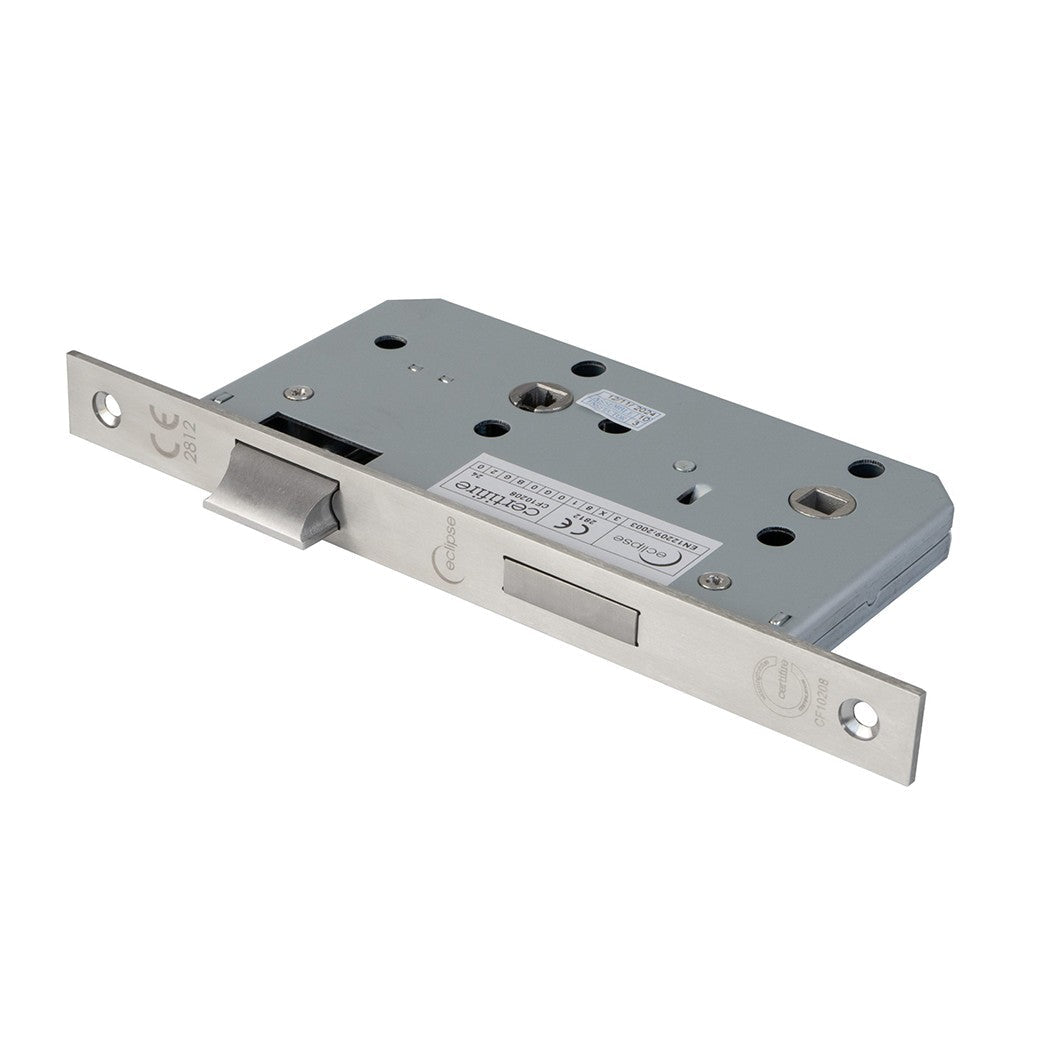

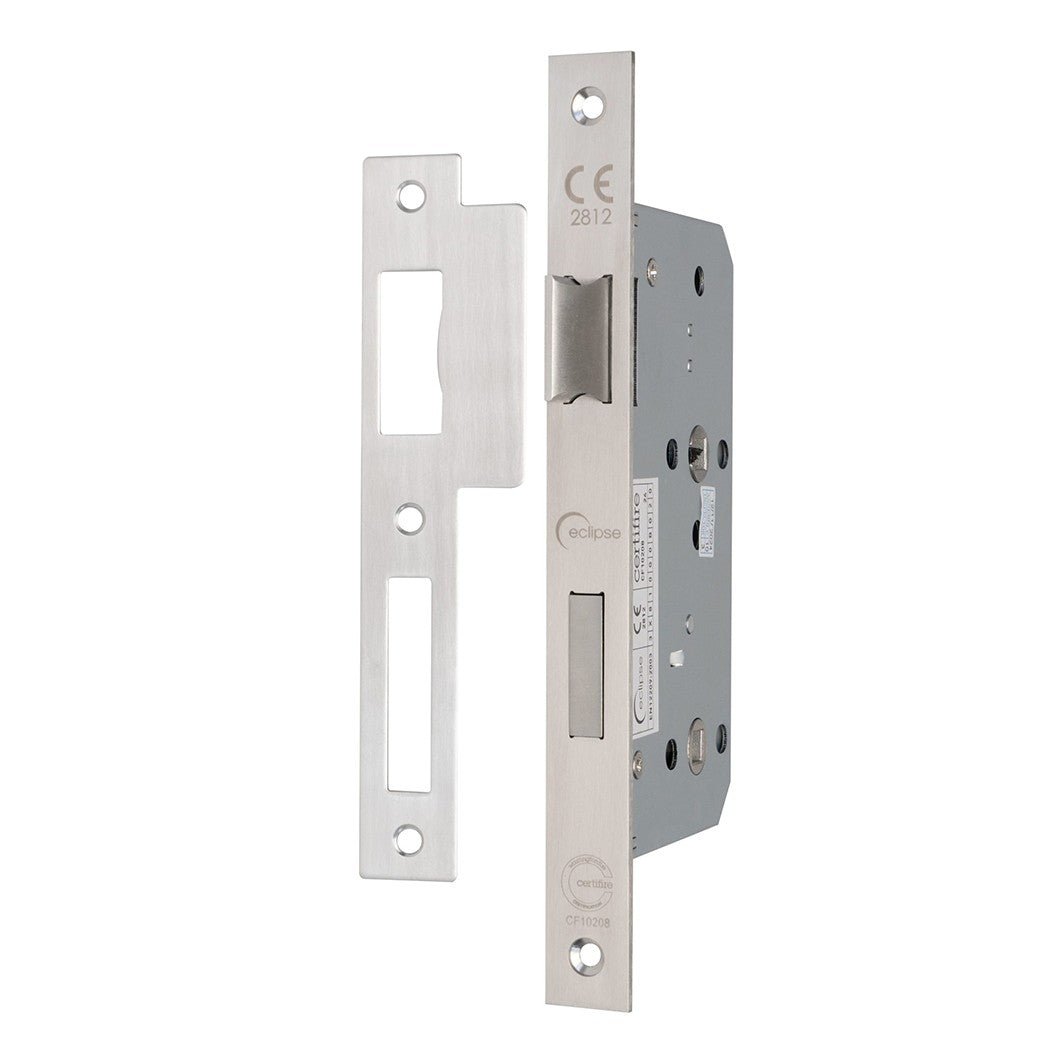

Frisco Eclipse Satin Stainless Steel Din Bathroom Lock Square 60mm

Frisco Eclipse Satin Stainless Steel DIN Bathroom Lock Square 60mm

The Frisco Eclipse Satin Stainless Steel DIN Bathroom Lock is a robust architectural locking solution designed for compatible bathroom door applications. With a durable 304 stainless steel construction and extensive fire and performance testing, it is well suited to demanding commercial and architectural installations.

Fire and Performance Tested

This 60mm DIN bathroom lock is CE 2812 and Certifire approved (CF10208) and has been performance tested to BS EN 12209. It has also been tested to 200,000 cycles at 120Nm, providing confidence in its suitability for applications requiring dependable long-term operation. The lock has been fire tested to BS EN 1634, achieving FD30, FD60, FD90 and FD120 ratings in timber doors and FD240 in steel doors. Intumescent protection must be used with the product for fire door compliance.

Durable Stainless Steel Construction

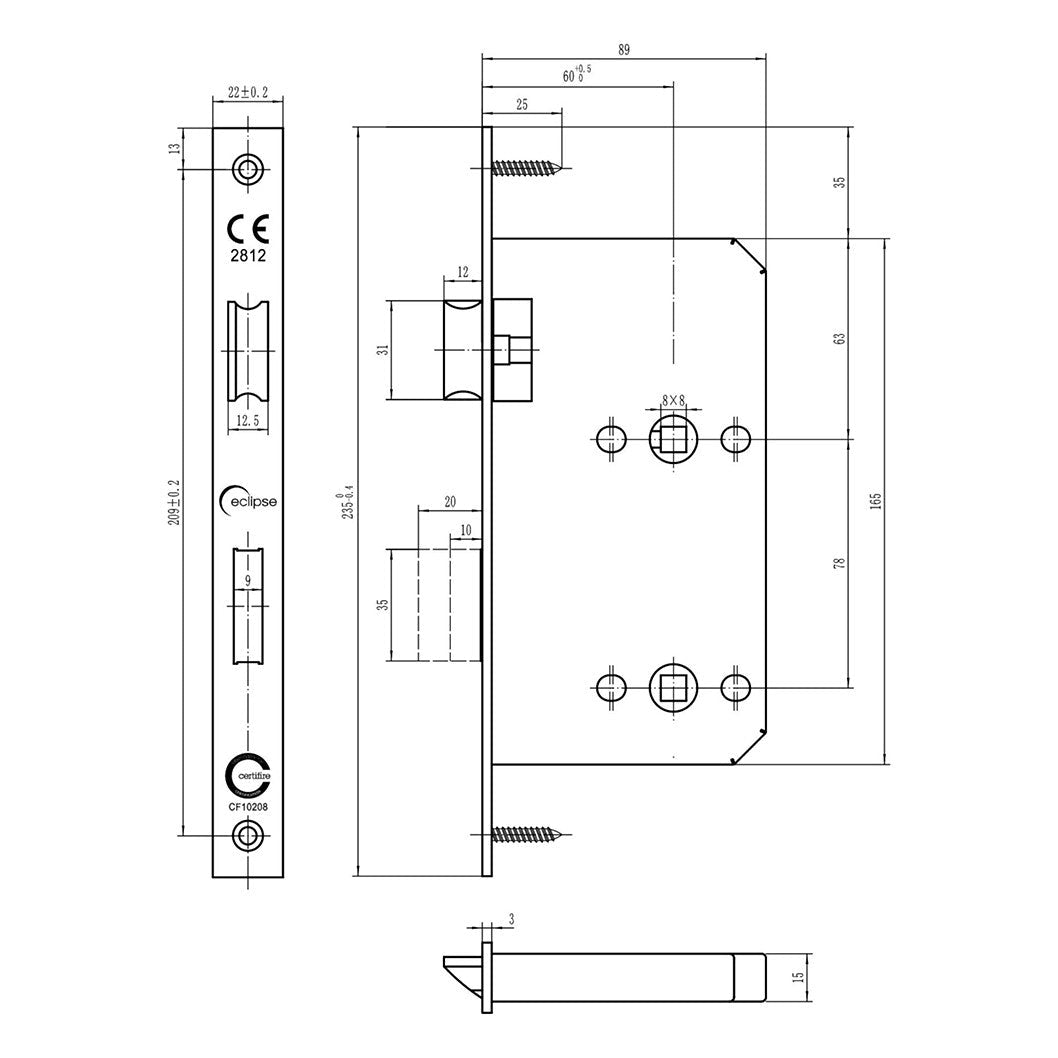

The lock features 304 stainless steel components, including the forend, latch, deadbolt, follower and strike plate. It has a 60mm backset, 22mm forend and a 3mm thick one-piece forend for a strong and neat installation. The lock includes an 8mm follower with a 5mm conversion kit and has 78mm centres. A 12mm latch and 20mm double-throw deadbolt provide reliable door operation and secure engagement.

Key Features

• Satin Stainless Steel finish
• DIN bathroom lock with 60mm backset
• Square forend design
• CE 2812 approved
• Certifire approved - CF10208
• BS EN 12209 performance tested
• Tested to 200,000 cycles at 120Nm
• BS EN 1634 fire tested
• FD30, FD60, FD90 and FD120 fire rated in timber doors
• FD240 fire rated in steel doors
• 304 stainless steel forend, latch, deadbolt, follower and strike plate
• 60mm backset
• 22mm forend
• 8mm follower with 5mm conversion kit
• 78mm centres
• 3mm thick one-piece forend
• 12mm latch
• 20mm deadbolt
• Double-throw deadbolt
• Intumescent must be used for fire door compliance
• Anti-rattle strike plate sold separately - Code 71406

Frequently Asked Questions

What fire ratings does this bathroom lock achieve?

The lock has been fire tested to BS EN 1634 and is rated for FD30, FD60, FD90 and FD120 timber door applications, as well as FD240 steel door applications, subject to the requirements of the relevant tested door assembly.

Does this bathroom lock require intumescent protection?

Yes. Intumescent must be used with the product for fire door compliance. The lock should be installed in accordance with the requirements of the relevant tested and approved fire door system.

What are the centres and follower specifications?

The lock has 78mm centres and features an 8mm follower with a 5mm conversion kit. It also incorporates a 12mm latch and 20mm double-throw deadbolt for reliable operation.
