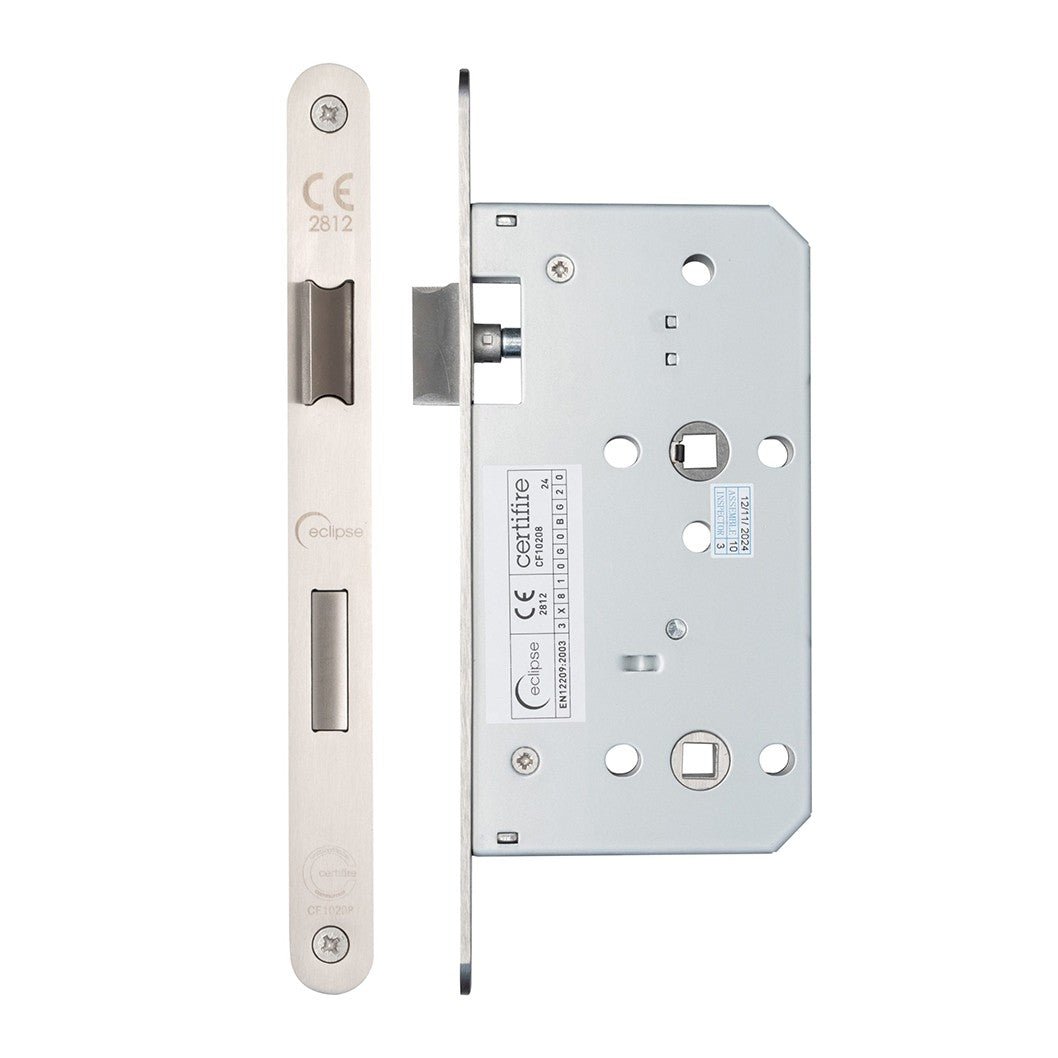

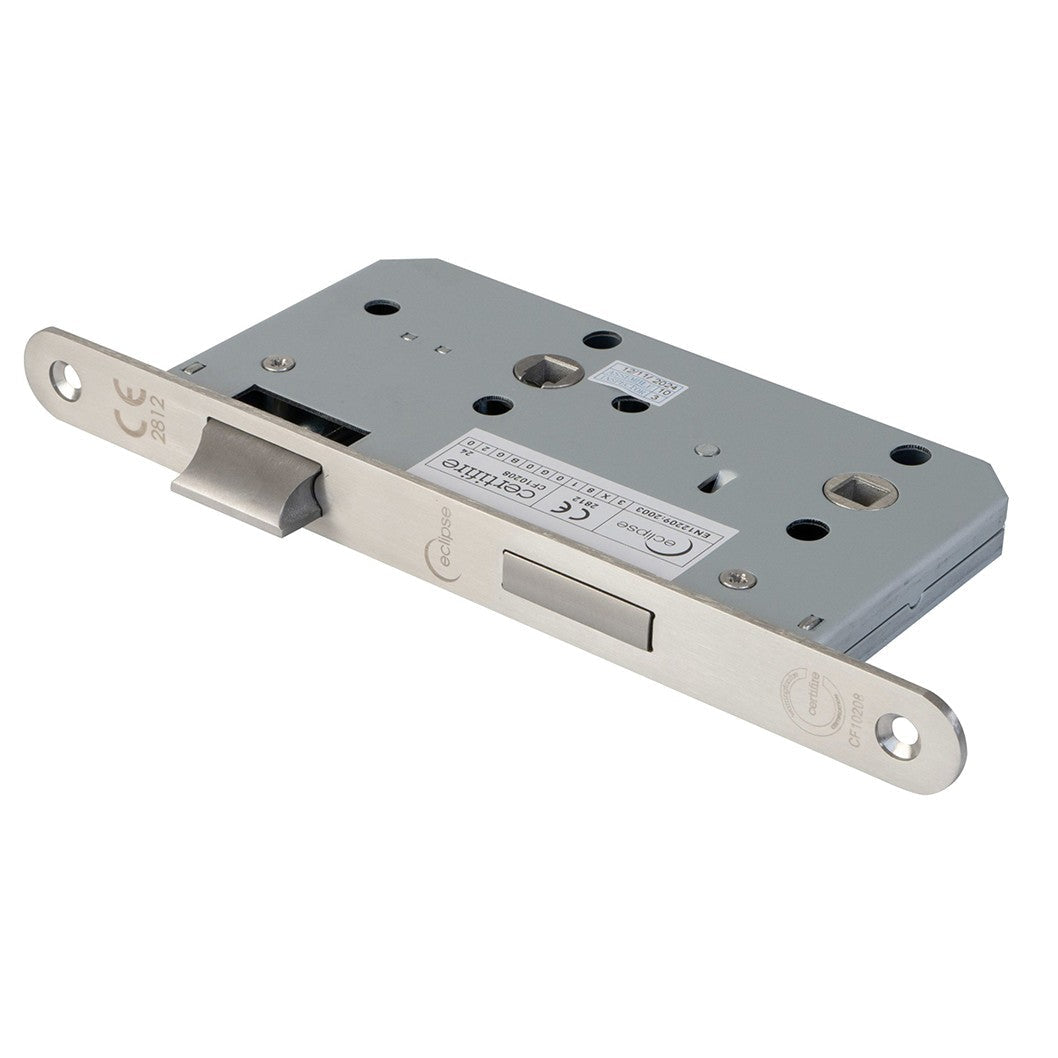

Frisco Eclipse Satin Stainless Steel Din Bathroom Lock Radius 60mm

Frisco Eclipse Satin Stainless Steel DIN Bathroom Lock Radius 60mm

The Frisco Eclipse Satin Stainless Steel DIN Bathroom Lock Radius 60mm is a durable architectural locking solution designed for compatible bathroom and commercial door applications. Built with 304 stainless steel components and extensively tested for performance and fire resistance, it offers dependable operation for demanding installations.

Fire and Performance Tested

This 60mm DIN bathroom lock is CE 2812 and Certifire approved (CF10208) and has been performance tested to BS EN 12209. It has also been tested to 200,000 cycles at 120Nm, making it suitable for applications where reliable long-term performance is important. The lock has been fire tested to BS EN 1634, achieving FD30, FD60, FD90 and FD120 ratings in timber doors and FD240 in steel doors. Intumescent protection must be used with the product for fire door compliance.

Durable Stainless Steel Construction

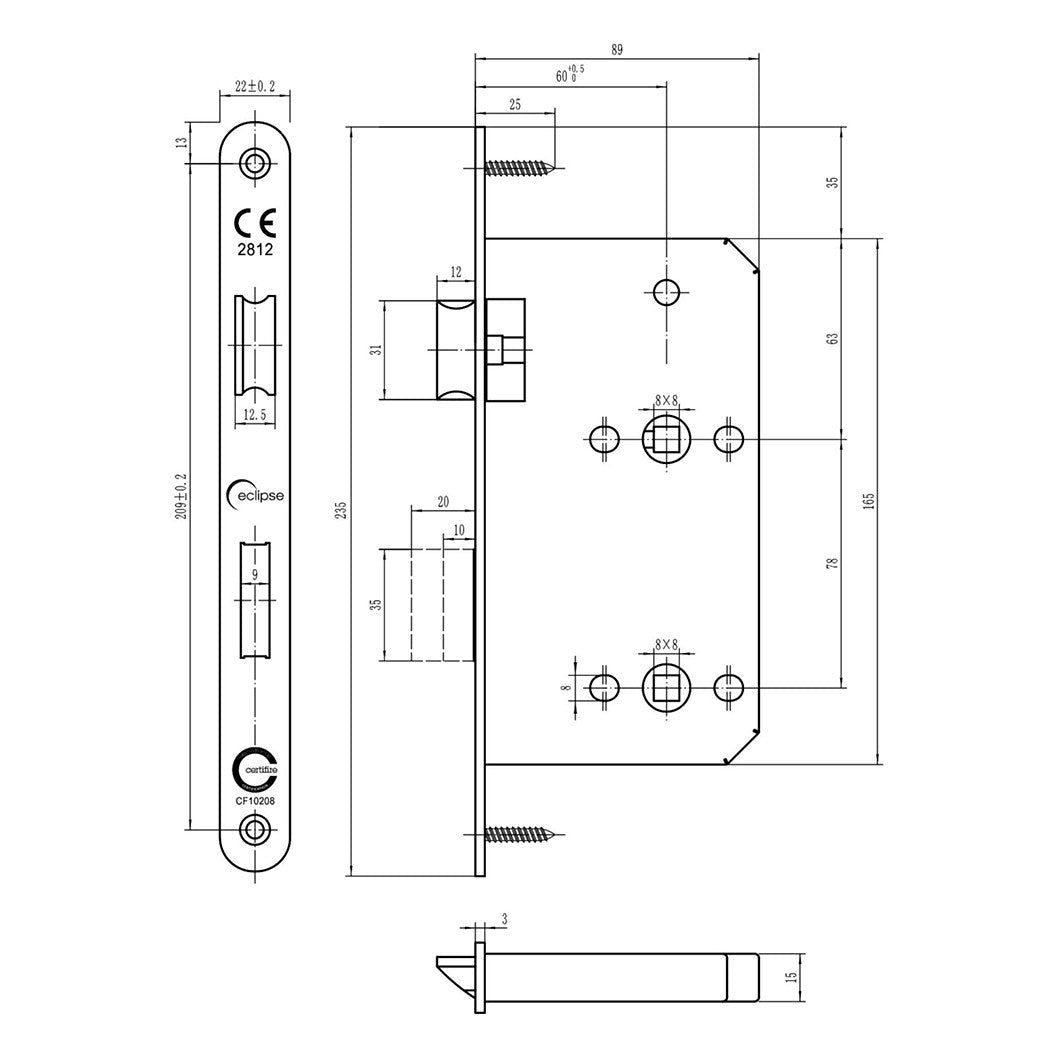

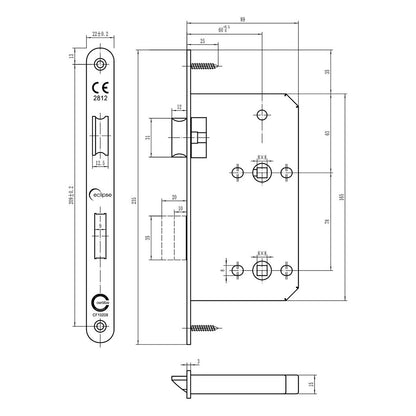

The lock features 304 stainless steel components, including the forend, latch, deadbolt, follower and strike plate. It has a 60mm backset, 22mm forend and a 3mm thick one-piece forend for a strong and tidy installation. It includes an 8mm follower with a 5mm conversion kit and 78mm centres, providing flexibility for compatible bathroom door furniture. The lock also features a 12mm latch and 20mm double-throw deadbolt for reliable operation and secure engagement.

Key Features

• Satin Stainless Steel finish
• DIN bathroom lock with 60mm backset
• Radius forend design
• CE 2812 approved
• Certifire approved - CF10208
• BS EN 12209 performance tested
• Tested to 200,000 cycles at 120Nm
• BS EN 1634 fire tested
• FD30, FD60, FD90 and FD120 fire rated in timber doors
• FD240 fire rated in steel doors
• 304 stainless steel forend, latch, deadbolt, follower and strike plate
• 60mm backset
• 22mm forend
• 8mm follower with 5mm conversion kit
• 78mm centres
• 3mm thick one-piece forend
• 12mm latch
• 20mm deadbolt
• Double-throw deadbolt
• Intumescent must be used for fire door compliance
• Anti-rattle strike plate sold separately - Code 71408

Frequently Asked Questions

What fire ratings does this bathroom lock achieve?

The lock has been fire tested to BS EN 1634 and is rated for FD30, FD60, FD90 and FD120 timber door applications, as well as FD240 steel door applications, subject to the relevant tested door assembly and installation requirements.

Does the lock require intumescent protection?

Yes. Intumescent must be used with the product for fire door compliance. The lock should be installed in accordance with the requirements of the relevant tested and approved fire door system.

What are the follower and centre measurements?

The lock features an 8mm follower with a 5mm conversion kit and has 78mm centres. It also incorporates a 12mm latch and 20mm double-throw deadbolt for dependable door operation.
