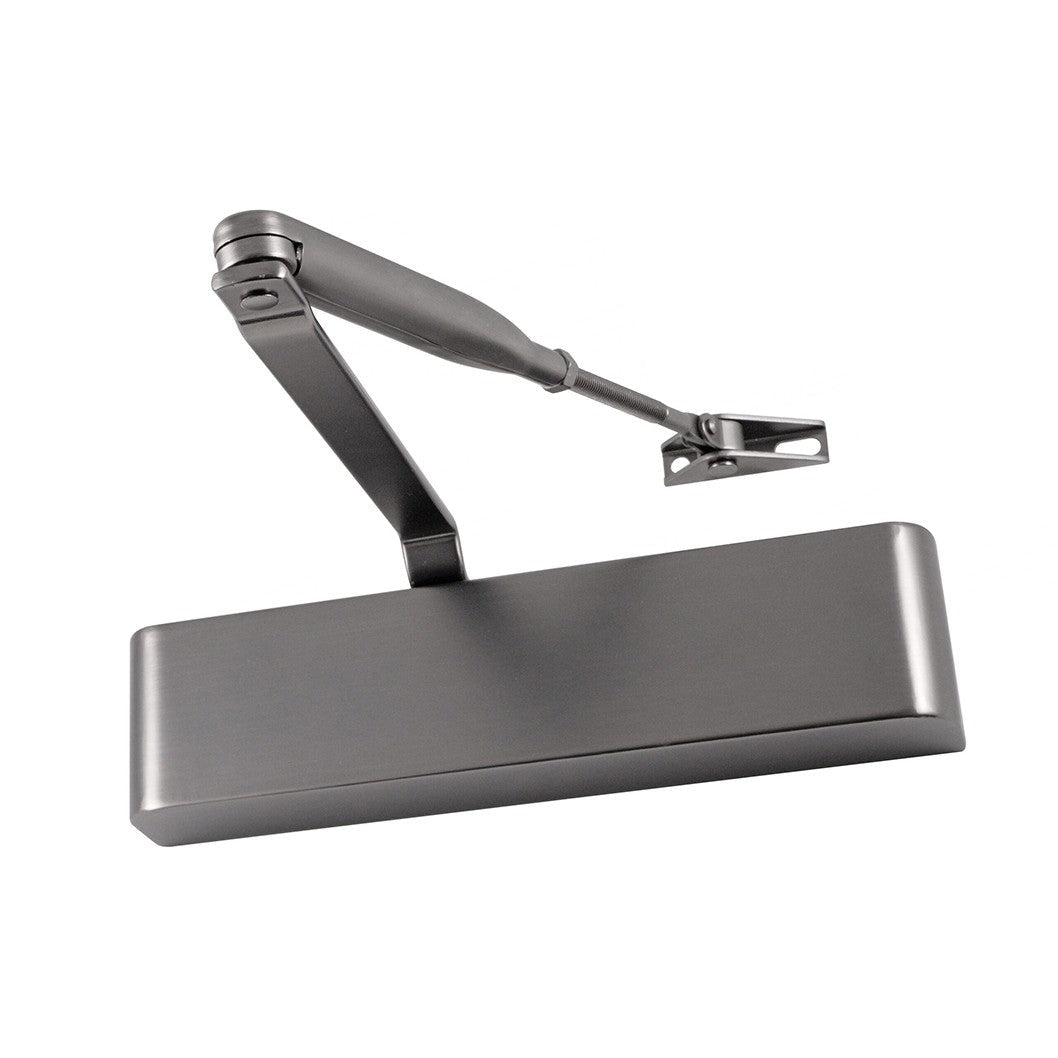

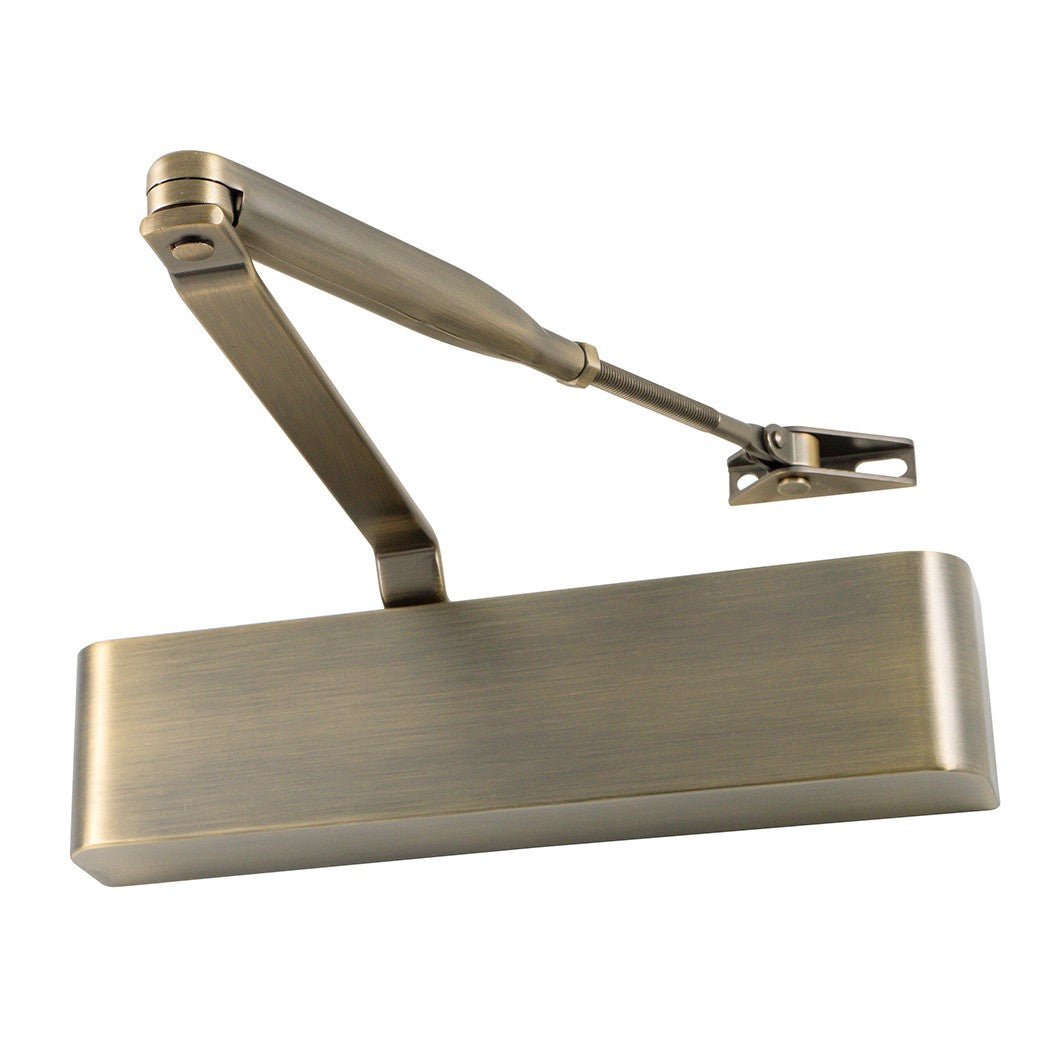

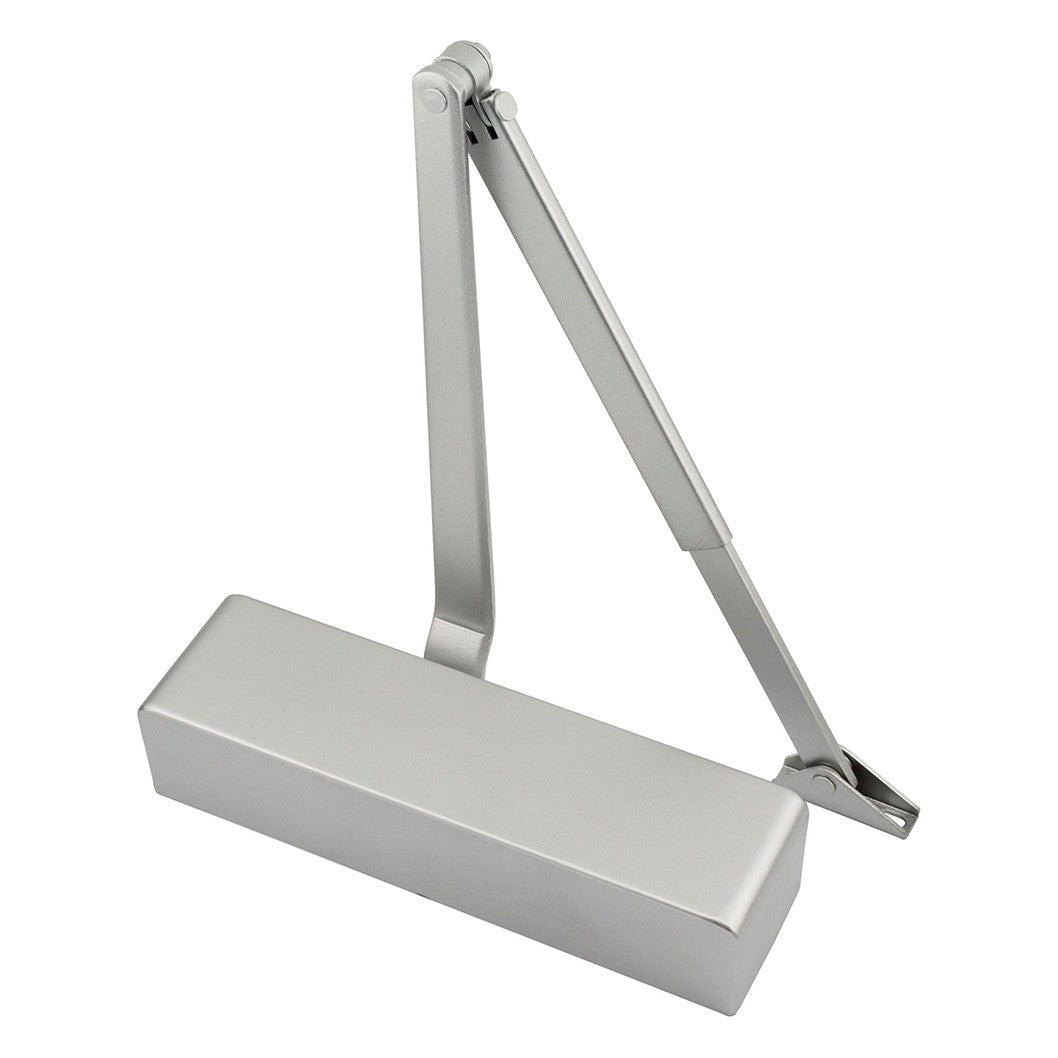

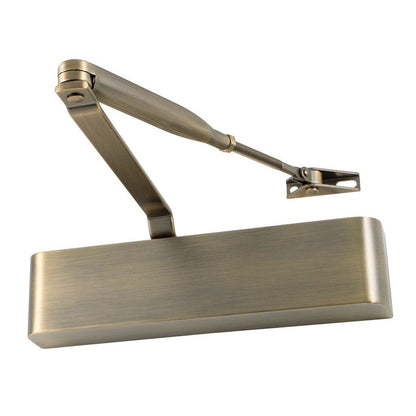

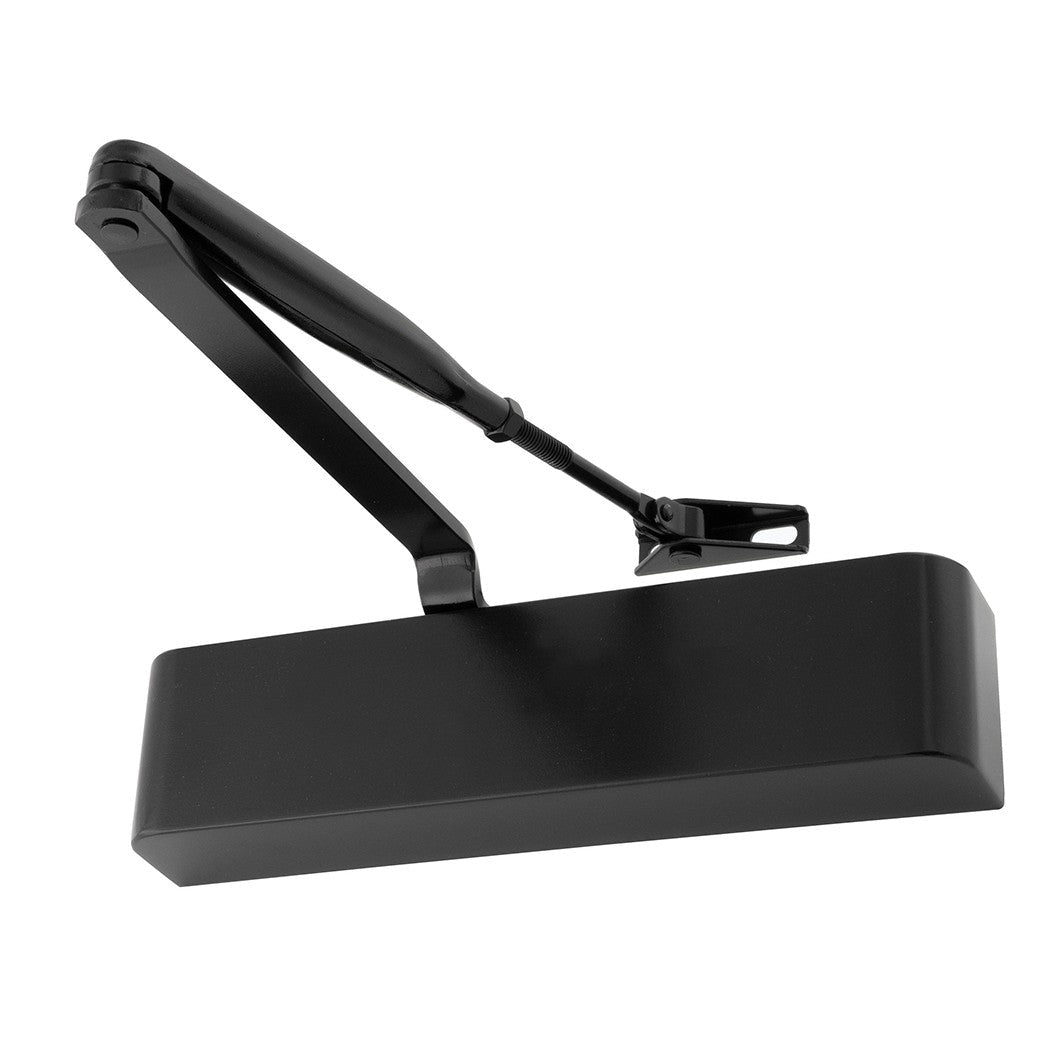

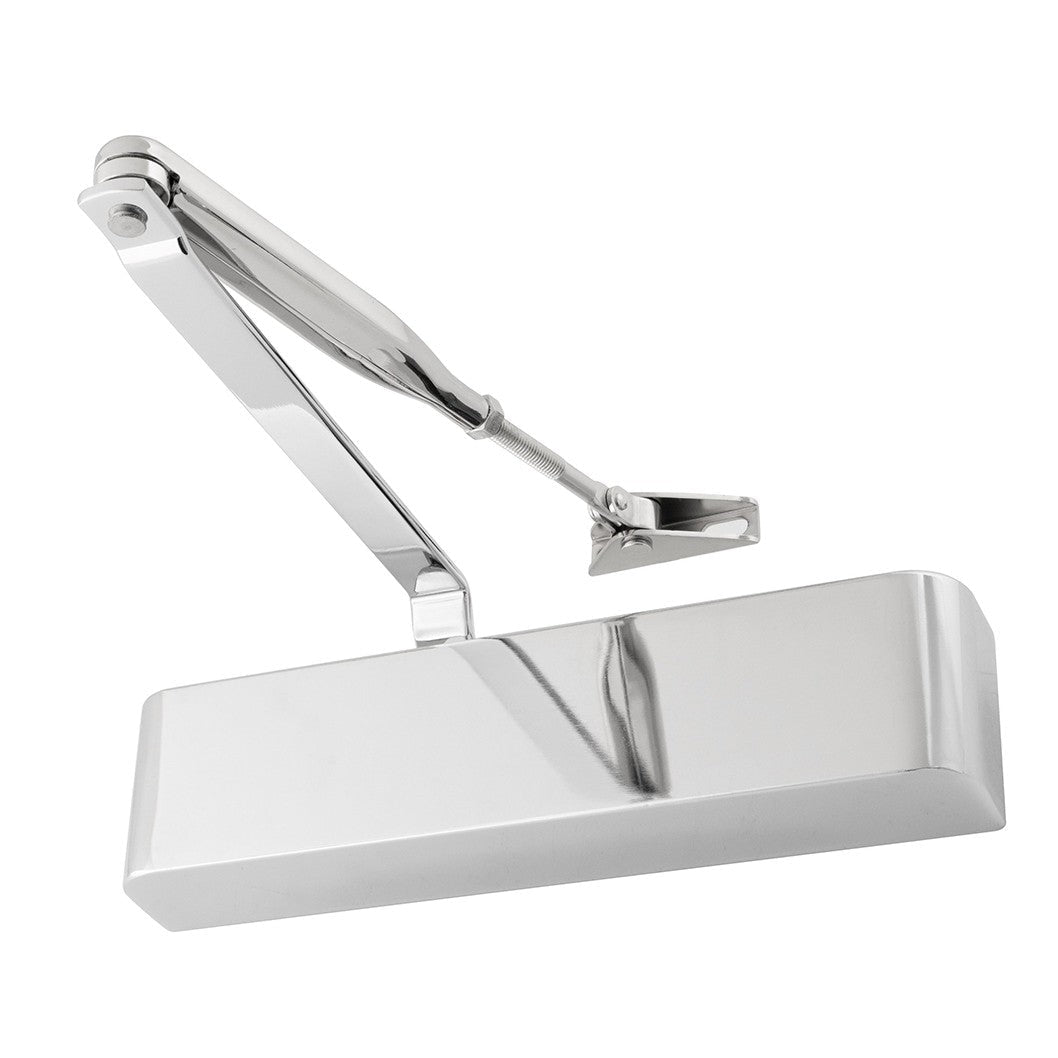

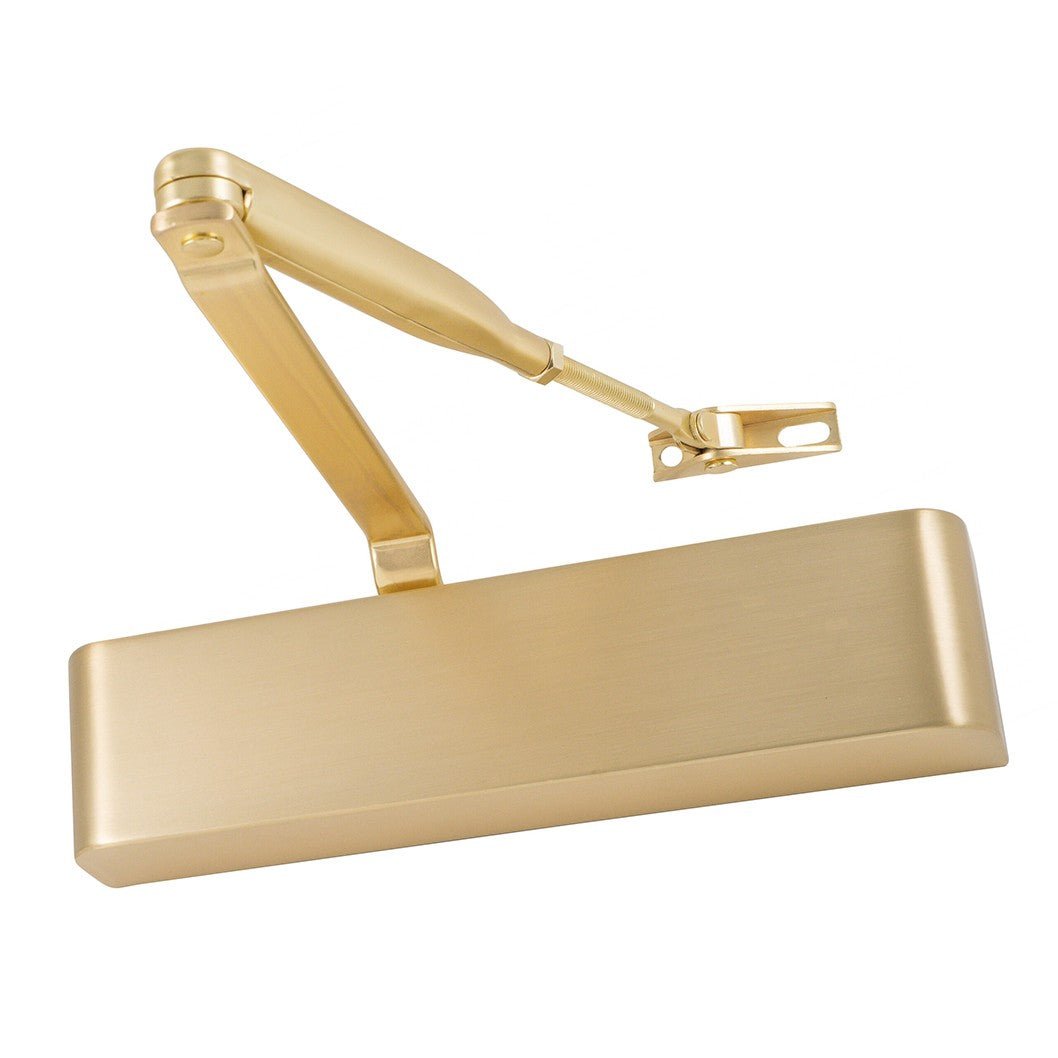

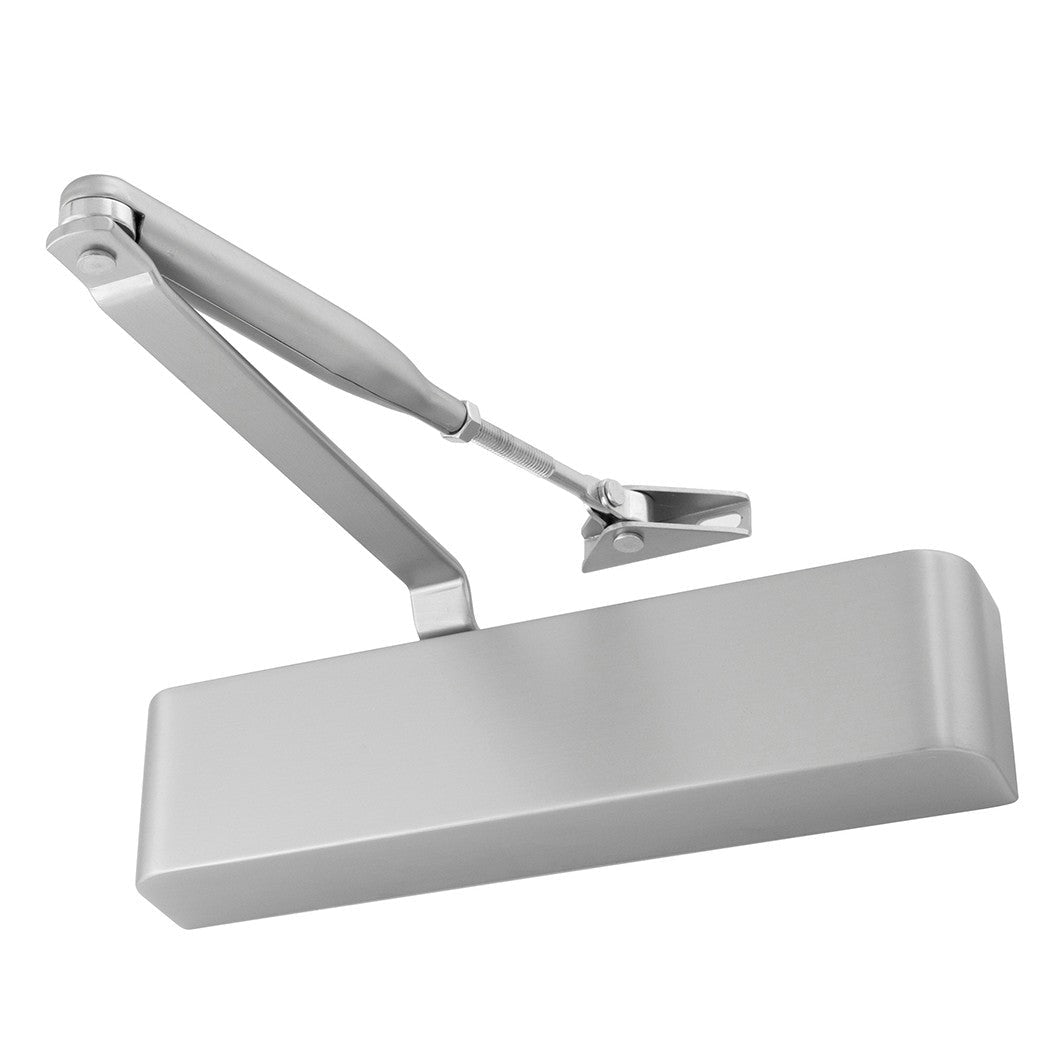

Frisco Eclipse 83 Series Door Closer Cover & Arm

Frisco Eclipse 83 Series Door Closer Cover & Arm

The Frisco Eclipse 83 Series Door Closer Cover & Arm is designed to provide a neat, finished appearance while supporting controlled and reliable door-closing performance. The variable Power Size 2-4 unit is suitable for a range of compatible door applications, with power adjustable by template to help match the installation requirements. This version is available in a wide selection of finishes, including Silver, Black, Polished Chrome, Satin Nickel, Satin Brass, Matt Antique Brass and Dark Bronze, making it easier to coordinate the closer with existing door hardware.

Versatile Installation

The 83 Series features a universal application suitable for Figure 1, 61 and 66 installations and comes supplied with a parallel arm bracket. Its adjustable closing and latching speeds allow the closing action to be fine-tuned for smoother and more controlled operation. The closer is designed for doors up to 1100mm wide and weighing up to 80kg, subject to the requirements of the specific installation.

Fire Rated and Certified

The Frisco Eclipse 83 Series is Certifire approved, CE 1121 marked and UKCA marked. It has been fire tested to BS EN 1634 for FD30, FD60, FD90 and FD120 applications in timber doors, making it suitable for compatible fire door installations when correctly specified and fitted.

Available Finishes and Specifications

The Door Closer Cover & Arm is available in Silver, Black, Polished Chrome, Satin Nickel, Satin Brass, Matt Antique Brass and Dark Bronze. All variants share the same core performance and installation specifications.

• Eclipse 83 Series overhead door closer
• Variable Power Size 2-4 unit
• Power adjustable by template
• Universal application - Figure 1, 61 and 66
• Parallel arm bracket supplied
• Adjustable closing speed
• Adjustable latching speed
• Certifire approved
• CE 1121 marked
• UKCA marked
• BS EN 1634 fire rated FD30, FD60, FD90 and FD120 for timber doors
• Maximum door weight: 80kg
• Maximum door width: 1100mm
• Available in Silver, Black, Polished Chrome, Satin Nickel, Satin Brass, Matt Antique Brass and Dark Bronze

Frequently Asked Questions

What finishes are available for the 83 Series Door Closer Cover & Arm?

The closer is available in Silver, Black, Polished Chrome, Satin Nickel, Satin Brass, Matt Antique Brass and Dark Bronze, providing a broad choice of finishes for different door styles and hardware schemes.

What size and weight of door is this closer suitable for?

The unit has a variable Power Size 2-4 range and is designed for doors up to 1100mm wide and weighing up to 80kg, subject to the specific installation requirements.

Is the 83 Series suitable for fire doors?

Yes. The closer is Certifire approved, CE 1121 marked and UKCA marked, and has been fire tested to BS EN 1634 for FD30, FD60, FD90 and FD120 applications in timber doors. It should be correctly specified and installed as part of a suitable tested fire door assembly.
