Frisco Eclipse 83 Series Adjustable Overhead Door Closer

Frisco Eclipse 83 Series Adjustable Overhead Door Closer

The Frisco Eclipse 83 Series Adjustable Overhead Door Closer is a versatile solution for controlled door closing in commercial, architectural and fire door applications. Its variable power range of Size 2-4 gives installers flexibility, with the unit tested at power sizes 3 and 4. Available in Silver and Black, the closer can be selected to complement a range of door styles and existing hardware.

Versatile Installation and Adjustment

The 83 Series features a universal application design suitable for Figure 1, 61 and 66 installations and comes supplied with a parallel arm bracket. The power is adjustable by template, allowing the closer to be configured to suit the door and installation requirements. The closing and latching speeds can also be adjusted, helping provide a smoother and more controlled closing action.

Fire Tested and Certified

The Frisco Eclipse 83 Series is Certifire approved, CE 1121 marked and UKCA marked. It has been fire tested to BS EN 1634 for FD30, FD60, FD90 and FD120 applications in timber doors. The closer is designed for doors up to 80kg in weight and 1100mm in width, making it a practical choice for a broad range of suitable door applications.

Available Finishes and Specifications

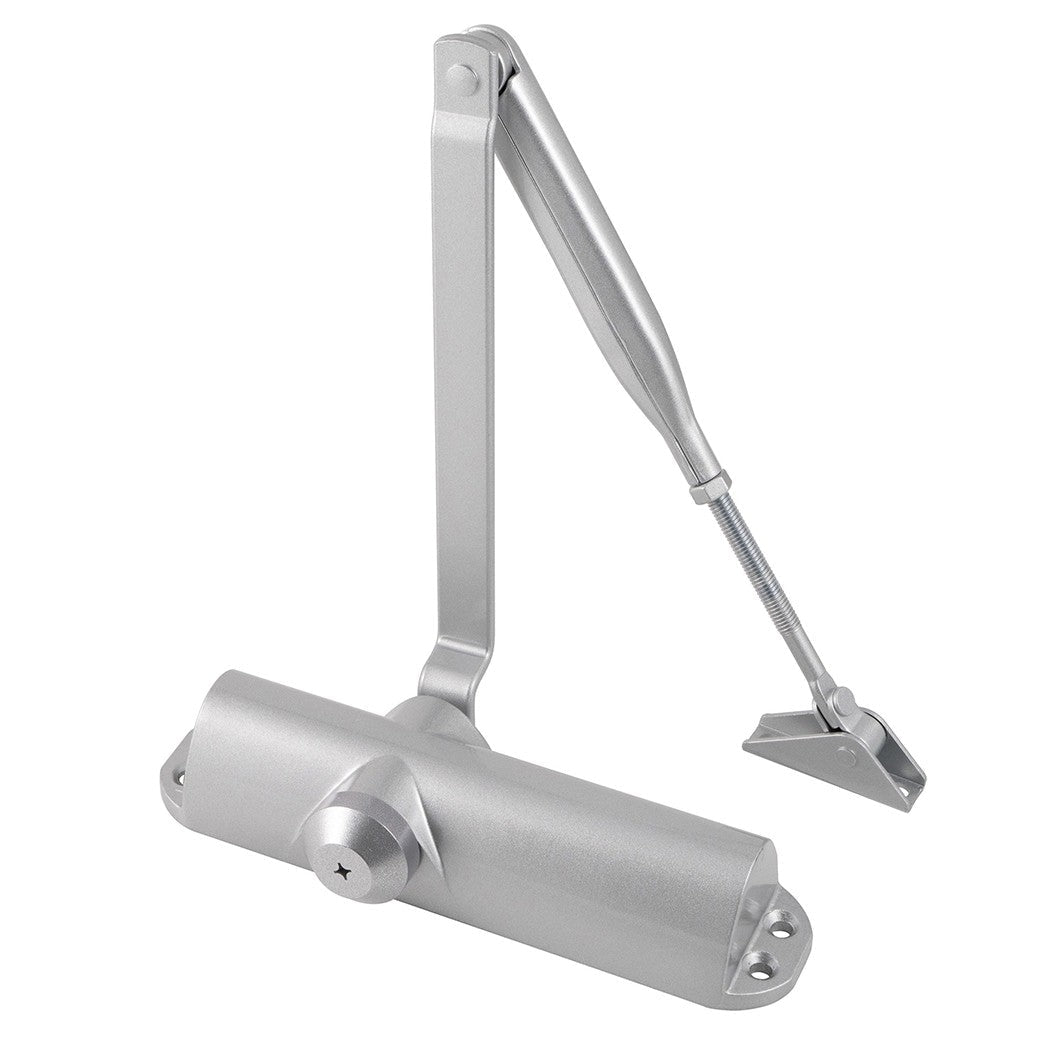

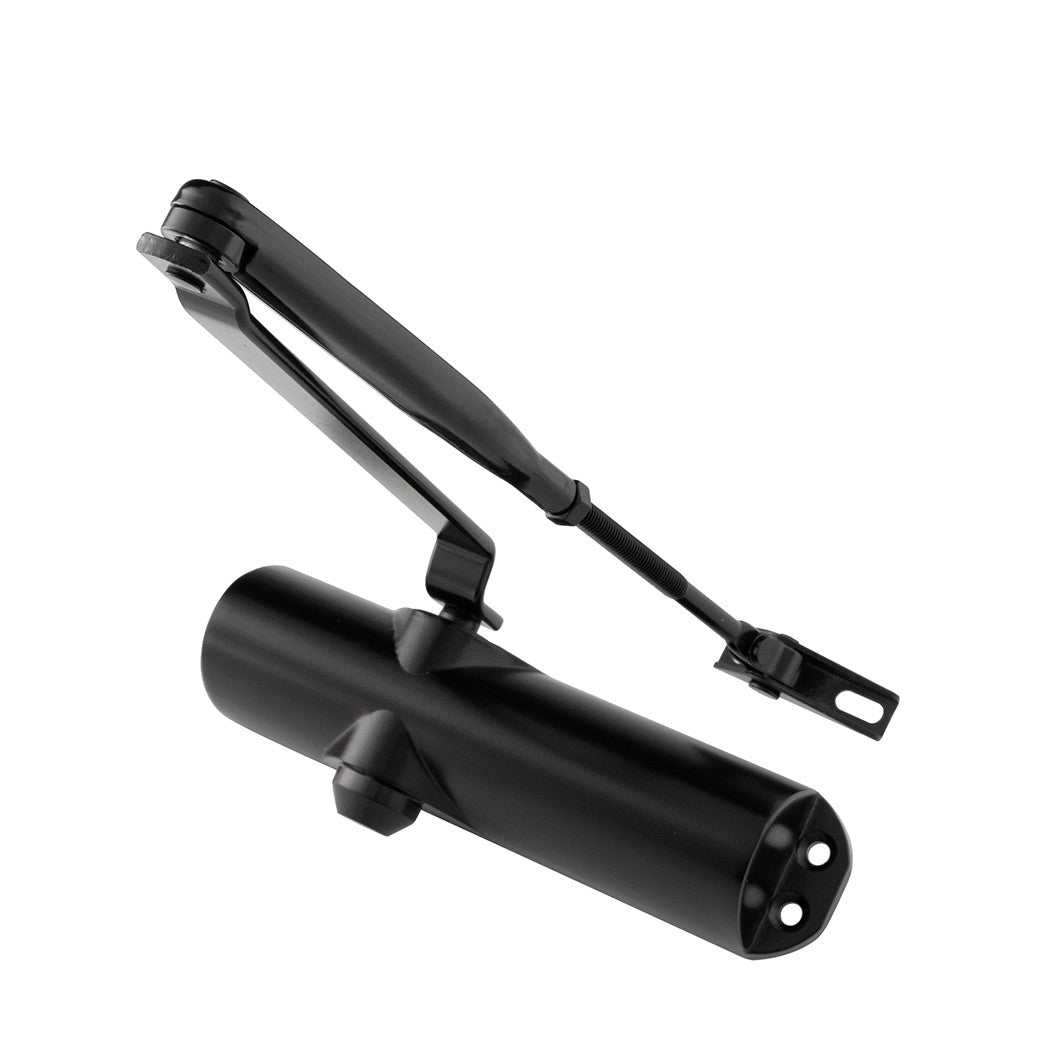

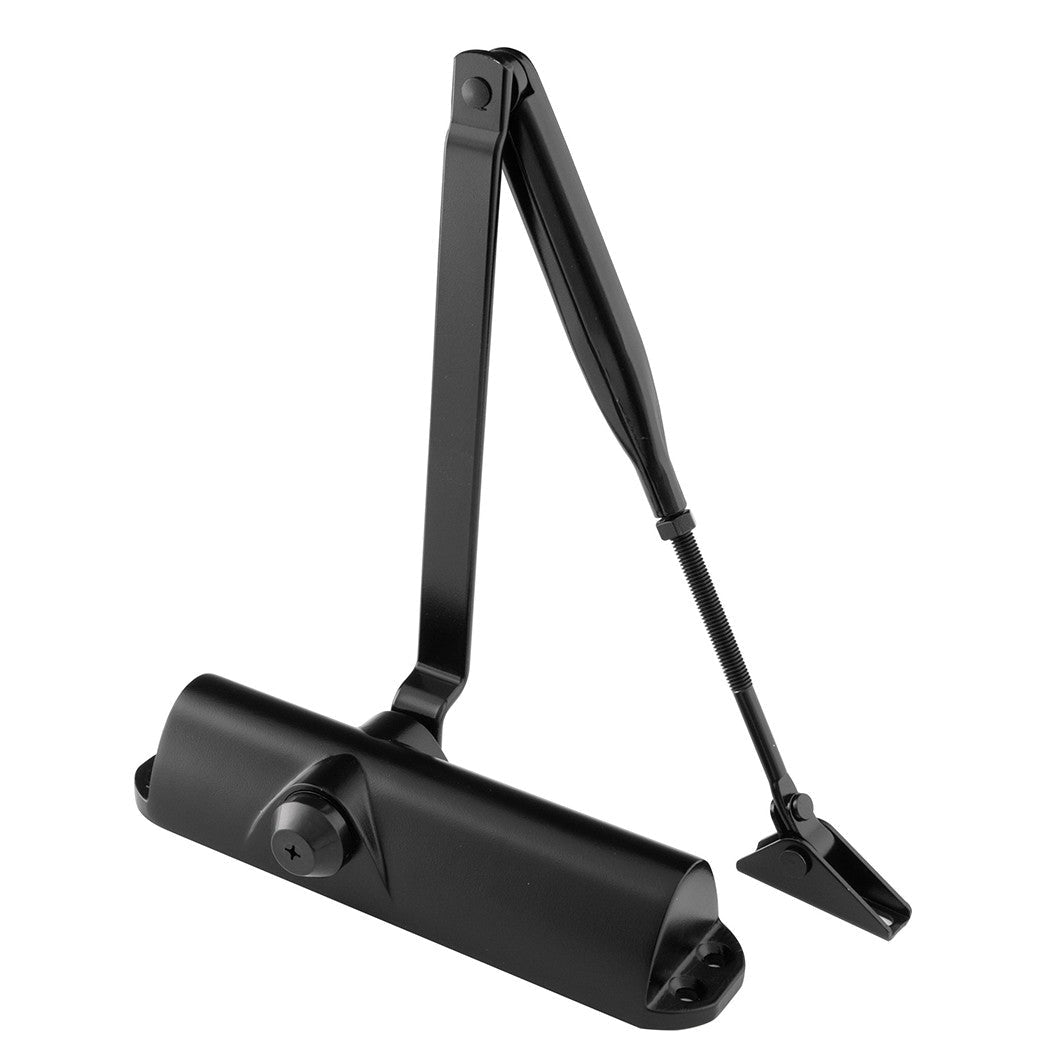

The Frisco Eclipse 83 Series Adjustable Overhead Door Closer is available in Silver and Black. Both variants share the same variable power range, adjustment features, installation options and performance specifications.

• Eclipse 83 Series adjustable overhead door closer
• Variable Power Size 2-4 unit
• Tested at Power Size 3 to 4
• Power adjustable by template
• Universal application - Figure 1, 61 and 66

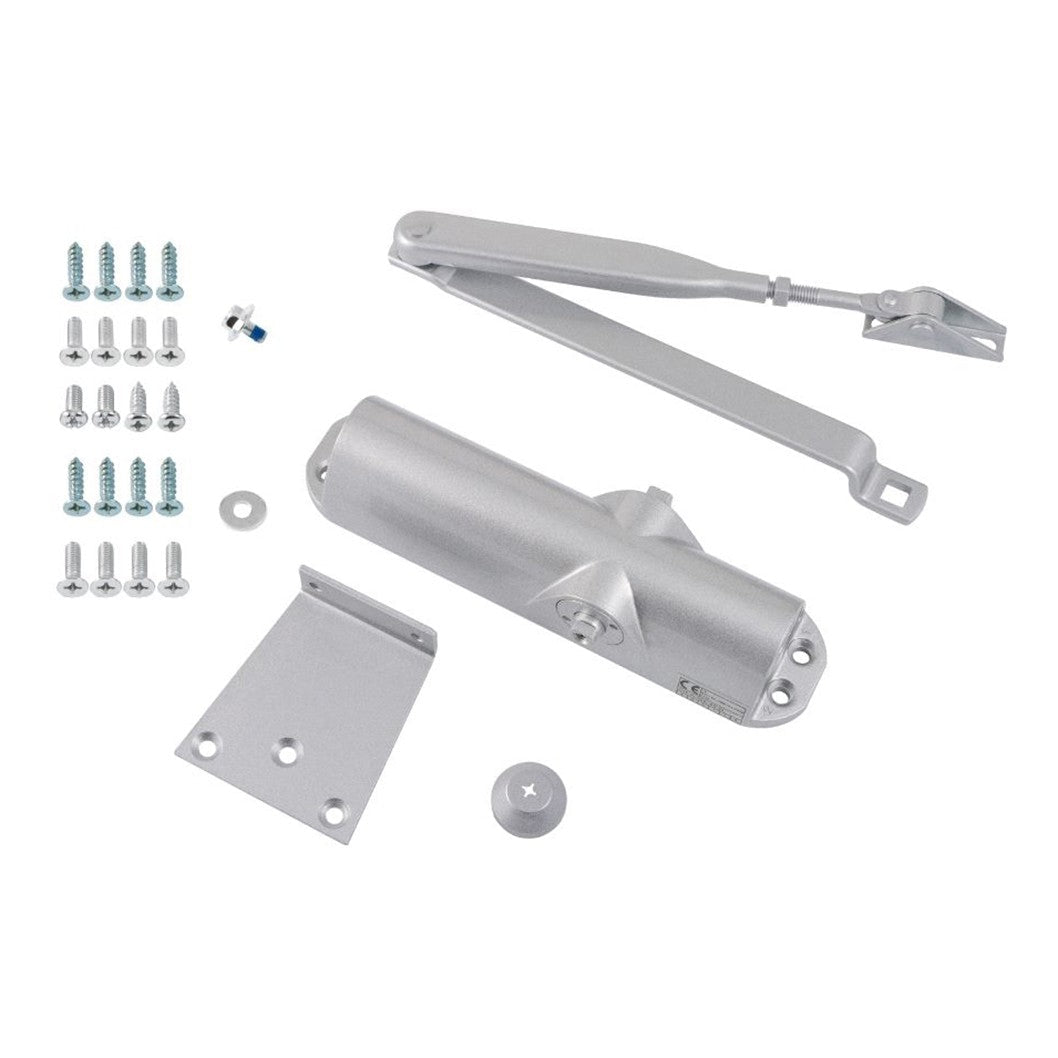

• Parallel arm bracket supplied
• Adjustable closing speed
• Adjustable latching speed
• Certifire approved
• CE 1121 marked
• UKCA marked
• BS EN 1634 fire rated FD30, FD60, FD90 and FD120 for timber doors
• Maximum door weight: 80kg
• Maximum door width: 1100mm
• Available in Silver and Black

Frequently Asked Questions

What finishes is the Frisco Eclipse 83 Series available in?

The 83 Series Adjustable Overhead Door Closer is available in Silver and Black, giving you a choice of finish to suit different door and hardware styles.

What size and weight of door can this closer accommodate?

The closer has a variable Power Size 2-4 range and is designed for doors up to 1100mm wide and weighing up to 80kg, subject to the requirements of the specific installation.

Is the Frisco Eclipse 83 Series fire rated?

Yes. The closer is Certifire approved, CE 1121 marked and UKCA marked. It has been fire tested to BS EN 1634 for FD30, FD60, FD90 and FD120 applications in timber doors.
