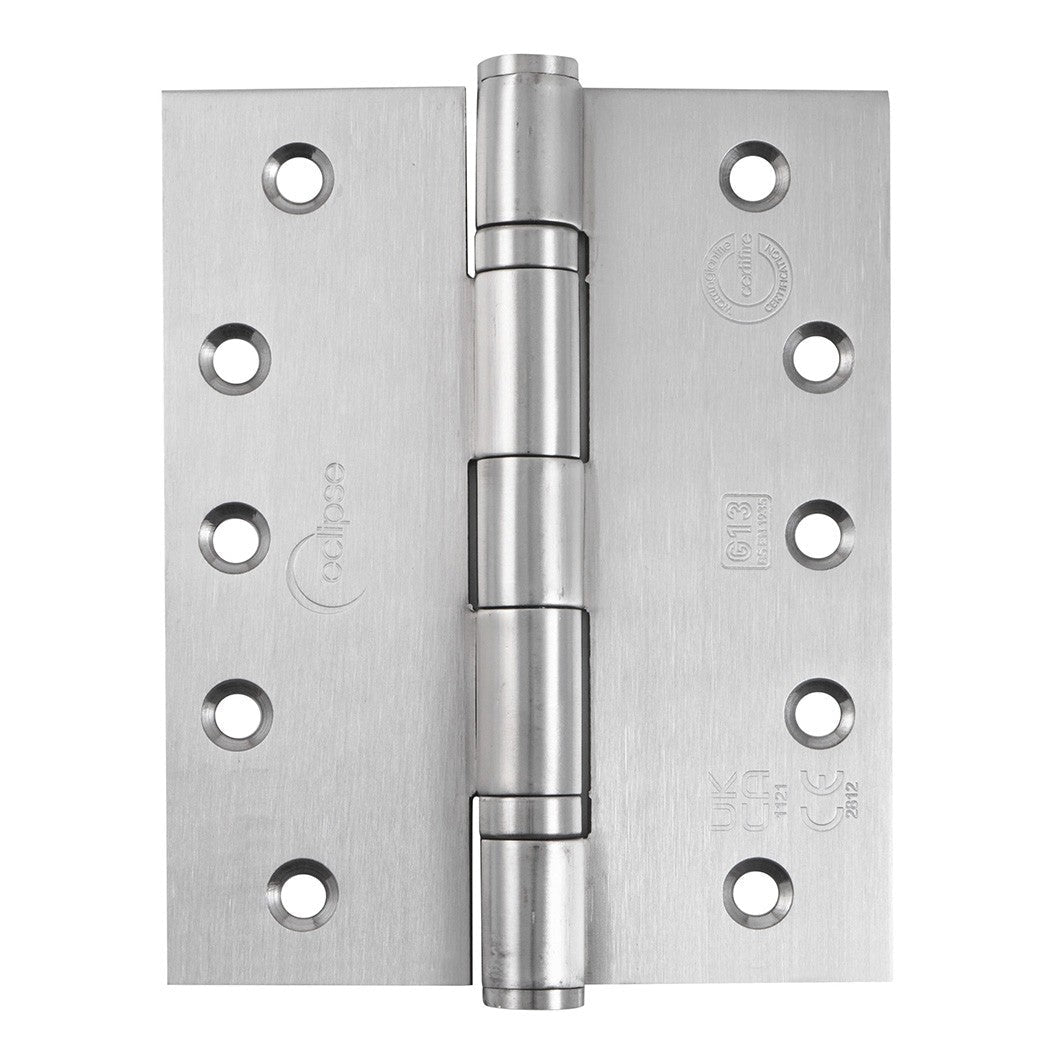

Frisco Eclipse 127x102mm Grade 13 Stainless Steel Ball Bearing Hinge

Frisco Eclipse Grade 13 Stainless Steel Ball Bearing Hinge

The Frisco Eclipse 127x102x3mm Grade 13 Stainless Steel Ball Bearing Hinge is a strong and dependable option for doors where reliable performance and durability are important. Designed to Grade 13 standards, this hinge is suitable for doors weighing up to 120kg, making it well suited to a range of residential, commercial and specification applications. The ball bearing construction helps provide smooth and consistent door movement, even with regular use. With its Eclipse branded design and stainless steel construction, this hinge offers a practical combination of dependable performance and a clean, professional appearance.

Performance and Fire Rating

This hinge has been performance tested to BS EN1935 for 200,000 operating cycles, demonstrating its suitability for applications where doors are expected to withstand frequent use. It is also CE 2812 and UKCA 1121 marked and is Certifire approved, providing added assurance for appropriate door hardware installations. For fire-rated applications, the hinge has been tested to BS EN1634 for FD30, FD60, FD90 and FD120 timber frame applications, as well as FD240 steel frame applications. The complete doorset must always meet the relevant fire-performance requirements when specifying fire-rated hardware.

Size and Construction

Measuring 127x102x3mm, the hinge provides a substantial size suitable for heavier doors. The 12-gauge countersunk fixing holes allow the fixings to sit neatly within the hinge, helping to create a secure and tidy installation. The stainless steel construction is designed to provide dependable everyday performance, while the ball bearing mechanism helps the door open and close smoothly. This makes it a practical choice for doors that experience regular or high-frequency use.

Available Variant

The supplied product information confirms the following specification:

• Size: 127x102x3mm
• Grade: Grade 13
• Maximum Door Weight: 120kg
• Construction: Stainless Steel
• Type: Ball Bearing Hinge
• Fixing: 12 Gauge Countersunk

No additional finish, colour, glazing or handing variants were included in the supplied Excel information, so no unconfirmed options have been added to the description.

Frequently Asked Questions

What is the maximum door weight for this hinge?

The Frisco Eclipse Grade 13 Ball Bearing Hinge is designed for doors weighing up to 120kg, subject to correct installation and the requirements of the complete door set.

Is the hinge suitable for fire-rated doors?

Yes. The hinge has been fire rated to BS EN1634 for FD30, FD60, FD90 and FD120 timber frame applications and FD240 steel frame applications. The complete doorset must also be appropriately tested and certified for the required fire rating.

What size is the Frisco Eclipse ball bearing hinge?

The hinge measures 127x102x3mm and features 12-gauge countersunk fixing holes. Its Grade 13 ball bearing construction is designed to provide smooth and reliable operation for doors up to 120kg.
