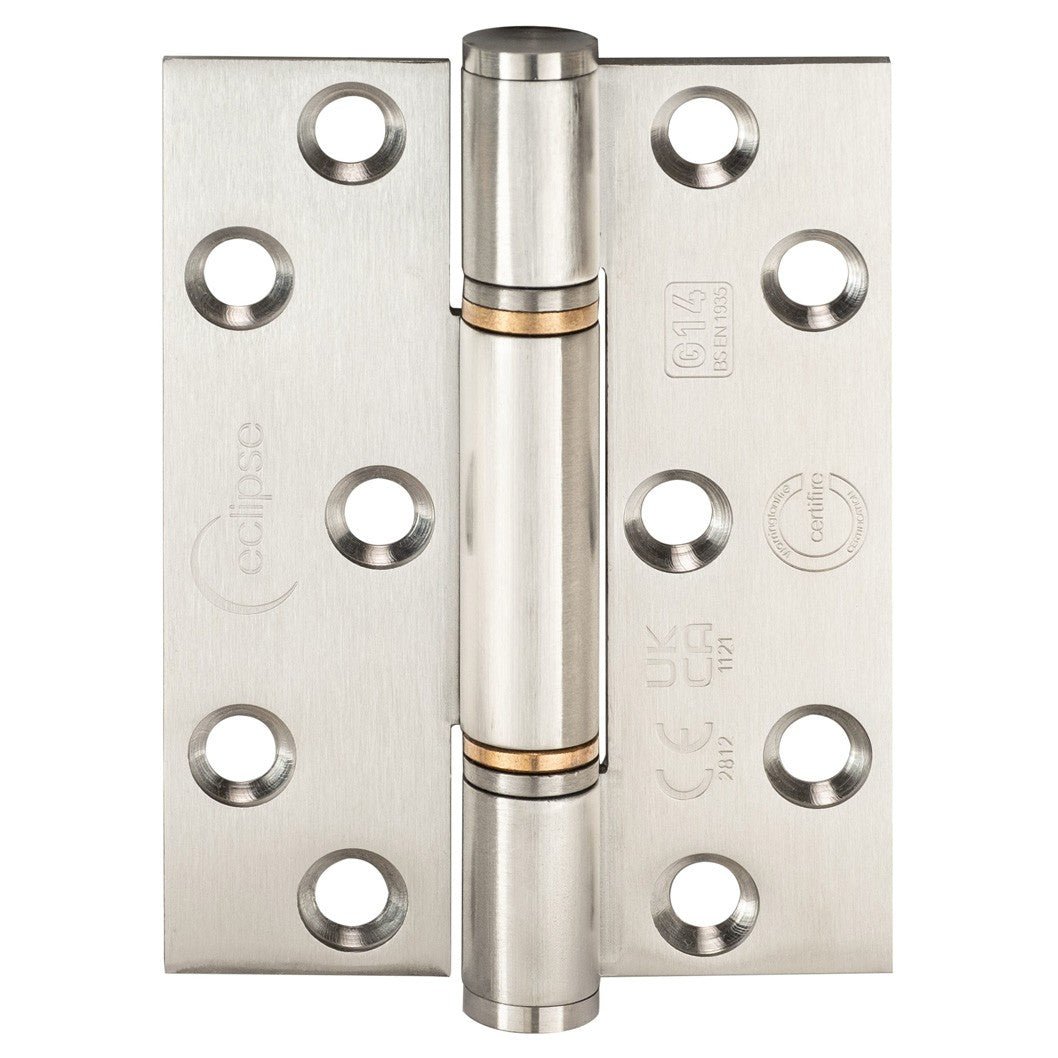

Frisco Eclipse 102x76x3mm Satin Stainless Steel Insignia Thrust Bearing Hinge G316 Grade 14

Frisco Eclipse G316 Grade 14 Insignia Thrust Bearing Hinge

The Frisco Eclipse 102x76x3mm Satin Stainless Steel Insignia Thrust Bearing Hinge G316 Grade 14 is a robust, high-performance hinge designed for heavier doors where smooth operation, durability and dependable support are essential. Manufactured from SUS 316 stainless steel, it provides a strong and corrosion-resistant solution for demanding residential, commercial and specification applications. With a Grade 14 rating, the hinge is designed for doors with a total door mass of up to 160kg. The thrust bearing design helps support smooth and consistent door movement, making it particularly suitable for heavier doors that are subject to regular use.

Grade 14 Performance and Certification

This Eclipse Insignia Thrust Bearing Hinge has been performance tested to BS EN1935 for 200,000 operating cycles and achieves Grade 14 performance. It also carries CE 2812, UKCA 1121 and Certifire CF336 certification, providing added assurance of its tested performance. For fire-rated applications, the hinge has been fire tested to BS EN1634 for FD30, FD60, FD90 and FD120-minute timber doors, as well as FD240-minute steel doors. The complete doorset must meet the relevant fire-performance requirements when the hinge is used in a fire-rated installation.

SUS 316 Stainless Steel Construction

Manufactured from SUS 316 stainless steel, this hinge offers a durable construction with strong corrosion resistance for suitable applications. Its satin stainless steel finish provides a clean, understated appearance that works well with modern architectural and door hardware. The hinge measures 102x76x3mm and features 12-gauge countersunk fixing holes for a neat and secure installation. It is supplied with 12 x 1½-inch Pozi Drive ¾-inch threaded screws, making installation more convenient.

Pack Options

The Frisco Eclipse Insignia Thrust Bearing Hinge is available in two pack options, allowing you to select the quantity that best suits your installation requirements.

• Pack of 2 - supplied as two hinges.
• Pack of 3 - supplied as three hinges.

Both pack options feature the same 102x76x3mm dimensions, satin stainless steel finish, SUS 316 construction and Grade 14 performance specification.

Available Variants

The supplied information confirms the following options:

• Finish: Satin Stainless Steel
• Size: 102x76x3mm
• Material: SUS 316 Stainless Steel
• Grade: Grade 14
• Maximum Total Door Mass: 160kg
• Type: Insignia Thrust Bearing Hinge
• Pack Options: Pack of 2 or Pack of 3

No additional door sizes, colours, glazing options or handing variants were provided in the supplied Excel information, so no unconfirmed options have been added.

Frequently Asked Questions

What is the maximum door weight for this hinge?

The Frisco Eclipse Insignia Thrust Bearing Hinge is Grade 14 rated and designed for doors with a total door mass of up to 160kg, subject to correct installation and the requirements of the complete doorset.

Is this hinge available in different pack quantities?

Yes. The hinge is available as either a pack of 2 or a pack of 3 pieces, allowing you to choose the quantity required for your door installation.

Is the hinge suitable for fire-rated doors?

Yes. The hinge has been fire tested to BS EN1634 for FD30, FD60, FD90 and FD120-minute timber doors and FD240-minute steel doors. The complete doorset must also meet the relevant fire-performance requirements for the intended application.
