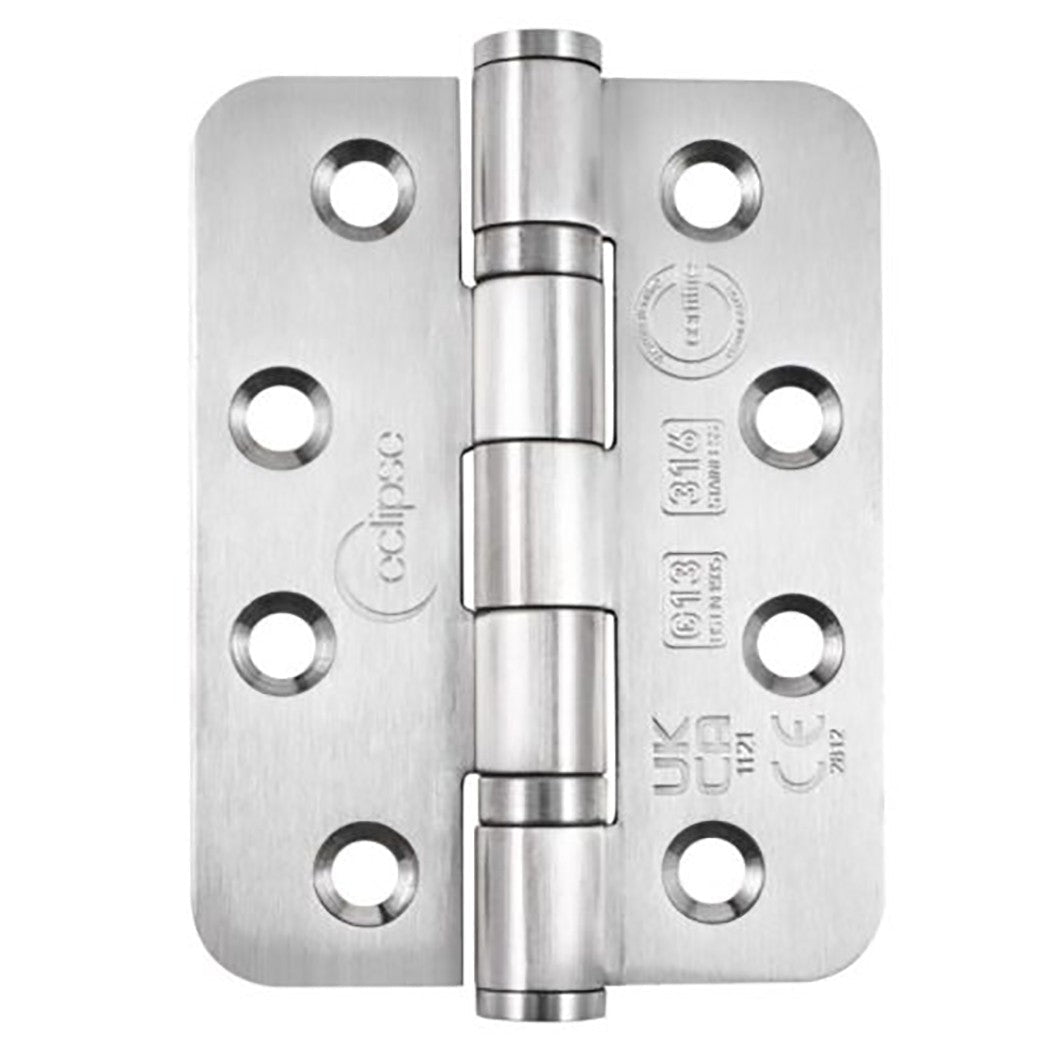

Frisco Eclipse 102x76x3mm Satin Stainless Steel Ball Bearing Radius Hinge G316 Grade 13

Frisco Eclipse G316 Grade 13 Ball Bearing Radius Hinge

The Frisco Eclipse 102x76x3mm Satin Stainless Steel Ball Bearing Radius Hinge G316 Grade 13 is a robust and dependable hinge designed for doors where smooth operation, durability and a high-quality stainless steel construction are important. Manufactured from SUS 316 stainless steel, it offers a strong and corrosion-resistant solution for suitable residential, commercial and specification applications. Rated to Grade 13, this hinge is designed for doors with a total door mass of up to 120kg. Its ball bearing construction helps provide smooth and consistent door movement, while the radius profile gives the hinge a softer, rounded appearance that works well with compatible door and frame configurations.

Grade 13 Performance and Certification

The Eclipse Radius Ball Bearing Hinge has been performance tested to BS EN1935 for 200,000 operating cycles and achieves Grade 13 performance. It also carries CE 2812, UKCA 1121 and Certifire CF336 certification, providing additional assurance of its tested performance. For fire-rated applications, the hinge has been fire tested to BS EN1634 for FD30, FD60, FD90 and FD120-minute timber doors, as well as FD240-minute steel doors. The complete doorset must meet the relevant fire-performance requirements when this hinge is specified for a fire-rated installation.

SUS 316 Stainless Steel Construction

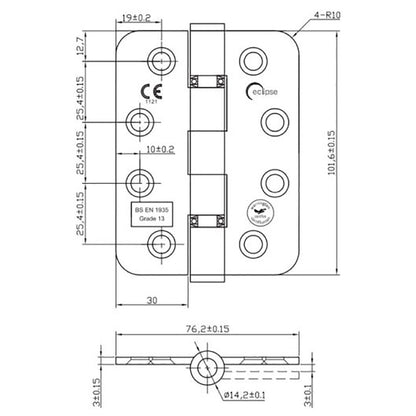

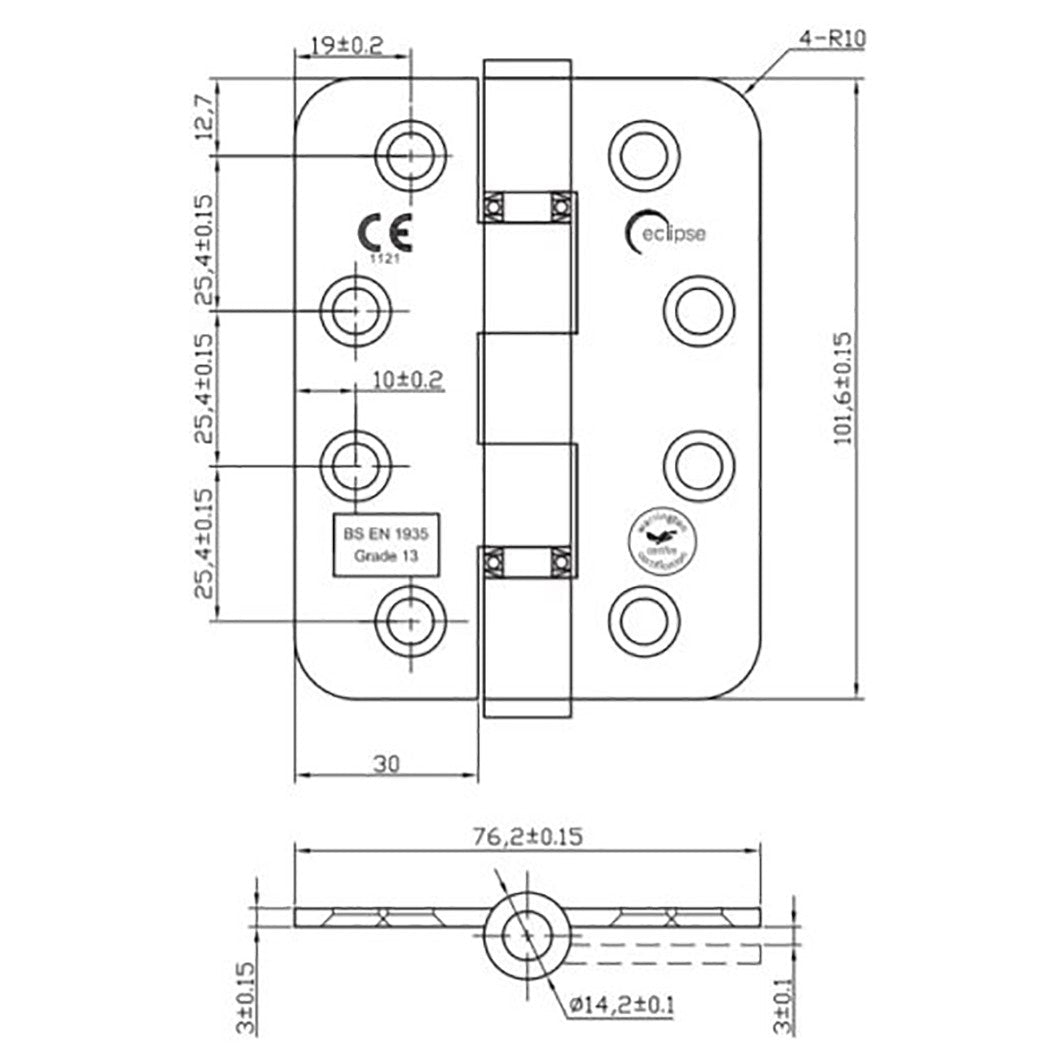

Manufactured from SUS 316 stainless steel, the hinge is designed to provide a durable and corrosion-resistant solution for suitable door applications. The satin stainless steel finish gives it a clean, understated appearance that coordinates easily with other contemporary architectural hardware. Measuring 102x76x3mm, the hinge features 12-gauge countersunk fixing holes for a neat and secure installation. It is supplied with 12 x 1½-inch Pozi Drive ¾-inch threaded screws, providing convenient fixings for installation.

Radius Ball Bearing Design

The radius design gives the hinge a rounded corner profile, providing a neat finish when installed on compatible doors and frames. Combined with the ball bearing mechanism, the design supports smooth opening and closing during regular use. This makes the hinge a practical option for heavier doors where reliable, consistent movement is required, while the Grade 13 specification provides support for doors up to the stated 120kg total door mass.

Available Variant

The supplied Excel information does not specify any additional door sizes, colours, glazing options or handing variants. The confirmed product specification is:

• Size: 102x76x3mm
• Finish: Satin Stainless Steel
• Material: SUS 316 Stainless Steel
• Grade: Grade 13
• Maximum Total Door Mass: 120kg
• Type: Ball Bearing Radius Hinge
• Fixings: 12 x 1½-inch Pozi Drive ¾-inch Threaded Screws

Frequently Asked Questions

What is the maximum door weight for this hinge?

The Frisco Eclipse G316 Ball Bearing Radius Hinge is Grade 13 rated and designed for doors with a total door mass of up to 120kg, subject to correct installation and the requirements of the complete doorset.

What material is the hinge made from?

The hinge is manufactured from SUS 316 stainless steel and supplied in a satin stainless steel finish. This provides a durable and corrosion-resistant option for suitable door applications.

Is this hinge suitable for fire-rated doors?

Yes. The hinge has been fire tested to BS EN1634 for FD30, FD60, FD90 and FD120-minute timber doors and FD240-minute steel doors. The complete doorset must also meet the applicable fire-performance and installation requirements.
