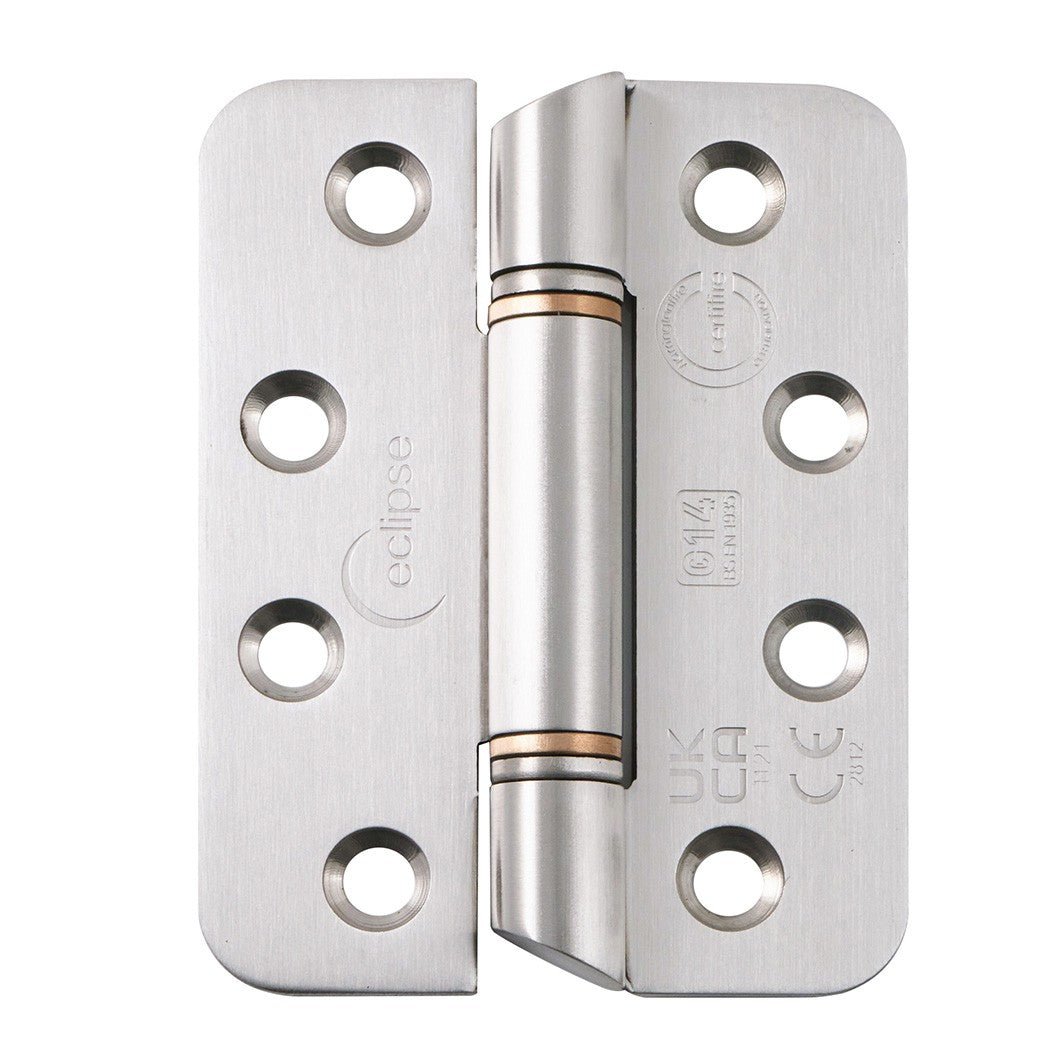

Frisco Eclipse 102x76x3mm Grade 14 Satin Stainless Steel Anti-Ligature Hinge

Frisco Eclipse Grade 14 Anti-Ligature Hinge

The Frisco Eclipse 102x76x3mm Grade 14 Satin Stainless Steel Anti-Ligature Hinge is a robust, high-performance hinge designed for demanding door applications where durability and secure operation are important. Manufactured as a stainless steel thrust bearing hinge, it combines a strong construction with a clean satin stainless steel finish. Rated to Grade 14, the hinge is suitable for doors with a total door mass of up to 160kg. Its anti-ligature design and 10mm radius corners make it a suitable choice for appropriate specialist environments where hardware design and safety considerations are particularly important.

Grade 14 Performance and Certification

The Eclipse Anti-Ligature Hinge has been performance tested to BS EN1935 for 200,000 operating cycles and achieves Grade 14 performance. It is also certified to CE 2812, UKCA 1121 and Certifire CF336, providing added assurance of its tested performance. For fire-rated applications, the hinge has been fire tested to BS EN1634 for FD30, FD60, FD90 and FD120-minute timber doors, as well as FD240-minute steel doors. The complete doorset must meet the relevant fire-performance requirements when the hinge is specified for a fire-rated installation.

Anti-Ligature and Radius Corner Design

The hinge is manufactured with 10mm radius corners, giving it a smooth, rounded profile rather than traditional square corners. This design complements the anti-ligature specification and provides a clean appearance when installed. Measuring 102x76x3mm, the hinge features a 12-gauge countersunk fixing arrangement for a secure and neat installation. It is supplied with 12 x 1½-inch Pozi Drive ¾-inch threaded screws, helping to simplify installation.

Finish and Specification

This model is supplied in a satin stainless steel finish, providing a subtle and contemporary appearance that works well with other stainless steel architectural hardware. Its thrust bearing construction is designed to support smooth and dependable door movement, even on heavier doors.

• Size: 102x76x3mm
• Finish: Satin Stainless Steel
• Grade: Grade 14
• Maximum Total Door Mass: 160kg
• Corner Radius: 10mm
• Type: Anti-Ligature Thrust Bearing Hinge
• Fixing: 12 Gauge Countersunk

Available Variant

The supplied Excel information does not specify additional door sizes, finishes, colours, glazing options or handing variants. The confirmed variant is the 102x76x3mm Satin Stainless Steel Grade 14 Anti-Ligature Hinge described above.

Frequently Asked Questions

What door weight is this Grade 14 hinge suitable for?

The Frisco Eclipse Anti-Ligature Hinge is Grade 14 rated and suitable for doors with a total door mass of up to 160kg, subject to correct installation and the requirements of the complete doorset.

What does the 10mm radius corner design mean?

The 10mm radius creates rounded hinge corners rather than square corners. This contributes to the smooth profile of the anti-ligature hinge and is particularly useful for appropriate specialist door applications.

Is this hinge suitable for fire-rated doors?

Yes. The hinge has been fire tested to BS EN1634 for FD30, FD60, FD90 and FD120-minute timber doors and FD240-minute steel doors. For a compliant fire-rated installation, the complete doorset must meet the relevant fire-performance requirements.
