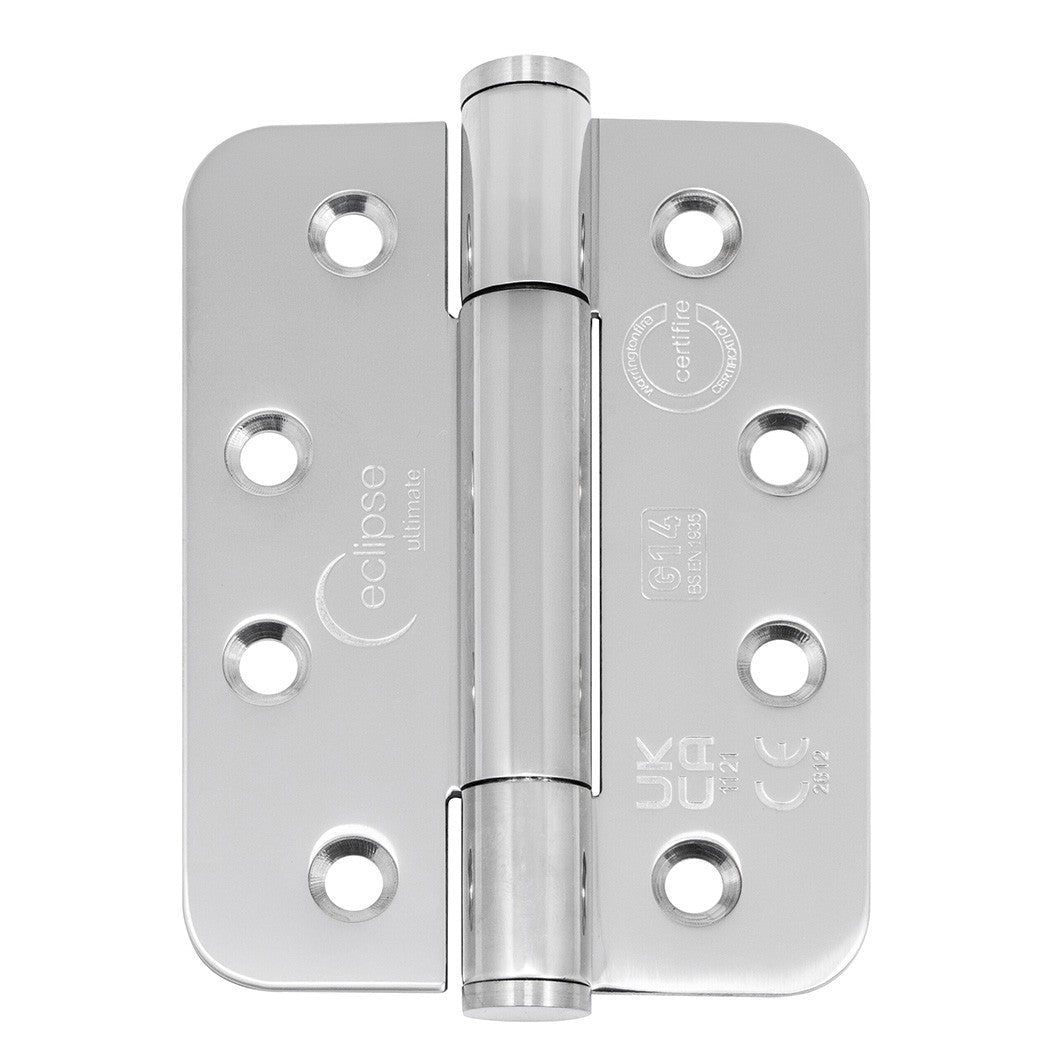

Frisco Eclipse 102x76x3mm Concealed Bearing Hinge Radius Grade 14 SS201

Frisco Eclipse Radius Concealed Bearing Hinge Grade 14

The Frisco Eclipse 102x76x3mm Concealed Bearing Hinge Radius Grade 14 SS201 is a robust and dependable hinge designed for demanding door applications. With a Grade 14 rating and a maximum total door mass of 160kg, it provides reliable support for heavier doors while maintaining smooth and consistent operation. Manufactured with a stainless steel construction and 10mm radius corners, this hinge combines practical performance with a neat, rounded appearance. Its concealed bearing design helps keep the hinge mechanism discreet while supporting smooth door movement during everyday use.

Grade 14 Performance and Fire Testing

This Eclipse Radius Concealed Bearing Hinge has been performance tested to BS EN1935 for 200,000 operating cycles and achieves Grade 14 performance. It also carries CE 1121, UKCA 2812 and Certifire certification, providing added assurance of its tested performance. The hinge has been fire tested to BS EN1634 for FD30, FD60, FD90 and FD120-minute timber doors, as well as FD240-minute steel doors. When used for a fire-rated application, the complete doorset must meet the relevant fire-performance and installation requirements.

Radius Corner and Concealed Bearing Design

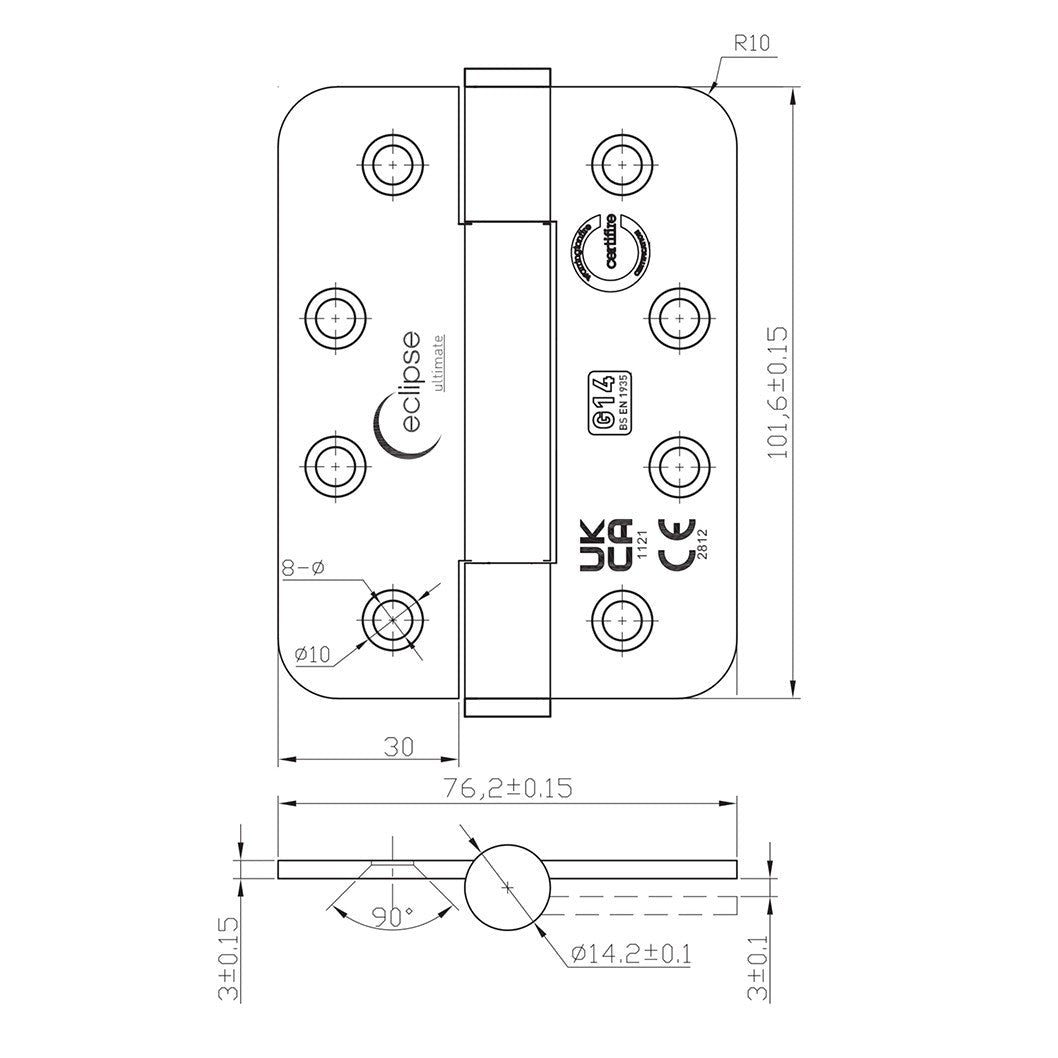

The hinge features 10mm radius corners, giving it a smooth, rounded profile that is well suited to door and frame applications requiring radius-corner hardware. The concealed bearing construction keeps the working mechanism neatly integrated into the hinge while helping to provide smooth and dependable door operation. Measuring 102x76x3mm, the hinge features 10-gauge countersunk fixing holes for a neat installation. It is supplied with 10 x 1¼-inch fully threaded screws, providing convenient fixings for installation.

Available Finishes

The Frisco Eclipse Radius Concealed Bearing Hinge is available in seven finishes, giving you plenty of choice when matching the hinge with existing door furniture and architectural hardware.

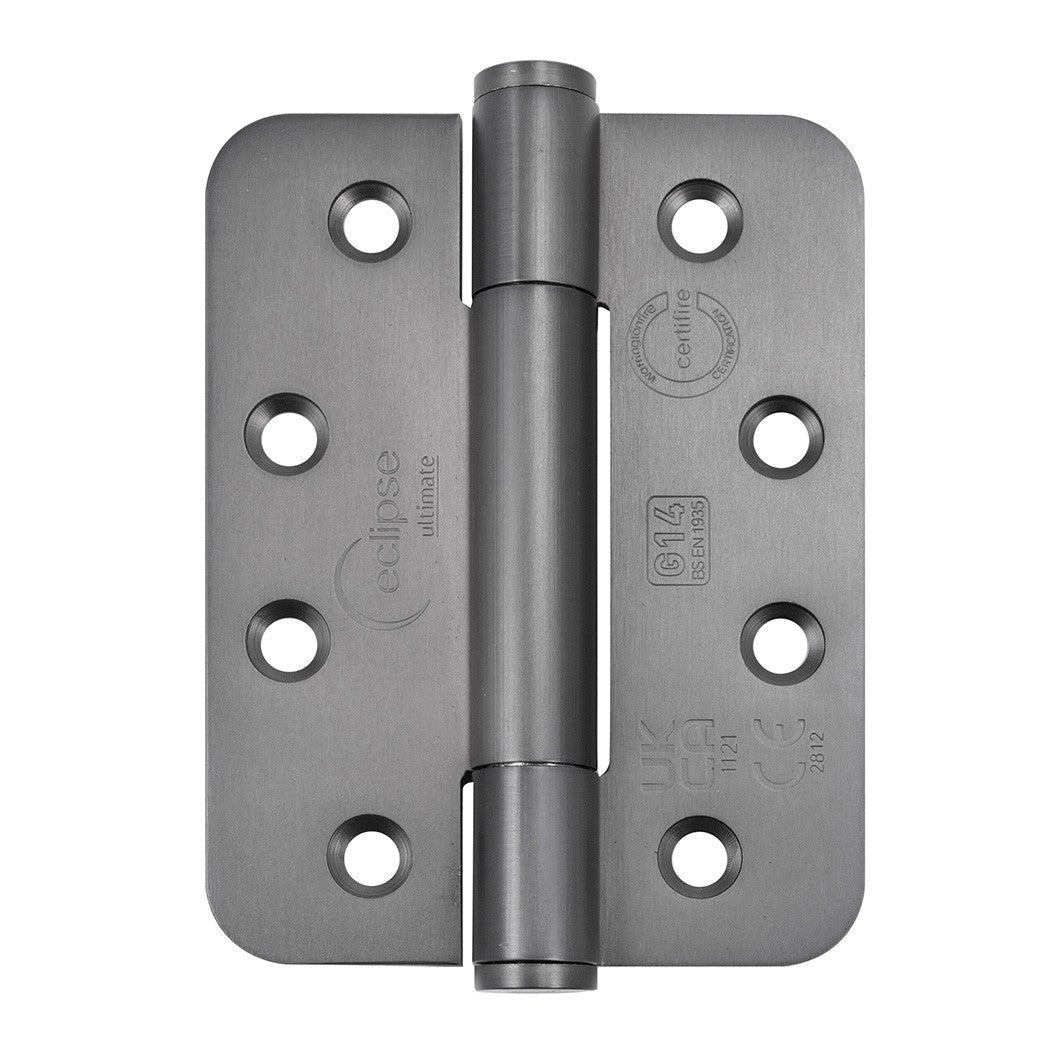

• Dark Bronze - a rich, darker finish suited to traditional and contemporary designs.

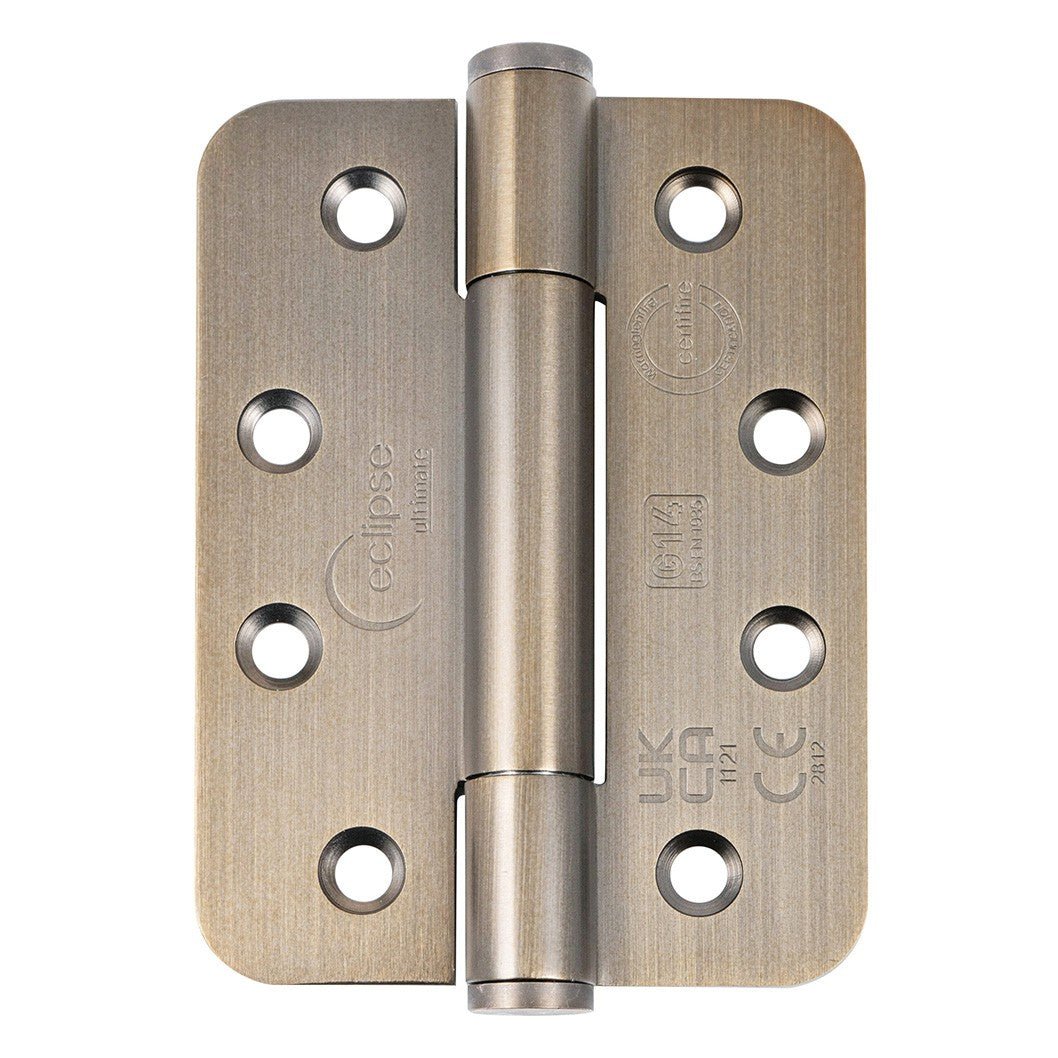

• Matt Antique Brass - a subtle brass finish with an aged, understated appearance.

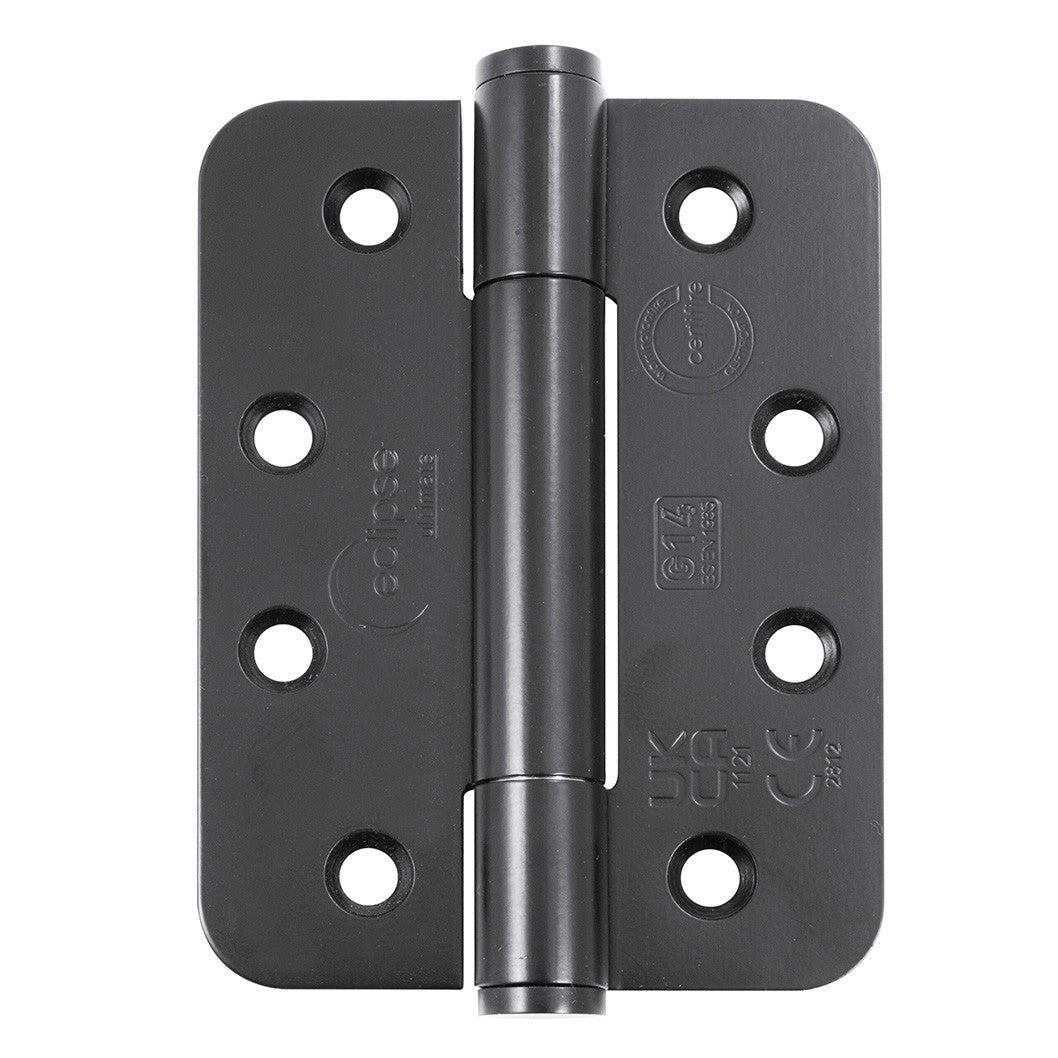

• Matt Black - a modern finish that works particularly well with contemporary door hardware.

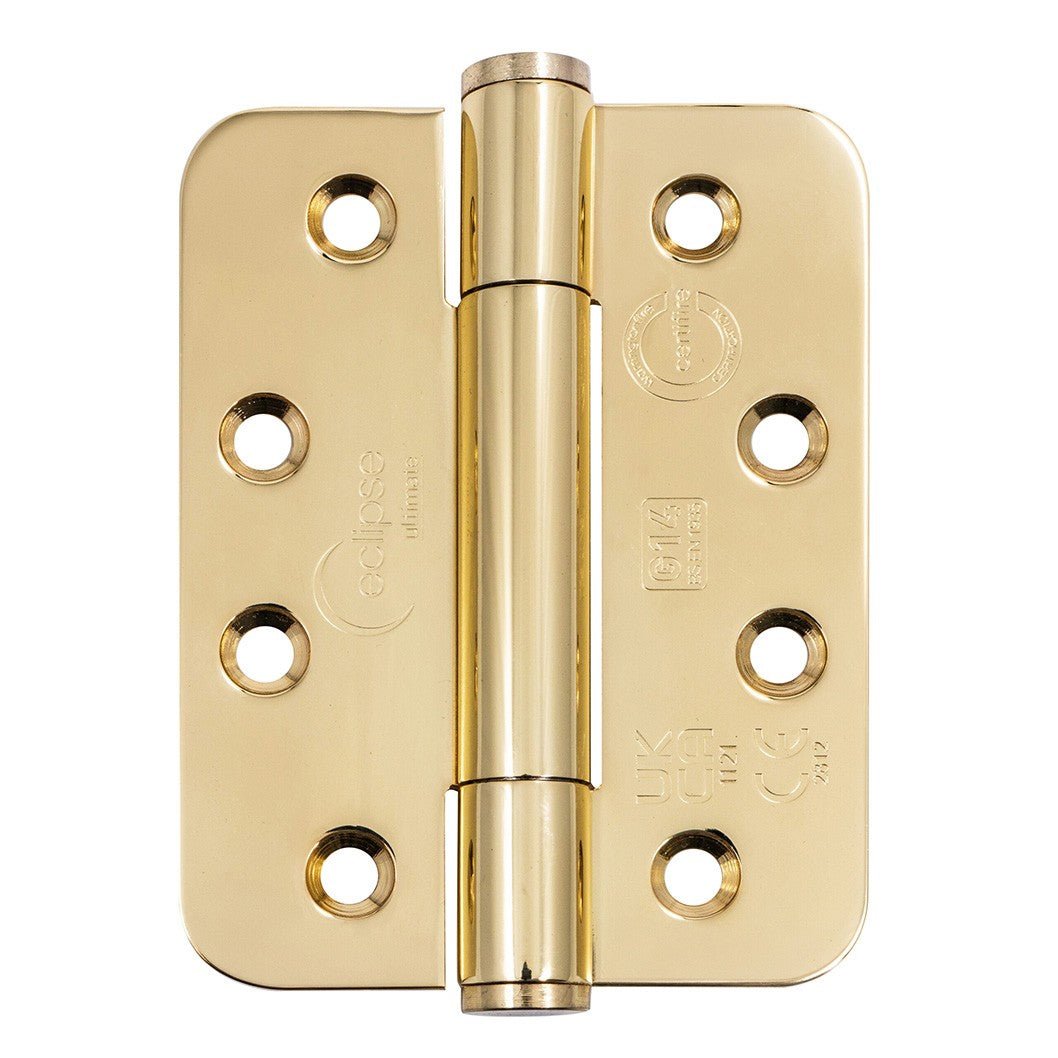

• Polished Brass - a bright, traditional finish with a reflective appearance.
• Polished Stainless Steel - a bright stainless steel finish for a clean, contemporary look.

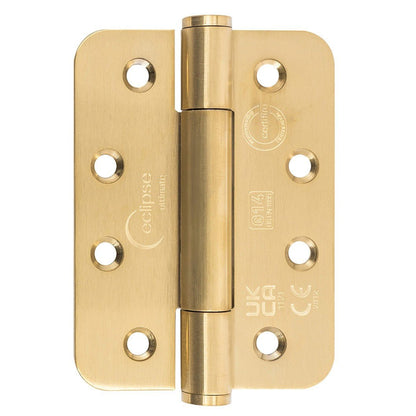

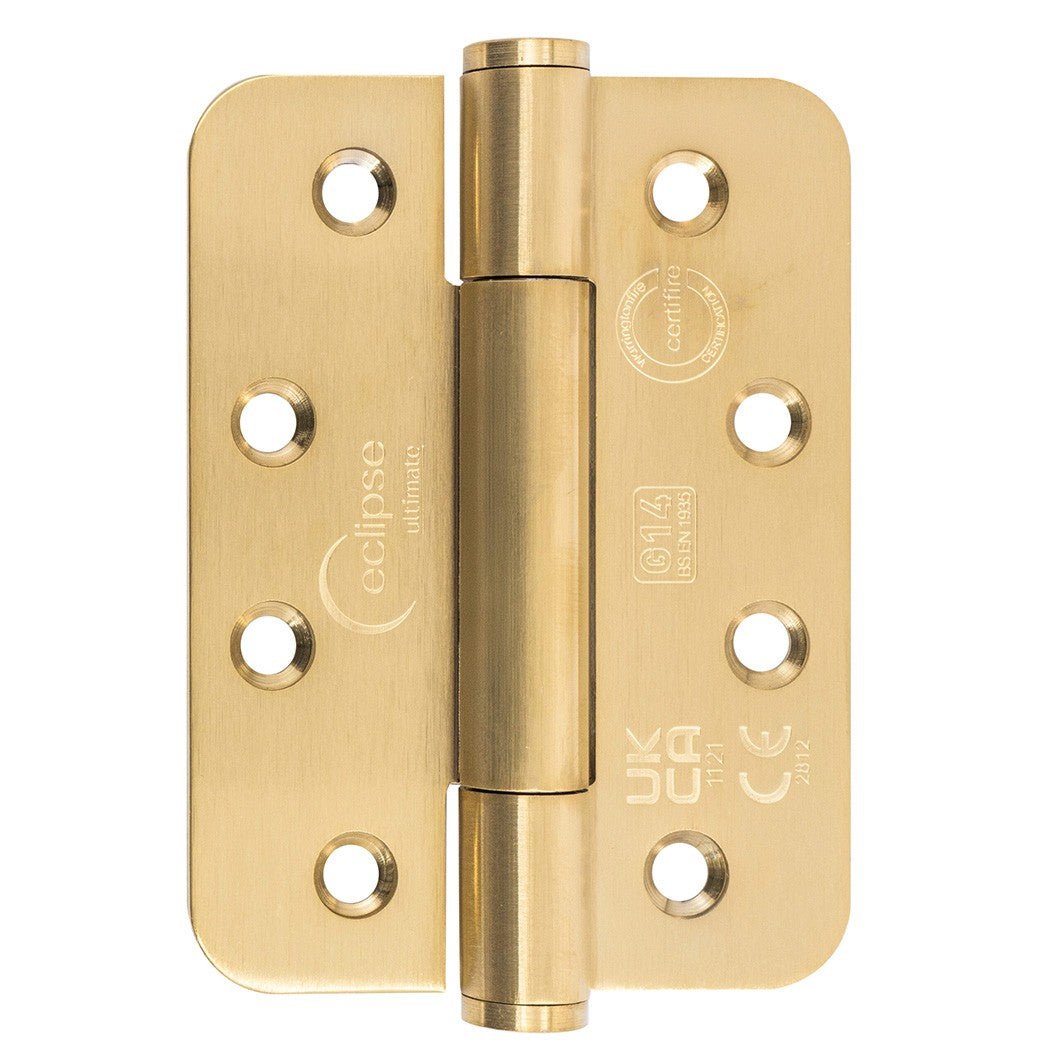

• Satin Brass - a softer brass finish with a refined appearance.

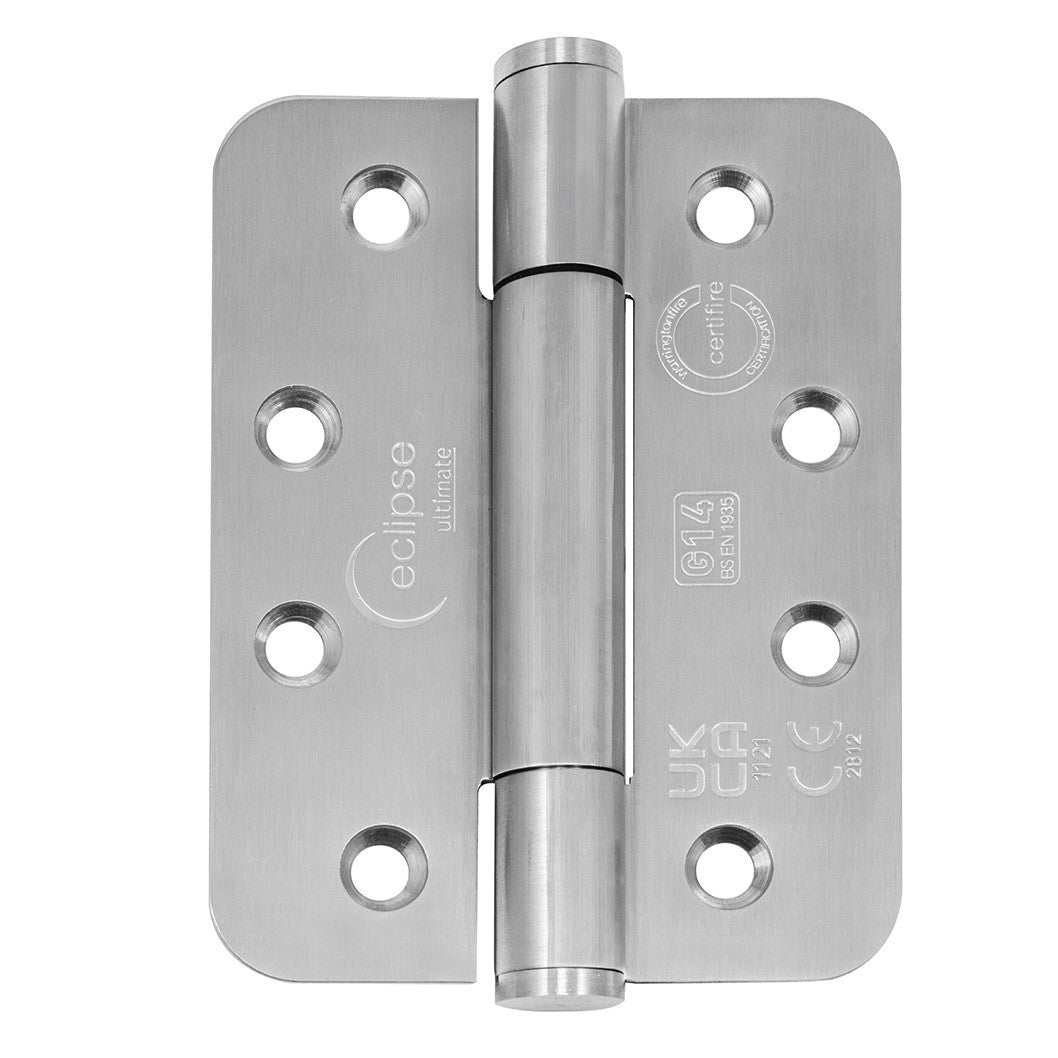

• Satin Stainless Steel - a subtle stainless steel finish that complements modern hardware schemes.

Available Variants

All supplied finish variants are covered below:

• Dark Bronze - 102x76x3mm Radius Grade 14 SS201 Concealed Bearing Hinge.
• Matt Antique Brass - 102x76x3mm Radius Grade 14 SS201 Concealed Bearing Hinge.
• Matt Black - 102x76x3mm Radius Grade 14 SS201 Concealed Bearing Hinge.
• Polished Brass - 102x76x3mm Radius Grade 14 SS201 Concealed Bearing Hinge.
• Polished Stainless Steel - 102x76x3mm Radius Grade 14 SS201 Concealed Bearing Hinge.
• Satin Brass - 102x76x3mm Radius Grade 14 SS201 Concealed Bearing Hinge.
• Satin Stainless Steel - 102x76x3mm Radius Grade 14 SS201 Concealed Bearing Hinge.

Frequently Asked Questions

What is the maximum door weight for this hinge?

The Frisco Eclipse Radius Concealed Bearing Hinge is Grade 14 rated and designed for doors with a total door mass of up to 160kg, subject to correct installation and the requirements of the complete doorset.

What does the 10mm radius refer to?

The 10mm radius refers to the rounded corners of the hinge. This gives the hinge a softer profile and makes it suitable for installations where radius-corner hinges are required.

What finishes are available for this hinge?

The hinge is available in Dark Bronze, Matt Antique Brass, Matt Black, Polished Brass, Polished Stainless Steel, Satin Brass and Satin Stainless Steel. All variants share the same 102x76x3mm Grade 14 specification and 10mm radius corner design.
