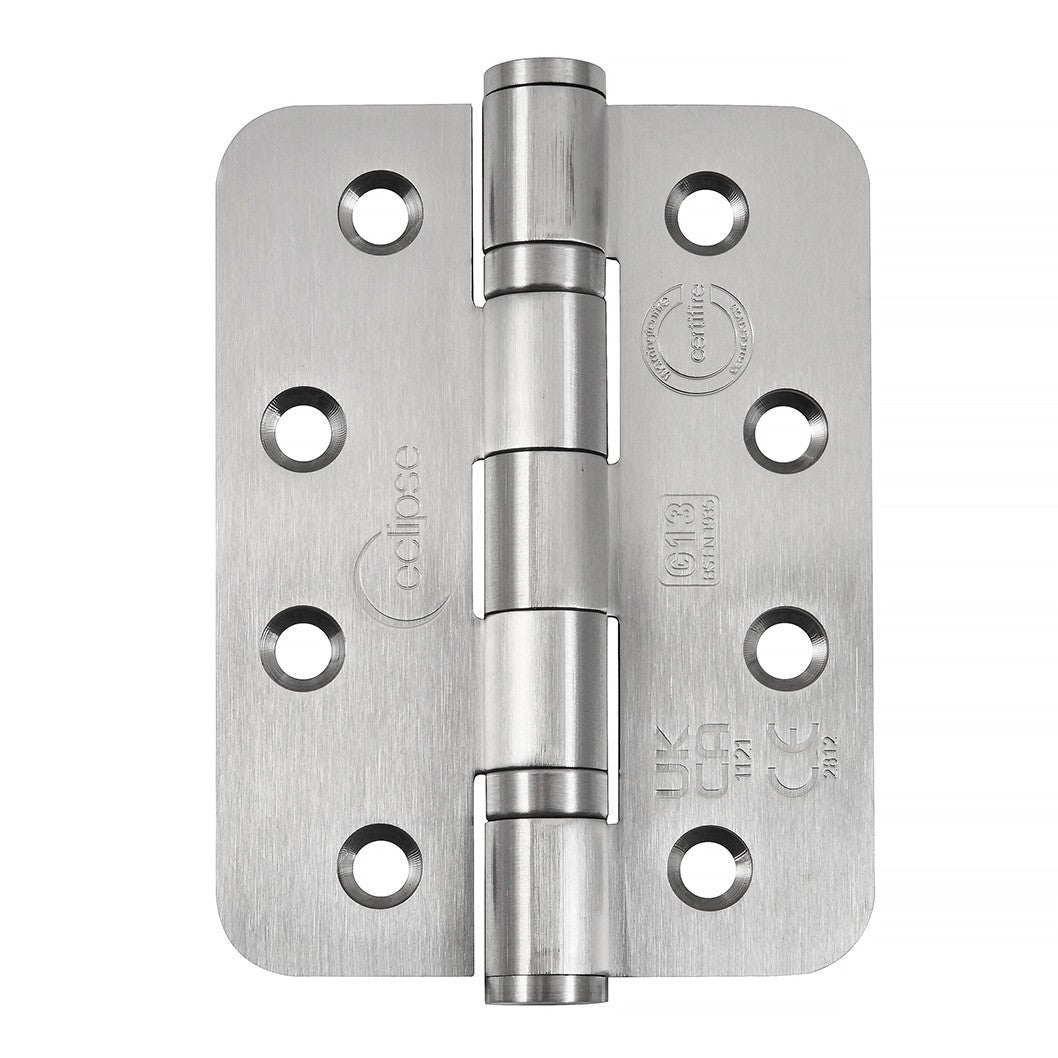

Frisco Eclipse 102x76x3mm Ball Bearing Hinge Radius Grade 13

Frisco Eclipse Radius Ball Bearing Hinge Grade 13

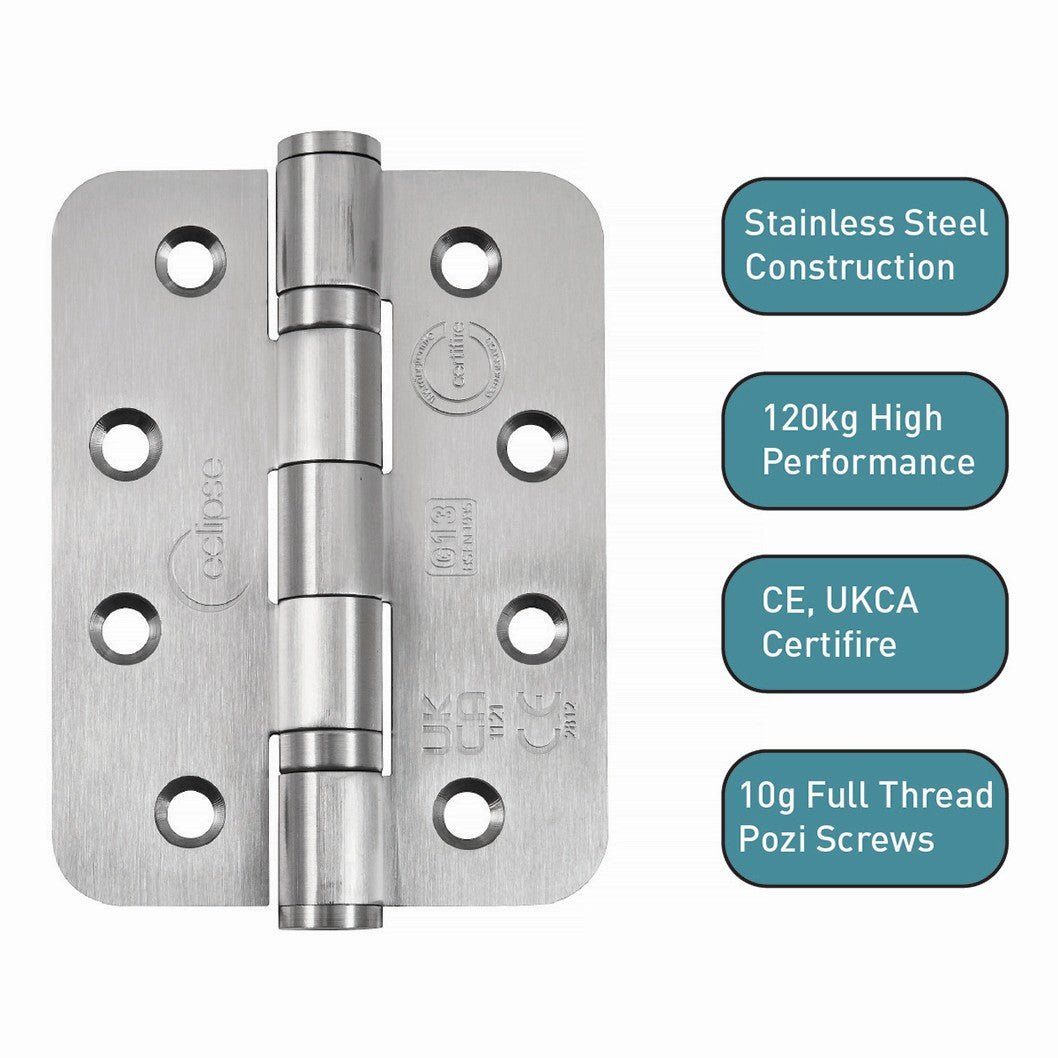

The Frisco Eclipse 102x76x3mm Ball Bearing Hinge Radius Grade 13 is a strong and dependable hinge designed for doors that require reliable performance, smooth operation and long-term durability. Manufactured from Grade 201 stainless steel, this ball bearing hinge is suitable for doors weighing up to 120kg, making it a practical choice for a wide range of residential, commercial and specification applications. The hinge features 10mm radius corners, giving it a softer, rounded appearance that works particularly well with doors and frames designed for radius-corner hardware. Its ball bearing construction also helps provide smooth and consistent door movement, even when the door is used frequently.

Grade 13 Performance and Testing

This Eclipse hinge has been performance tested to BS EN1935 and tested through 200,000 opening cycles, demonstrating its ability to withstand repeated everyday use. It is Grade 13 rated for doors with a maximum weight of 120kg, subject to correct installation and the requirements of the complete doorset. The hinge has also been fire tested to BS EN1634 for FD30, FD60, FD90 and FD120-minute timber doors, as well as FD240-minute steel doors. It carries CE 1121, UKCA 2812 and CF5837 Certifire certification.

Construction and Installation

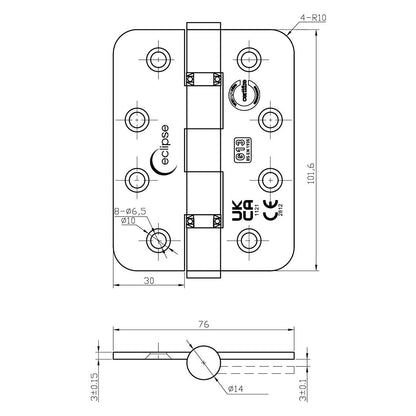

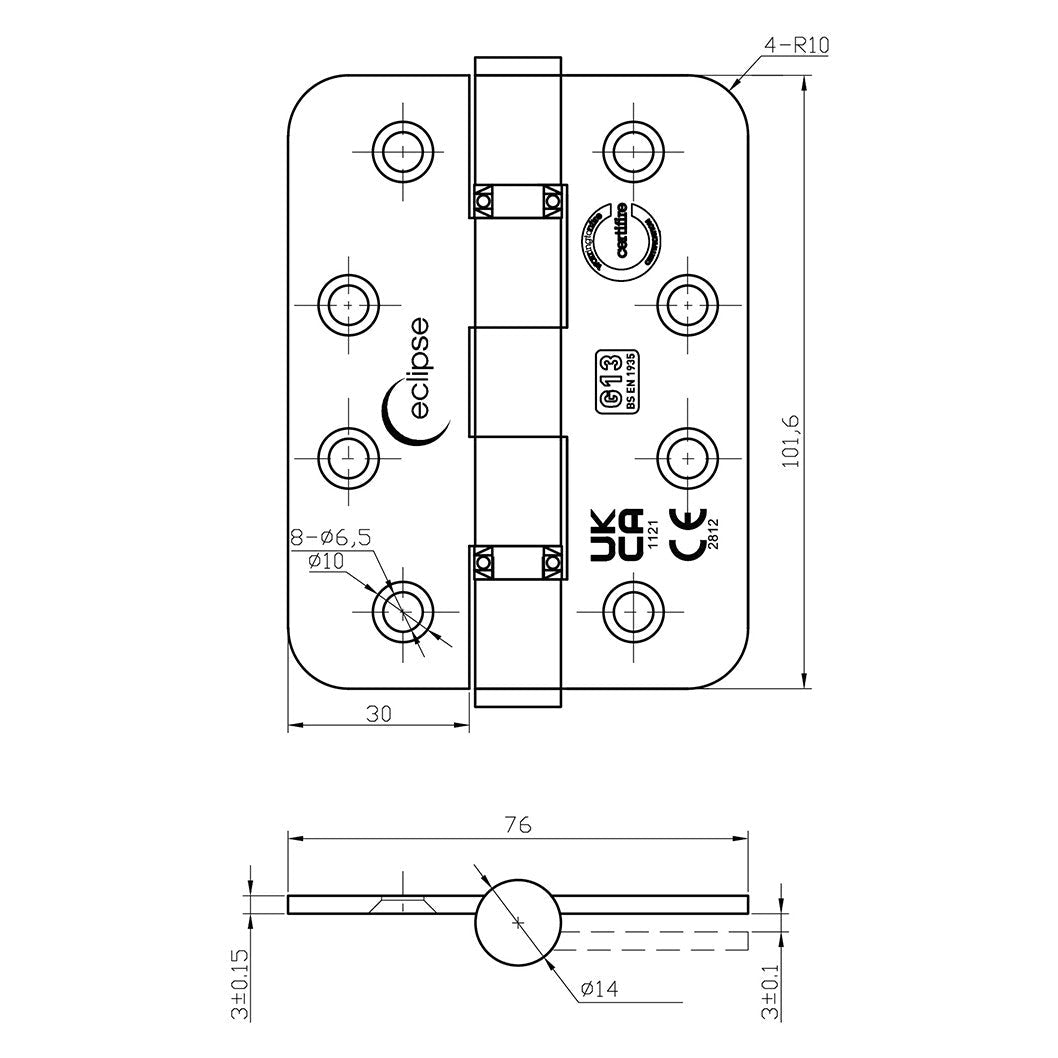

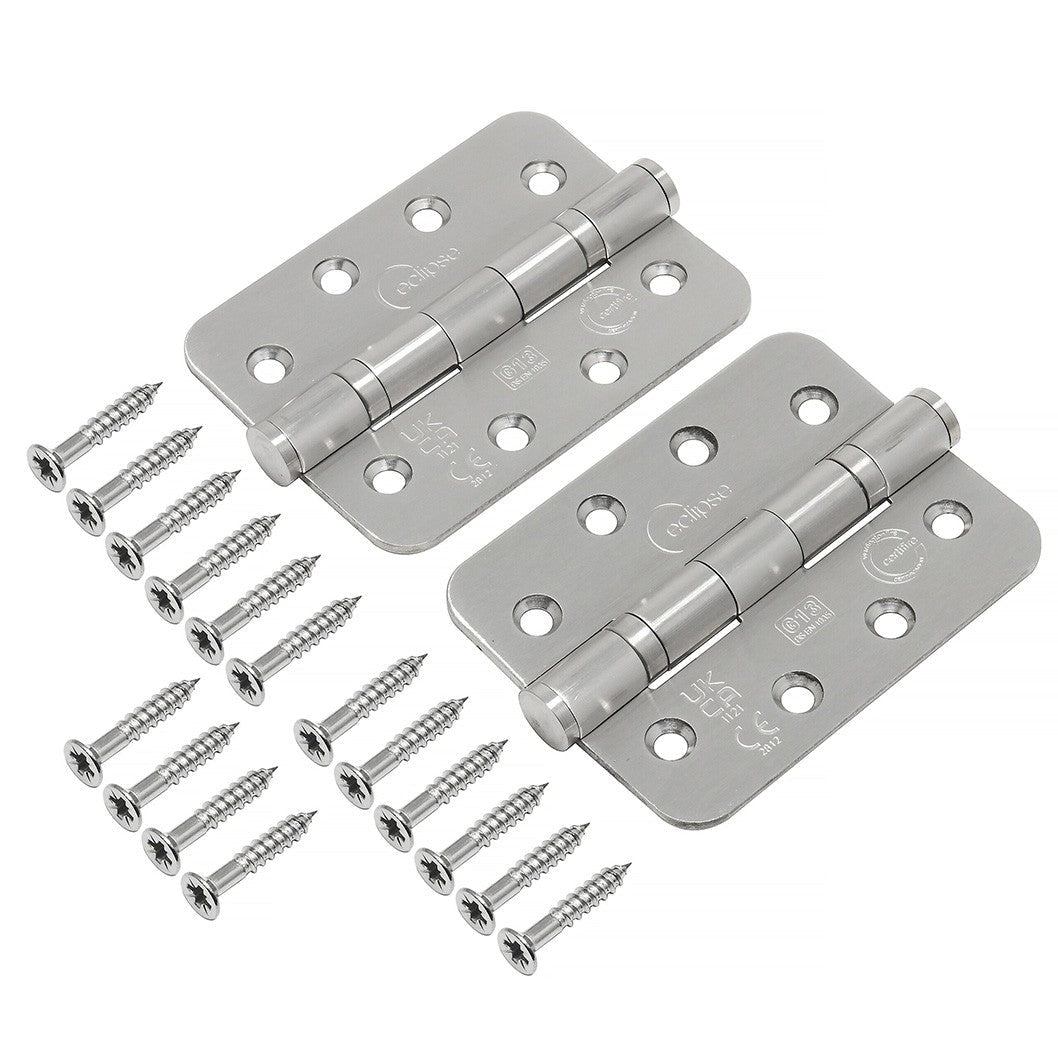

Manufactured from Grade 201 stainless steel, the hinge provides a robust solution for suitable door applications. Its 102x76x3mm dimensions provide a substantial hinge profile, while the ball bearing mechanism supports smooth opening and closing. The hinge is supplied with 10 x 1¼-inch full-thread screws for installation. When used on fire-rated doors, intumescent hinge pads must be used with the product to meet the required fire-door compliance. The complete doorset must also be appropriately tested and installed in accordance with the relevant requirements.

Radius Corner Design

With 10mm radius corners, this hinge is designed to provide a neat rounded profile rather than square corners. This makes it a suitable option for door installations where radius-corner hinges are required or preferred.

Available Variant

The supplied Excel information does not specify additional door sizes, finishes, colours, glazing options or handing variants. The confirmed product specification is:

• Size: 102x76x3mm
• Grade: Grade 13
• Maximum Door Weight: 120kg
• Material: Grade 201 Stainless Steel
• Type: Ball Bearing Hinge
• Corner Radius: 10mm
• Fixings: 10 x 1¼-inch Full Thread Screws
• Classification: 476114013

Frequently Asked Questions

What is the maximum door weight for this Grade 13 hinge?

The Frisco Eclipse hinge is Grade 13 rated and designed for doors weighing up to 120kg, subject to the correct installation and requirements of the complete doorset.

What does the 10mm radius mean?

The 10mm radius refers to the rounded corners of the hinge. Instead of having square corners, the hinge features a 10mm radius profile, making it suitable for applications where radius-corner hinges are required.

Can this hinge be used on fire-rated doors?

Yes. The hinge has been fire tested to BS EN1634 for FD30, FD60, FD90 and FD120-minute timber doors and FD240-minute steel doors. For fire-door compliance, intumescent hinge pads must be used with the hinge, and the complete doorset must meet the relevant fire-performance requirements.
