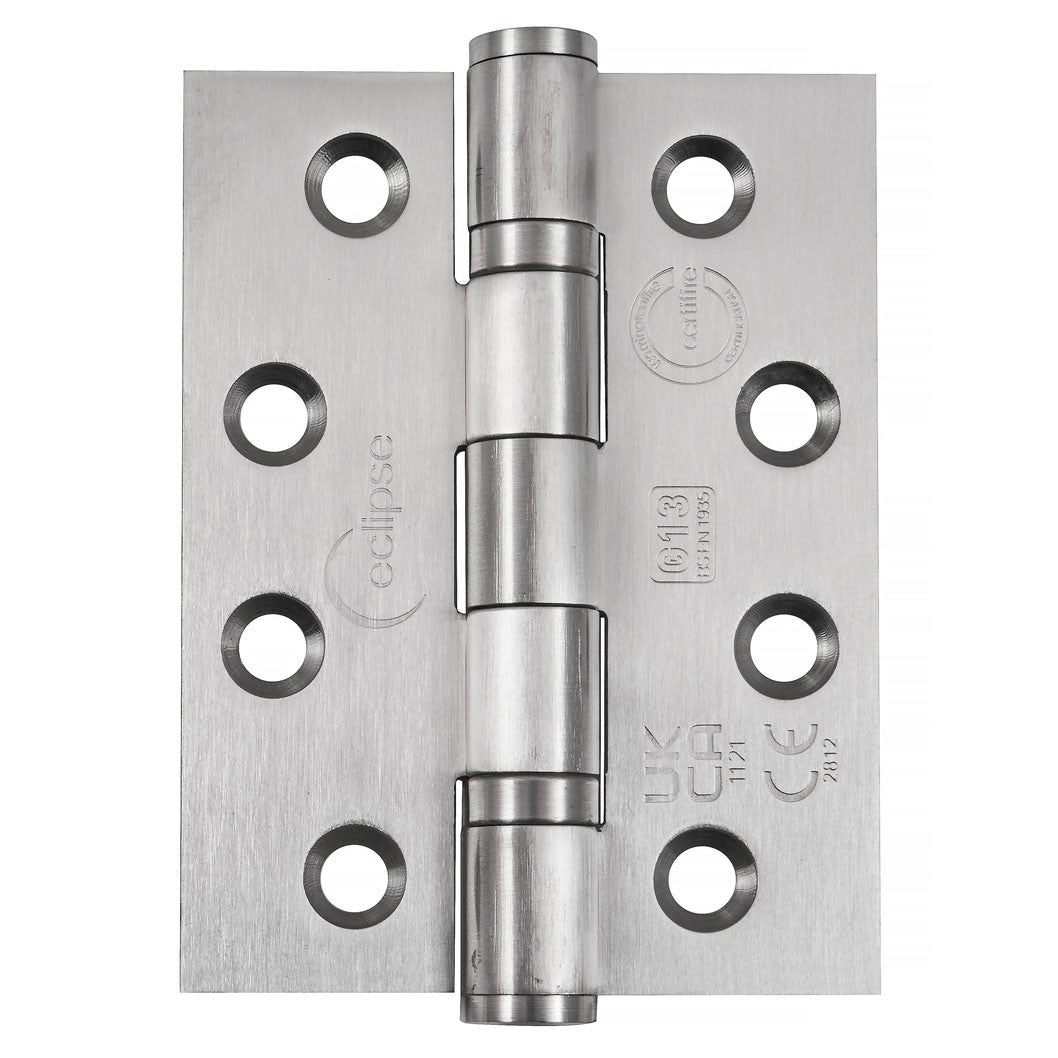

Frisco Eclipse 102x76x3mm Ball Bearing Hinge Grade 13 (Pre-Pack)

Frisco Eclipse 102x76x3mm Ball Bearing Hinge Grade 13 (Pre-Pack)

The Frisco Eclipse 102x76x3mm Ball Bearing Hinge Grade 13 is a robust, heavy-duty hinge designed for demanding door applications. Manufactured from SUS 201 stainless steel, it combines a durable construction with ball bearing support to provide smooth and reliable door operation.

Grade 13 Heavy-Duty Performance

Measuring 102x76x3mm, this hinge is rated Grade 13 and is suitable for doors with a total mass of up to 120kg. It has been BS EN1935 performance tested to 200,000 cycles at Grade 13, making it a dependable option for doors that are regularly used. The hinge has also been BS EN1634 fire tested for FD30, FD60, FD90 and FD120-minute timber doors, as well as FD240-minute steel doors. For fire-rated applications, it should be installed as part of a compatible and appropriately tested door assembly.

Approvals and Supplied Fixings

The Frisco Eclipse hinge carries CE 2812, UKCA 1121 and Certifire CF336 approvals. It features 12-gauge countersunk fixing holes and is supplied with 12 × 1.1/4-inch Pozi Drive 3/4-inch threaded screws for installation.

Pre-Pack Options and Available Finishes

This pre-pack range is available in a 2-piece pack across five finishes: Matt Antique Brass, Matt Black, Polished Brass, Polished Stainless Steel and Satin Stainless Steel.

Available Variants

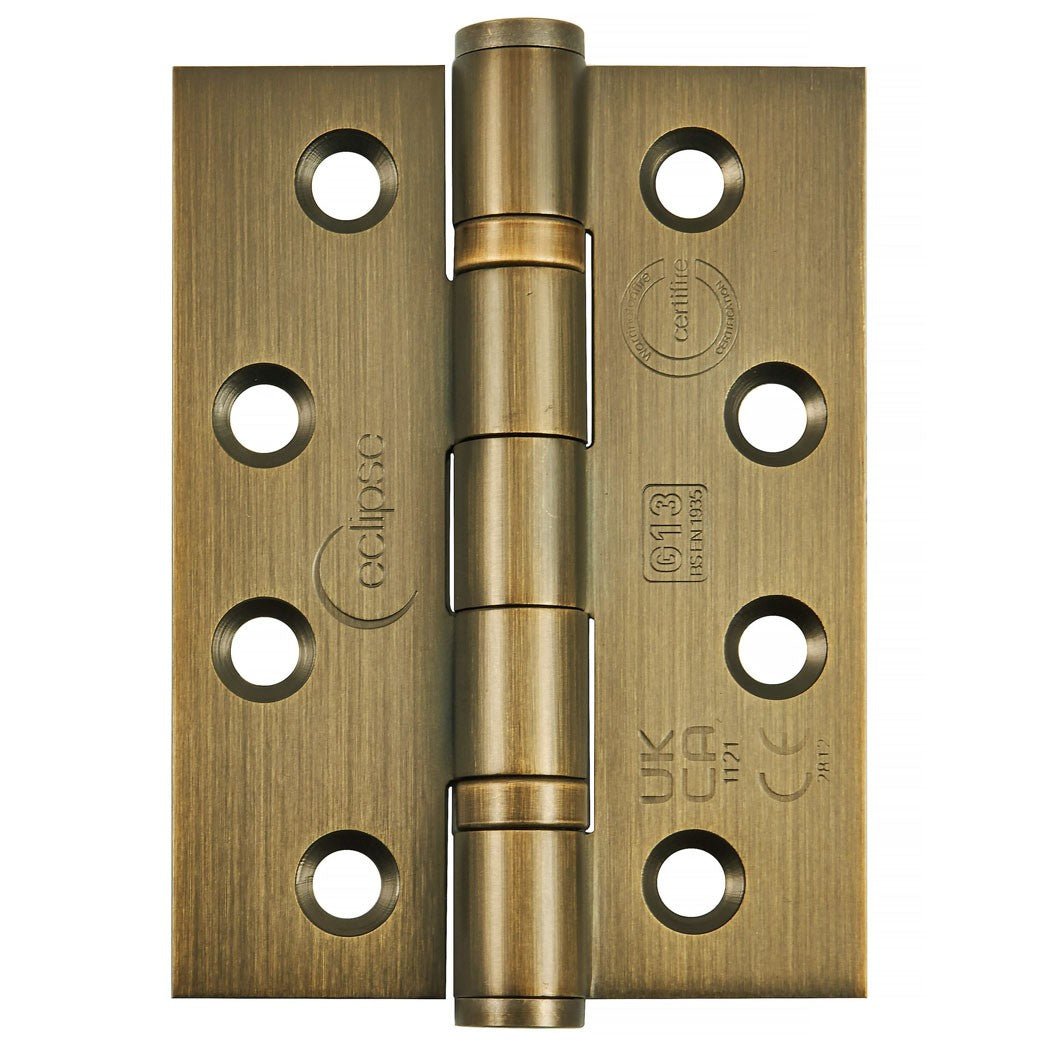

• Matt Antique Brass - 2 Pack

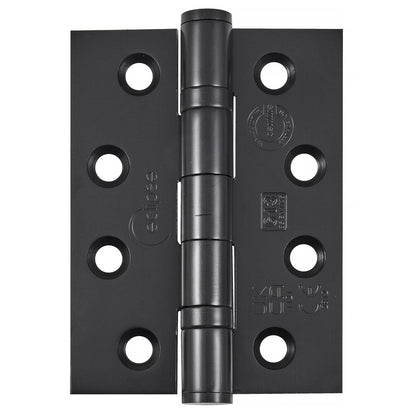

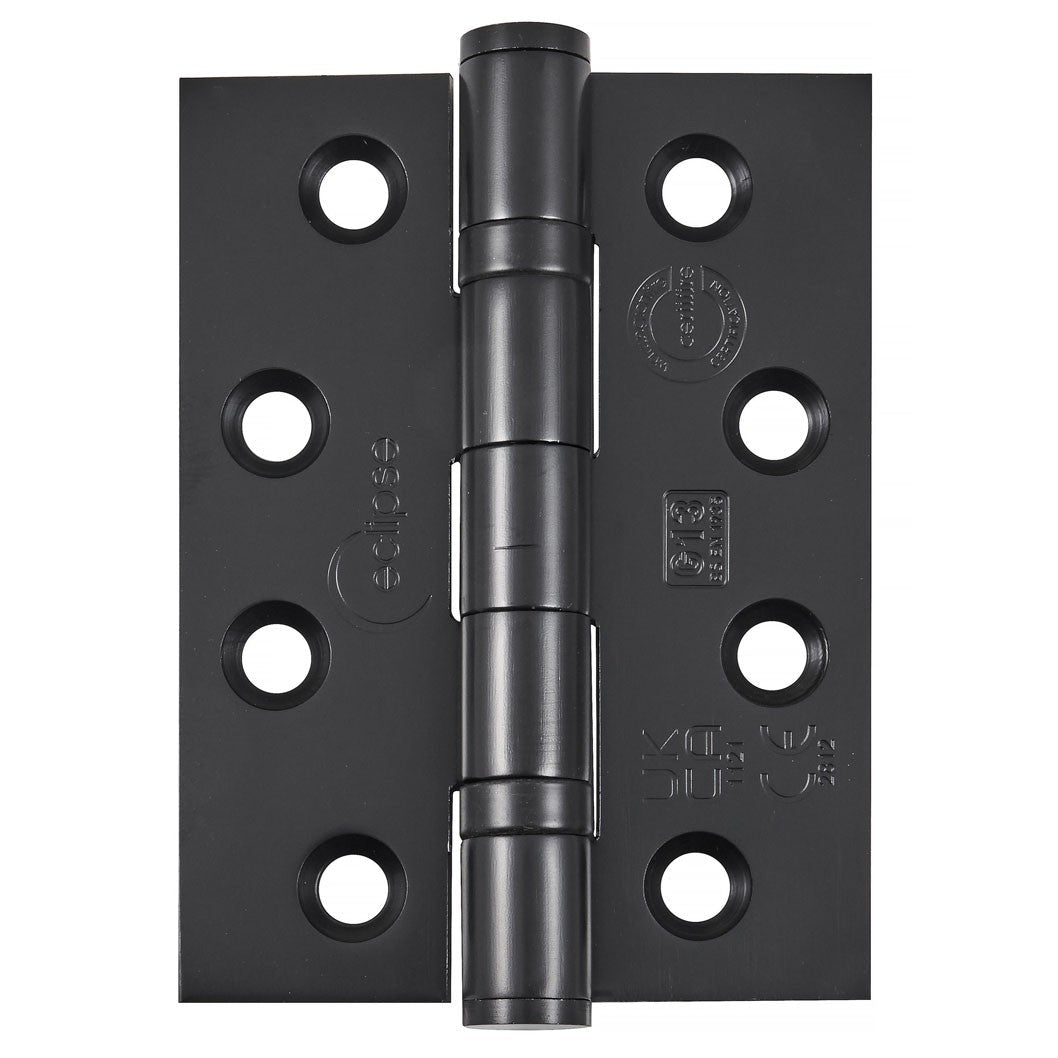

• Matt Black - 2 Pack

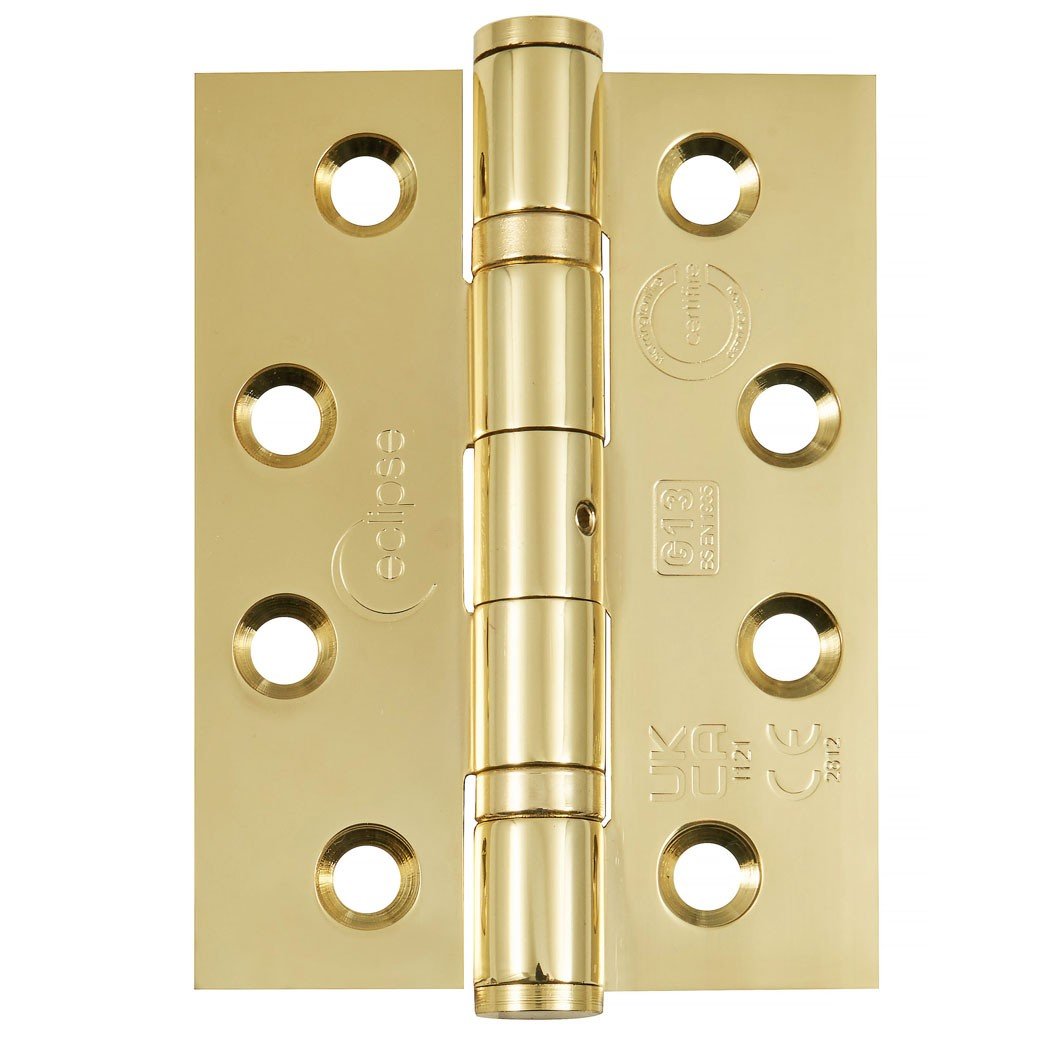

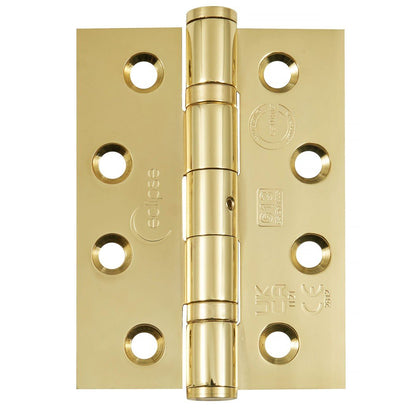

• Polished Brass - 2 Pack

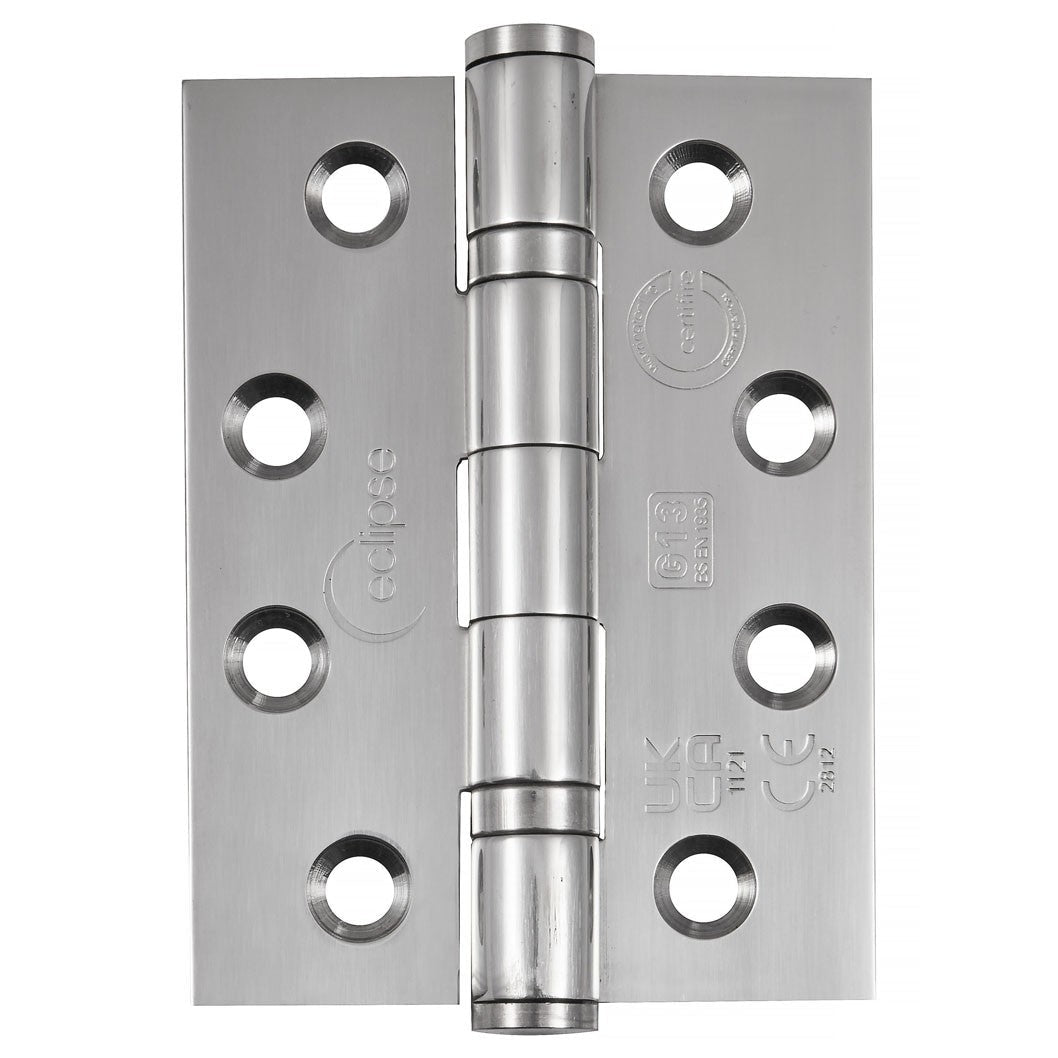

• Polished Stainless Steel - 2 Pack
• Satin Stainless Steel - 2 Pack

Key Features and Specifications

• 102x76x3mm ball bearing hinge
• Grade 13 rating
• Suitable for total door mass up to 120kg
• SUS 201 stainless steel construction
• CE 2812, UKCA 1121 and Certifire CF336
• BS EN1935 performance tested to 200,000 cycles at Grade 13
• BS EN1634 fire tested for FD30, 60, 90 and 120-minute timber doors
• FD240-minute fire tested for steel doors
• 12-gauge countersunk fixing holes
• Supplied with 12 × 1.1/4-inch Pozi Drive 3/4-inch threaded screws
• Pre-pack supplied as a 2-piece pack
• Available in five finishes

Frequently Asked Questions

What door weight can this Grade 13 hinge support?

The Frisco Eclipse hinge is Grade 13 rated and is specified for a total door mass of up to 120kg, subject to suitable installation and application requirements.

What finishes are available for the pre-pack version?

The pre-pack is available in Matt Antique Brass, Matt Black, Polished Brass, Polished Stainless Steel and Satin Stainless Steel. Each listed variant is supplied as a 2-piece pack.

Is this hinge suitable for fire-rated doors?

Yes. The hinge has been BS EN1634 fire tested for FD30, FD60, FD90 and FD120-minute timber doors and FD240-minute steel doors. It should be installed as part of a compatible, tested fire door assembly and in accordance with the appropriate installation requirements.
