Frisco Eclipse 102x76x3mm Ball Bearing Hinge Grade 13

Frisco Eclipse 102x76x3mm Ball Bearing Hinge Grade 13

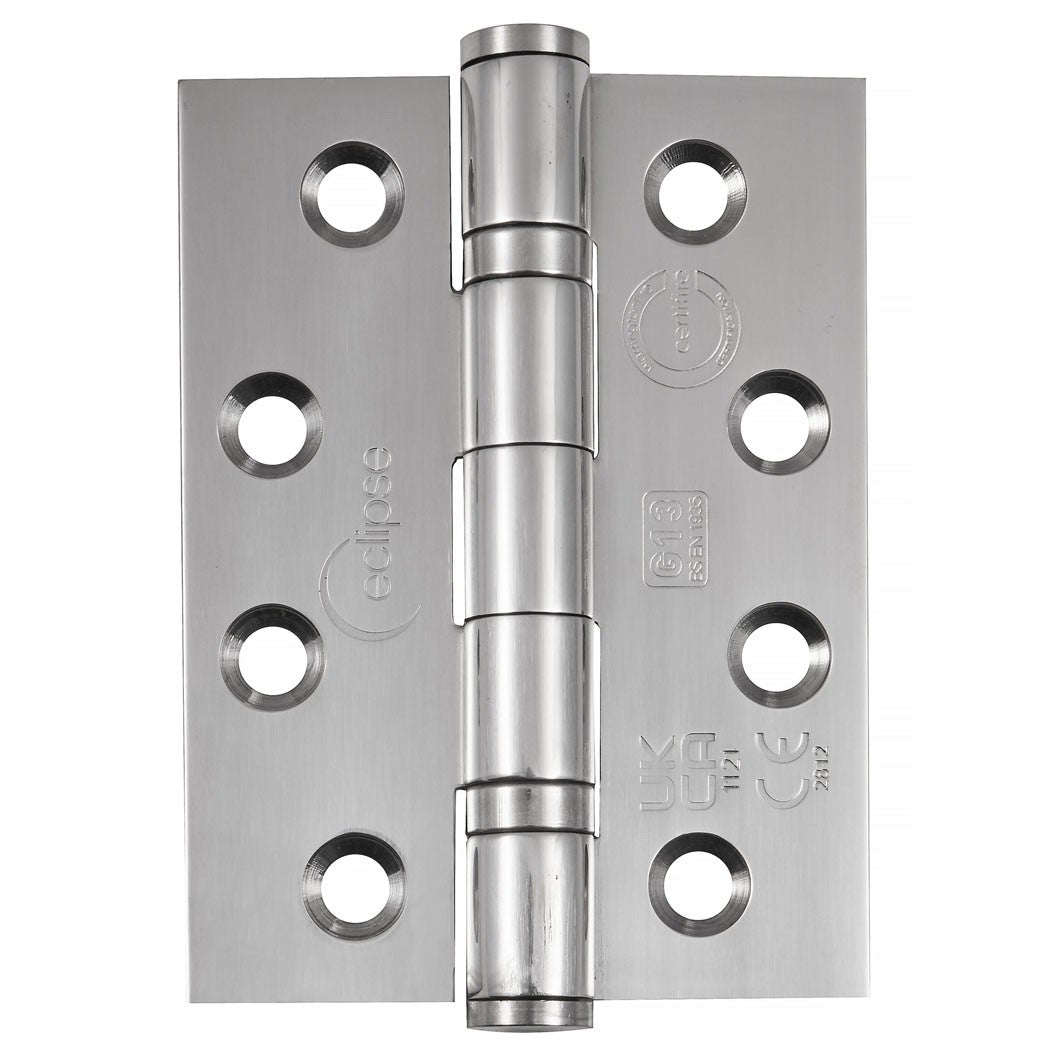

The Frisco Eclipse 102x76x3mm Ball Bearing Hinge Grade 13 is a heavy-duty hinge designed for demanding door applications where strength, durability and smooth operation are essential. Manufactured from SUS 201 stainless steel, it combines a robust construction with ball bearing support to provide reliable and consistent door movement.

Grade 13 Heavy-Duty Performance

Measuring 102x76x3mm, this hinge is rated Grade 13 and is suitable for doors with a total mass of up to 120kg. It has been BS EN1935 performance tested to 200,000 cycles at Grade 13, making it a dependable choice for doors that experience regular use. The hinge has also been BS EN1634 fire tested for FD30, FD60, FD90 and FD120-minute timber doors, as well as FD240-minute steel doors. For fire door applications, it should be installed as part of a compatible and appropriately tested door assembly.

Approvals and Fixings

The Frisco Eclipse hinge carries CE 2812, UKCA 1121 and Certifire CF336 approvals. It features 12-gauge countersunk fixing holes and is supplied with 12 × 1.1/4-inch Pozi Drive 3/4-inch threaded screws.

Choice of Pack Quantities

This hinge is available in both packs of 2 and packs of 3 pieces, giving you flexibility depending on the requirements of your door installation. Both pack quantities are available in all seven finishes: Dark Bronze, Matt Antique Brass, Matt Black, Polished Brass, Polished Stainless Steel, Satin Brass and Satin Stainless Steel.

Available Variants

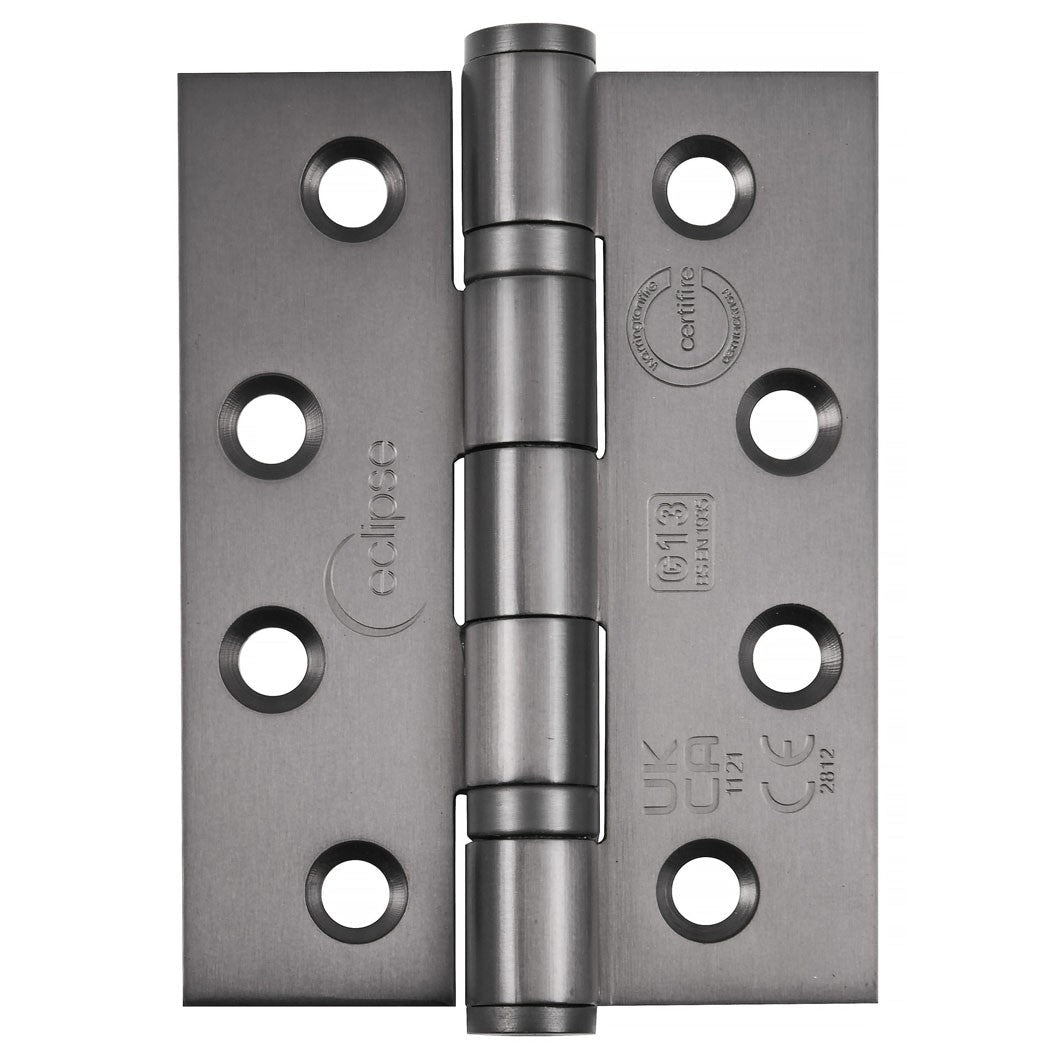

• Dark Bronze - 2 Pack

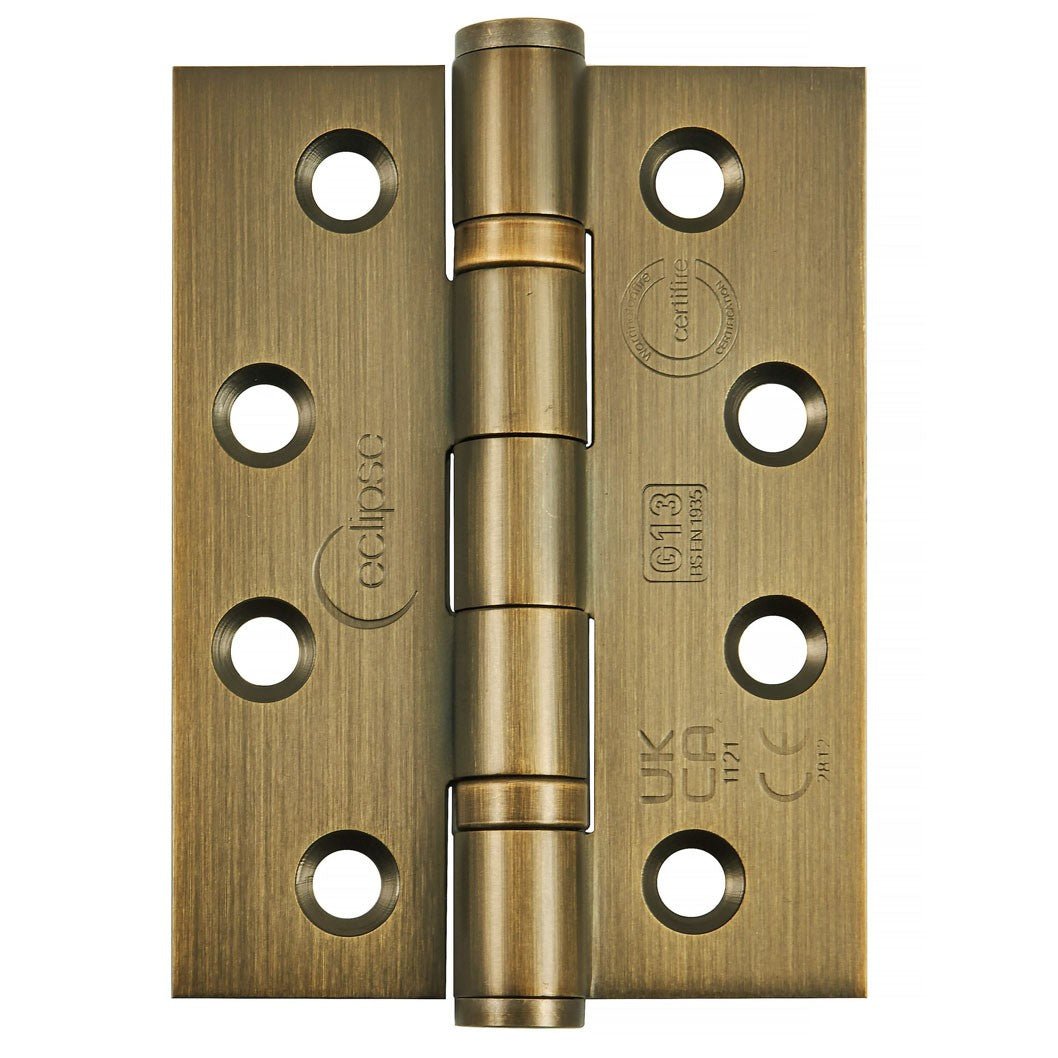

• Matt Antique Brass - 2 Pack

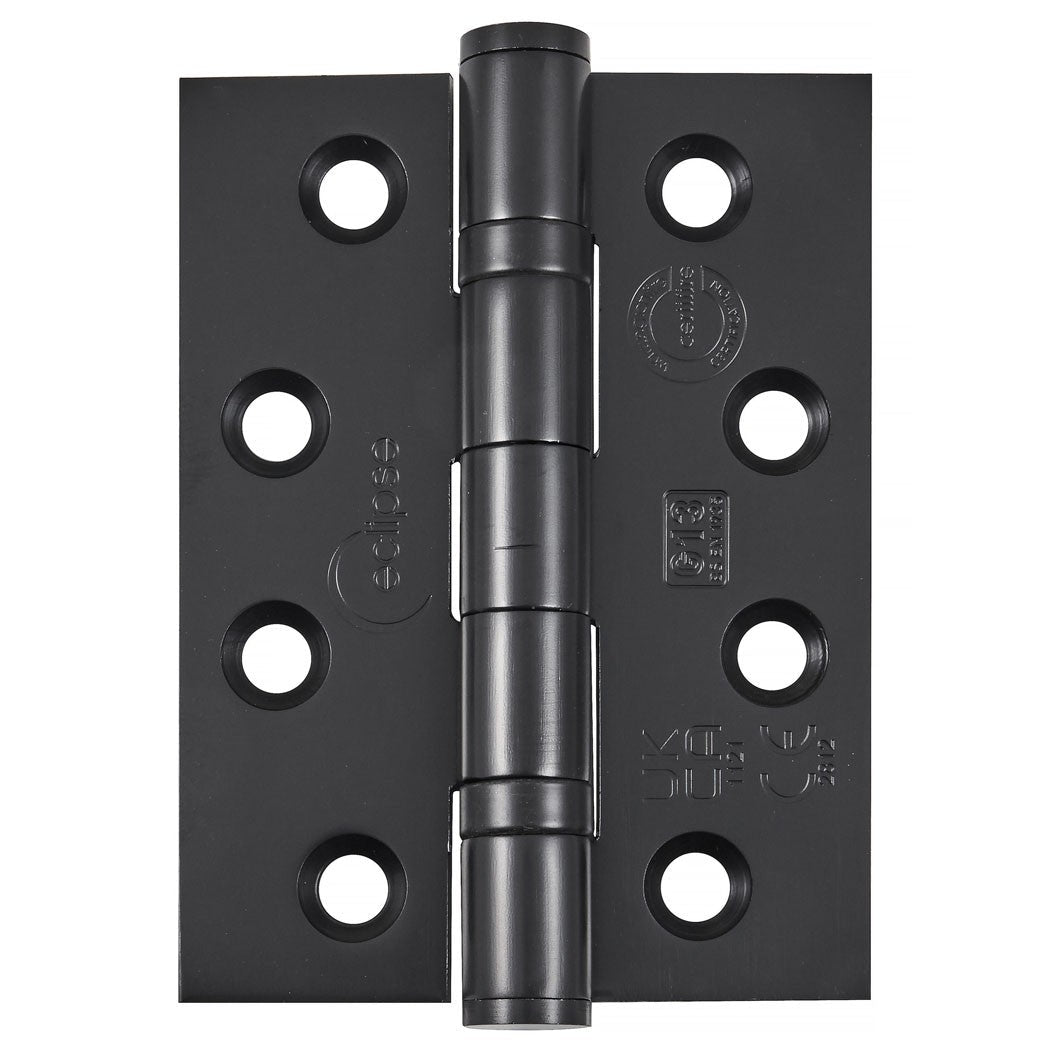

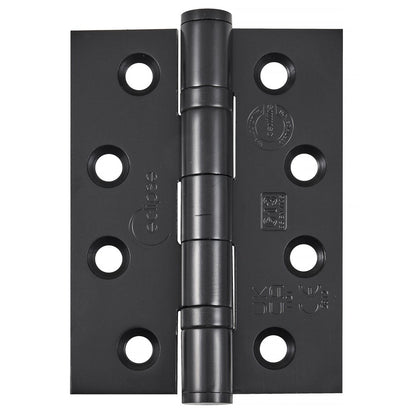

• Matt Black - 2 Pack

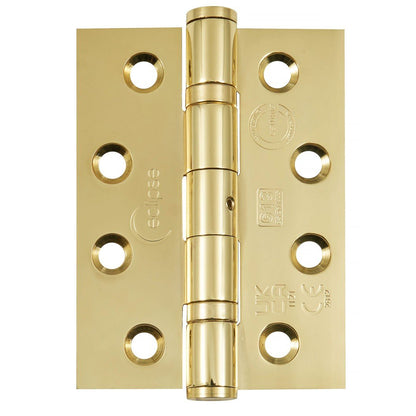

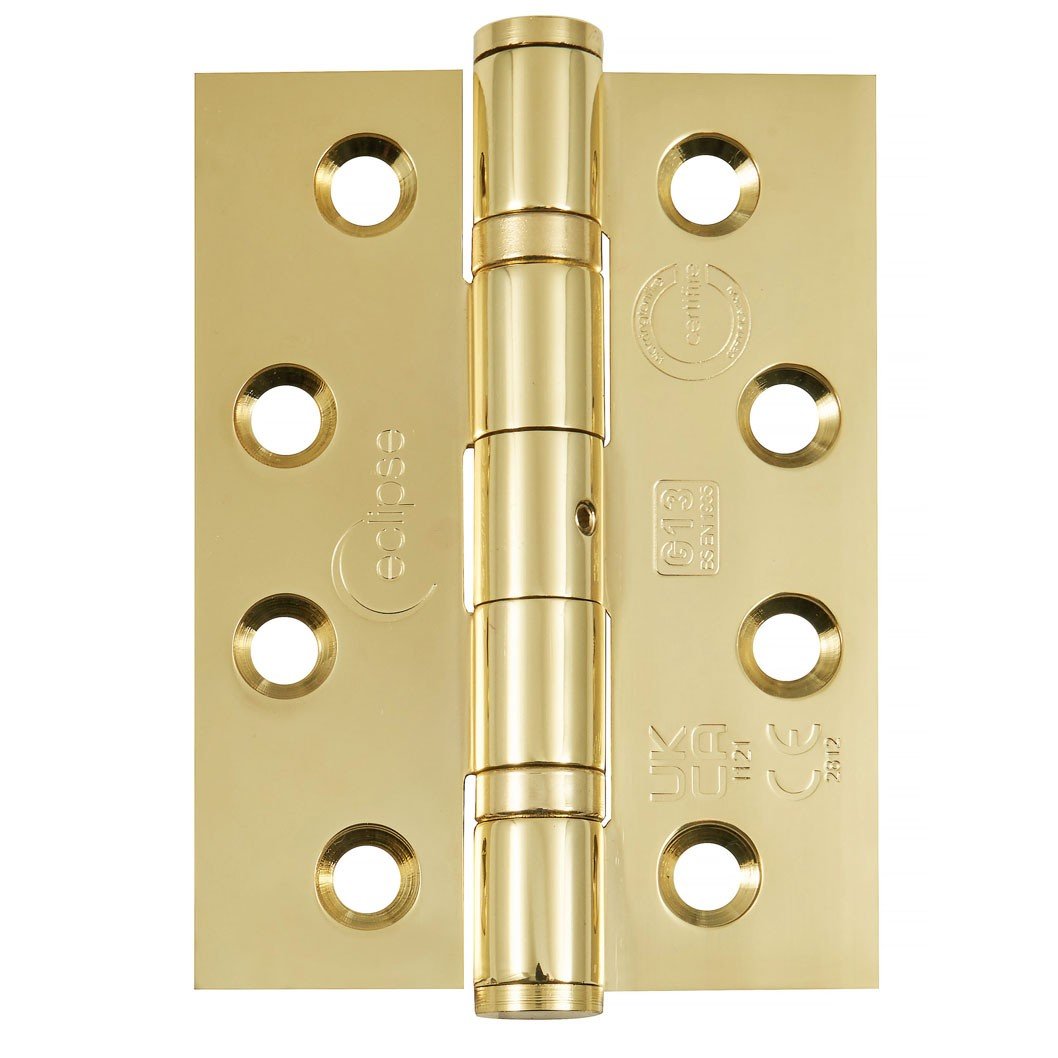

• Polished Brass - 2 Pack
• Polished Stainless Steel - 2 Pack

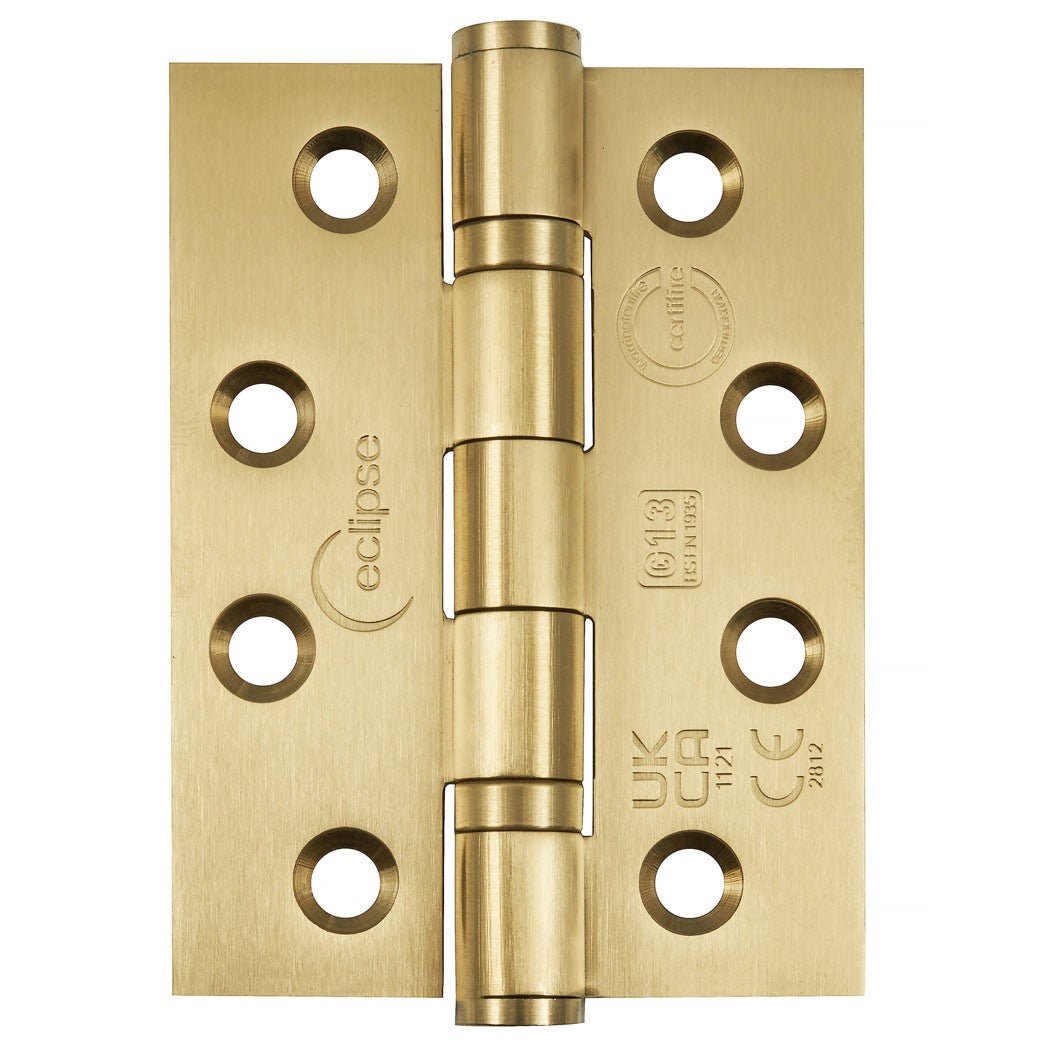

• Satin Brass - 2 Pack

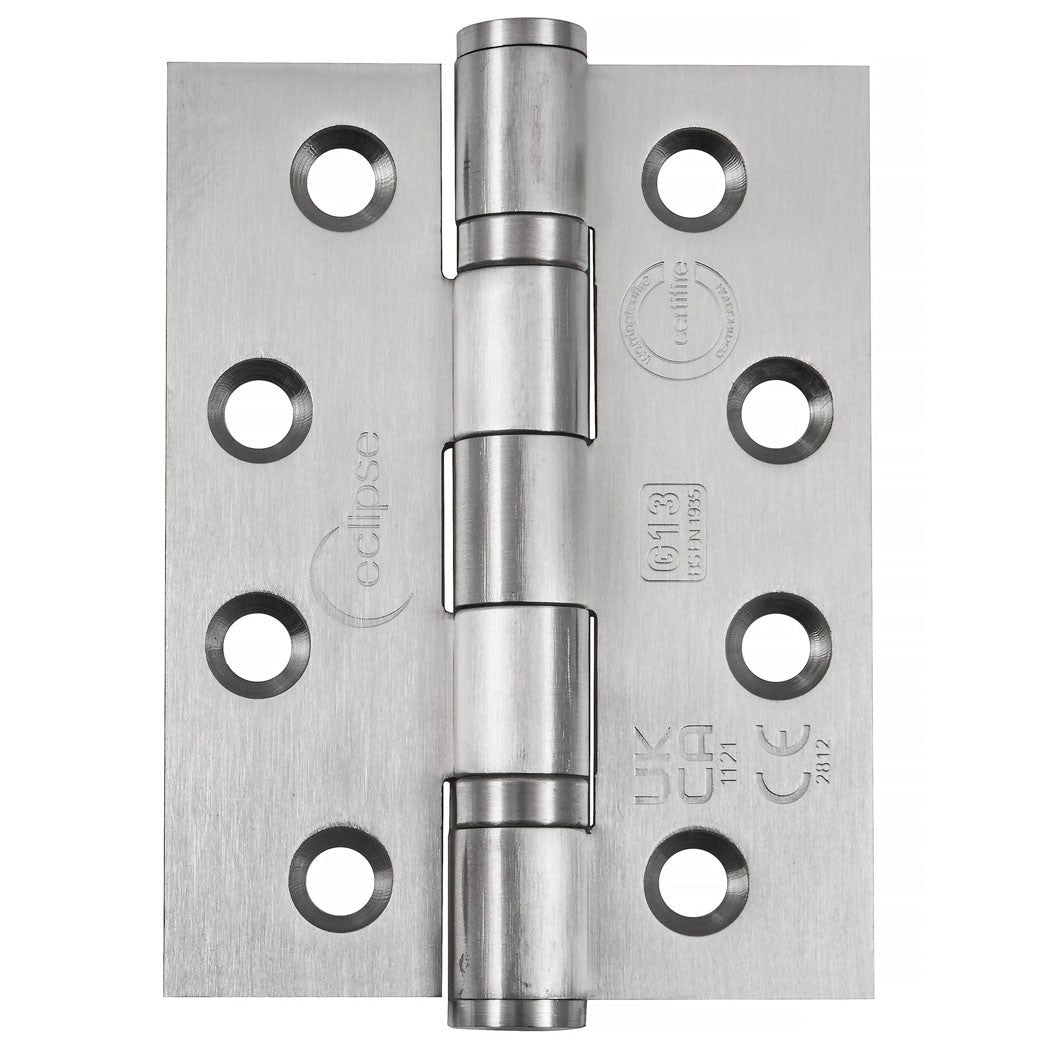

• Satin Stainless Steel - 2 Pack
• Dark Bronze - 3 Pack
• Matt Antique Brass - 3 Pack
• Matt Black - 3 Pack
• Polished Brass - 3 Pack
• Polished Stainless Steel - 3 Pack
• Satin Brass - 3 Pack
• Satin Stainless Steel - 3 Pack

Key Features and Specifications

• 102x76x3mm ball bearing hinge
• Grade 13 rating
• Suitable for total door mass up to 120kg
• SUS 201 stainless steel construction
• CE 2812, UKCA 1121 and Certifire CF336
• BS EN1935 performance tested to 200,000 cycles at Grade 13
• BS EN1634 fire tested for FD30, 60, 90 and 120-minute timber doors
• FD240-minute fire tested for steel doors
• 12-gauge countersunk fixing holes
• Supplied with 12 × 1.1/4-inch Pozi Drive 3/4-inch threaded screws
• Available in packs of 2 or 3 pieces
• Available in seven finishes

Frequently Asked Questions

What door weight can this Grade 13 hinge support?

The Frisco Eclipse Ball Bearing Hinge is Grade 13 rated and is specified for a total door mass of up to 120kg, subject to suitable installation and application requirements.

What pack quantities and finishes are available?

The hinge is available in 2-piece and 3-piece packs. Both pack quantities are available in Dark Bronze, Matt Antique Brass, Matt Black, Polished Brass, Polished Stainless Steel, Satin Brass and Satin Stainless Steel.

Is this hinge suitable for fire-rated doors?

Yes. The hinge has been BS EN1634 fire tested for FD30, FD60, FD90 and FD120-minute timber doors and FD240-minute steel doors. It should be used as part of a compatible, tested fire door assembly and installed according to the relevant requirements.
