Frisco Eclipse 102x76x3mm Ball Bearing Hinge G316 Grade 13

Frisco Eclipse G316 Grade 13 Ball Bearing Hinge

The Frisco Eclipse 102x76x3mm Ball Bearing Hinge G316 Grade 13 is a robust, high-performance hinge designed for doors where strength, durability and reliable everyday operation are essential. Manufactured from SUS 316 grade stainless steel, it offers excellent corrosion resistance and a premium-quality construction, making it a suitable choice for demanding residential, commercial and specification applications. Rated to Grade 13, this hinge is designed for doors with a total door mass of up to 120kg. Its ball bearing mechanism helps provide smooth and consistent door movement, even when the hinge is used on heavier doors or in applications with frequent opening and closing.

Grade 13 Performance and Certification

The Eclipse Ball Bearing Hinge has been performance tested to BS EN1935 for 200,000 operating cycles and achieves Grade 13 performance. It also carries CE 2812, UKCA 1121 and Certifire CF336 certifications, providing additional assurance of its tested performance and suitability for appropriate door applications. For fire-rated installations, the hinge has been fire tested to BS EN1634 for FD30, FD60, FD90 and FD120-minute timber doors, as well as FD240-minute steel doors. The complete door assembly should always meet the relevant fire-performance requirements when this hinge is specified for a fire-rated application.

G316 Stainless Steel Construction

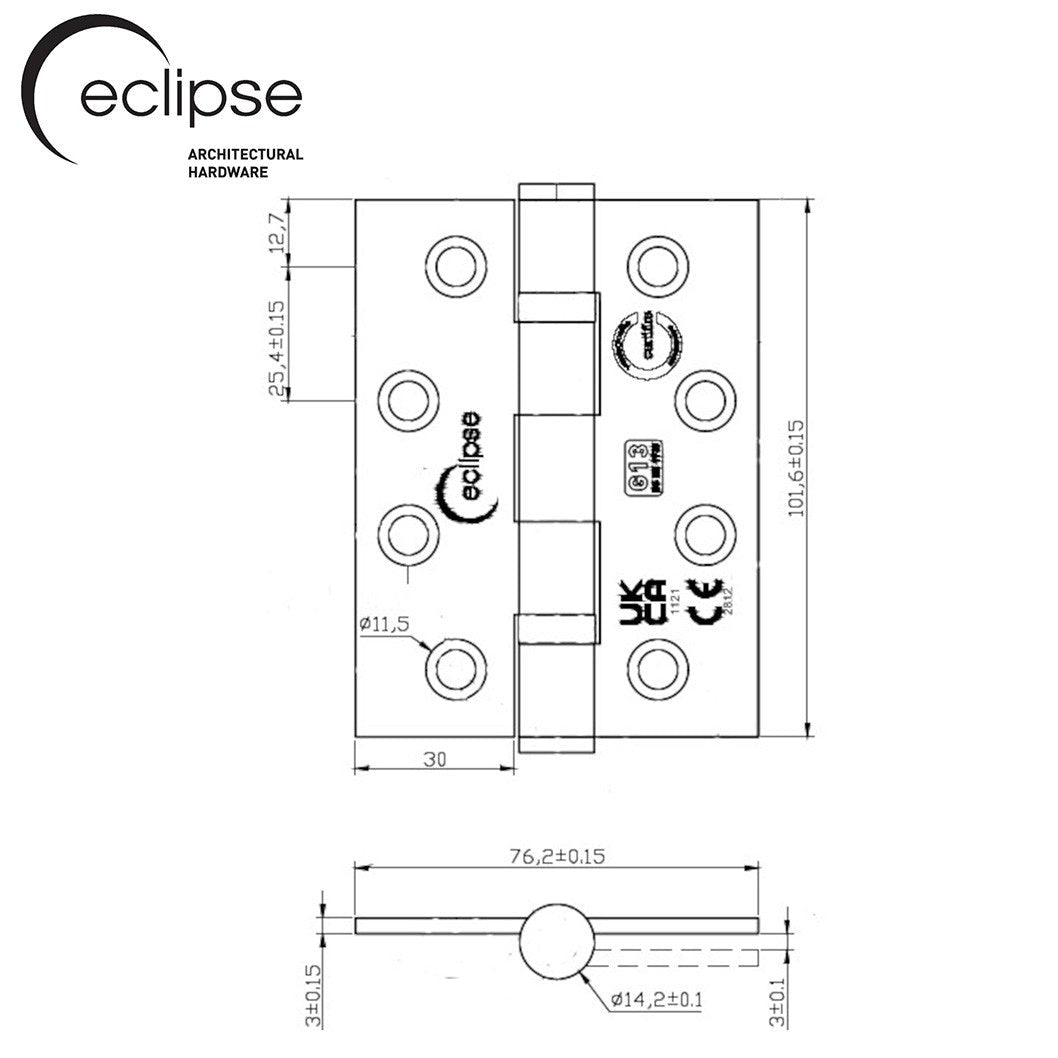

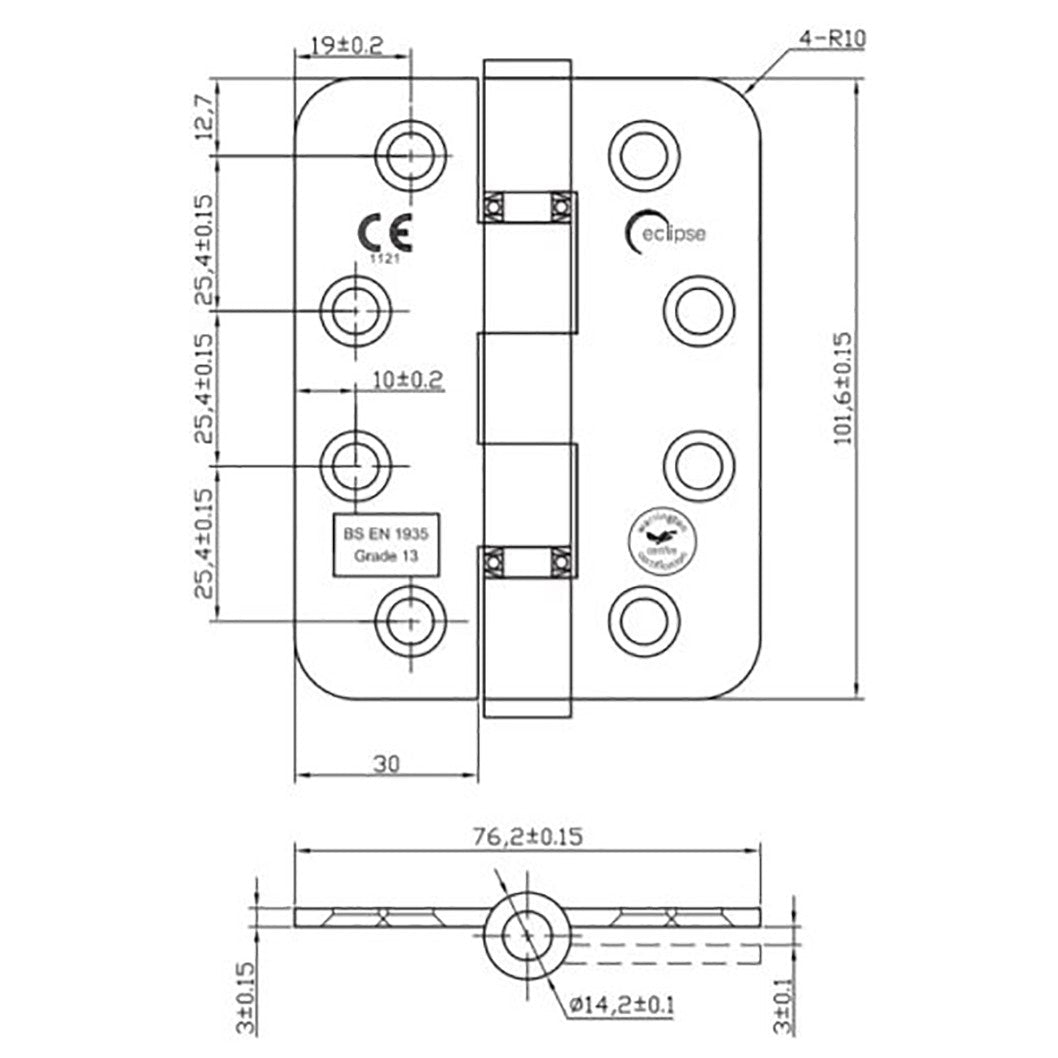

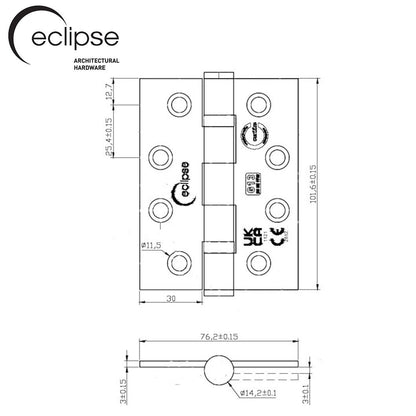

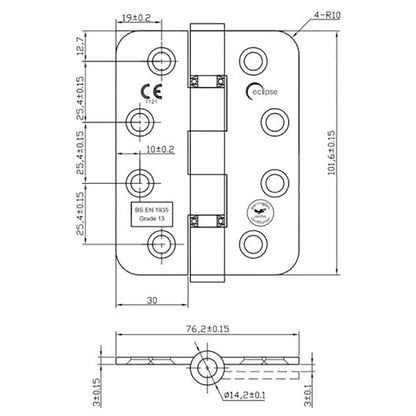

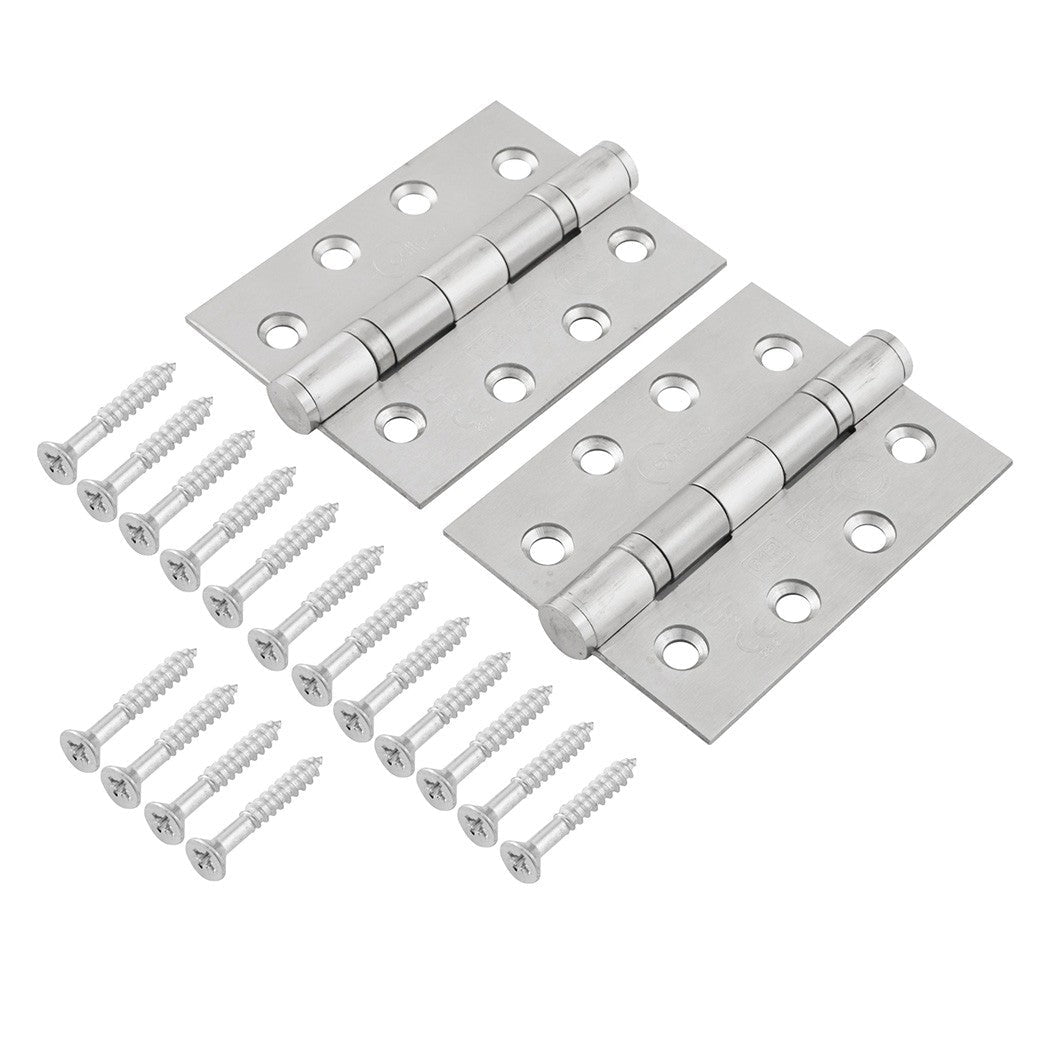

Made from SUS 316 grade stainless steel, the hinge is designed to provide a durable and corrosion-resistant solution. This makes it particularly useful for demanding environments where a higher grade of stainless steel is preferred. The hinge measures 102x76x3mm and features 12-gauge countersunk fixing holes for a neat and secure installation. It is supplied with 12 x 1½-inch Pozi Drive ¾-inch threaded screws, providing the required fixings for installation.

Available Finishes

The Frisco Eclipse G316 Ball Bearing Hinge is available in two finishes, allowing you to select the appearance that best suits the surrounding door furniture and architectural hardware.

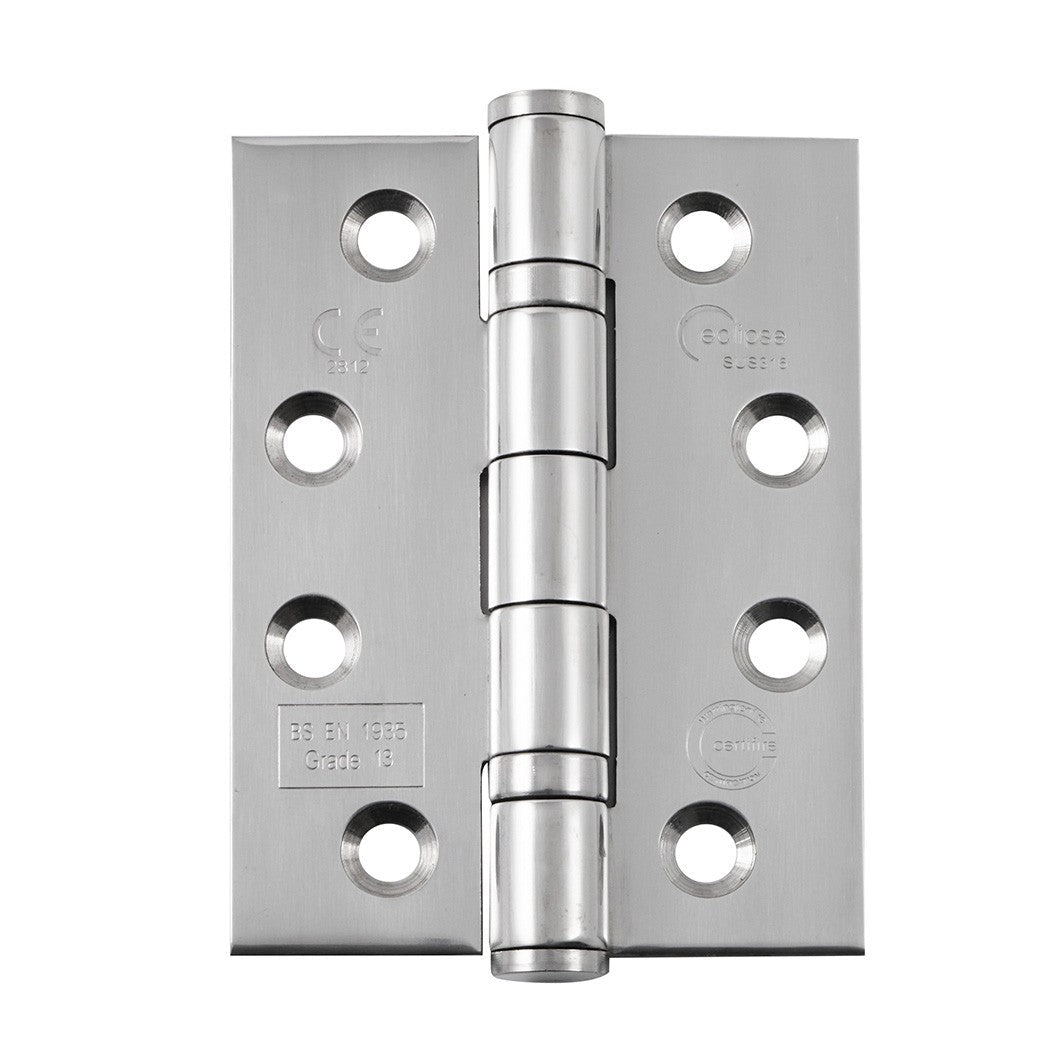

• Polished Stainless Steel - a bright, reflective finish for a clean and contemporary appearance.

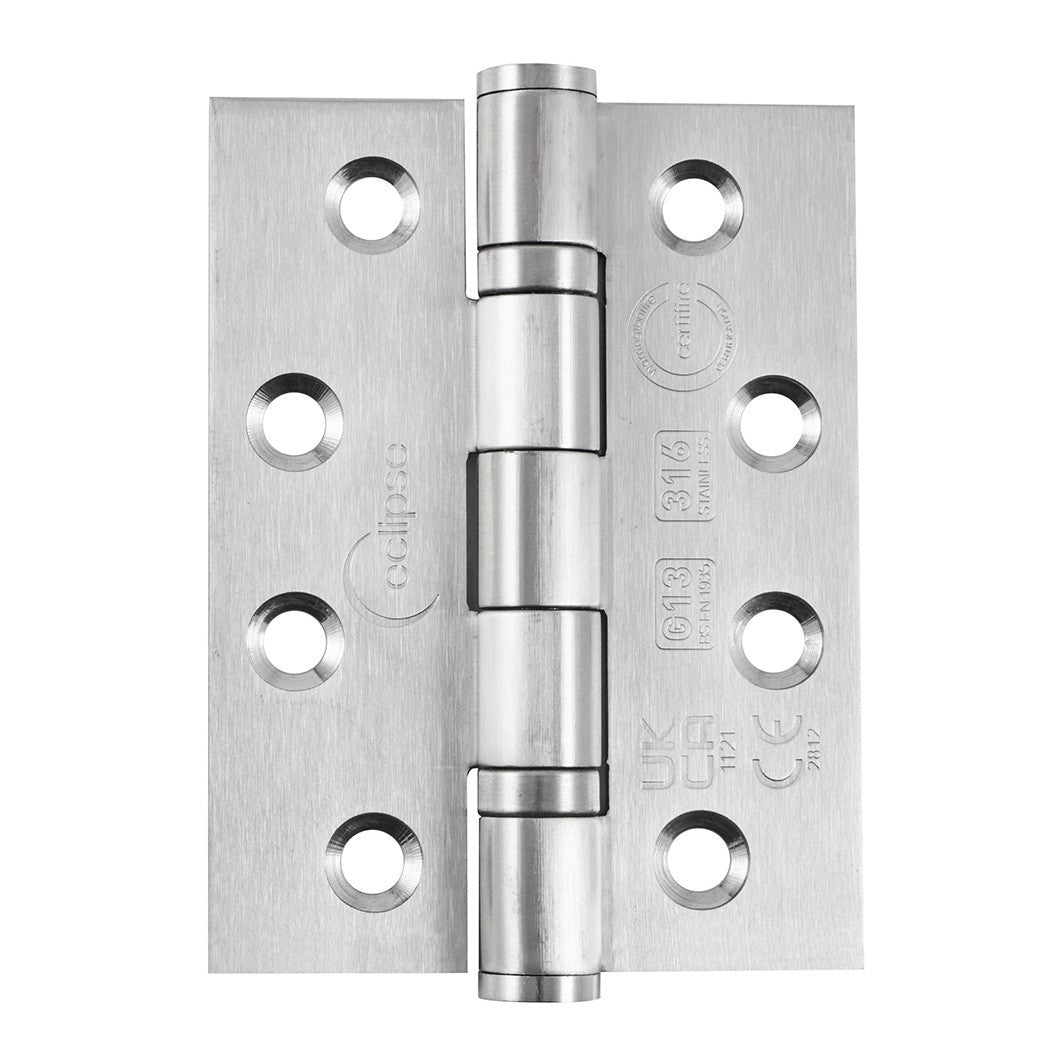

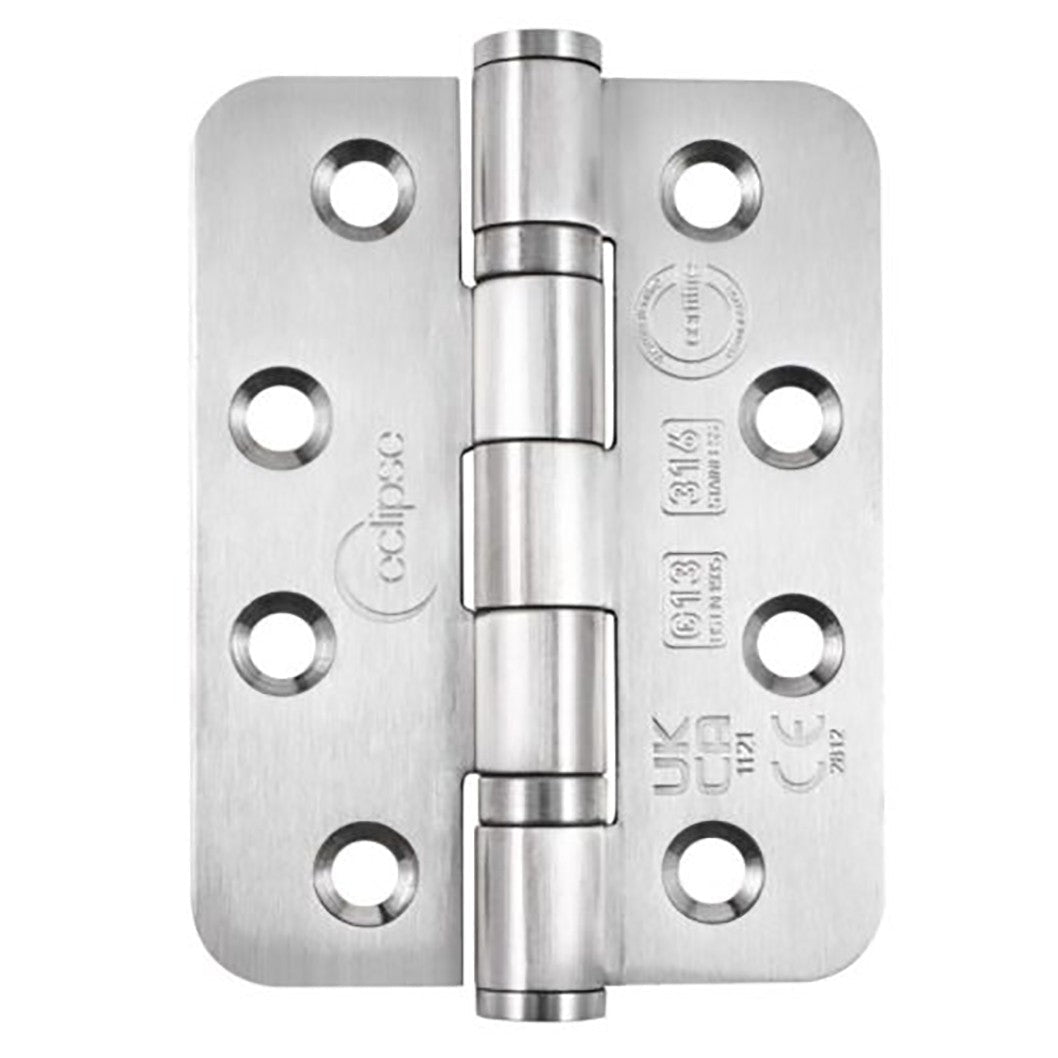

• Satin Stainless Steel - a softer, understated finish that provides a modern look while helping to complement a wide range of door hardware.

Both finishes are supplied in the same 102x76x3mm Grade 13 specification and use SUS 316 grade stainless steel.

Available Variants

All variants provided are covered below:

• Polished Stainless Steel - 102x76x3mm, Grade 13, G316 ball bearing hinge.
• Satin Stainless Steel - 102x76x3mm, Grade 13, G316 ball bearing hinge.

Frequently Asked Questions

What door weight is this Grade 13 hinge suitable for?

The Frisco Eclipse G316 Ball Bearing Hinge is Grade 13 rated and designed for doors with a total door mass of up to 120kg, subject to the requirements of the complete doorset and correct installation.

What is the difference between the two available finishes?

The hinge is available in Polished Stainless Steel and Satin Stainless Steel. Polished Stainless Steel has a brighter, more reflective appearance, while Satin Stainless Steel provides a softer and more understated finish. Both variants have the same Grade 13 performance and SUS 316 construction.

Is this hinge suitable for fire-rated doors?

Yes. The hinge has been fire tested to BS EN1634 for FD30, FD60, FD90 and FD120-minute timber doors and FD240-minute steel doors. The complete door assembly must also meet the applicable fire-rating requirements.
