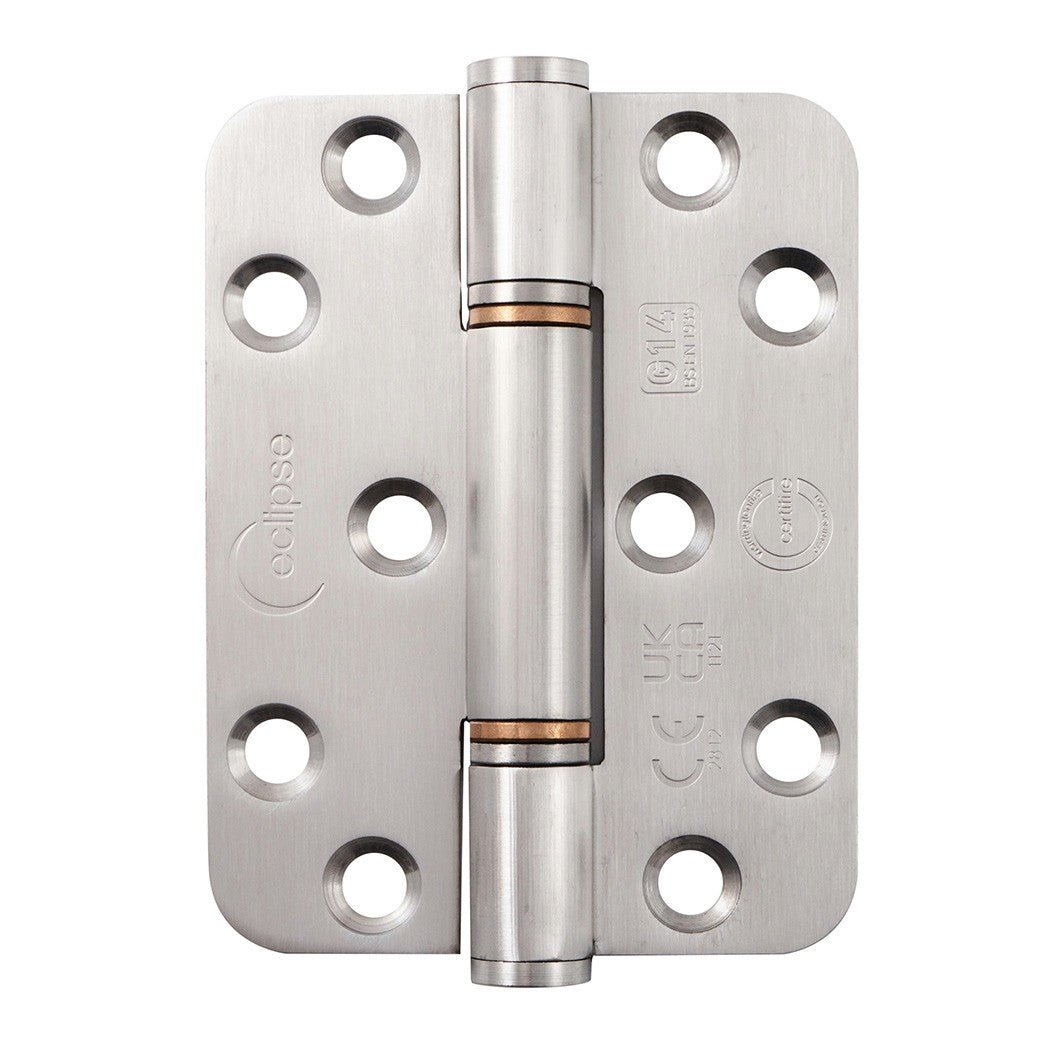

Frisco Eclipse 102x76mm Grade 14 Stainless Steel Radius Thrust Bearing Hinge

Frisco Eclipse Grade 14 Radius Thrust Bearing Hinge

The Frisco Eclipse 102x76x3mm Grade 14 Stainless Steel Radius Thrust Bearing Hinge is a robust and dependable choice for heavier doors where smooth movement, strength and long-term performance are important. Manufactured from SUS 201 stainless steel, this hinge is designed for doors with a total door mass of up to 160kg, making it suitable for a range of demanding residential, commercial and specification applications. The thrust bearing construction helps support smooth and consistent door operation, particularly on heavier doors. Its 10mm radius corners give the hinge a rounded profile, providing a neat finish for compatible door and frame installations.

Grade 14 Performance and Certification

This Eclipse Radius Thrust Bearing Hinge has been performance tested to BS EN1935 for 200,000 operating cycles and achieves Grade 14 performance. It also carries CE 2812, UKCA 1121 and Certifire CF336 certification, providing added confidence in its tested performance. The hinge has been fire tested to BS EN1634 for FD30, FD60, FD90 and FD120-minute timber doors, as well as FD240-minute steel doors. For fire-rated installations, the complete doorset must meet the relevant fire-performance and installation requirements.

Radius Corner Design

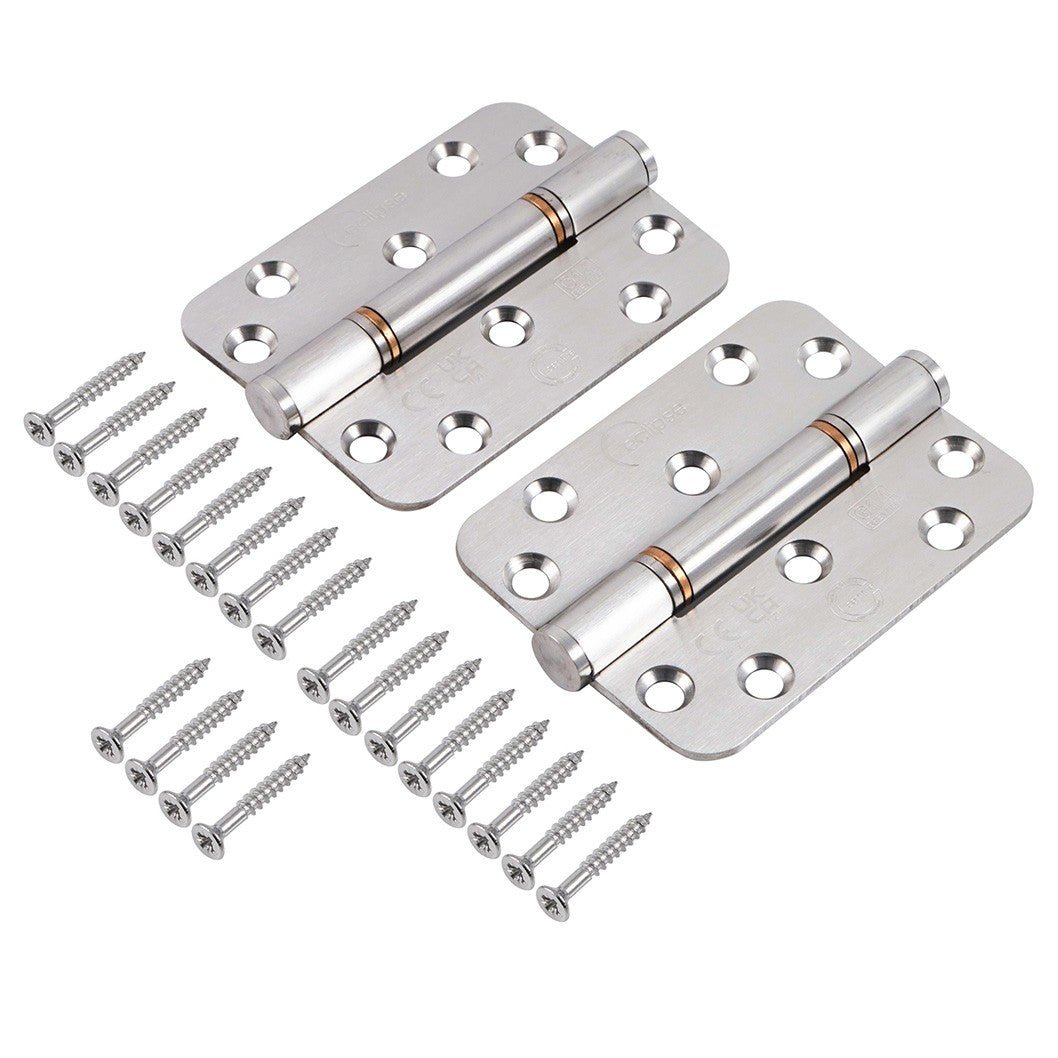

The hinge is manufactured with 10mm radius corners, creating a smooth, rounded profile rather than square corners. This makes it a suitable option for door and frame applications where radius-corner hardware is required. Measuring 102x76x3mm, the hinge also features 12-gauge countersunk fixing holes for a neat and secure installation. It is supplied with 12 x 1½-inch Pozi Drive ¾-inch threaded screws for convenient installation.

Construction and Pack Options

The SUS 201 stainless steel construction provides a robust solution for suitable door applications, while the Grade 14 rating supports doors with a total door mass of up to 160kg. The thrust bearing mechanism is designed to provide smooth and reliable movement throughout regular door operation. The hinge is available in two pack quantities, giving you flexibility when ordering for different installation requirements.

• 2 Pack - supplied as two hinges.
• 3 Pack - supplied as three hinges.

Available Variants

All supplied variants are covered below:

• 2 Pack - 102x76x3mm Grade 14 Radius Thrust Bearing Hinge.
• 3 Pack - 102x76x3mm Grade 14 Radius Thrust Bearing Hinge.

Both variants feature the same SUS 201 stainless steel construction, 10mm radius corners, Grade 14 rating and 102x76x3mm dimensions.

Frequently Asked Questions

What is the maximum door weight for this radius hinge?

The Frisco Eclipse Radius Thrust Bearing Hinge is Grade 14 rated and designed for doors with a total door mass of up to 160kg, subject to correct installation and the requirements of the complete doorset.

What does the 10mm radius refer to?

The 10mm radius refers to the rounded corners of the hinge. This creates a softer profile than a square-corner hinge and makes it suitable for compatible radius-corner door and frame applications.

What pack quantities are available?

The hinge is available as either a 2 Pack containing two hinges or a 3 Pack containing three hinges. Both options have the same product specification and performance rating.
