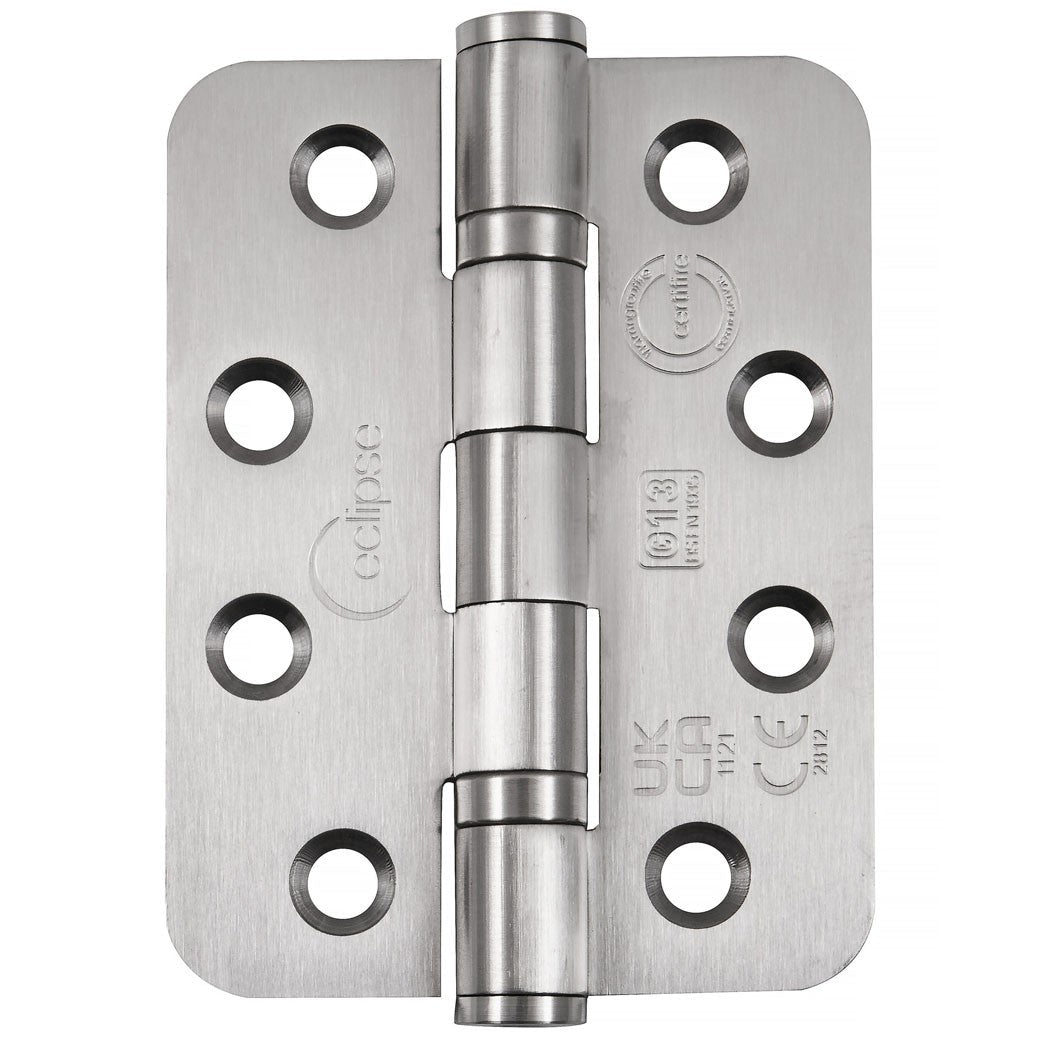

Frisco Eclipse 102x76mm Ball Bearing Radius Corner Hinge Grade 13 (Pre-Pack)

Frisco Eclipse 102x76mm Ball Bearing Radius Corner Hinge Grade 13 (Pre-Pack)

The Frisco Eclipse 102x76mm Ball Bearing Radius Corner Hinge Grade 13 is a heavy-duty hinge designed for reliable performance on demanding door applications. Manufactured from SUS 201 stainless steel, it combines a robust construction with ball bearing operation to provide smooth and consistent door movement.

Grade 13 Heavy-Duty Performance

Manufactured with a 10mm radius, this hinge is rated Grade 13 and is suitable for doors with a total mass of up to 120kg. Measuring 102x76x3mm, it features a radius corner profile and provides a strong, practical solution for suitable heavy-duty doors. The hinge has been BS EN1935 performance tested to 200,000 cycles at Grade 13, making it suitable for applications where dependable long-term operation is important.

Fire Testing and Approvals

The Frisco Eclipse hinge carries CE 2812, UKCA 1121 and Certifire CF336 approvals. It has also been BS EN1634 fire tested for FD30, FD60, FD90 and FD120-minute timber doors, as well as FD240-minute steel doors. For fire door applications, the hinge should be installed as part of a compatible and appropriately tested door assembly.

Pre-Pack Supplied With Fixings

This pre-pack version comes as a pack of 2 hinges and is supplied with 12 × 1.1/2-inch Pozi Drive 3/4-inch threaded screws. The hinges feature 12-gauge countersunk fixing holes to support a neat and secure installation.

Satin Stainless Steel Finish

This variant is supplied in Satin Stainless Steel, offering a clean and understated finish that can coordinate well with a wide range of stainless steel and architectural door hardware.

Key Features and Specifications

• 102x76x3mm ball bearing radius corner hinge
• 10mm radius
• Grade 13 rating
• Suitable for total door mass up to 120kg
• SUS 201 stainless steel construction
• Satin Stainless Steel finish
• CE 2812, UKCA 1121 and Certifire CF336
• BS EN1935 performance tested to 200,000 cycles at Grade 13
• BS EN1634 fire tested for FD30, 60, 90 and 120-minute timber doors
• FD240-minute fire tested for steel doors
• 12-gauge countersunk fixing holes
• Supplied with 12 × 1.1/2-inch Pozi Drive 3/4-inch threaded screws
• Pack of 2
• Pre-pack version

Frequently Asked Questions

What door weight can this Grade 13 hinge support?

The hinge is Grade 13 rated and is specified for a total door mass of up to 120kg, subject to suitable installation and application requirements.

What finish is this pre-pack version supplied in?

This particular pre-pack variant is supplied in Satin Stainless Steel, providing a clean and versatile finish for architectural door applications.

How many hinges are included in the pre-pack?

The product is supplied as a pack of 2 hinges, complete with the specified threaded fixing screws for installation.
