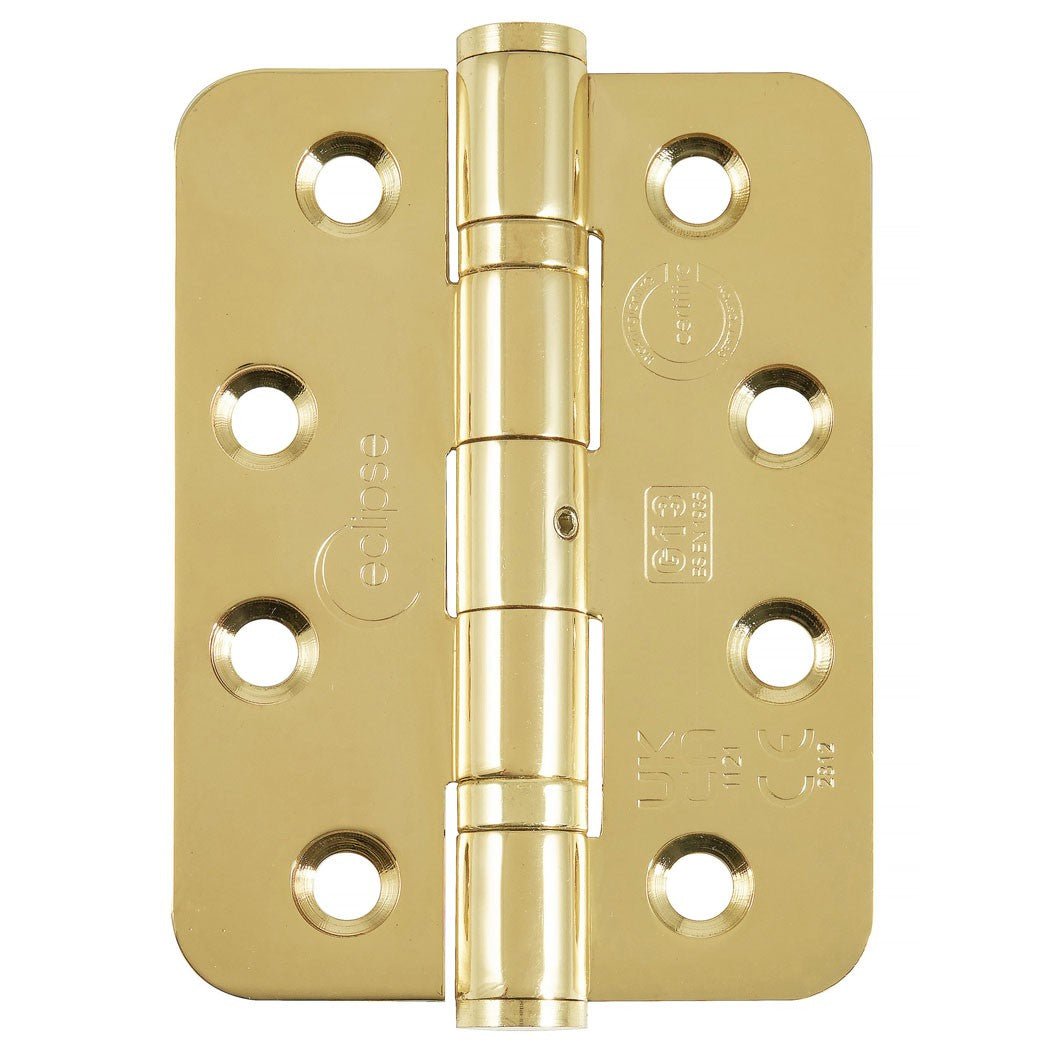

Frisco Eclipse 102x76mm Ball Bearing Radius Corner Hinge Grade 13

Frisco Eclipse 102x76mm Ball Bearing Radius Corner Hinge Grade 13

The Frisco Eclipse 102x76mm Ball Bearing Radius Corner Hinge Grade 13 is a heavy-duty hinge designed to provide dependable support and smooth door operation. Manufactured from SUS 201 stainless steel, it combines a robust construction with ball bearing performance, making it a suitable choice for demanding door applications.

Grade 13 Heavy-Duty Performance

Manufactured with a 10mm radius, this hinge is rated Grade 13 and is suitable for doors with a total mass of up to 120kg. Each hinge measures 102x76x3mm and features a radius corner profile for a neat, professional installation. The hinge has been BS EN1935 performance tested to 200,000 cycles at Grade 13, providing confidence in its durability for regularly used doors.

Fire Testing and Approvals

The Frisco Eclipse hinge carries CE 2812, UKCA 1121 and Certifire CF336 approvals. It has also been BS EN1634 fire tested for FD30, FD60, FD90 and FD120-minute timber doors, as well as FD240-minute steel doors. For fire door applications, the hinge should be installed as part of a compatible and appropriately tested door assembly.

Available Finishes

The hinge is available in seven finishes, making it easy to coordinate with a wide range of architectural door hardware. Available options include Dark Bronze, Matt Antique Brass, Matt Black, Polished Brass, Polished Stainless Steel, Satin Brass and Satin Stainless Steel.

Fixings and Pack Contents

The hinge features 12-gauge countersunk fixing holes and is supplied with 12 × 1.1/2-inch Pozi Drive 3/4-inch threaded screws. It is supplied as a pack of 2, providing a convenient option for suitable door installations.

Key Features and Specifications

• 102x76x3mm ball bearing radius corner hinge
• 10mm radius
• Grade 13 rating
• Suitable for total door mass up to 120kg
• SUS 201 stainless steel construction
• CE 2812, UKCA 1121 and Certifire CF336
• BS EN1935 performance tested to 200,000 cycles at Grade 13
• BS EN1634 fire tested for FD30, 60, 90 and 120-minute timber doors
• FD240-minute fire tested for steel doors
• 12-gauge countersunk fixing holes
• Supplied with 12 × 1.1/2-inch Pozi Drive 3/4-inch threaded screws
• Supplied as a pack of 2

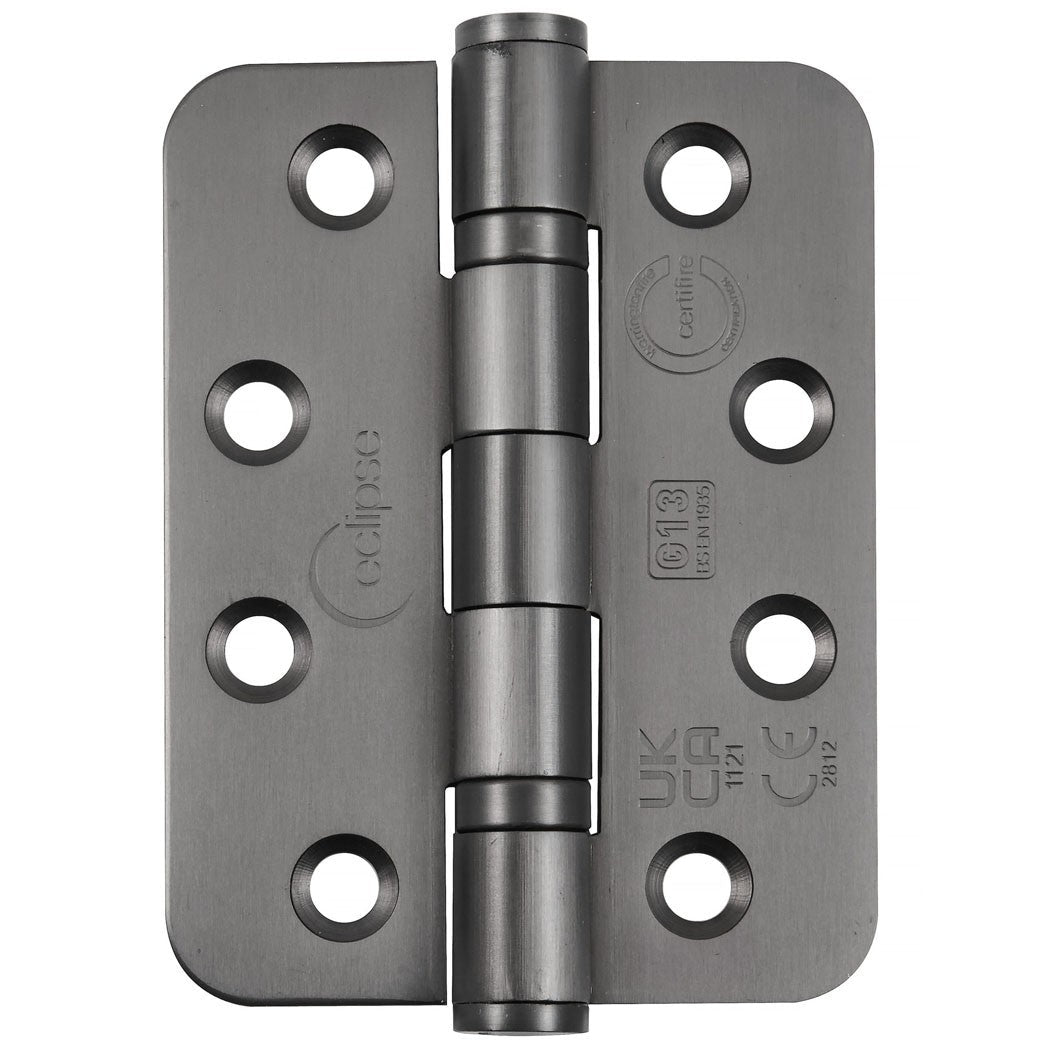

• Available in Dark Bronze

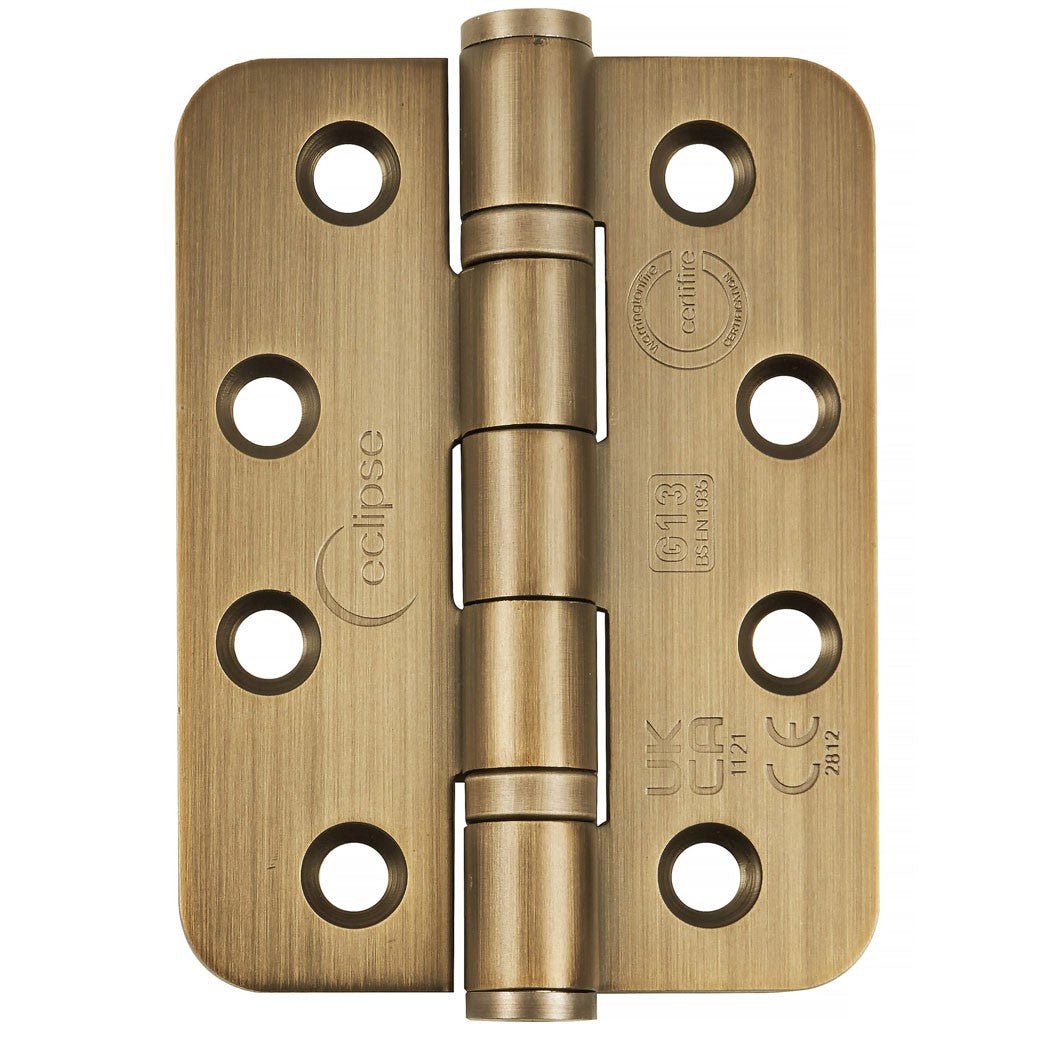

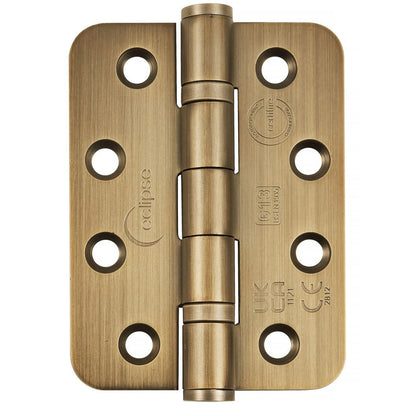

• Available in Matt Antique Brass

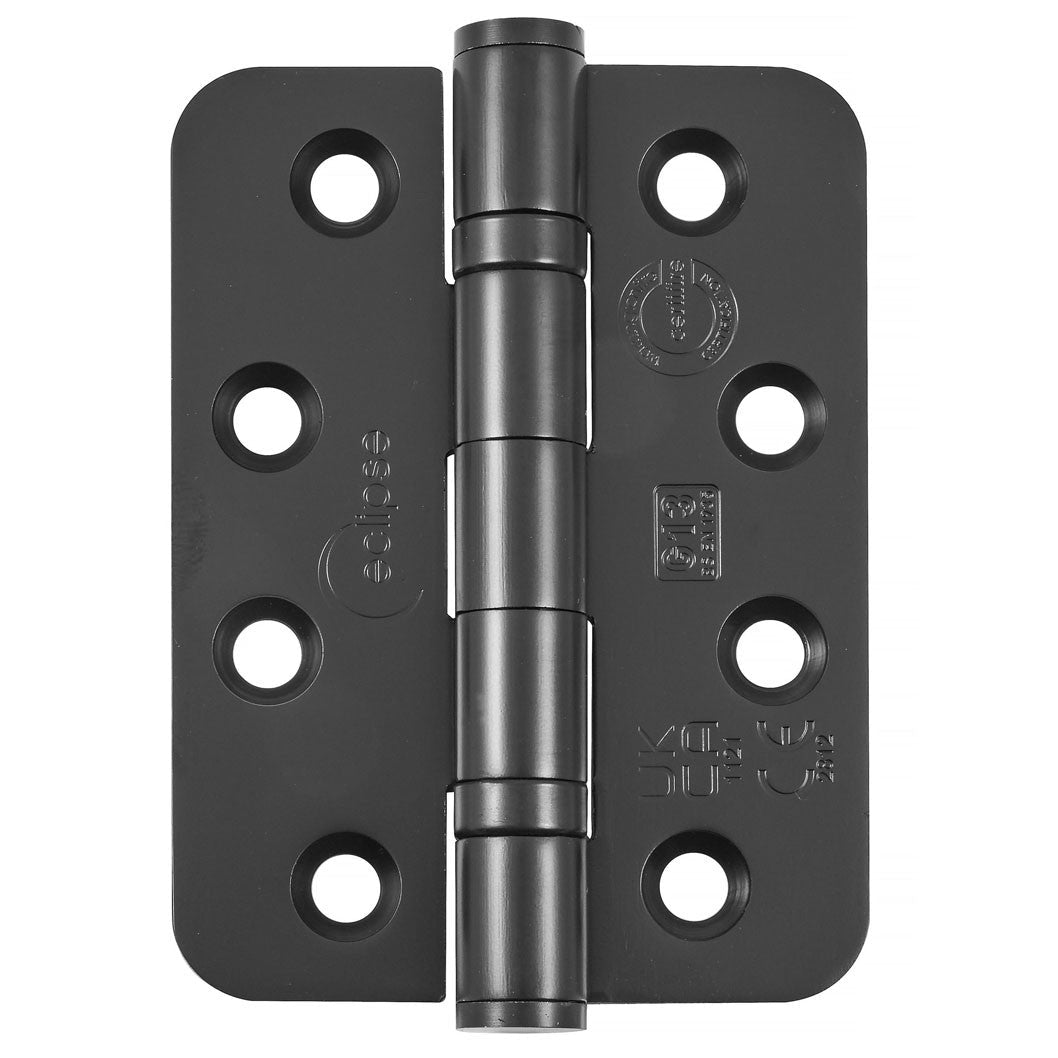

• Available in Matt Black
• Available in Polished Brass

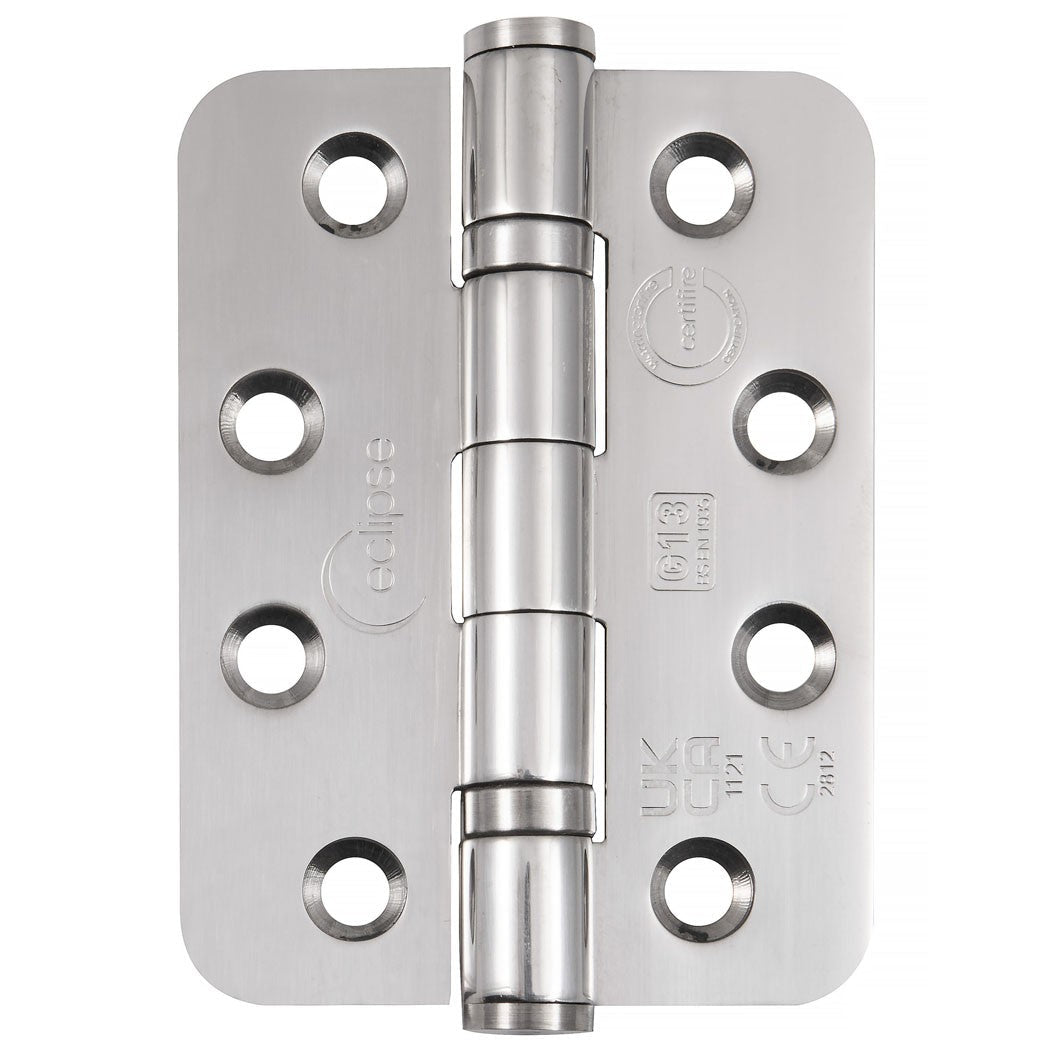

• Available in Polished Stainless Steel

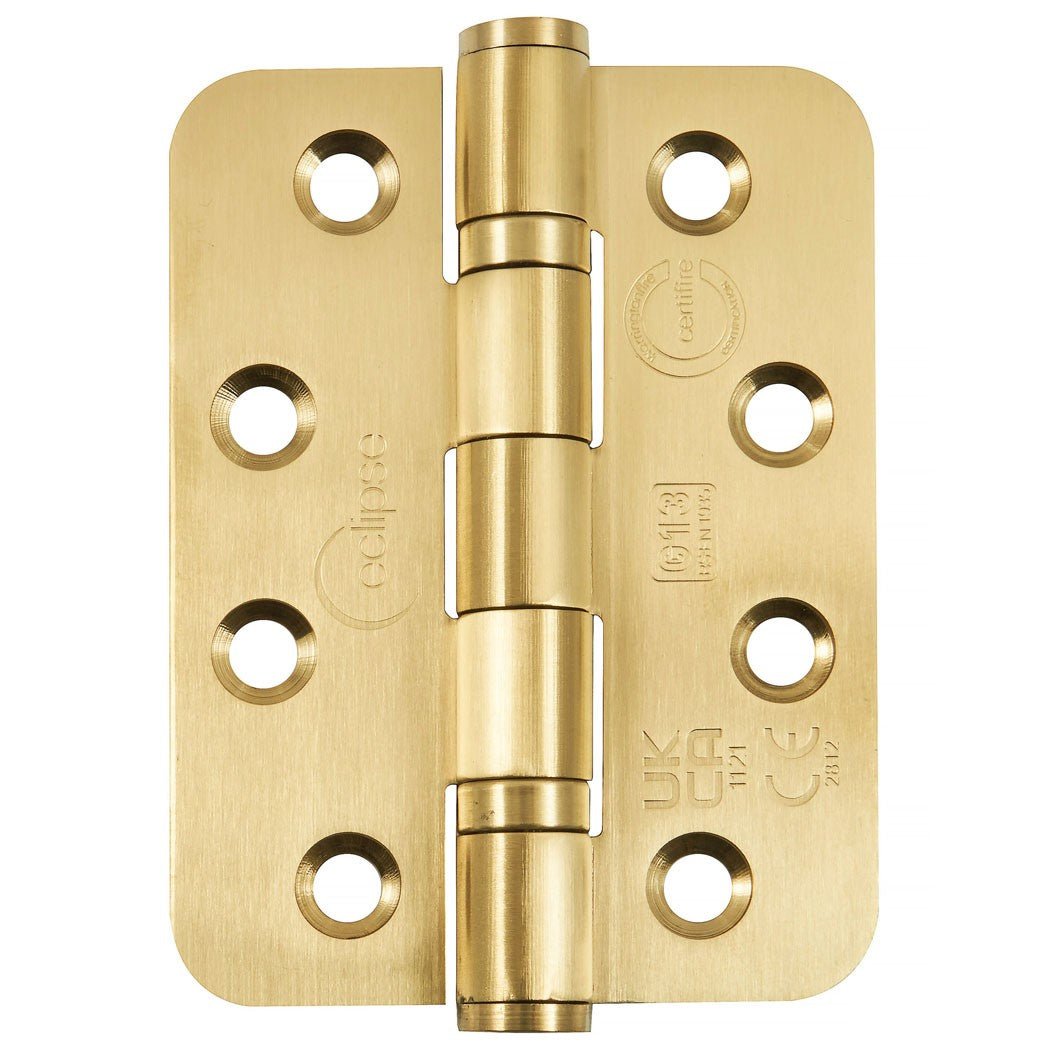

• Available in Satin Brass

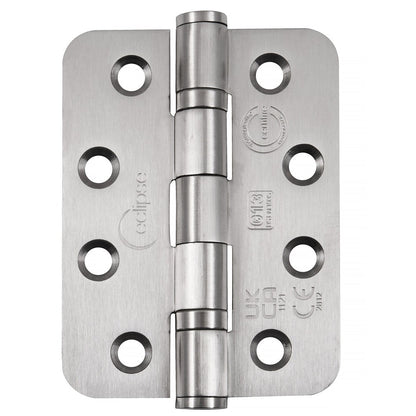

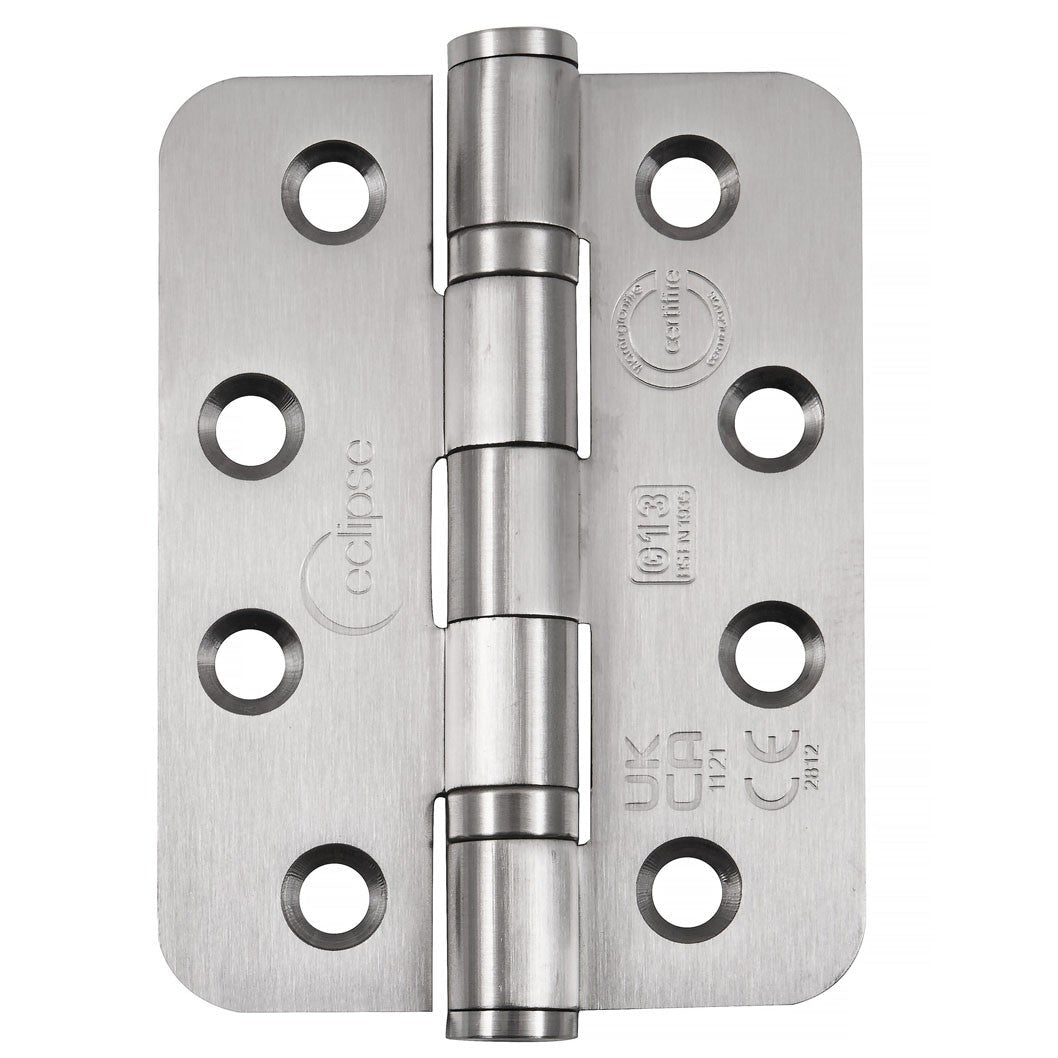

• Available in Satin Stainless Steel

Frequently Asked Questions

What door weight can this Grade 13 hinge support?

The Frisco Eclipse hinge is Grade 13 rated and is specified for a total door mass of up to 120kg, subject to suitable installation and application requirements.

What finishes are available for this hinge?

The hinge is available in Dark Bronze, Matt Antique Brass, Matt Black, Polished Brass, Polished Stainless Steel, Satin Brass and Satin Stainless Steel.

How many hinges are included in the pack?

The Frisco Eclipse 102x76mm Ball Bearing Radius Corner Hinge is supplied as a pack of 2, complete with the specified threaded fixing screws.
