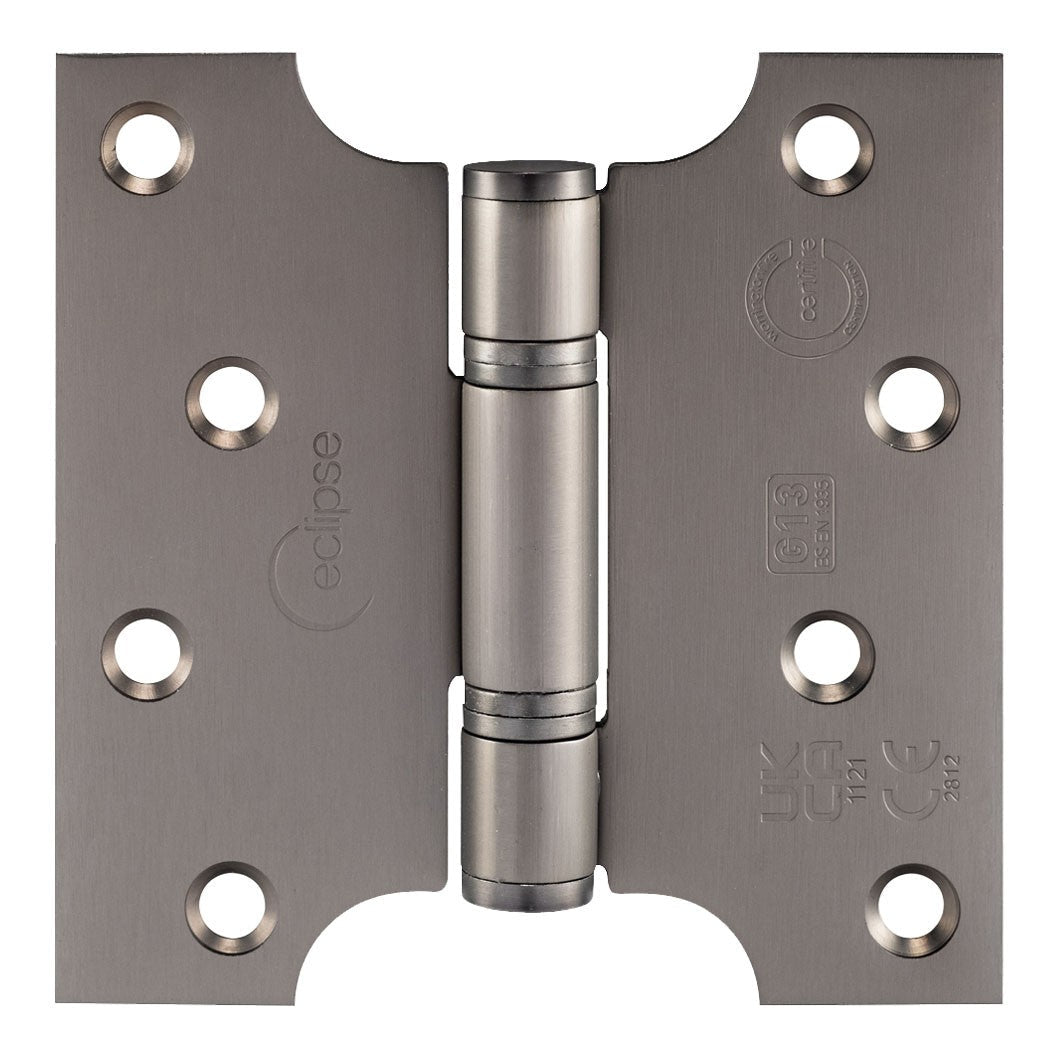

Frisco Eclipse 102x51x102mm Parliament Hinge Grade 13

Frisco Eclipse 102x51x102mm Parliament Hinge Grade 13

The Frisco Eclipse 102x51x102mm Parliament Hinge Grade 13 is a heavy-duty stainless steel hinge designed for doors where reliable support and smooth operation are important. With its traditional parliament hinge profile and robust Grade 13 construction, it is well suited to demanding architectural applications.

Grade 13 Heavy-Duty Construction

The hinge is rated Grade 13, supporting a total door mass of up to 120kg. Measuring 102x51x102x3mm, it provides a substantial solution for suitable heavy-duty doors while maintaining the distinctive appearance of a parliament hinge. The hinge has been BS EN1935 performance tested to 200,000 cycles at Grade 13, demonstrating its suitability for applications where the door is regularly operated.

Fire Testing and Approvals

The Frisco Eclipse Parliament Hinge is CE 2812, UKCA 1121 and Certifire approved. It has also been BS EN1634 fire tested for FD30-minute timber doors, making it suitable for compatible fire door applications when correctly specified and installed as part of the appropriate tested door assembly.

Available Finishes

A wide range of finishes is available to help coordinate the hinge with other architectural door hardware. Options include Dark Bronze, Matt Antique Brass, Matt Black, Polished Brass, Polished Stainless Steel, Satin Brass and Satin Stainless Steel.

Fixings and Specifications

The hinge measures 102x51x102x3mm and features 12-gauge countersunk fixing holes. It is supplied with 12 × 1.1/2-inch Pozi Drive 3/4-inch threaded screws for installation.

Key Features and Specifications

• Eclipse branded stainless steel parliament hinge
• Grade 13 rating
• Suitable for total door mass up to 120kg
• 102x51x102x3mm size
• CE 2812, UKCA 1121 and Certifire approved
• BS EN1935 performance tested to 200,000 cycles at Grade 13
• BS EN1634 fire tested for FD30-minute timber doors
• 12-gauge countersunk fixing holes
• Supplied with 12 × 1.1/2-inch Pozi Drive 3/4-inch threaded screws
• Available in Dark Bronze

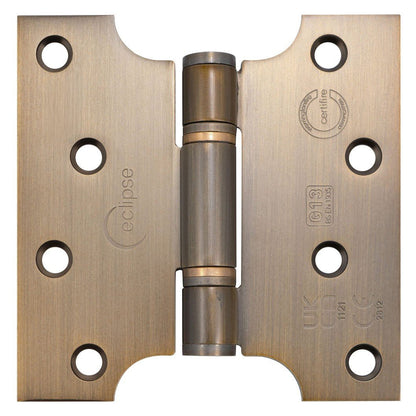

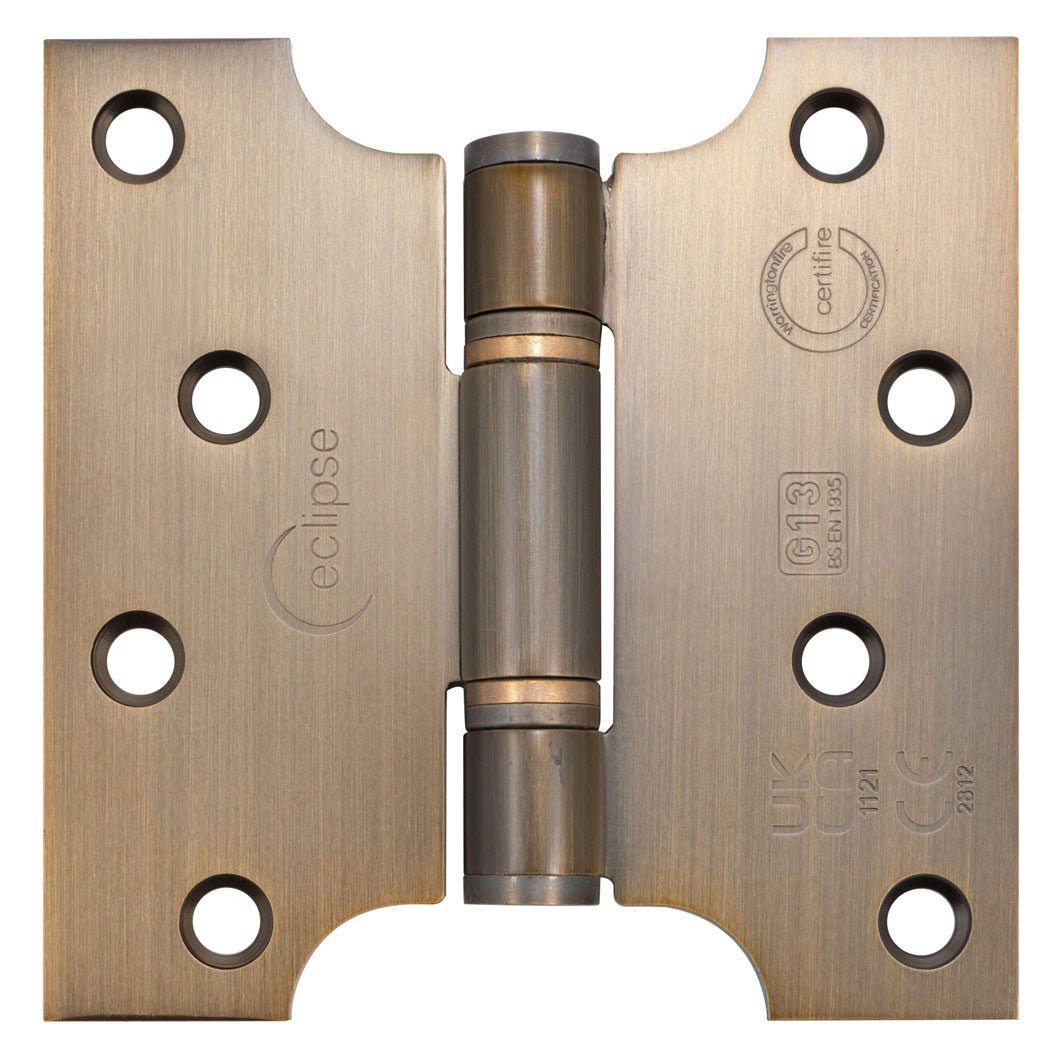

• Available in Matt Antique Brass

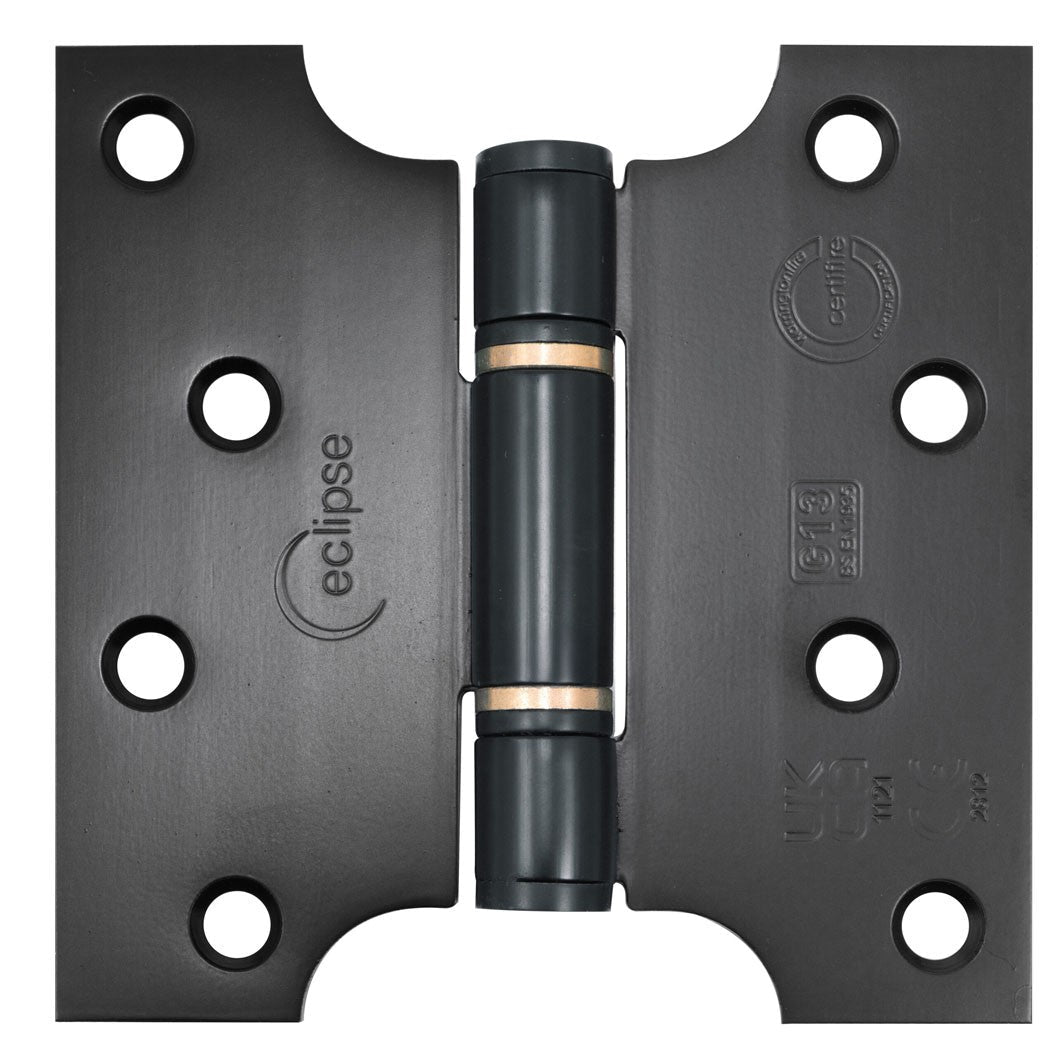

• Available in Matt Black

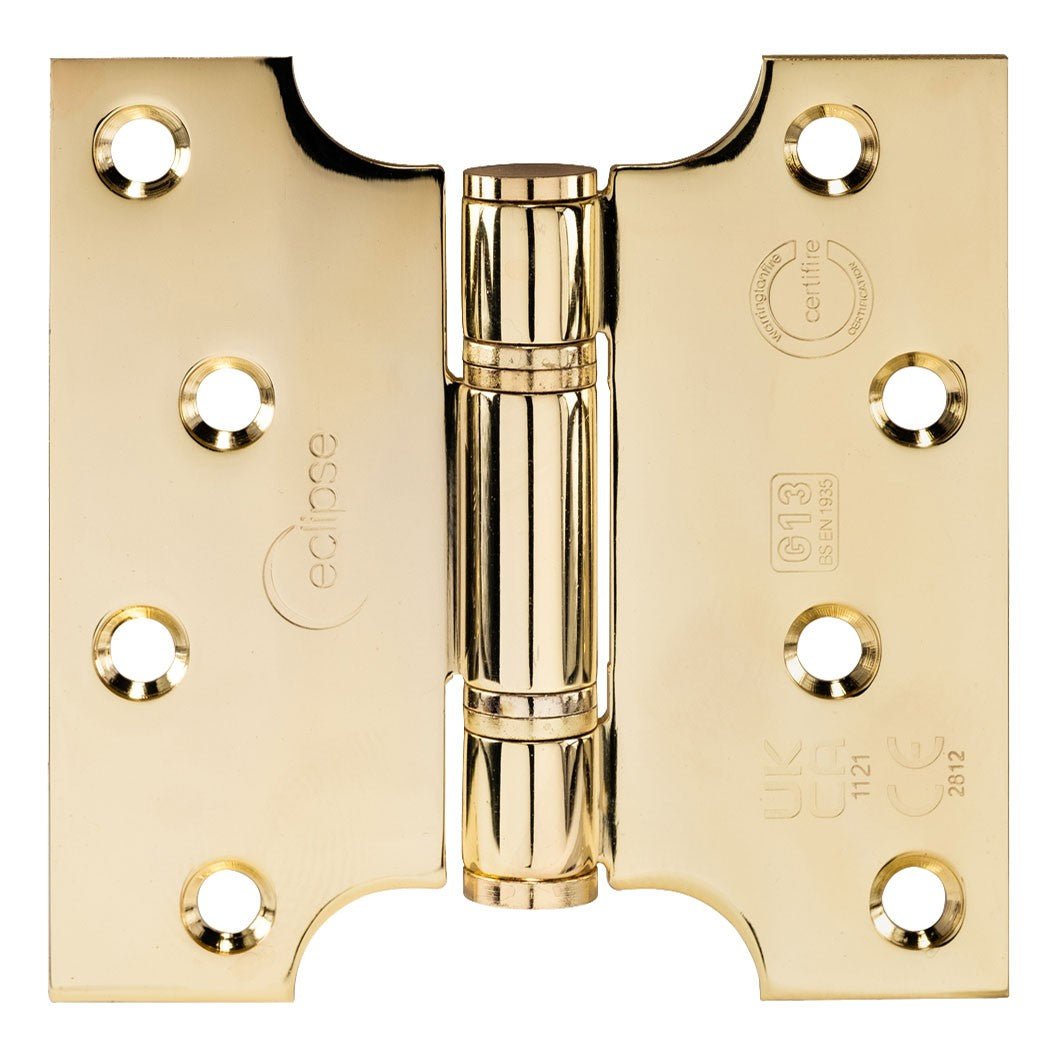

• Available in Polished Brass

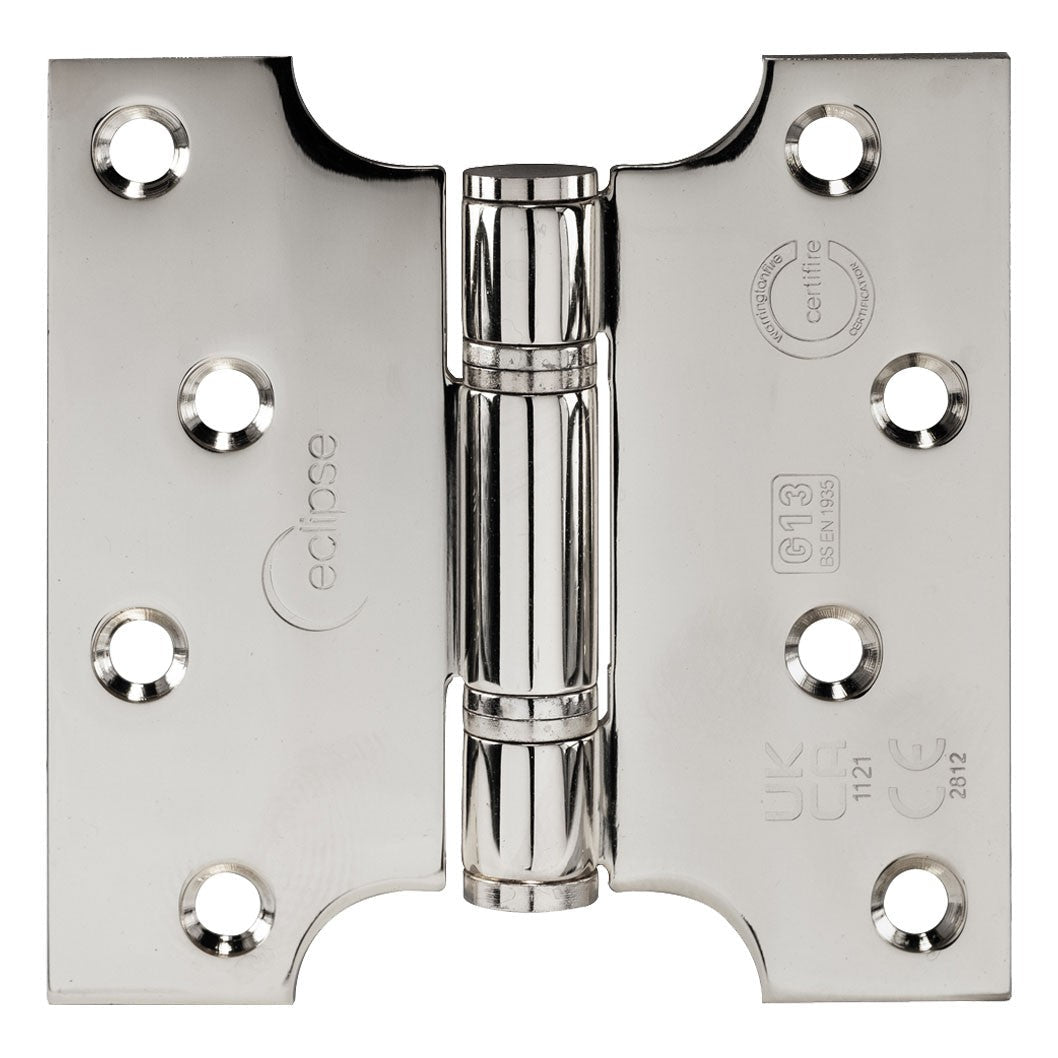

• Available in Polished Stainless Steel

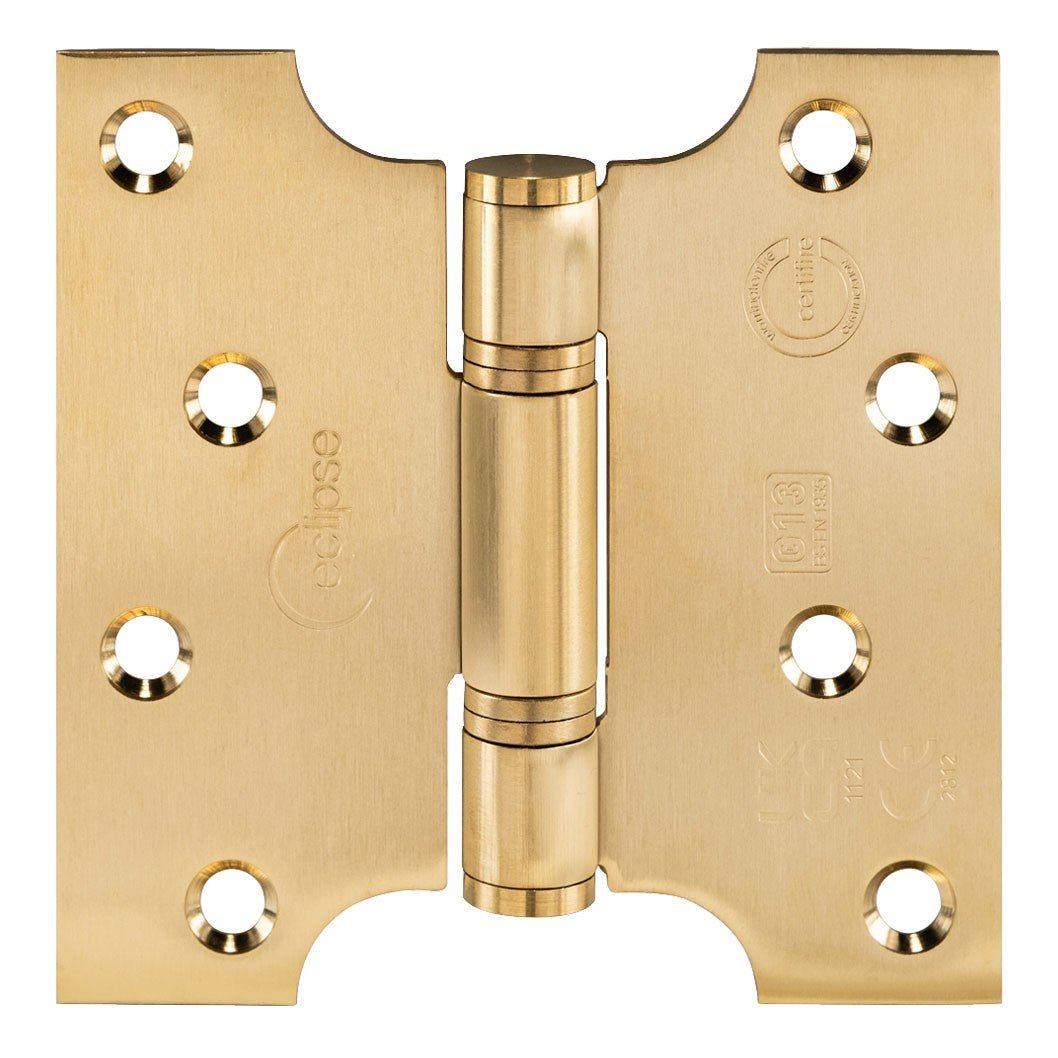

• Available in Satin Brass

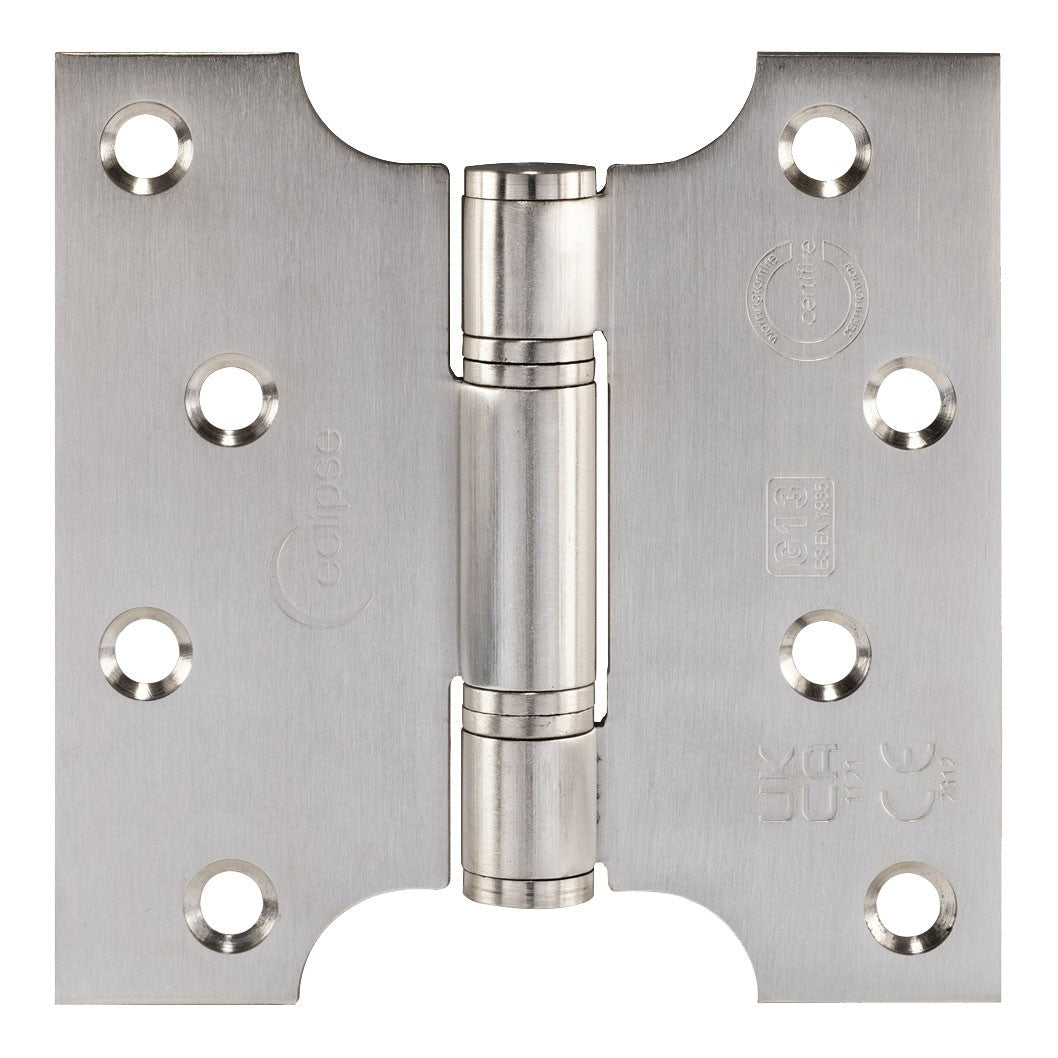

• Available in Satin Stainless Steel

Frequently Asked Questions

What door weight can this Grade 13 parliament hinge support?

The hinge is Grade 13 rated and is specified for a total door mass of up to 120kg, subject to suitable installation and application requirements.

What finishes are available?

The Frisco Eclipse Parliament Hinge is available in Dark Bronze, Matt Antique Brass, Matt Black, Polished Brass, Polished Stainless Steel, Satin Brass and Satin Stainless Steel.

Is this parliament hinge suitable for fire doors?

Yes. The hinge has been BS EN1634 fire tested for FD30-minute timber doors and is Certifire approved. For fire door applications, it should be installed as part of a compatible, tested door assembly and in accordance with the relevant installation requirements.
