Frisco Eclipse 102x102x3mm Ball Bearing Hinge Grade 13

Frisco Eclipse 102x102x3mm Ball Bearing Hinge Grade 13

The Frisco Eclipse 102x102x3mm Ball Bearing Hinge Grade 13 is a heavy-duty hinge designed for demanding door applications where strength, durability and smooth operation are essential. Manufactured from SUS 201 stainless steel, it combines a robust construction with ball bearing support for reliable everyday performance.

Grade 13 Heavy-Duty Construction

Manufactured with a 10mm radius, this hinge is rated Grade 13 and is suitable for doors with a total mass of up to 120kg. Measuring 102x102x3mm, it provides a substantial hinge solution for suitable heavy-duty doors. The hinge has been BS EN1935 performance tested to 200,000 cycles at Grade 13. It has also been BS EN1634 fire tested for FD30, FD60, FD90 and FD120-minute timber doors, as well as FD240-minute steel doors.

Approvals and Fixings

The Frisco Eclipse hinge carries CE 2812, UKCA 1121 and Certifire CF336 approvals. It features 12-gauge countersunk fixing holes and is supplied with 12 × 1.1/2-inch Pozi Drive 3/4-inch threaded screws, helping provide a secure and neat installation.

Available Finishes

This Grade 13 ball bearing hinge is available in a wide choice of finishes to suit different architectural styles. Options include Dark Bronze, Matt Antique Brass, Matt Black, Polished Brass, Polished Stainless Steel, Satin Brass and Satin Stainless Steel.

Key Features and Specifications

• 102x102x3mm ball bearing hinge
• 10mm radius
• Grade 13 rating
• Suitable for total door mass up to 120kg
• SUS 201 stainless steel construction
• CE 2812, UKCA 1121 and Certifire CF336
• BS EN1935 performance tested to 200,000 cycles at Grade 13
• BS EN1634 fire tested for FD30, 60, 90 and 120-minute timber doors
• FD240-minute fire tested for steel doors
• 12-gauge countersunk fixing holes
• Supplied with 12 × 1.1/2-inch Pozi Drive 3/4-inch threaded screws
• Available in Dark Bronze

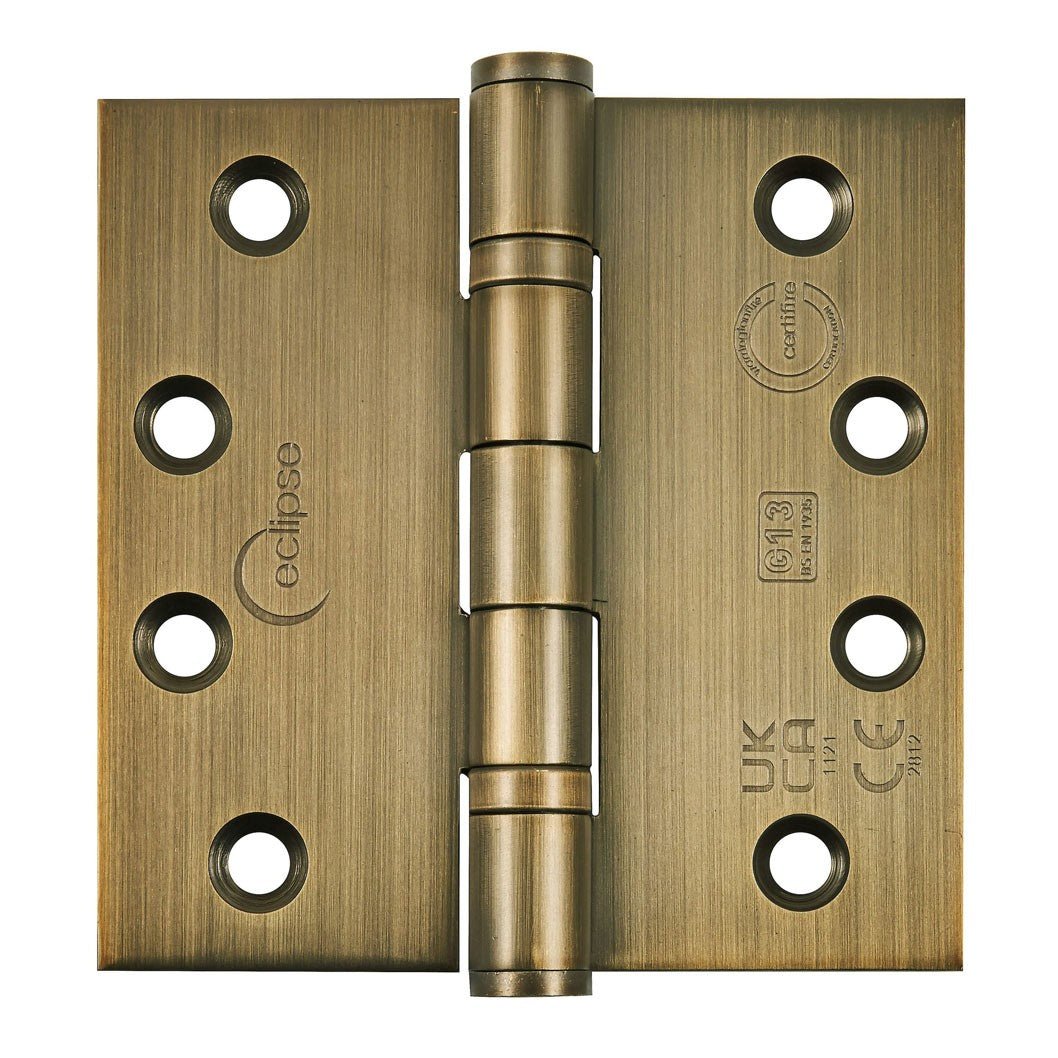

• Available in Matt Antique Brass

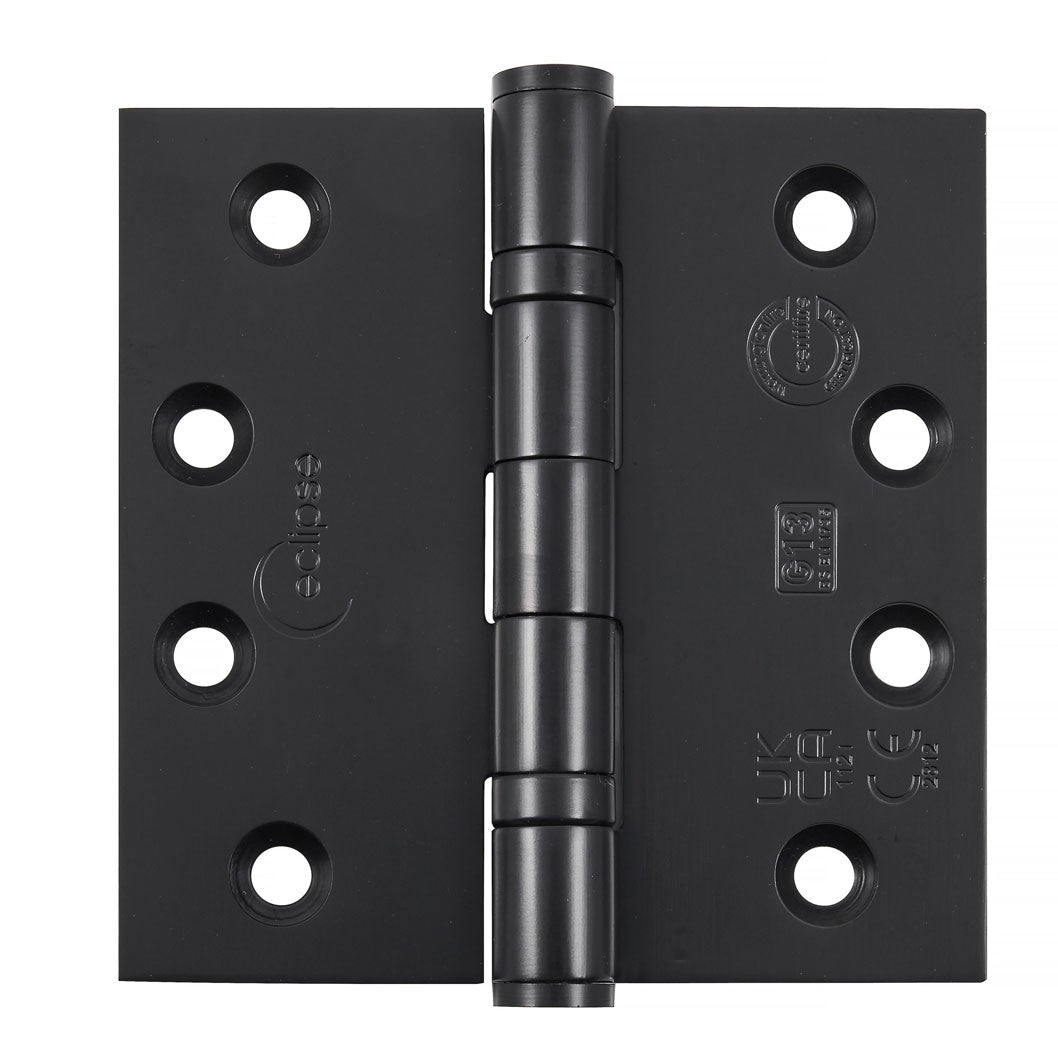

• Available in Matt Black

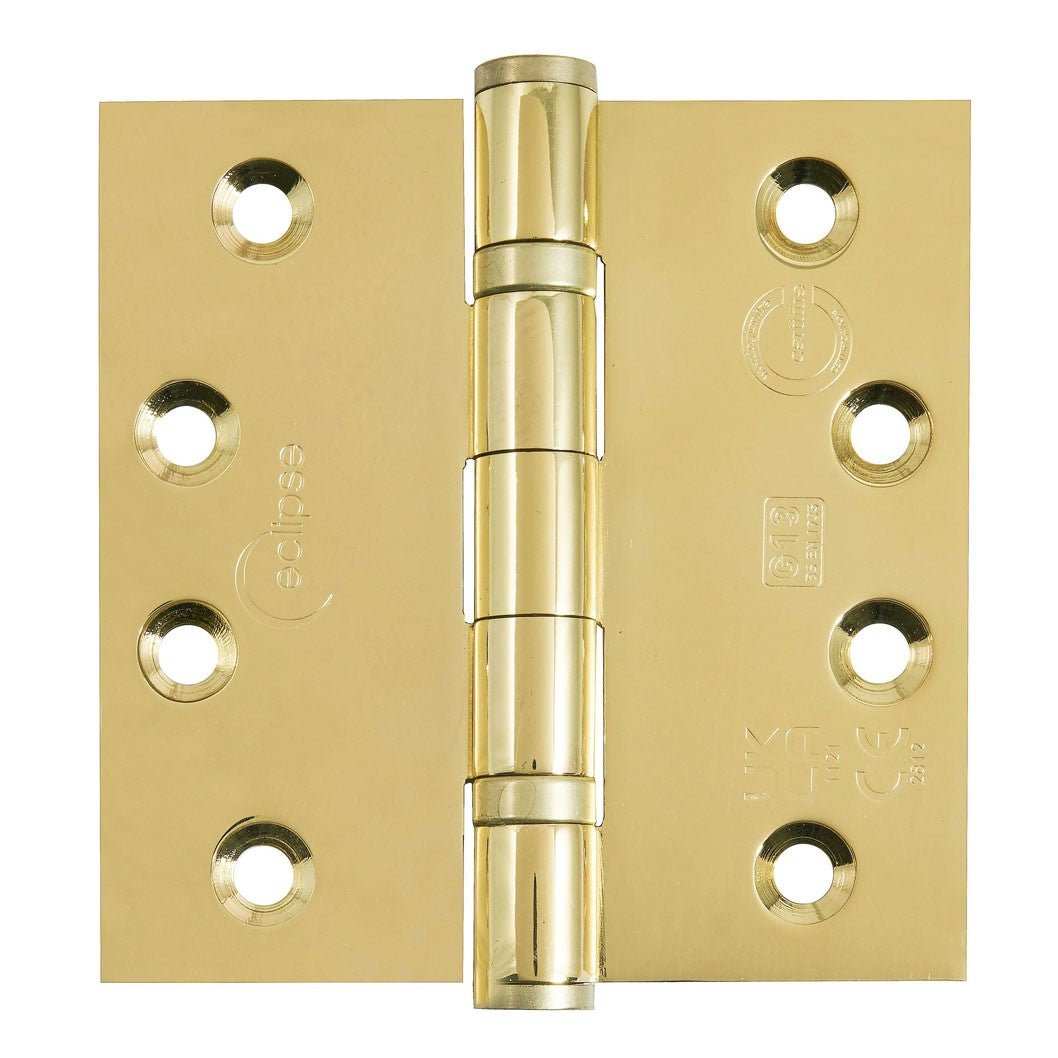

• Available in Polished Brass

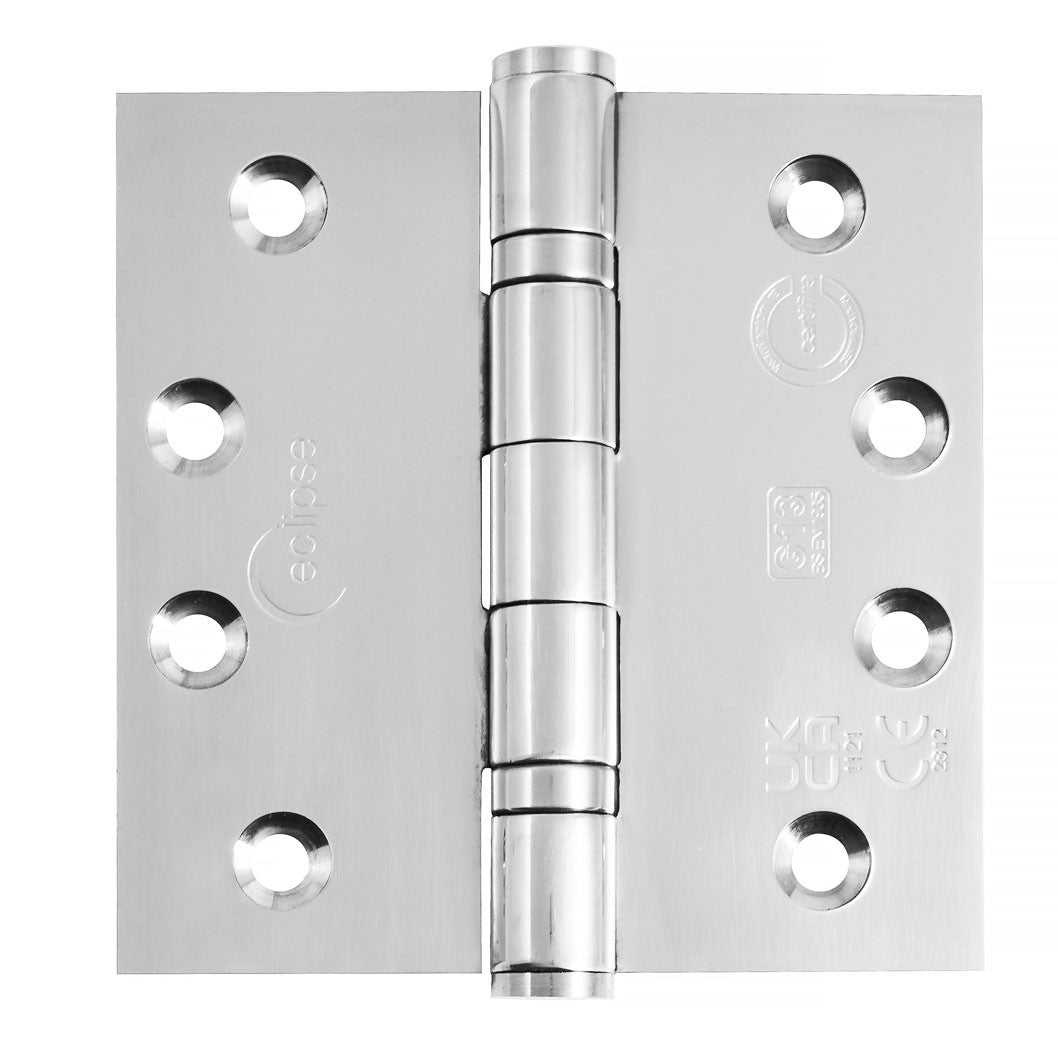

• Available in Polished Stainless Steel

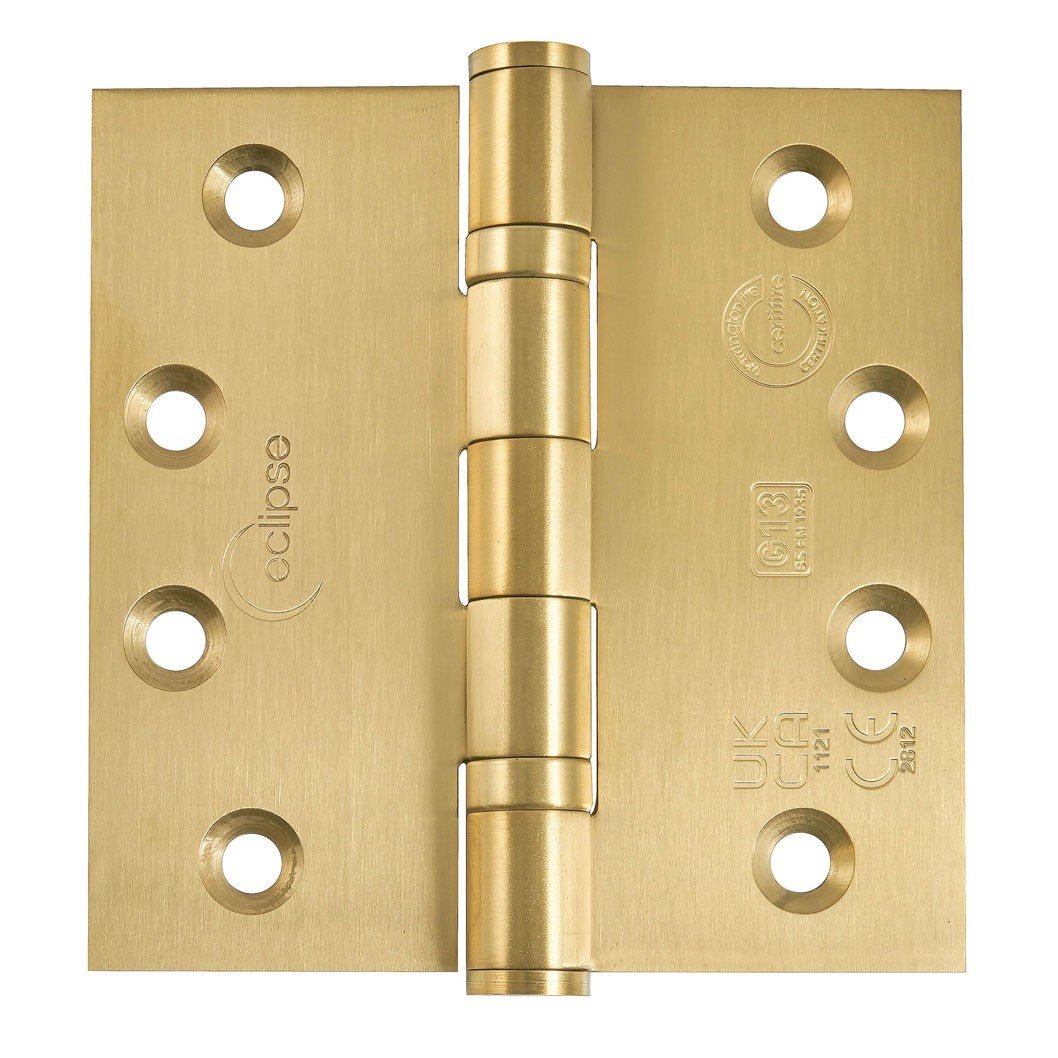

• Available in Satin Brass

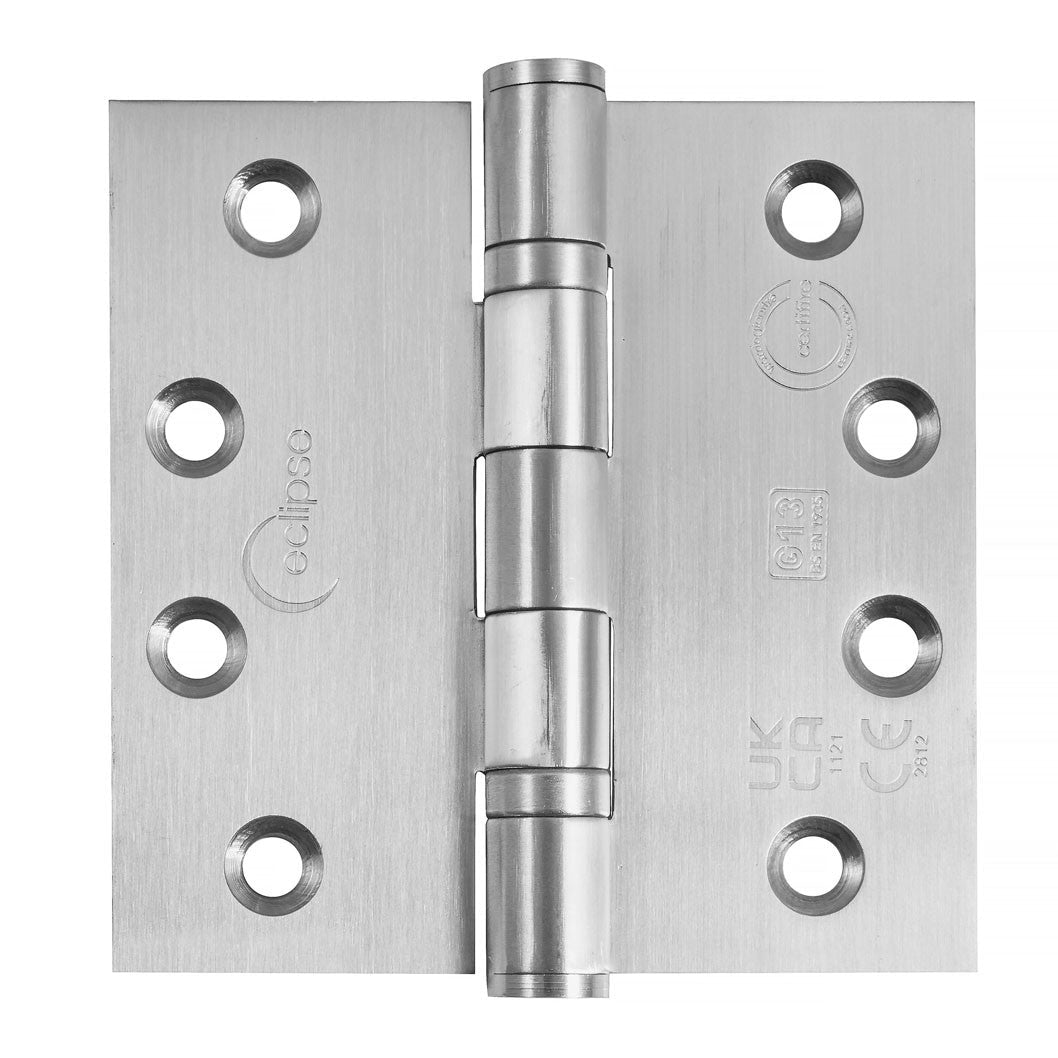

• Available in Satin Stainless Steel

Frequently Asked Questions

What door weight can this Grade 13 hinge support?

The Frisco Eclipse hinge is Grade 13 rated and is specified for a total door mass of up to 120kg, subject to suitable installation and application requirements.

What finishes are available?

The hinge is available in Dark Bronze, Matt Antique Brass, Matt Black, Polished Brass, Polished Stainless Steel, Satin Brass and Satin Stainless Steel, providing a wide choice of finishes for different door hardware schemes.

Is this hinge suitable for fire-rated doors?

Yes. The hinge has been BS EN1634 fire tested for FD30, FD60, FD90 and FD120-minute timber doors, as well as FD240-minute steel doors. Fire door hardware should always be installed as part of a compatible, tested door assembly and in accordance with the relevant requirements.
