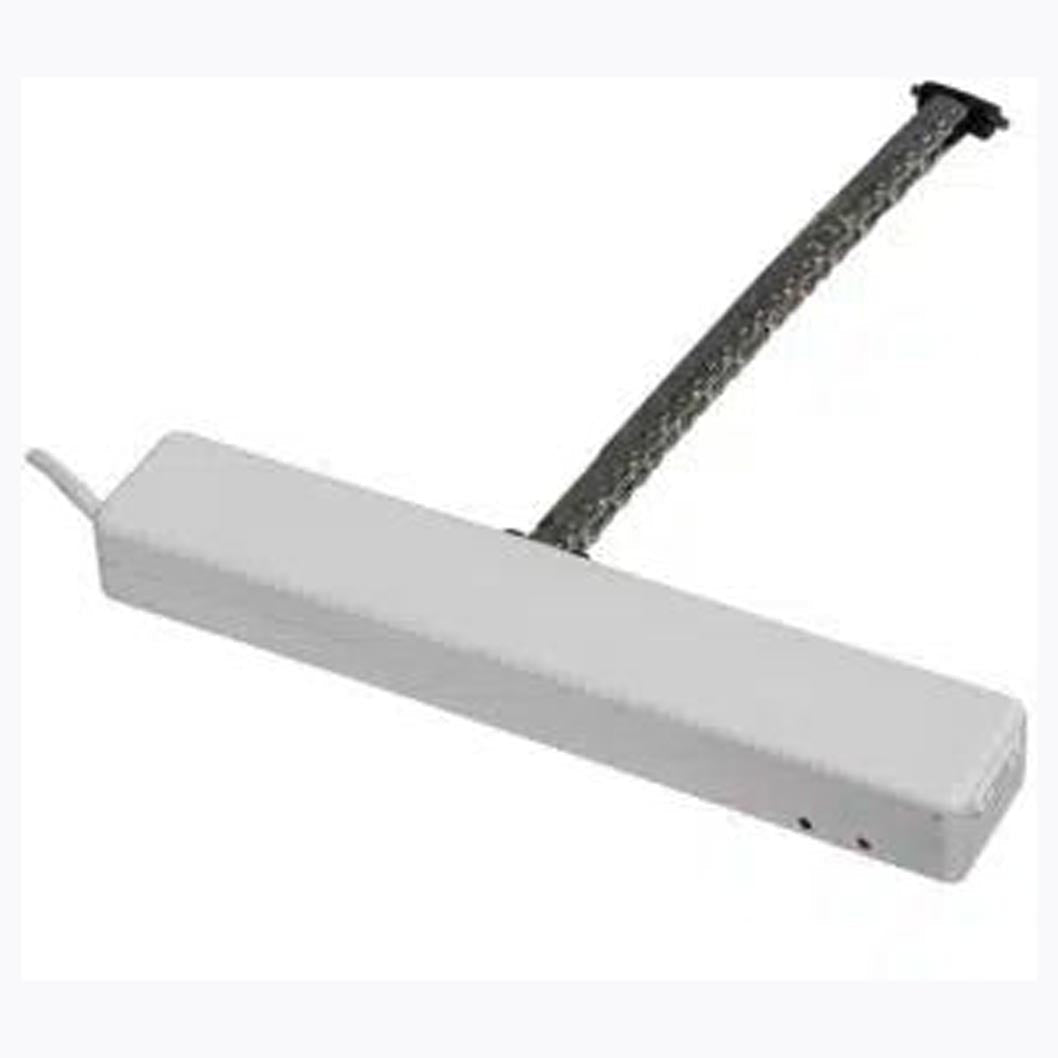

Fakro ZWS 12 Z-Wave 24cm Electric Chain Motor Actuator
The Fakro ZWS 12 Z-Wave 24cm Electric Chain Motor Actuator is designed to provide convenient electrical operation for compatible roof windows. It allows windows to open to a controlled width using an electric chain mechanism, making it a practical choice for improving ventilation and accessibility in your home.
Whether you need to replace a faulty chain motor on an existing roof window or upgrade a manually operated window to the Z-Wave electrical system, this actuator offers a suitable solution for electrically controlled operation.
Features and Benefits
The Fakro ZWS 12 chain motor is suitable for centre pivot and top-hung roof windows, as well as custom-sized windows. With a 24cm chain reach, it allows compatible windows to open to a specific width, helping to improve airflow and ventilation.
The actuator features overload protection with a sensor designed to help ensure the window closes correctly. A separate power supply is required for the motor, so the electrical installation should be planned accordingly.
Delivering a 300N force output, the actuator is designed for roof window operation. Its white plastic housing and silver metal chain provide a simple, discreet appearance that complements a range of window installations.
This motor is particularly useful when replacing a faulty existing chain actuator or upgrading a manual roof window to an electrically operated Z-Wave system.
Technical Specifications
-
Product Type: Electric chain motor actuator
-
Model: Fakro ZWS 12
-
System: Z-Wave
-
Chain Reach: 24cm
-
Compatibility: Centre pivot, top-hung and custom-sized roof windows
-
Force Output: 300N
-
Dimensions: 262mm x 47mm x 33.5mm
-
Power Voltage: 15V DC
-
Power Output: 9W
-
Design and Colour: White plastic box with a silver metal chain
-
Overload Protection: Sensor designed to help ensure correct window closing
-
Power Supply: Separate power supply required
Compatibility and Installation
The Fakro ZWS 12 Electric Chain Motor Actuator is suitable for use with centre pivot and top-hung roof windows, including custom-sized windows. It can be purchased as a replacement for a faulty chain motor or used when upgrading a manually operated roof window to the Z-Wave electrical system.
Before purchasing, check that the actuator is compatible with your existing roof window and its operating mechanism. A suitable separate power supply is required, and professional installation may be recommended to ensure the motor is fitted and connected correctly.
Design and Electrical Performance
Featuring a white plastic housing and silver metal chain, the Fakro ZWS 12 has a neat and practical design. Its 262mm x 47mm x 33.5mm dimensions make it suitable for installations where the specified actuator size is required.
The motor operates at 15V DC and has a 9W output, while its 300N force rating supports roof window operation. The integrated overload protection sensor is designed to assist with correct window closing.
Available Variants
No additional variants were provided in the supplied Excel data. This description covers the Fakro ZWS 12 Z-Wave 24cm Electric Chain Motor Actuator as specified.
Frequently Asked Questions
1. What is the Fakro ZWS 12 Electric Chain Motor Actuator used for?
The Fakro ZWS 12 is designed to operate compatible roof windows electrically. It can be used to replace a faulty chain motor or upgrade a manually operated roof window to the Z-Wave electrical system.
2. What is the chain reach of the Fakro ZWS 12?
The Fakro ZWS 12 has a 24cm chain reach, allowing compatible roof windows to open to a controlled width.
3. Does the Fakro ZWS 12 require a separate power supply?
Yes, the Fakro ZWS 12 requires a separate power supply. The motor operates at 15V DC with a 9W output. Check the electrical requirements before installation to ensure the correct power supply is used.
