Fakro SRF Flat Roof Light Tunnel Tubes
The Fakro SRF Flat Roof Light Tunnel Tubes offer a practical way to bring natural daylight into rooms where a conventional roof window or vertical window cannot be installed. By capturing sunlight at roof level and directing it through the light-transmitting tube, the system helps brighten darker interior spaces naturally.
Bring Natural Daylight Into Difficult Spaces
The SRF is particularly useful for rooms where structural obstacles make traditional window installation difficult. Its flexible light-transmitting tube can be routed around obstacles, making it easier to create a suitable path between the roof and the ceiling.
Once sunlight enters the tunnel, it is reflected along the walls of the reflective tube and directed downwards towards the ceiling diffuser. The diffuser then spreads the natural light evenly throughout the room, helping to create a brighter and more welcoming space.

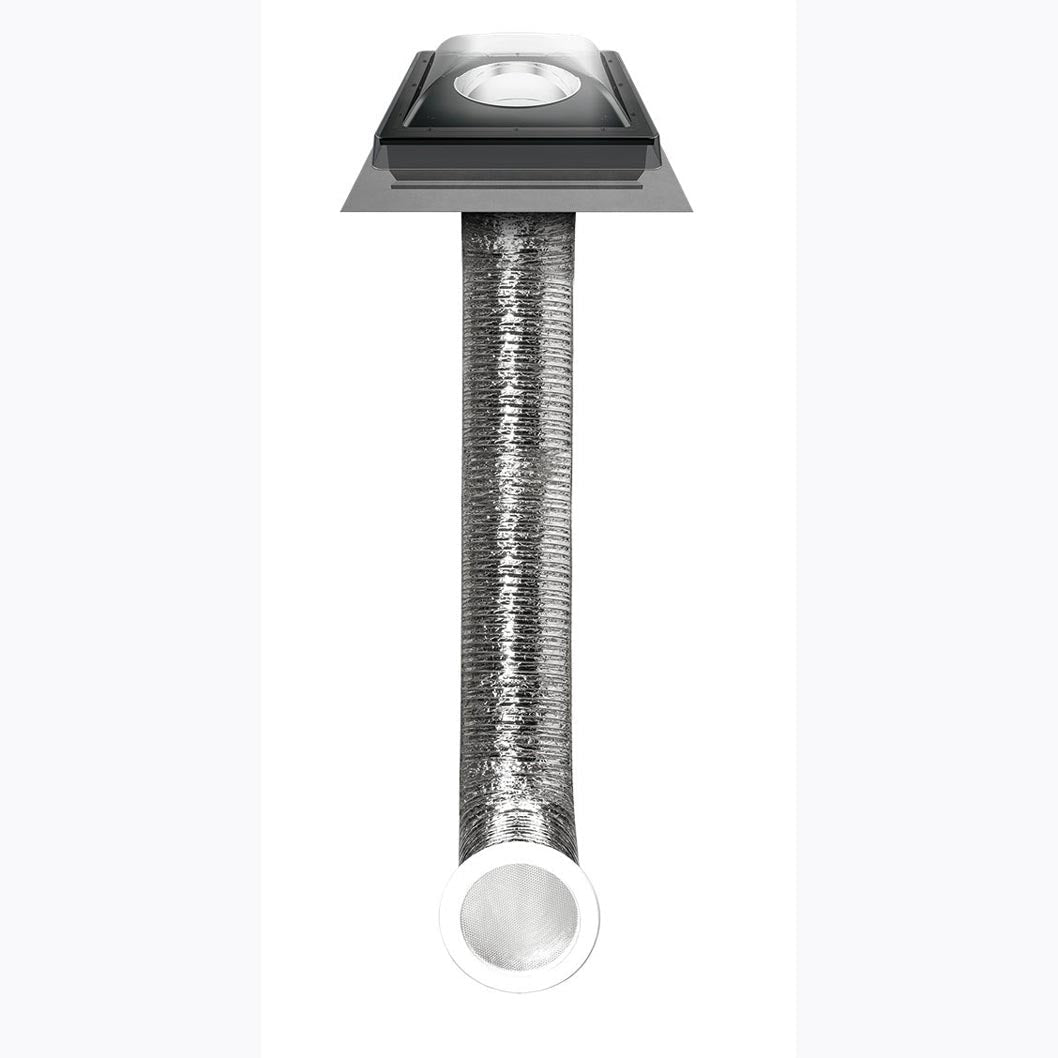

Flexible and Reflective Tube Construction

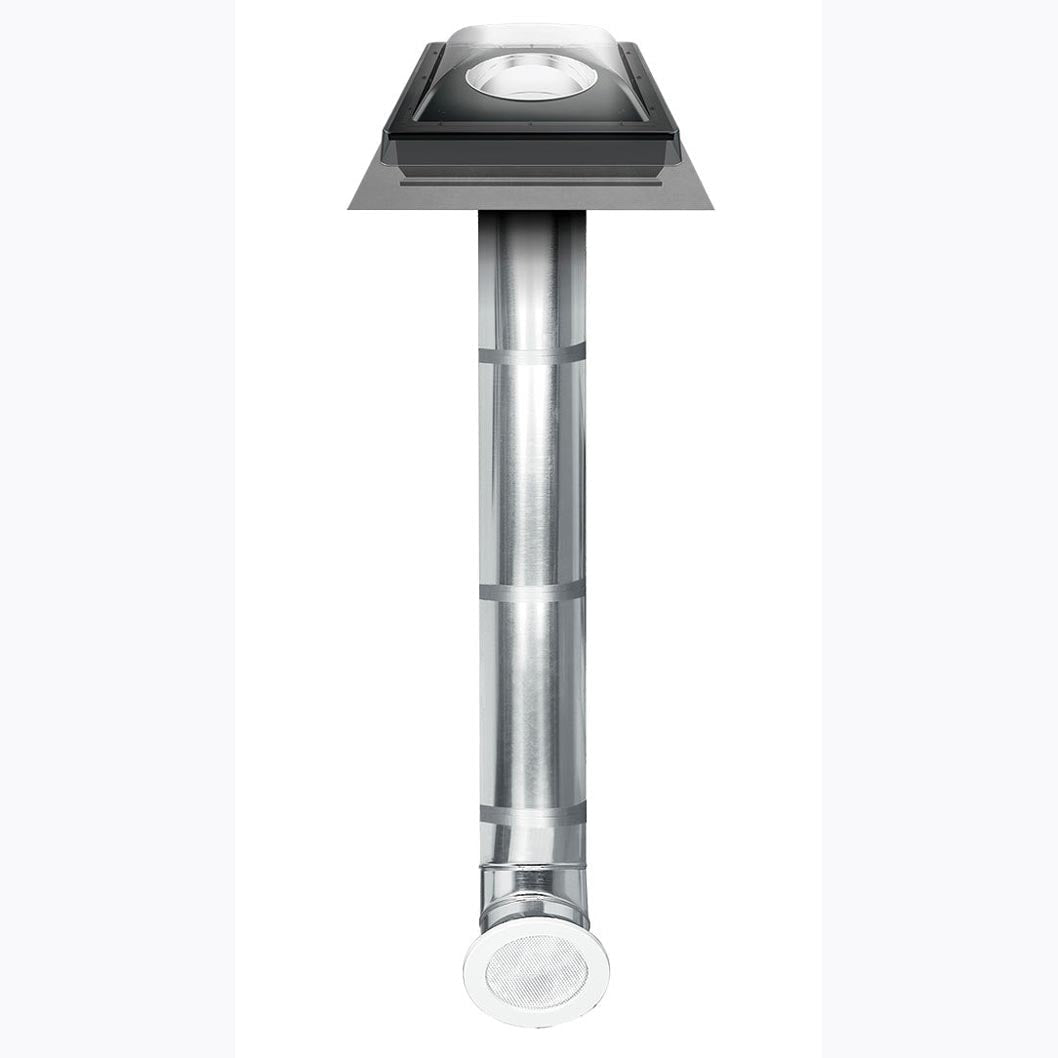

The light tunnel combines a flexible light-transmitting section with a rigid aluminium tube. The rigid section features a reflective silver-based layer designed to reflect and guide daylight through the tunnel towards the diffuser.
This combination provides flexibility during installation while helping to direct available sunlight into rooms that may otherwise have limited access to natural daylight.
Suitable for Different Roof Coverings
The Fakro SRF is supplied with integrated flashing designed for a range of roof coverings, including
flat, corrugated, high-profile and slate materials.
The system is suitable for roof pitches from
15° to 60°, as well as flat roofs, making it a versatile option for different roof configurations.
Available Sizes
The Fakro SRF Flat Roof Light Tunnel Tubes are available in the following sizes:
- 350 x 2100mm
- 550 x 2100mm
Key Benefits
- Helps bring natural daylight into rooms without suitable roof or vertical windows.
- Flexible light-transmitting tube can help bypass structural obstacles.
- Rigid aluminium tube features a reflective silver-based layer.
- Helps reflect and direct sunlight towards the ceiling diffuser.
- Ceiling diffuser distributes natural light evenly throughout the room.
- Integrated flashing is suitable for flat, corrugated, high-profile and slate roof coverings.
- Suitable for roof pitches from 15° to 60° and flat roofs.
- Available in 350 x 2100mm and 550 x 2100mm sizes.
A Practical Way to Brighten Your Interior
The Fakro SRF Light Tunnel provides an effective alternative when a conventional roof window is not suitable. Its flexible tube makes it easier to navigate around structural obstacles, while the reflective surface helps guide daylight from the roof towards the ceiling diffuser.
Available in two sizes, the SRF offers a flexible daylighting solution for rooms that would otherwise have limited access to natural light.
Frequently Asked Questions
What is the Fakro SRF Light Tunnel used for?
The SRF is designed to bring natural daylight into rooms where a traditional roof window or vertical window cannot be installed. Its flexible tube can also help route the tunnel around structural obstacles.
What roof coverings is the Fakro SRF suitable for?
The system features integrated flashing suitable for flat, corrugated, high-profile and slate roof coverings.
What sizes are available for the Fakro SRF?
The Fakro SRF Flat Roof Light Tunnel Tubes are available in
350 x 2100mm and
550 x 2100mm sizes.
