Fakro FTU-V U3 Centre Pivot Roof Window
The FAKRO FTU-V U3 Centre Pivot Roof Window is designed to bring natural light and comfortable ventilation into your home while offering increased resistance to moisture. Finished with a white, easy-to-clean polyurethane varnish, this roof window has a clean and contemporary appearance that works particularly well in rooms where a bright, low-maintenance finish is preferred.
The window is manufactured from high-quality pine that is vacuum impregnated and carefully finished with multiple coats of protective lacquer. Three coats of varnish, together with additional corner guards, help protect the wooden components from the effects of moisture. This makes the FTU-V U3 particularly suitable for areas where humidity levels can be higher, including kitchens and bathrooms.
Moisture-Resistant Design
The FTU-V U3 has been developed with moisture resistance in mind, making it a practical choice for humid environments. Its white polyurethane finish is not only easy to clean but also provides additional protection to the timber construction.
The clean white finish also makes the window suitable for buildings where an easy-to-maintain appearance is important. As a result, the FTU-V U3 can be considered for applications such as hotels, hospitals and other commercial or residential spaces where white internal finishes are preferred.
Energy-Efficient Double Glazing
The FTU-V U3 features double glazing with an overall window U-value of 1.3 W/m²K and a glazing U-value of 1.1 W/m²K. The glazing unit is filled with argon gas, helping to improve thermal performance and contribute to a more comfortable indoor environment.
With an acoustic insulation rating of 32dB, the window also provides a degree of protection against external noise. The combination of thermal and acoustic properties makes it a versatile option for a variety of living and working spaces.
Easy Operation and Ventilation
The centre pivot design makes the FTU-V U3 straightforward to operate, while the elegant handle is positioned on the lower section of the sash for convenient access. The handle can secure the sash in two open positions, giving you greater control over airflow and ventilation.
The integrated V40P air inlet can provide airflow of up to 49m³/h, helping to introduce fresh air without requiring the window to be fully opened. This can be particularly useful in kitchens, bathrooms and other rooms where good ventilation is important.
Suitable for Different Roof Pitches

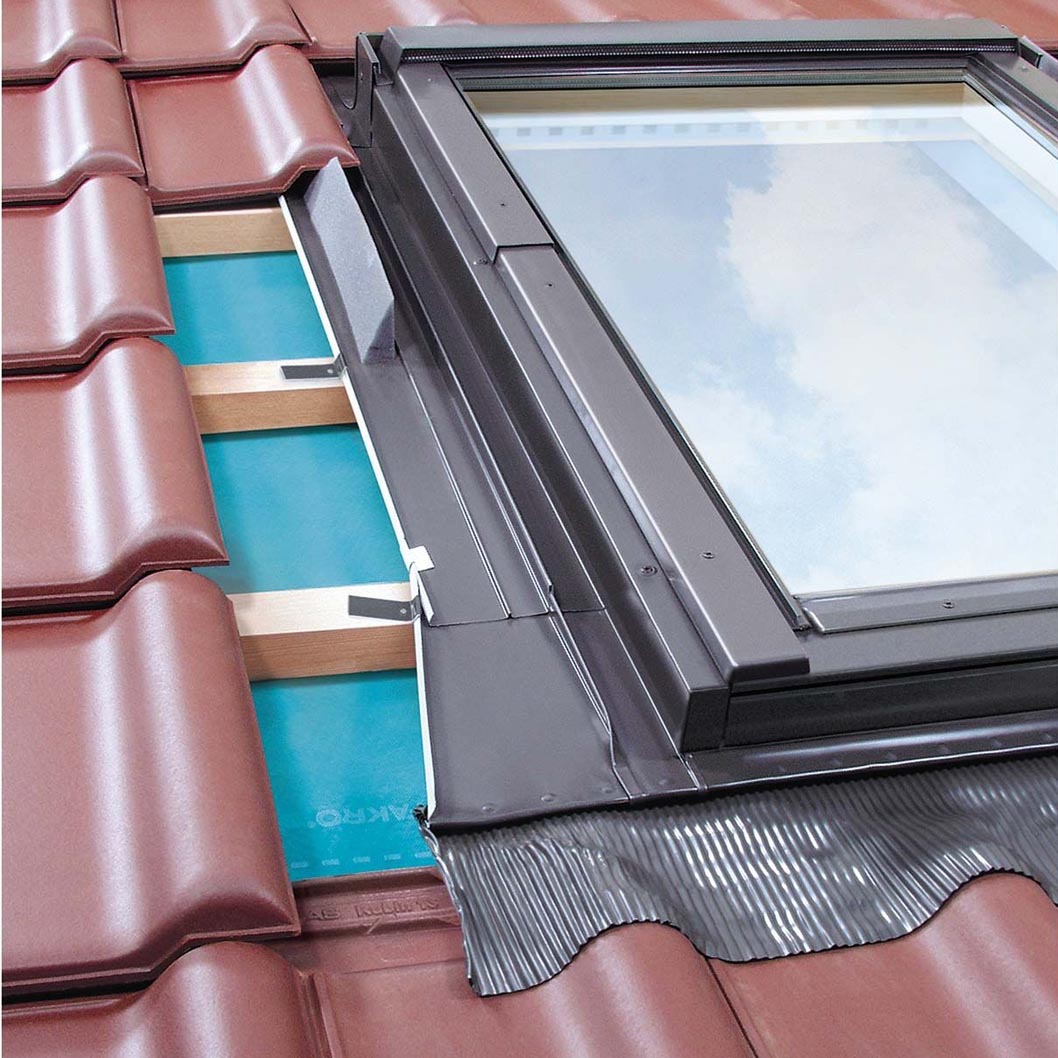

The FTU-V U3 is suitable for installation on roofs with pitches between 15 and 90 degrees when used with the appropriate flashing. This broad installation range makes it suitable for a variety of roof designs and applications.
A wide selection of compatible accessories is also available, allowing the window to be adapted to different installation requirements and user preferences.
Key Features
- Centre pivot roof window design
- White, easy-to-clean polyurethane finish
- Manufactured from vacuum-impregnated pine
- Finished with acrylic lacquer for additional protection
- Three coats of varnish help protect the timber elements
- Additional corner guards provide further protection
- Designed for increased moisture resistance
- Suitable for kitchens, bathrooms and other humid areas
- Suitable for buildings such as hotels and hospitals where a white, easy-maintenance finish is required
- Overall window U-value of 1.3 W/m²K
- Glazing U-value of 1.1 W/m²K
- Double glazing with argon-filled panes
- Acoustic insulation rating of 32dB
- V40P air inlet providing airflow of up to 49m³/h
- Elegant handle positioned on the lower part of the sash
- Handle secures the sash in two open positions
- Suitable for roof pitches from 15 to 90 degrees with suitable flashing
- Wide range of compatible accessories available
Available Size Variants
The FAKRO FTU-V U3 Centre Pivot Roof Window is available in 13 different sizes, providing options for a wide range of roof layouts and installation requirements. The complete range includes:
- 550 x 780mm
- 550 x 980mm
- 550 x 1180mm
- 660 x 980mm
- 660 x 1180mm
- 780 x 980mm
- 780 x 1180mm
- 780 x 1400mm
- 940 x 1180mm
- 940 x 1400mm
- 1140 x 1180mm
- 1140 x 1400mm
- 1340 x 980mm
Whether you're looking for a smaller roof window for a compact space or a larger option to maximise daylight, the FTU-V U3 range offers multiple dimensions to suit different projects. The correct size should be selected according to the required roof opening and the specific installation requirements.
A Practical Choice for Humid and High-Use Areas
Combining a durable timber construction with a moisture-resistant white polyurethane finish, the FAKRO FTU-V U3 is a versatile centre pivot roof window for both residential and commercial applications. Its design makes it particularly well suited to kitchens and bathrooms, while the clean white finish also works well in environments such as hotels and hospitals where easy maintenance is important.
With energy-efficient double glazing, argon-filled panes, integrated ventilation and a convenient lower-positioned handle, the FTU-V U3 offers a practical balance of comfort, ventilation and ease of use. Its compatibility with roof pitches from 15 to 90 degrees, along with 13 available sizes and a wide range of accessories, provides flexibility for different installation requirements.
Frequently Asked Questions
Is the FAKRO FTU-V U3 suitable for bathrooms and kitchens?
Yes. The FTU-V U3 is designed with increased moisture resistance and is particularly suitable for rooms where humidity levels can be high, including kitchens and bathrooms. Its white polyurethane varnish and protective timber treatment also make it easy to maintain.
What is the U-value of the FAKRO FTU-V U3 roof window?
The overall window U-value is 1.3 W/m²K, while the glazing has a U-value of 1.1 W/m²K. The double-glazed unit is filled with argon gas to support its thermal performance.
What sizes is the FAKRO FTU-V U3 available in?
The FTU-V U3 is available in 13 sizes: 550 x 780mm, 550 x 980mm, 550 x 1180mm, 660 x 980mm, 660 x 1180mm, 780 x 980mm, 780 x 1180mm, 780 x 1400mm, 940 x 1180mm, 940 x 1400mm, 1140 x 1180mm, 1140 x 1400mm and 1340 x 980mm.
