Automated Smoke and Heat Ventilation
The Fakro FSR P2 Natural Pine Double Glazed Smoke Ventilation Window is designed to provide an effective automated solution for smoke and heat extraction in the event of a fire. Combining advanced safety technology with a natural pine interior, it offers a practical way to support smoke control while maintaining an attractive appearance. The window is suitable for residential, commercial and public buildings where dedicated smoke ventilation is required.
Certified Smoke Ventilation Performance
The FSR P2 is designed to comply with EN 12101-2:2003 smoke control requirements and is BBA Approved (02/3944). This provides a certified solution for applications where reliable smoke and heat ventilation is an important part of the building's safety provisions.
Automatic Opening for Rapid Smoke Extraction

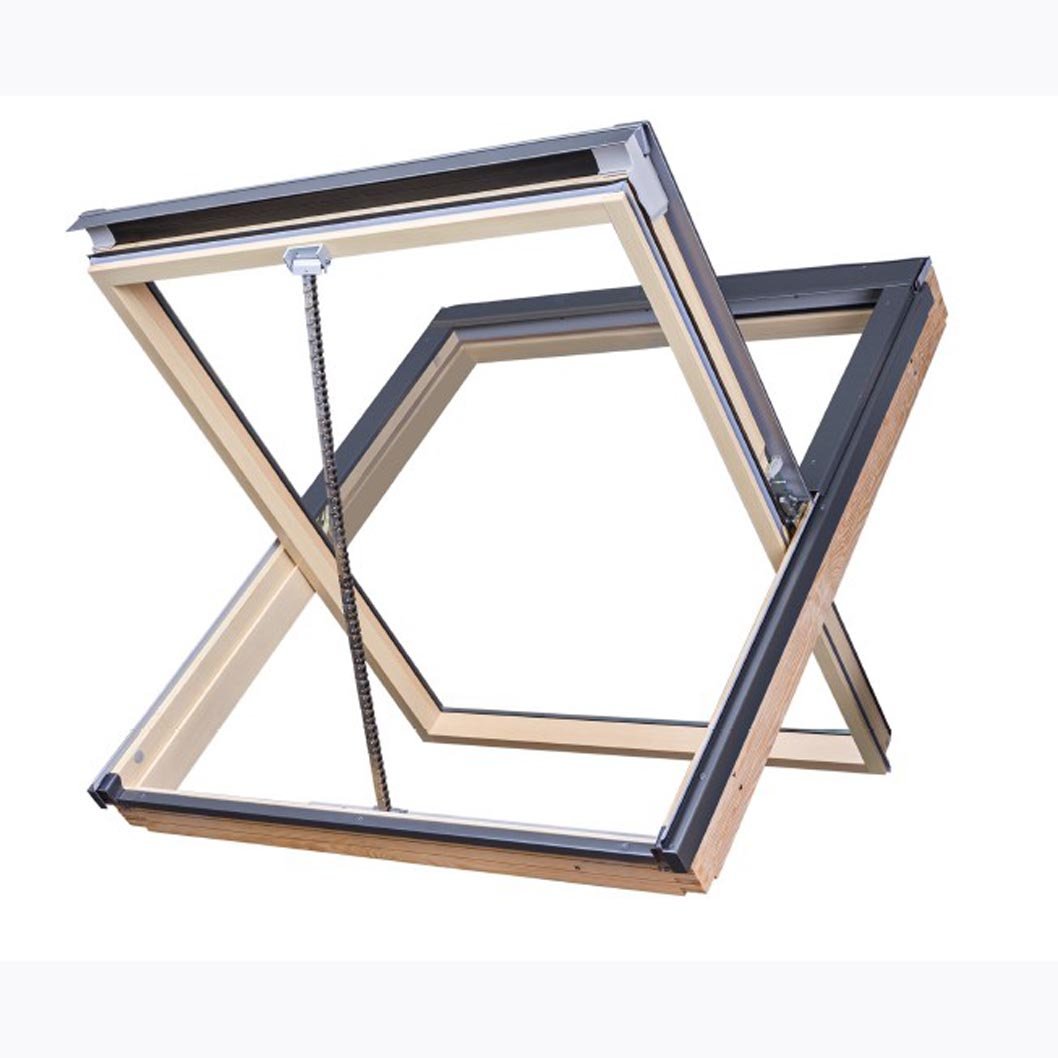

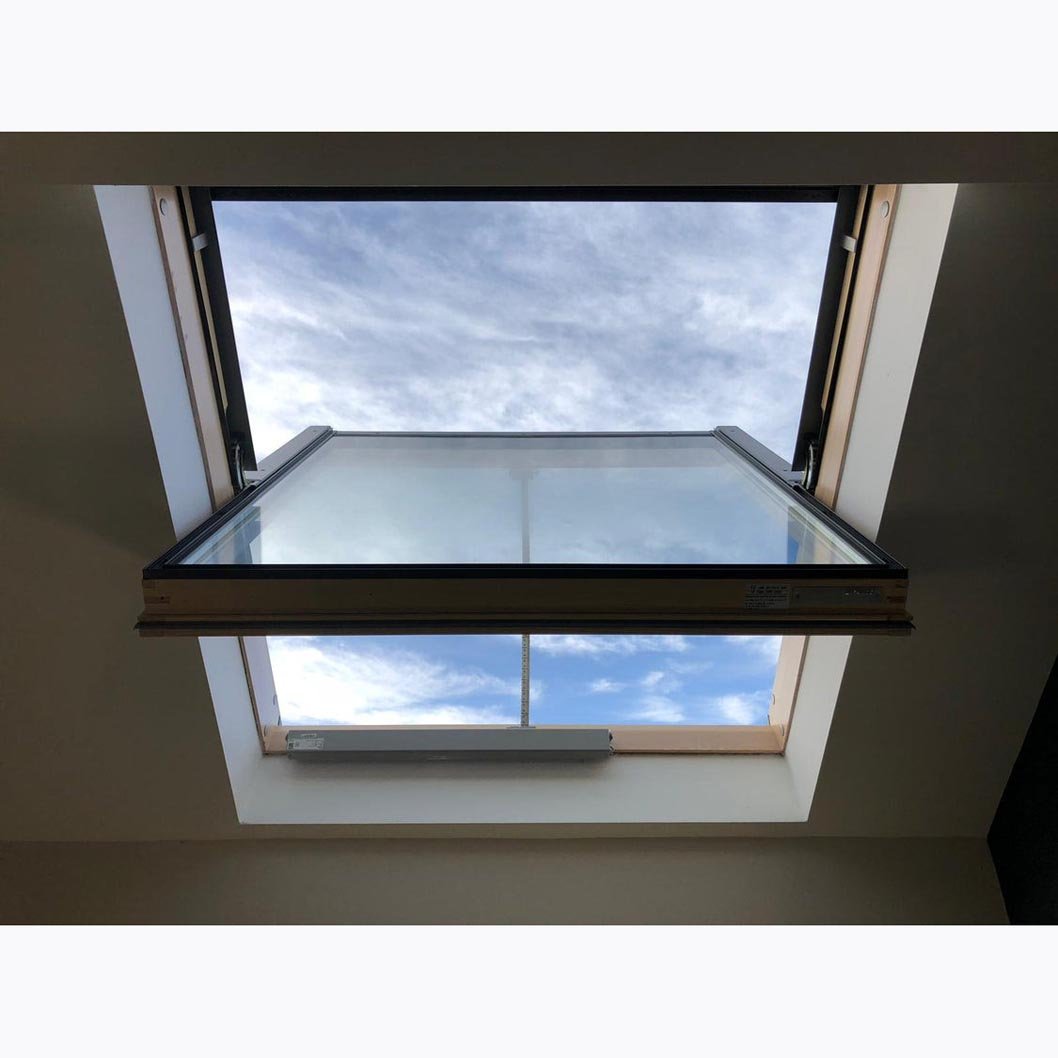

During an emergency, the integrated KA54 chain drive actuator automatically opens the window sash by up to 90°, helping smoke and hot air escape through the roof. The automated operation provides rapid ventilation without relying on manual opening, supporting the window's role as part of a building's smoke control system.
Natural Pine Interior
The internal frame is manufactured from FSC Certified natural pine, giving the window a warm and attractive appearance. Two layers of clear lacquer are applied to the timber, helping to protect the natural wood while maintaining its clean and traditional look.
High Performance Laminated Double Glazing
The FSR P2 features double glazing designed to provide a combination of safety, security and thermal performance. The glazing includes a 4mm toughened external pane, an Argon-filled spacer and a 6.8mm laminated internal pane. This construction provides enhanced durability while helping to improve insulation and security.
Excellent Thermal Performance
The glazing achieves a U-value of 1.1 W/m²K, helping to reduce heat transfer while maintaining the required safety characteristics. This makes the FSR P2 a practical choice where smoke ventilation needs to be combined with good thermal efficiency.
Enhanced Security with topSafe Technology
The Fakro topSafe security system incorporates reinforced hinges and keeps, together with a steel slat within the sash. This robust construction provides additional protection and achieves Class III safety according to EN 13049.
Easy Cleaning and Maintenance
Maintaining the window is made easier by the ability to disconnect the actuator chain, allowing the sash to rotate through 180°. A sash-blocking bolt helps secure the sash in position when cleaning the external pane, making routine maintenance more convenient.
Durable Aluminium Exterior
The exterior of the window is protected with aluminium cladding finished in RAL 7022. This provides a contemporary appearance while offering durable resistance to weather exposure, helping the window remain suitable for demanding roof applications.
Suitable for a Wide Range of Roof Pitches
The FSR P2 can be installed on roof pitches between 15° and 90°, providing considerable flexibility for different roof designs. This broad installation range makes it suitable for a variety of residential, commercial and public building applications.
Complete Smoke Ventilation Kit Included
The window is supplied as a complete smoke ventilation solution, including the actuator, control unit, break glass, smoke sensor and backup power supply. Having these components supplied as part of the system helps simplify installation and provides the key equipment required for automated smoke ventilation.
Available Sizes
The Fakro FSR P2 Natural Pine Double Glazed Smoke Ventilation Window is available in the following supplied variants:
- 1140 x 1180mm
- 1340 x 1400mm
- 780 x 1400mm
- 780 x 1400mm
The 780 x 1400mm size appears twice in the supplied variant list and has therefore been retained. The available sizes provide options for different roof layouts and project requirements.
Why Choose the Fakro FSR P2 Smoke Ventilation Window?
The Fakro FSR P2 combines automated smoke and heat ventilation with high-quality materials and strong safety features. Its automatic 90° opening mechanism, certified smoke control performance, laminated double glazing and topSafe security system make it a purpose-designed solution for buildings requiring smoke ventilation. The natural pine interior and durable RAL 7022 aluminium exterior also give it a clean, professional appearance, while the complete ventilation kit helps provide a convenient installation package.
Frequently Asked Questions
What is the Fakro FSR P2 smoke ventilation window used for?
The Fakro FSR P2 is designed to provide automated smoke and heat ventilation in buildings. During a fire emergency, the actuator opens the sash to help release smoke and hot air through the roof. It can be used in residential, commercial and public buildings where smoke control provisions are required.
What components are included with the Fakro FSR P2?
The complete smoke ventilation kit includes the KA54 actuator, control unit, break glass, smoke sensor and backup power supply. These components are supplied to provide a complete automated smoke ventilation system.
What sizes is the Fakro FSR P2 available in?
The supplied size options are 1140 x 1180mm, 1340 x 1400mm and 780 x 1400mm. The 780 x 1400mm variant was listed twice in the supplied Excel information, so both entries have been retained in the size list.
