Fakro EPV/C Standard Depth Conservation Style Flashing Kit for Non-Interlocking Tile

Fakro EPV/C Standard Depth Conservation Style Flashing Kit for Non-Interlocking Tile

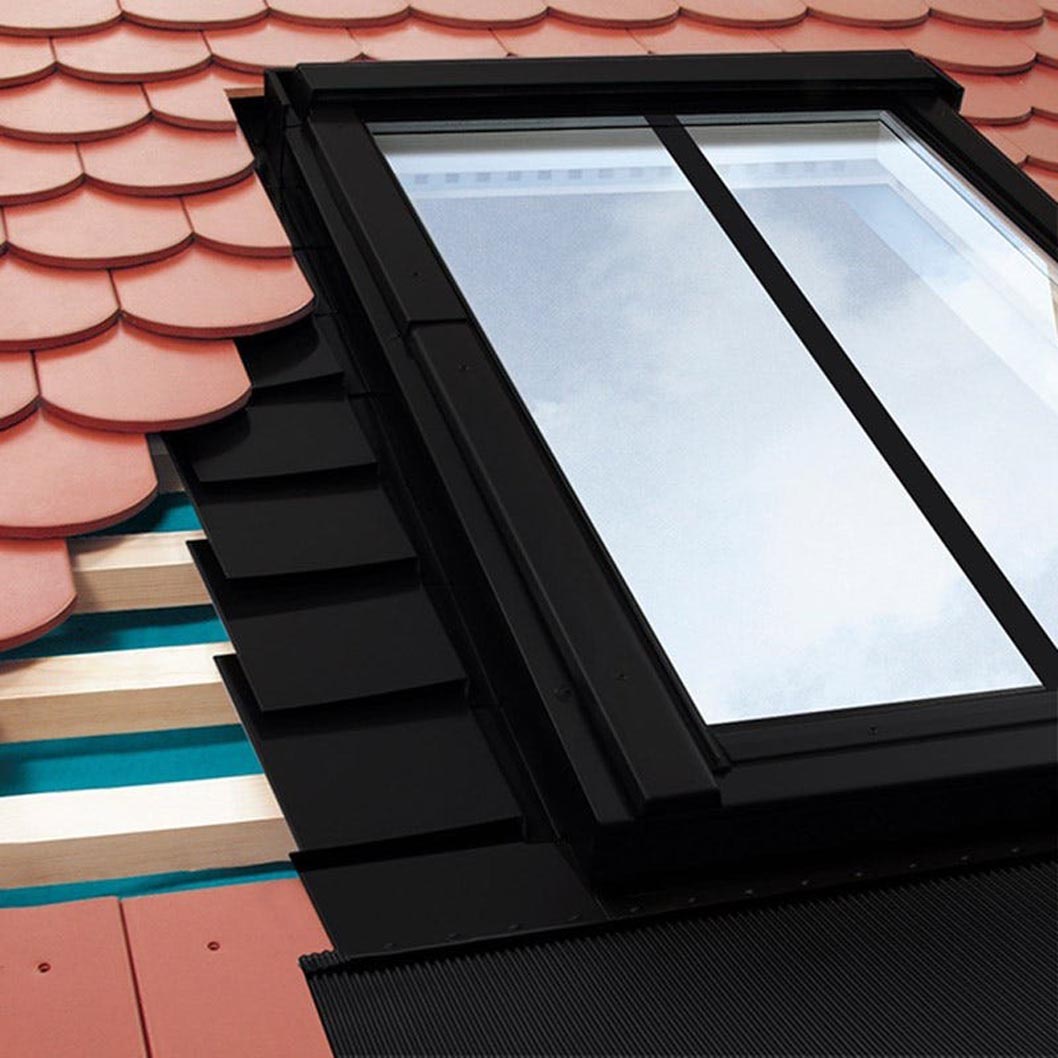

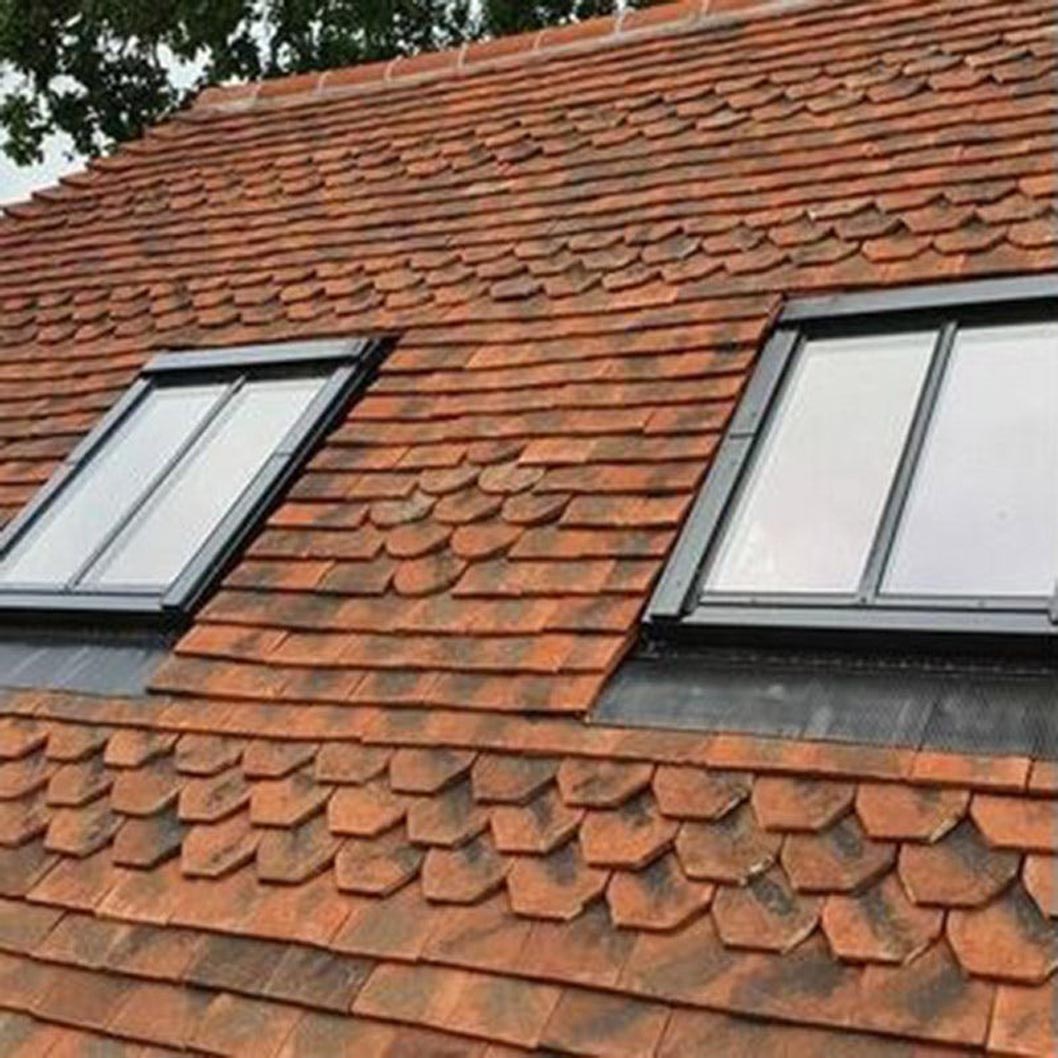

The FAKRO EPV/C Standard Depth Conservation Style Flashing Kit is designed to provide a secure and weather-resistant installation for FAKRO roof windows fitted into roofs with non-interlocking plain tiles. It is suitable for tiles up to 16mm thick and is particularly well suited to traditional, period and conservation properties where maintaining an understated roofline is important. The flashing allows the roof window to be installed at the recessed "J" level, helping create a low-profile appearance that blends naturally with the surrounding roofing. Finished in conservation-style RAL 9005 black, it complements traditional roof coverings while providing the protection expected from a purpose-designed flashing system.

Designed for Plain Non-Interlocking Tiles

The EPV/C is specifically designed for non-interlocking plain tiles up to 16mm thick. Its carefully engineered components create a close connection between the roof window and surrounding tiles, helping prevent water from penetrating around the installation. The system is suitable for roof pitches between 25 and 90 degrees, making it adaptable to a wide variety of traditional roof structures. Its recessed installation at "J" level can also help maintain the proportions and appearance of a heritage-style roof.

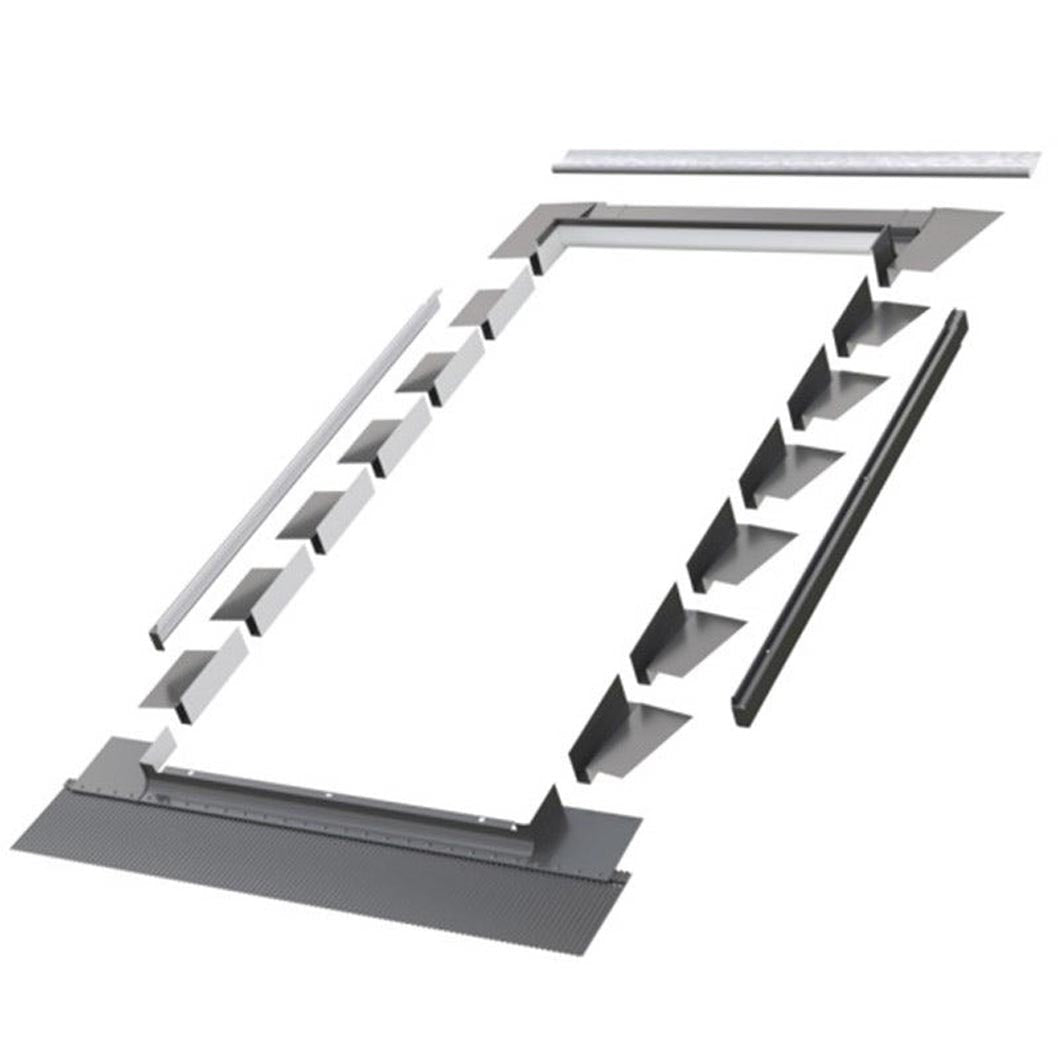

Integrated Side Soakers for Water Management

Individual side soakers form an important part of the EPV/C design. They work with the surrounding roofing material to create a neat drainage channel that helps direct rainwater away from the roof window. By guiding water away from the window opening, the flashing helps improve weather resistance and provides additional protection against moisture entering the roof structure. The carefully designed components also help achieve a neat finish around the window.

Conservation-Style RAL 9005 Finish

The EPV/C features a black RAL 9005 finish designed to complement traditional and period properties. The darker finish works naturally with many traditional roof coverings, helping the flashing blend into the overall appearance of the roof rather than standing out. This makes the kit particularly suitable for renovation and conservation projects where the external appearance of the building is an important consideration.

Flexible Installation Options

The EPV/C flashing kit can be used for individual roof window installations. A modular version is also available for projects where multiple windows need to be arranged in horizontal, vertical or block combinations. The EPV flashing range also allows installation at "V" depth, providing additional flexibility for different roof window configurations. The appropriate flashing type and installation depth should be selected according to the specific roof window and project requirements.

Key Features

• Conservation-style flashing kit for FAKRO roof windows
• Designed for non-interlocking plain tiles
• Suitable for plain tiles up to 16mm thick
• Suitable for roof pitches between 25 and 90 degrees
• Designed for recessed installation at "J" level
• Helps create a low-profile roof window installation
• Individual side soakers provide effective water drainage
• Side soakers create a neat drainage gutter around the window
• Helps improve weather resistance around the roof window
• Conservation-style RAL 9005 black finish
• Designed to complement traditional and period properties
• Suitable for individual roof window installations
• Modular version available for horizontal, vertical and block window combinations
• EPV flashing version allows installation at "V" depth
• Available in 12 different size variants

Available Size Variants

The FAKRO EPV/C Standard Depth Conservation Style Flashing Kit is available in 12 different sizes, providing options for a wide range of compatible FAKRO roof windows. The complete range includes:

• 550 x 780mm
• 550 x 980mm
• 660 x 980mm
• 660 x 1180mm
• 780 x 980mm
• 780 x 1180mm
• 780 x 1400mm
• 940 x 1180mm
• 940 x 1400mm
• 1140 x 1180mm
• 1140 x 1400mm
• 1340 x 980mm

The range starts with the compact 550 x 780mm option and extends to larger 1140 x 1400mm configurations. It also includes 550 x 980mm, 660 x 980mm, 660 x 1180mm, 780 x 980mm, 780 x 1180mm, 780 x 1400mm, 940 x 1180mm, 940 x 1400mm, 1140 x 1180mm and 1340 x 980mm sizes.

A Traditional Flashing Solution for Plain Tile Roofs

The FAKRO EPV/C provides a practical way to install a roof window into a traditional plain-tile roof while maintaining a discreet, conservation-friendly appearance. Its recessed "J" level installation, black RAL 9005 finish and integrated side soakers make it well suited to period properties and renovation projects. Designed for non-interlocking tiles up to 16mm thick and roof pitches from 25 to 90 degrees, the flashing provides flexibility for a range of traditional roof designs. With 12 available sizes and modular options for grouped windows, it can also accommodate different installation layouts.

Frequently Asked Questions

What type of tiles is the FAKRO EPV/C flashing kit suitable for?

The EPV/C is designed for non-interlocking plain tiles up to 16mm thick. It creates a weather-resistant connection between the roof window and surrounding roofing material.

What roof pitch is the FAKRO EPV/C suitable for?

The supplied specification states that the EPV/C is suitable for roof pitches between 25 and 90 degrees. It is designed for recessed installation at the "J" level, helping create a low-profile appearance.

What sizes is the FAKRO EPV/C flashing kit available in?

The EPV/C is available in 12 sizes: 550 x 780mm, 550 x 980mm, 660 x 980mm, 660 x 1180mm, 780 x 980mm, 780 x 1180mm, 780 x 1400mm, 940 x 1180mm, 940 x 1400mm, 1140 x 1180mm, 1140 x 1400mm and 1340 x 980mm.
