Fakro ELV Rooflight Slates up to 10mm Thick Flashing Kit

Fakro ELV Rooflight Slates up to 10mm Thick Flashing Kit

The Fakro ELV Flashing Kit is designed specifically for installing Fakro roof windows into roofs finished with slate coverings up to 10mm thick. It provides a practical way to create a neat connection between the roof window and slate roof, helping protect the installation from the elements while maintaining a clean external finish.

Designed for Slate Roof Coverings

The ELV flashing is suitable for individual Fakro roof windows installed within the slope of the roof and is designed to work with slate coverings up to 10mm thick. Its carefully designed components work around the window to provide a suitable weatherproofing solution for slate roof installations. The flashing can also be used when combining multiple window units. For windows installed at V depth, vertical, horizontal and block combinations are possible, while J depth supports horizontal combinations.

Flexible Installation Depths

The EL flashing range is available in two types, allowing windows to be positioned at different depths within the roof construction. The two installation depths are V (0) and J (-3cm). The standard installation configuration when using EL flashing is the ELV version, providing a straightforward option for standard V-depth installation.

Suitable Roof Pitch Range

The appropriate roof pitch depends on the installation depth. For N and V depths, the EL flashing can be used on roofs with pitches from 15° to 90°. For J depth, the recommended roof pitch range is 20° to 90°. This broad range makes the flashing suitable for many different roof configurations, provided the selected window, flashing and installation depth are compatible.

Flashing Components

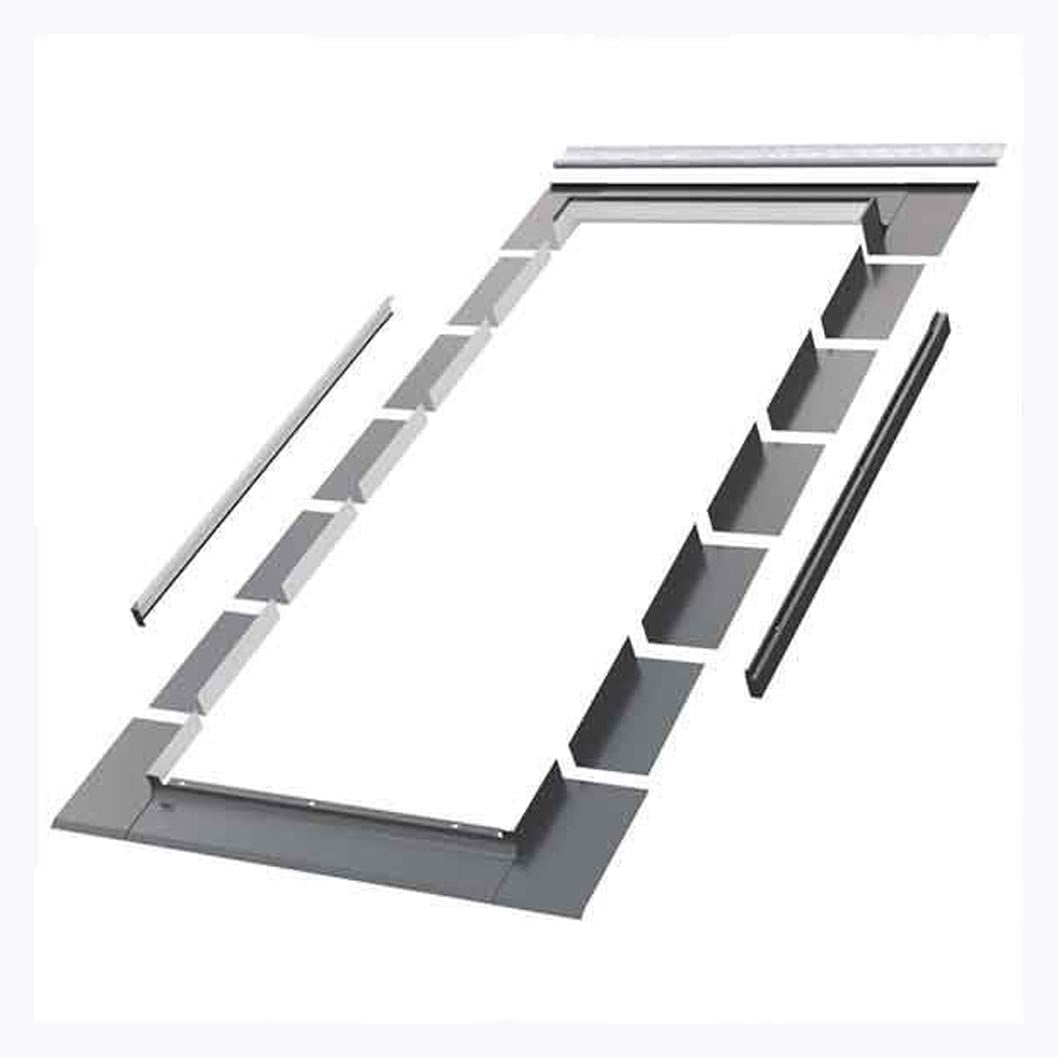

The ELV flashing system consists of several key components designed to work together around the roof window. These include the bottom part of the flashing, side parts with sponge seals, the top part of the flashing and a gutter. The side sections incorporate sponge seals to help provide protection around the window installation, while the integrated gutter helps manage water and direct it away from the roof window.

Available Sizes

The Fakro ELV Rooflight Slates up to 10mm Thick Flashing Kit is available in 13 different sizes, allowing you to select the appropriate flashing for the corresponding Fakro roof window.

• 550 x 780mm
• 550 x 980mm
• 550 x 1180mm
• 660 x 980mm
• 660 x 1180mm
• 780 x 980mm
• 780 x 1180mm
• 780 x 1400mm
• 940 x 1180mm
• 940 x 1400mm
• 1140 x 1180mm
• 1140 x 1400mm
• 1340 x 980mm

Key Features

• Designed for Fakro roof windows installed into slate roof coverings.
• Suitable for slate coverings up to 10mm thick.
• Suitable for individual roof window installations.
• Can accommodate combined window units in specified configurations.
• V depth supports vertical, horizontal and block combinations.
• J depth supports horizontal combinations.
• Available in V (0) and J (-3cm) installation depths.
• Standard installation with EL flashing uses the ELV version.
• Suitable for roof pitches from 15° to 90° for N and V depths.
• Suitable for roof pitches from 20° to 90° for J depth.
• Includes bottom, side and top flashing components.
• Side sections feature sponge seals for additional protection around the installation.
• Integrated gutter helps manage water around the roof window.
• Available in 13 different sizes.

Frequently Asked Questions

What type of roof covering is the Fakro ELV flashing designed for?

The Fakro ELV flashing is designed for use with slate roof coverings up to 10mm thick. It is suitable for individual Fakro roof windows installed within the slope of the roof.

Can the ELV flashing be used for multiple roof windows?

Yes. The flashing can be used with combined window units in certain configurations. At V depth, vertical, horizontal and block combinations are possible, while at J depth, horizontal combinations are supported.

What roof pitches are suitable for the ELV flashing?

For N and V depths, the EL flashing can be installed on roof pitches from 15° to 90°. For J depth, the suitable roof pitch range is 20° to 90°. Always ensure the selected flashing and window configuration are suitable for your specific roof installation.
