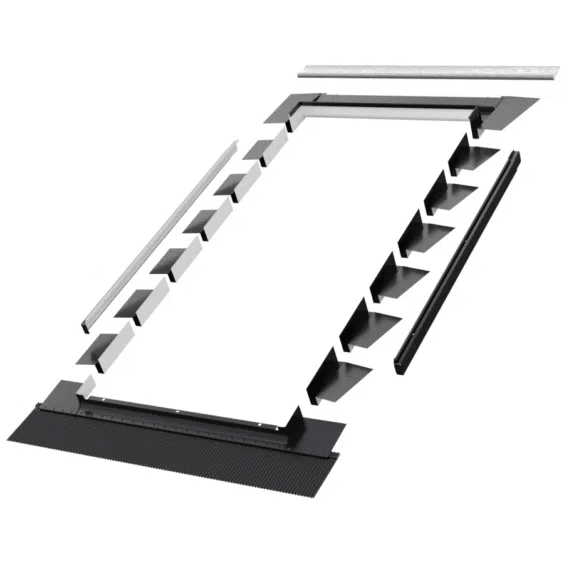

Fakro ELV/C Conservation Slate Flashing Kit

Fakro ELV/C Conservation Slate Flashing Kit

The FAKRO ELV/C Conservation Slate Flashing Kit is designed to provide a secure, weather-resistant installation for FAKRO roof windows fitted into slated roofs. Suitable for slate coverings up to 10mm thick, the flashing creates a neat connection around the window while helping protect the installation from wind, rain and moisture. Designed for installation at the standard V level (0cm), the ELV/C flashing kit is a practical choice for conservation and traditional roofing projects where a reliable installation and discreet external finish are important. Its RAL 7022 finish provides a subtle appearance while helping the flashing withstand changing weather conditions.

Suitable for a Wide Range of Roof Pitches

The ELV/C flashing kit is suitable for roof pitches between 15 and 90 degrees, providing flexibility for different roof designs. It can be used when installing individual roof windows or when windows are arranged in vertical, horizontal or block combinations. The carefully designed flashing components help create a precise fit around the roof window, allowing the installation to integrate neatly with the surrounding slate. This makes the system suitable for a variety of traditional and architectural applications.

Designed for Slate Roofs

The ELV/C is specifically designed for slated roofs with slate coverings up to 10mm thick. The side elements are designed to interlock alternately with the slate, helping create a secure connection between the flashing and the surrounding roof covering. The lower section incorporates a plastic mat that helps provide a close, weather-resistant seal. Together, these components help reduce the potential for water and moisture to penetrate around the roof window.

Effective Water and Condensation Management

An integrated drainage gutter forms part of the flashing system and is designed to channel condensation and water away from the roof window. This helps reduce moisture accumulation around the installation and provides additional protection for the surrounding roof structure. The combination of the lower, upper and side flashing elements creates a coordinated installation system designed to provide reliable weather protection while maintaining a clean external appearance.

Conservation-Friendly Design

The ELV/C flashing kit is particularly suited to projects where the roof window needs to complement an existing slate roof or traditional architectural style. Its discreet finish and carefully designed components help the roof window integrate naturally with the surrounding roof covering. The standard V-level installation at 0cm also provides a consistent installation position, helping maintain a neat appearance across individual windows or grouped roof window arrangements.

Key Features

• Designed for FAKRO roof windows installed in slated roofs
• Suitable for slate coverings up to 10mm thick
• Compatible with roof pitches between 15 and 90 degrees
• Designed for installation at standard V level (0cm)
• Suitable for individual roof window installations
• Can be used with vertical, horizontal and block window combinations
• RAL 7022 finish for a discreet external appearance
• Durable construction designed for long-term weather resistance
• Side elements interlock with the surrounding slate
• Lower section incorporates a plastic mat for improved sealing
• Integrated drainage gutter helps direct condensation and water away
• Helps protect the roof window installation from wind and moisture
• Designed to provide a neat connection between the window and slate roof
• Available in 13 different size variants

Available Size Variants

The FAKRO ELV/C Conservation Slate Flashing Kit is available in 13 different sizes, providing options for a wide range of compatible FAKRO roof windows. The complete range includes:

• 550 x 780mm
• 550 x 980mm
• 550 x 1180mm
• 660 x 980mm
• 660 x 1180mm
• 660 x 1400mm
• 780 x 980mm
• 780 x 1180mm
• 780 x 1400mm
• 940 x 1180mm
• 940 x 1400mm
• 1140 x 1180mm
• 1140 x 1400mm

The available range includes smaller 550 x 780mm and 550 x 980mm options, through to larger 1140 x 1400mm configurations. The range also includes 550 x 1180mm, 660 x 980mm, 660 x 1180mm, 660 x 1400mm, 780 x 980mm, 780 x 1180mm, 780 x 1400mm, 940 x 1180mm, 940 x 1400mm and 1140 x 1180mm sizes.

A Reliable Flashing Solution for Slate Roofs

The FAKRO ELV/C Conservation Slate Flashing Kit provides a practical way to create a secure and weather-resistant installation around FAKRO roof windows in traditional slate roofs. Its interlocking side elements, plastic-matted lower section and integrated drainage gutter work together to help protect the installation from wind, rain and moisture. Suitable for roof pitches from 15 to 90 degrees and slate coverings up to 10mm thick, the ELV/C offers flexibility for a wide range of conservation and renovation projects. With 13 available sizes, it can be matched to a broad selection of FAKRO roof window dimensions.

Frequently Asked Questions

What type of roof is the FAKRO ELV/C flashing kit designed for?

The ELV/C Conservation Flashing Kit is designed for FAKRO roof windows installed in slated roofs with slate coverings up to 10mm thick. It is particularly suitable for traditional, conservation and renovation projects where the roof window needs to integrate neatly with the existing slate.

What roof pitches can the FAKRO ELV/C be installed on?

The ELV/C flashing kit is suitable for roof pitches between 15 and 90 degrees. It is designed for installation at the standard V level, which is 0cm.

What sizes is the FAKRO ELV/C Conservation Slate Flashing Kit available in?

The ELV/C is available in 13 sizes: 550 x 780mm, 550 x 980mm, 550 x 1180mm, 660 x 980mm, 660 x 1180mm, 660 x 1400mm, 780 x 980mm, 780 x 1180mm, 780 x 1400mm, 940 x 1180mm, 940 x 1400mm, 1140 x 1180mm and 1140 x 1400mm.
