Fakro ELJ Slate Flashing

Fakro ELJ Slate Flashing

The Fakro ELJ Slate Flashing is a recessed flashing solution designed for installing compatible Fakro roof windows in slated roof coverings. Suitable for slate roofs with coverings up to 10mm thick (2 x 5mm), this flashing system helps create a neat, secure and weather-resistant finish around your roof window. Designed for individual roof windows installed within the slope of the roof, the ELJ flashing combines practical performance with a discreet appearance. Its recessed installation option allows you to position your roof window deeper into the roof construction, making it a suitable choice for projects where the finished appearance and installation depth are important considerations.

Recessed Installation and Flexible Positioning

The Fakro ELJ Slate Flashing is available in two installation depth options, allowing compatible roof windows to be fitted at different positions within the roof construction. The V (0) version provides standard installation, while the J (-3cm) version allows the window to be recessed approximately 3cm deeper into the roof. The standard installation of roof windows using EL flashing is the ELV version, while the ELJ version is designed for recessed installation. Selecting the correct flashing type helps ensure that the roof window is fitted appropriately for the desired installation depth and roof structure.

Construction and Water Drainage

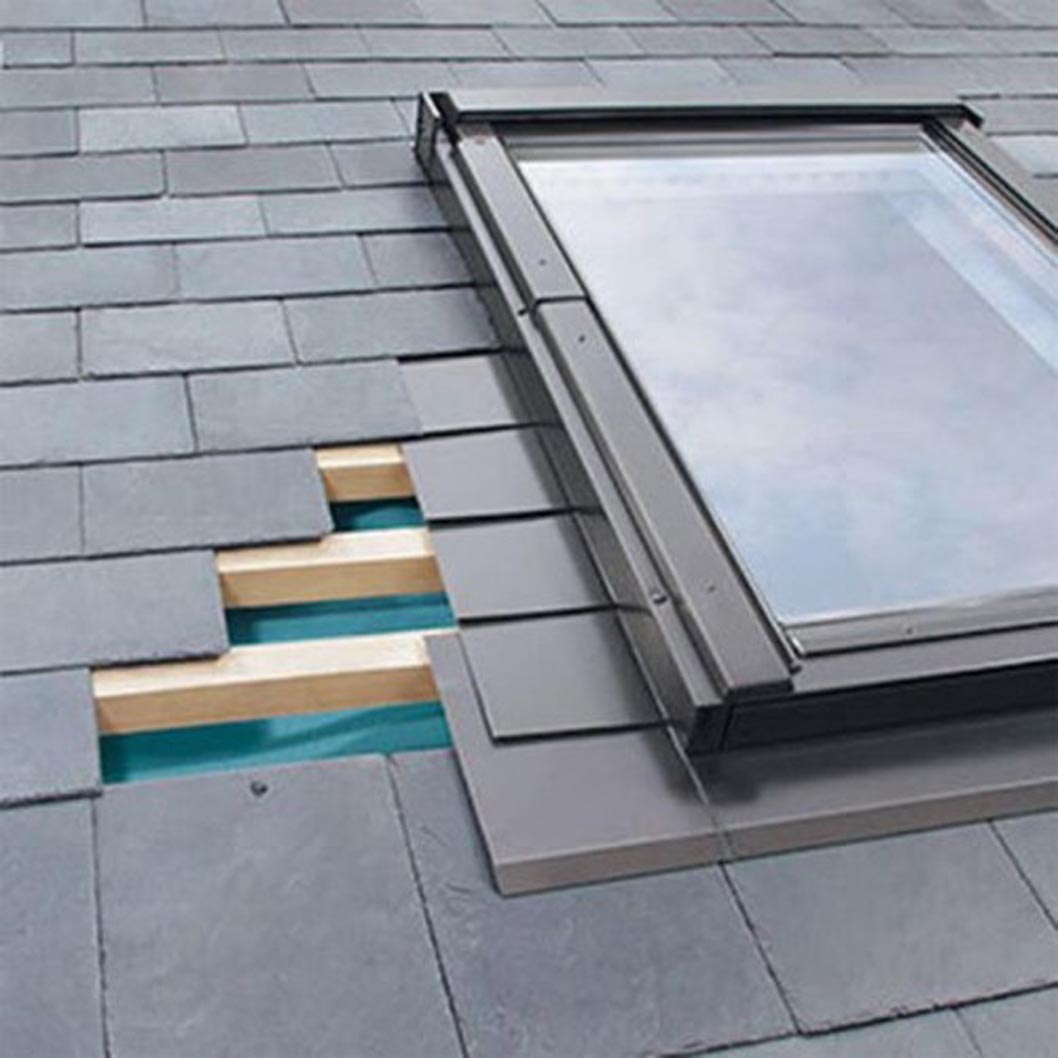

The Fakro ELJ flashing consists of lower, upper and side elements, with the dimensions determined by the height of the compatible roof window. The side elements are installed alternately with the slate roof covering, helping create a neat and integrated finish around the window. The lower flashing element features a plastic mat bonded to its underside, allowing it to adhere to the roof covering for a tidy fit. A gutter installed above the roof window helps direct condensation away from the window, supporting effective water management within the installation. This design helps provide a weather-resistant assembly when correctly fitted in accordance with the manufacturer's installation instructions.

Suitable for Slate Roof Coverings

The Fakro ELJ Slate Flashing is designed for slated roofs with coverings up to 10mm in thickness, including two layers of 5mm slate. It is intended for use with compatible Fakro roof windows and is suitable for individual window installations within the roof slope. Before ordering, check the thickness of your slate covering, the roof window model and the required installation depth to ensure the flashing is appropriate for your project.

Available Sizes

The Fakro ELJ Slate Flashing is available in 13 different sizes, providing options for a range of compatible Fakro roof window dimensions. The complete selection includes: 550x780mm 550x980mm 550x1180mm 660x980mm 660x1180mm 780x980mm 780x1180mm 780x1400mm 940x1180mm 940x1400mm 1140x1180mm 1140x1400mm 1340x980mm Each of these sizes is available within the range. Select the flashing size that corresponds to your compatible Fakro roof window and confirm the installation requirements before purchasing.

Why Choose Fakro Roof Windows?

FAKRO is committed to combining practical functionality, innovative engineering and contemporary design across its roof window range. Its products are developed to support the needs of homeowners and installers, offering solutions for ventilation, natural daylight, energy efficiency and security. Whether you are installing a centre pivot window, top-hung roof window, electric opening system or flat roof skylight, selecting the appropriate flashing is an important part of achieving a suitable and weather-resistant installation. The Fakro ELJ Slate Flashing provides a dedicated recessed option for compatible roof windows installed in slated roof coverings.

Key Features and Benefits

Recessed flashing designed for compatible Fakro roof windows. Suitable for slated roof coverings up to 10mm thick (2 x 5mm). Available in V (0) and J (-3cm) installation depth options within the EL flashing system. Includes lower, upper and side flashing elements. Side elements are installed alternately with the slate roof covering. Lower element features a plastic mat for a neat fit against the roof covering. Gutter above the window helps direct condensation away. Available in 13 sizes to suit different compatible roof window dimensions.

Frequently Asked Questions

1. What is the Fakro ELJ Slate Flashing used for?

The Fakro ELJ Slate Flashing is designed for recessed installation of compatible Fakro roof windows in slated roof coverings up to 10mm thick. It helps create a neat and weather-resistant connection between the roof window and the surrounding slate covering.

2. What is the difference between the V and J installation options?

The V (0) option provides standard installation depth, while the J (-3cm) option allows the roof window to be installed approximately 3cm deeper into the roof construction. The ELJ is the recessed version, so ensure you select the appropriate flashing type for your required installation depth.

3. What sizes are available for the Fakro ELJ Slate Flashing?

The Fakro ELJ Slate Flashing is available in 13 sizes, including 550x780mm, 550x980mm, 550x1180mm, 660x980mm, 660x1180mm, 780x980mm, 780x1180mm, 780x1400mm, 940x1180mm, 940x1400mm, 1140x1180mm, 1140x1400mm and 1340x980mm. Select the size that matches your compatible Fakro roof window dimensions.
