Fakro DSC-C2 P2 1200x1200mm Smoke Ventilation Domed Roof Window Kit
The Fakro DSC-C2 P2 1200x1200mm Smoke Ventilation Domed Roof Window Kit is designed to provide reliable natural smoke and heat extraction while also offering useful everyday ventilation and daylight. As a natural smoke and heat exhaust ventilator (NSHEV), it is suited to commercial and residential buildings where fire safety, thermal performance and a clean appearance are important considerations.
Designed in accordance with EN 12101-2, the system uses powered actuators to create a substantial opening during an emergency, helping smoke and hot air escape from the building. Its durable domed construction and insulated frame also provide protection against everyday weather conditions.
Effective Smoke and Heat Extraction

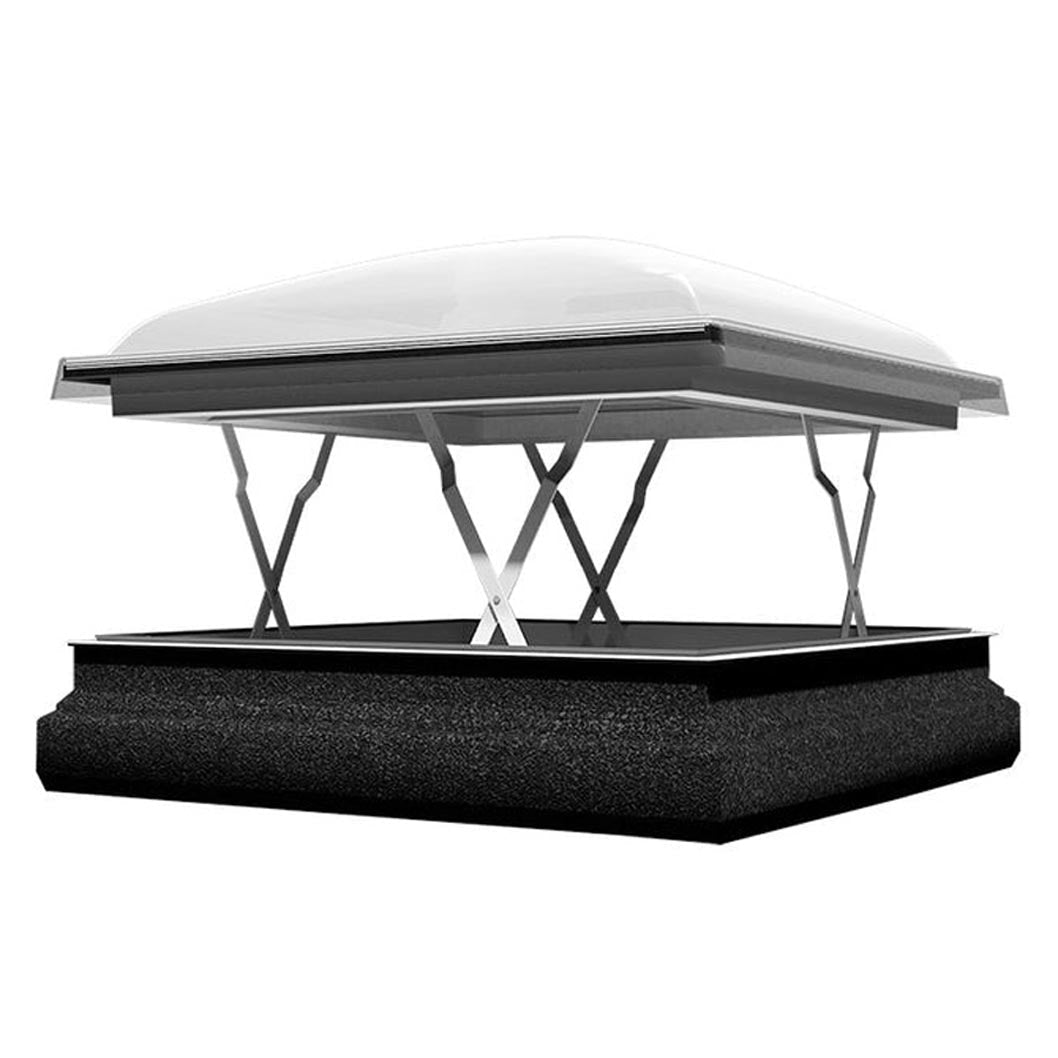

The DSC-C2 P2 features two actuators that lift the sash approximately 50cm parallel to the base. This creates an effective opening to assist with the rapid removal of smoke and heat during an emergency.
The system can be operated automatically through its integrated smoke detection and control components, while manual activation is also available when required.
Durable Polycarbonate Dome
The domed roof window is made with a durable polycarbonate dome, designed to withstand outdoor conditions while providing good impact resistance and protection from UV exposure. Its robust construction makes it suitable for flat and low-pitched roof applications where long-term weather resistance is important.
The dome also provides a practical way to introduce natural daylight into the space when the smoke ventilation system is not being used for emergency extraction.
Thermal and Acoustic Performance
The DSC-C2 P2 incorporates double glazing with a whole-window U-value of 1.0 W/m²K and a glass U-value of 1.1 W/m²K. This helps limit heat transfer through the roof window and contributes to a more comfortable internal environment.
With an acoustic rating of 35dB (-1, -3), the system can also help reduce external noise entering through the roof opening, supporting better everyday acoustic comfort.
Strong Insulated Frame Construction
The window uses a multi-chamber PVC frame mounted on an additional XRD base, giving the complete system a total upstand height of 30cm. This construction provides a sturdy installation base while helping improve insulation and structural stability.
The DSC-C2 is suitable for roof pitches between 0° and 15°, making it suitable for a range of flat and low-pitched roof applications.
Discreet and Modern Appearance
When the window is closed, the lifting mechanisms remain hidden to create a neat and unobtrusive appearance. The interior frame is finished in RAL9010 white PVC, providing a clean look that works well with a variety of interior spaces.
Integrated Fire Safety Components
The Fakro DSC-C2 P2 kit includes the key control and safety components required for smoke and heat exhaust operation.
-
RZN4404K Control Unit: Provides automatic system control and supports emergency operation.
-
RT45 Alarm Push Button / Break Glass: Allows the system to be activated manually when required during an emergency.
-
OSD 23 Smoke Sensor: Detects smoke and enables the system to respond automatically.
Optional accessories can also be added for greater everyday functionality. These include an LP1 switch for daily ventilation and a rain sensor that can automatically close the sash when rainfall is detected. The rain sensor is sold separately.
Available Size
The supplied variant for the Fakro DSC-C2 P2 Smoke Ventilation Domed Roof Window Kit is:
Key Benefits
- Natural smoke and heat exhaust ventilator (NSHEV)
- Designed for EN 12101-2 smoke ventilation applications
- Two actuators lift the sash approximately 50cm parallel to the base
- Durable polycarbonate dome with UV protection
- Double glazing with a whole-window U-value of 1.0 W/m²K
- Acoustic rating of 35dB (-1, -3)
- Multi-chamber PVC frame with additional XRD base
- 30cm total upstand height
- Suitable for roof pitches from 0° to 15°
- Includes control unit, alarm push button/break glass and smoke sensor
- RAL9010 white PVC interior finish
- Available in the 1200 x 1200mm size
Frequently Asked Questions
What is the Fakro DSC-C2 P2 Smoke Ventilation Domed Roof Window used for?
The Fakro DSC-C2 P2 is designed to provide natural smoke and heat extraction during an emergency. Its actuators raise the sash to create an opening that allows smoke and hot air to escape from the building.
What safety components are included with the DSC-C2 P2 kit?
The kit includes an RZN4404K control unit, an RT45 alarm push button/break glass and an OSD 23 smoke sensor. These components provide automatic detection and system control as well as manual emergency activation.
What size is the Fakro DSC-C2 P2 available in?
The supplied Fakro DSC-C2 P2 Smoke Ventilation Domed Roof Window Kit is available in 1200 x 1200mm.
