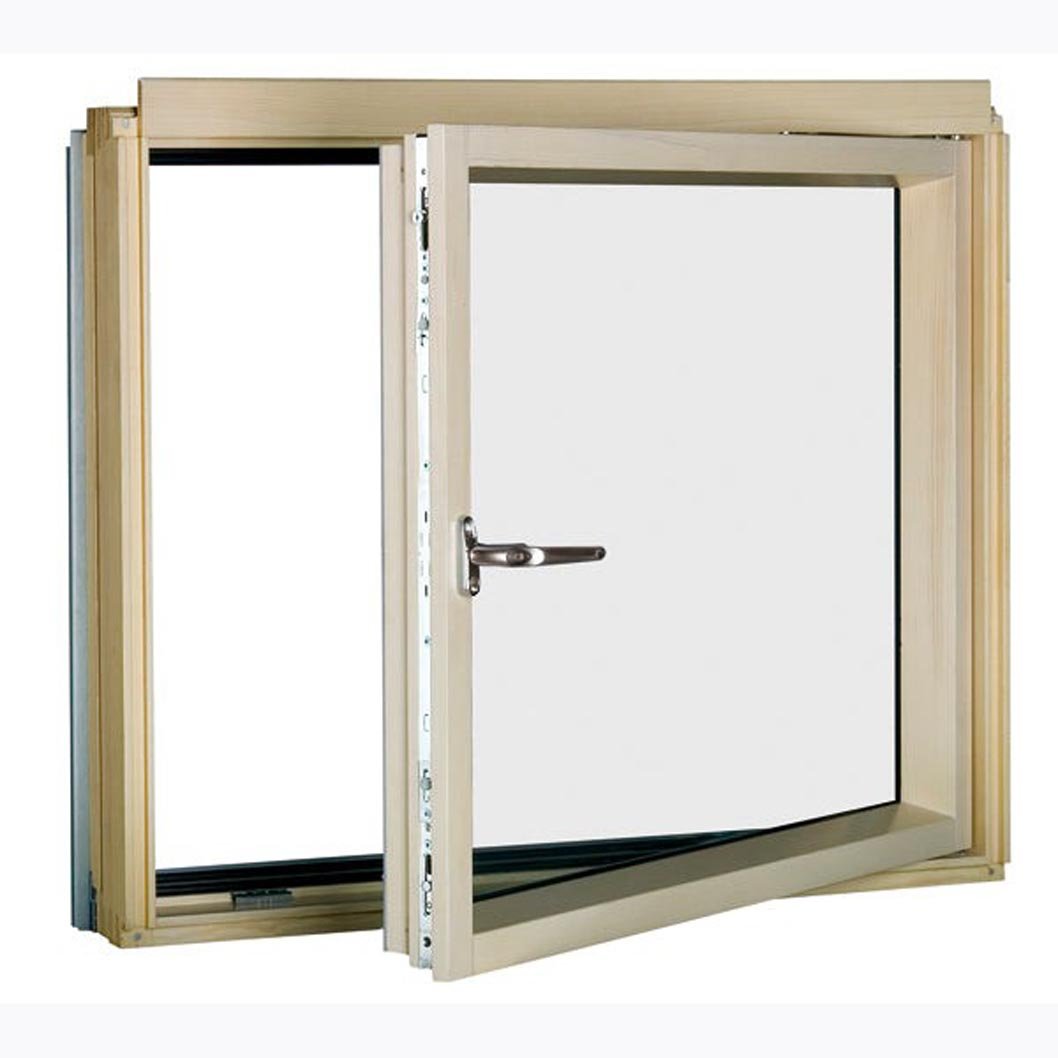

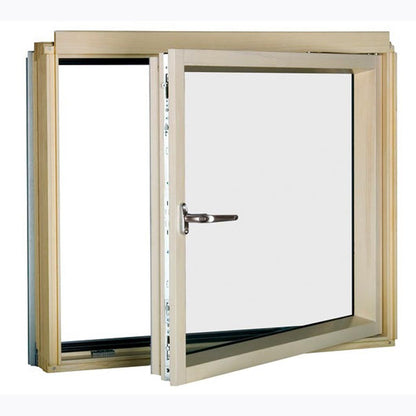

Fakro BDR P5 Natural Pine Right Opening L-Shaped Combination Windows
Bring more natural light, improved views and a greater sense of space into your home with the Fakro BDR P5 Natural Pine Right Opening L-Shaped Combination Windows. Designed to extend daylight from the roofline down to the wall, these windows help create bright and welcoming interiors while adding an attractive architectural feature. They are ideal for combining with roof windows above, allowing natural light to reach deeper into your living space.
The BDR model features a right-hand hinge and left-hand handle when viewed from inside, providing convenient operation and easy access. Its natural pine frame offers a warm, traditional appearance that complements a variety of interior styles while providing a durable and reliable construction.
Durable Construction and Security
Manufactured using FSC-certified timber, the Fakro BDR P5 windows are made with responsibly sourced wood, supporting sustainability and environmental responsibility. The natural pine finish adds warmth and character while providing a timeless look.
These windows are BBA approved under certification 02/3944 and feature the topSafe security and safety system. Reinforced hinges, secure locking keeps and a steel slat on the lower sash provide enhanced protection, achieving at least Class III safety performance under EN13049 standards.
Glazing and Acoustic Performance
The Fakro BDR P5 L-shaped combination windows offer flexibility in glazing selection, allowing you to choose an option suited to your thermal insulation and energy-efficiency requirements. Acoustic performance of up to 38 dB (-2, -5) helps reduce external noise and contributes to a quieter and more comfortable indoor environment.
Designed for installation in knee walls with an angle between 15° and 55°, these windows can be seamlessly combined with roof windows above. This creates a cohesive glazed design that enhances daylight, views and the overall atmosphere of the room.
Available Sizes
The Fakro BDR P5 Natural Pine Right Opening L-Shaped Combination Windows are available in the following eight sizes:
- 780 x 600mm
- 780 x 750mm
- 780 x 950mm
- 780 x 1150mm
- 780 x 1370mm
- 940 x 750mm
- 940 x 950mm
- 1140 x 950mm
These size options provide flexibility for different knee-wall configurations, roof layouts and daylight requirements.
Key Features
- Right-opening configuration with a right-hand hinge and left-hand handle when viewed from inside.
- L-shaped combination design for extending daylight from the roofline to the wall.
- Natural pine finish for a warm and traditional appearance.
- Designed to complement roof windows installed above.
- FSC-certified timber sourced with sustainability in mind.
- BBA approved under certification 02/3944.
- topSafe security and safety system with reinforced hinges and secure locking components.
- At least Class III safety performance under EN13049 standards.
- Acoustic performance of up to 38 dB (-2, -5).
- Suitable for knee-wall installation angles between 15° and 55°.
- 10-year warranty on the window.
- 20-year warranty on the glazing unit.
- Lifetime warranty against hail damage.
Important Installation Information
Please note that Fakro roof windows are not supplied with flashing kits unless explicitly stated. The appropriate flashing kit must be selected according to your roof pitch and roofing material. If you are unsure which flashing kit is required, please contact us for assistance.
Frequently Asked Questions
What is the opening direction of the Fakro BDR window?
The BDR version features a right-hand hinge and left-hand handle when viewed from inside. This provides convenient operation and distinguishes it from the BDL left-opening version.
What roof pitch is suitable for these L-shaped combination windows?
The windows are designed for installation in knee walls with an angle between 15° and 55°. They can be combined with roof windows above to extend daylight into the room.
Are flashing kits included with the window?
No, flashing kits are not supplied unless explicitly stated. The correct flashing kit must be selected according to your roof pitch and roofing material.
