The

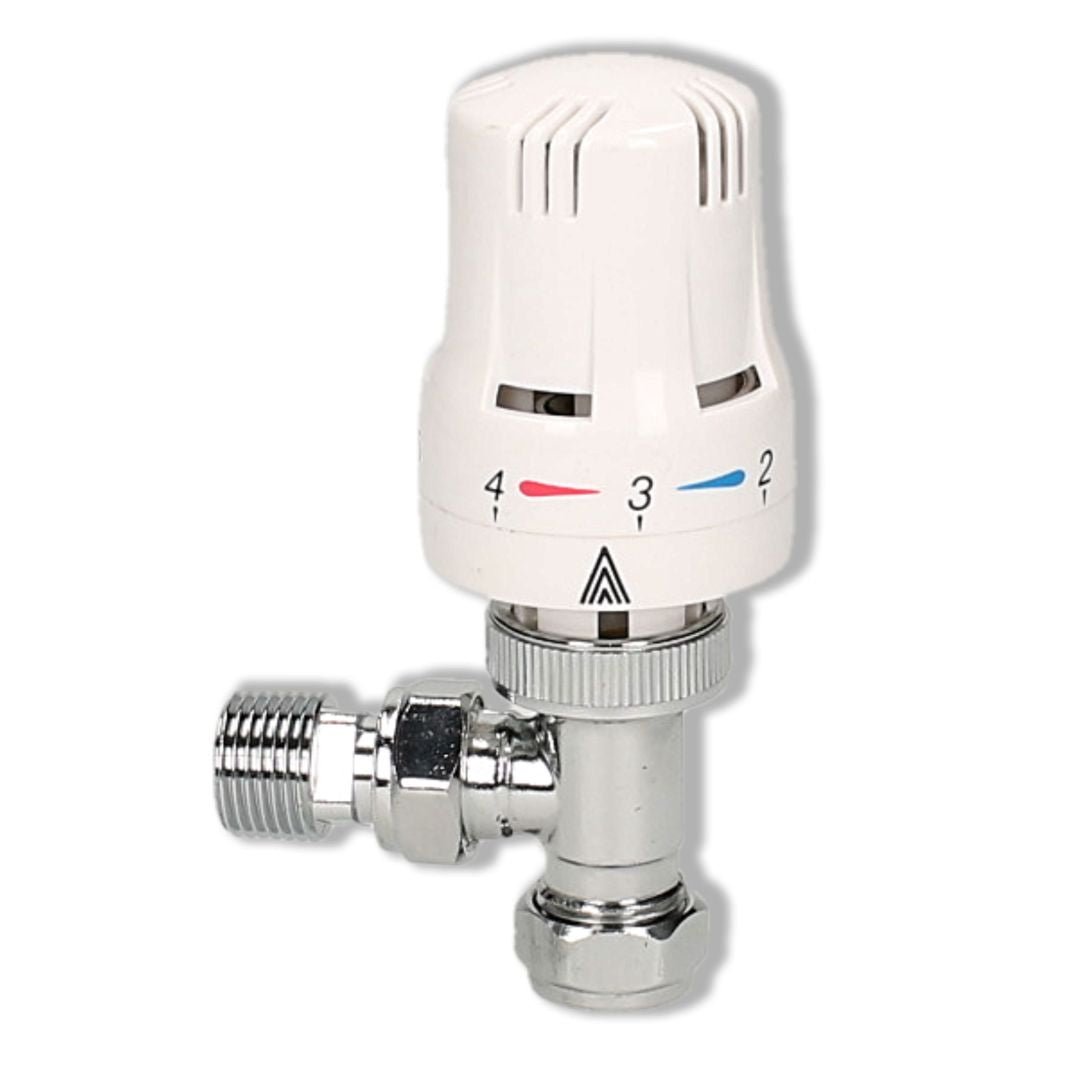

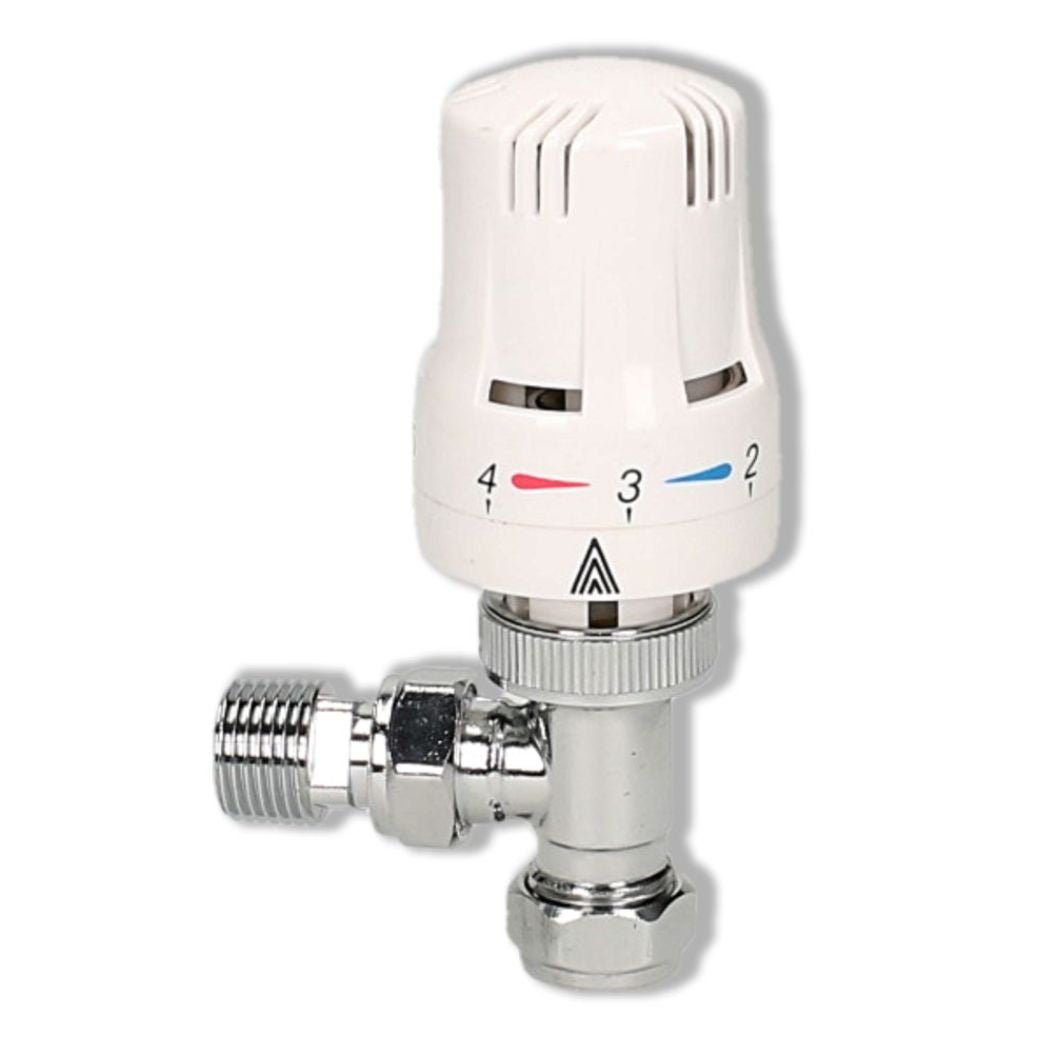

Evolve Contract 15mm Angled Chrome/White Thermostatic Radiator Valve (TRV) is a reliable and cost-effective solution for maintaining room temperature and improving heating efficiency in domestic and commercial central heating systems. As part of the Evolve Contract range, this valve is designed with everyday practicality in mind, combining functional simplicity with dependable performance.

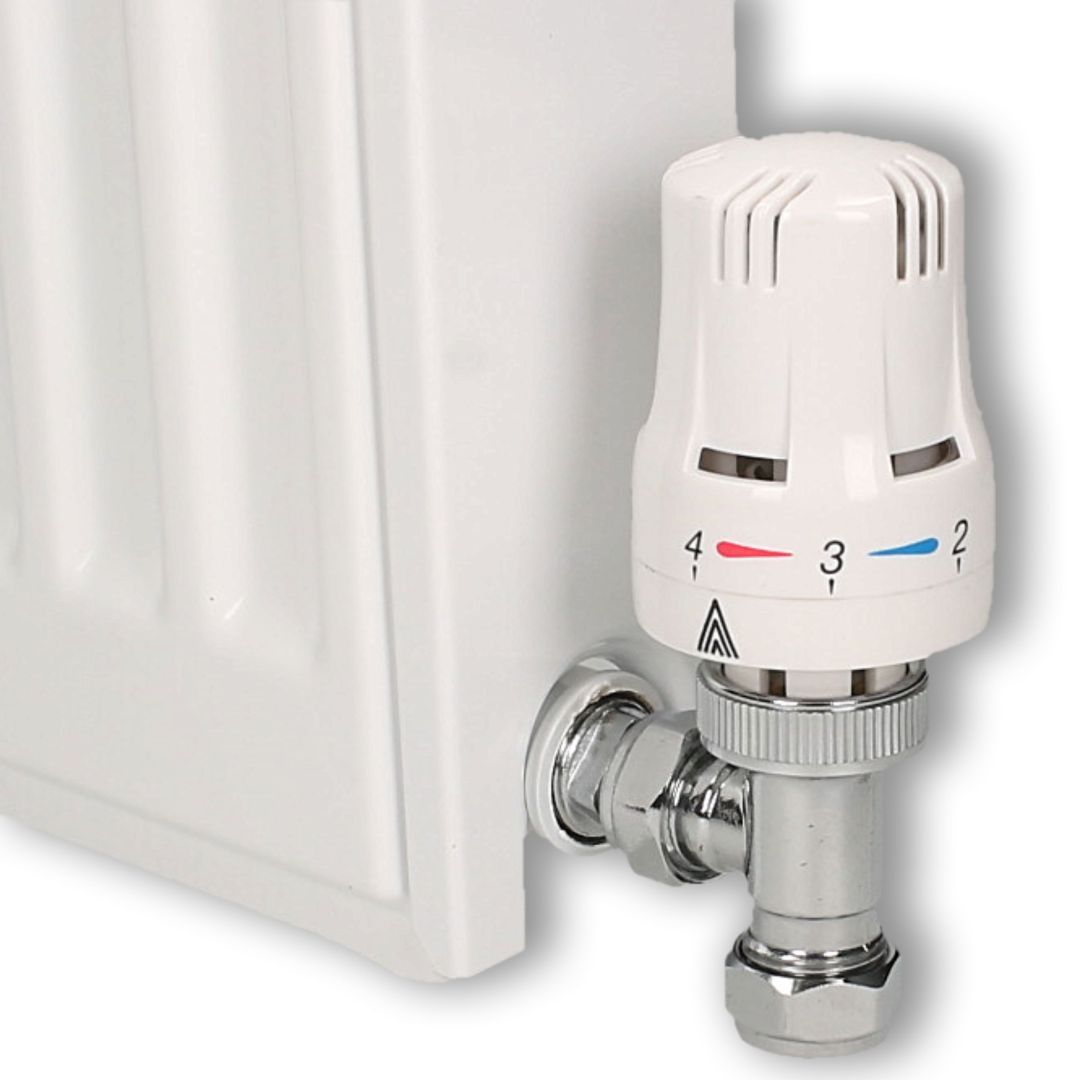

Installed on radiators, this angled TRV automatically regulates the flow of hot water into the radiator based on the temperature setting selected by the user. As the room warms up to the set level, the valve restricts water flow, helping to prevent overheating and saving energy in the process. This ensures a consistently comfortable environment and contributes to lower energy bills.
Its sleek chrome and white finish adds a modern look to any radiator setup, while its compact, angled design makes it ideal for installations in tight or corner spaces.
Technical Specifications
Connection Size: 15mm
Orientation: Angled
Finish: Chrome/White
Temperature Range: Adjustable from 0°C to 28°C
Frost Protection Setting: Activates at approximately 7°C to prevent freezing
Maximum Working Pressure: 10 bar
Maximum Differential Pressure: 1 bar
Maximum Water Temperature: 100°C
Maximum Ambient Temperature: 50°C
?? Please Note: This TRV is suitable for use as a reverse flow valve only when the system differential pressure does not exceed 0.25 bar.
Why Choose This TRV?
Energy Saving: Prevents unnecessary heating, helping to reduce energy consumption.
Comfort Control: Maintains a consistent ambient room temperature.
Frost Protection: The built-in frost setting ensures that radiators activate in cold weather to protect pipes from freezing.
Stylish and Practical: Chrome/white finish suits a wide range of interiors.
Frequently Asked Questions
Can I use this TRV in a vertical installation?
This specific model is angled and best suited for horizontal side-entry installations into radiators. For vertical or straight installations, a straight TRV model is recommended.
Does this TRV work with all radiator types?
Yes, it is compatible with most standard radiators that use a 15mm pipe connection. However, always ensure that the radiator and system are within the valve's operating pressure and temperature limits.
What does the frost setting do?
The frost setting, usually indicated by a snowflake symbol, activates the radiator at around 7°C. This helps prevent pipes from freezing during colder months, offering peace of mind especially in unoccupied or less-used rooms.
