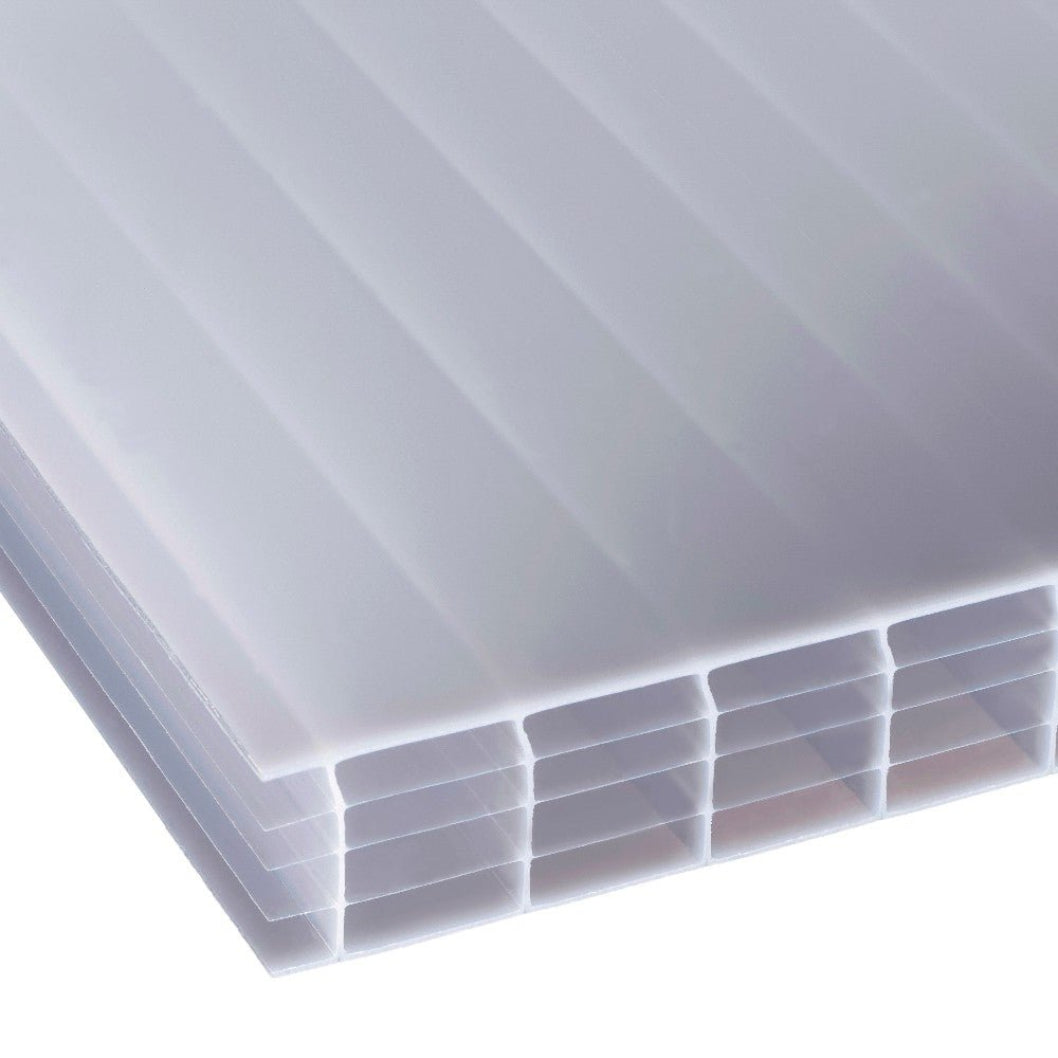

The Corotherm Opal 25mm 7Xwall Polycarbonate Sheet is a premium-quality glazing and roofing solution, perfect for projects that require excellent insulation, light diffusion, and lasting durability. Designed with a 7-wall internal structure, this lightweight sheet delivers a low U-value of 1.4W/m²K, helping to regulate internal temperatures and improve energy efficiency.
Its subtle opal tint offers soft, diffused natural light, making it ideal for conservatories, lean-tos, carports, or any space where glare reduction and comfort are important. Easy to cut, handle, and install, this sheet combines practicality with performance.
The product is available in multiple finishes—including clear, bronze, opal, bronze opal, and heatguard opal—and can be ordered in full sheets or cut to your required size. For extra confidence, it comes with a 10-year manufacturer’s warranty.
Key Features
Available in clear, bronze, opal, bronze opal, and heatguard opal
Lightweight and impact-resistant
UV-protected for long-term performance and clarity
High thermal insulation (U-value: 1.4W/m²K)
Helps reduce condensation
Self-cleaning surface for minimal maintenance
Backed by a 10-year manufacturer’s warranty
Ideal For
The Corotherm 25mm Opal sheet is suitable for a wide range of domestic and commercial projects, including:
Porches
Canopies

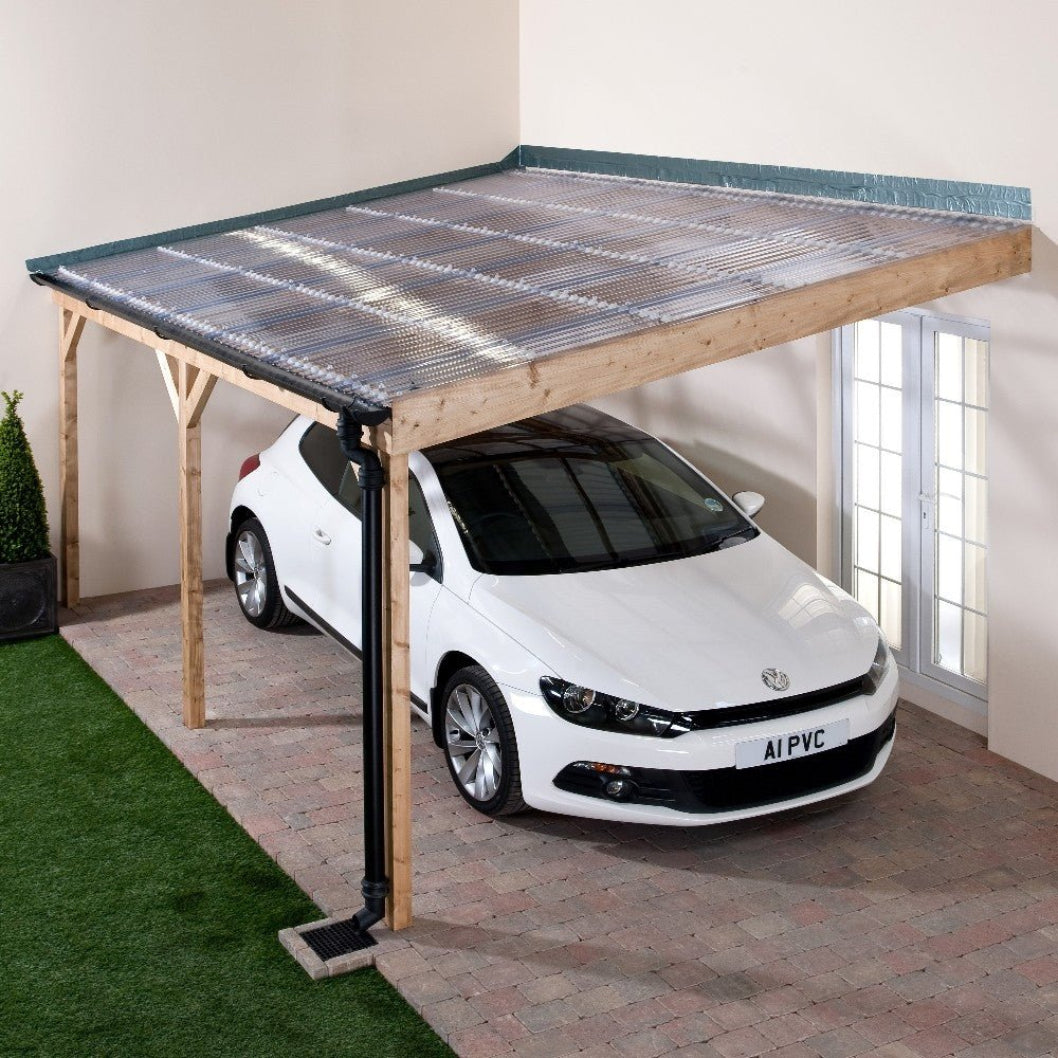

Carports

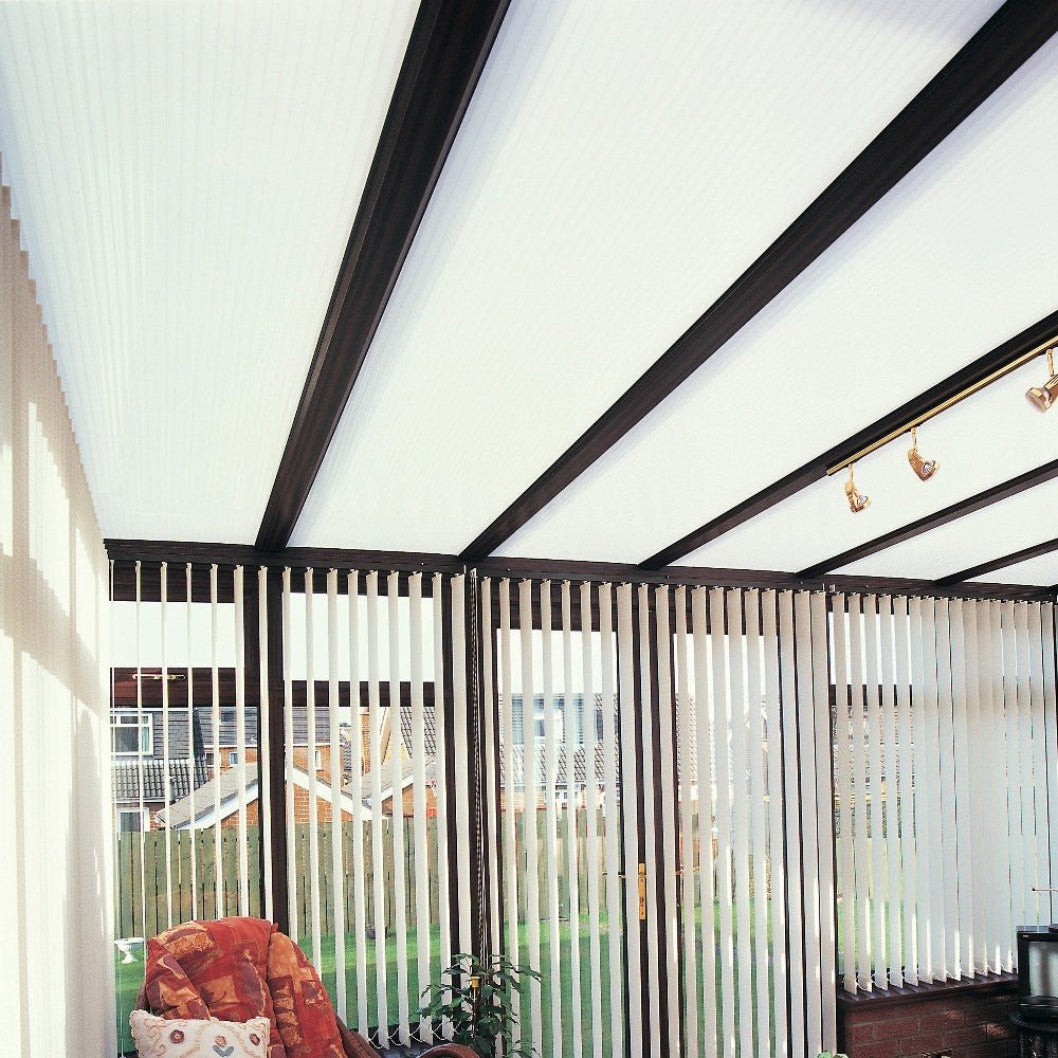

Conservatories
Lean-to roofs
Vertical glazing and cladding installations
Its ability to soften incoming light makes it a great choice for areas that need a balance between natural brightness and heat control.
Installation Guidelines
For best results, always install the sheet with the UV-protected side facing outwards—this side is clearly marked. This not only protects the material from sun damage but also helps extend its lifespan.
Your roof must have a minimum pitch of 10° to allow water to run off effectively. The flutes within the sheet must run vertically, from the top of the slope to the bottom. Never lay the flutes sideways, and avoid attempting to join sheets vertically.
To ensure a watertight seal and long-lasting performance, use only low modulus neutral cure sealant and cross-linked butyl flashing tape during installation.
Cutting and Shaping
Cutting the Corotherm 25mm 7Xwall sheet is straightforward. For cuts along the flutes, use a sharp utility knife. For cross cuts, a fine-toothed saw is ideal, and if you need to cut curves, a fine-toothed jigsaw provides the most control and clean results.
Always ensure the sheet is properly supported during cutting to prevent any movement.
Thermal Expansion
As with all polycarbonate products, it’s important to allow for thermal expansion and contraction. Leave a small gap at the top of the sheet during installation, and drill fixing holes with at least 3mm of clearance around the fastener to enable natural movement.
Avoid overtightening or clamping the sheet too tightly, as this could restrict movement and lead to stress fractures over time.
Cleaning and Maintenance
Caring for your Corotherm sheet is quick and easy. Clean the surface using lukewarm water and a mild soap solution, applied with a soft cloth or sponge. Avoid any abrasive cleaners, hard brushes, or high-alkaline products, as these could damage the protective UV layer or cause surface scratching.
Thanks to its smooth, UV-protected surface, the sheet is largely self-cleaning, meaning you’ll spend less time on upkeep.
10-Year Warranty
This product is covered by a 10-year warranty against defects caused by manufacturing issues under normal weather conditions. If a fault occurs during this time, the sheet can be replaced free of charge.
To maintain your warranty, the sheet must be installed and maintained according to the manufacturer’s instructions. The warranty does not cover reinstallation costs or damage caused by incorrect installation or neglect.
Frequently Asked Questions
1. How does the opal finish affect light and heat?
The opal finish allows natural light to filter through while **reducing glare and harsh brightness**. It also provides some insulation from solar heat, making it more comfortable in enclosed areas like conservatories or lean-tos.
2. Can I use this sheet on a completely flat roof?
No, a **flat installation is not recommended**. The roof must be pitched at **a minimum of 10°** to allow proper rainwater runoff. Installing it flat can lead to pooling water, reduced performance, and a shorter lifespan.
3. Is this sheet easy to work with for home installations?
Yes, it’s very **DIY-friendly**. The sheet is lightweight and easy to cut using basic tools like a utility knife or saw. As long as you follow the installation guidelines—especially regarding slope and expansion—it’s suitable for home and professional projects alike.
