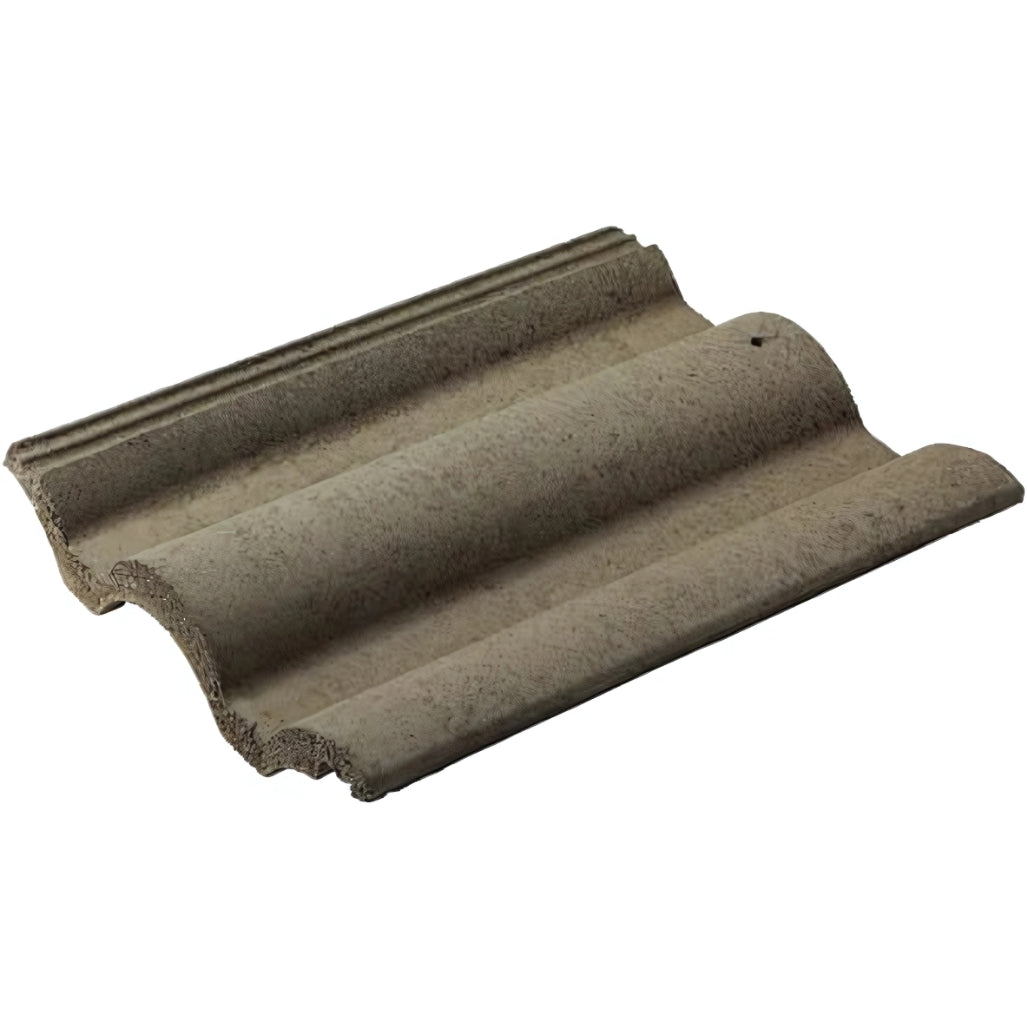

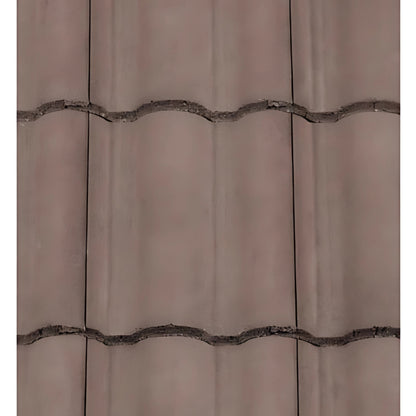

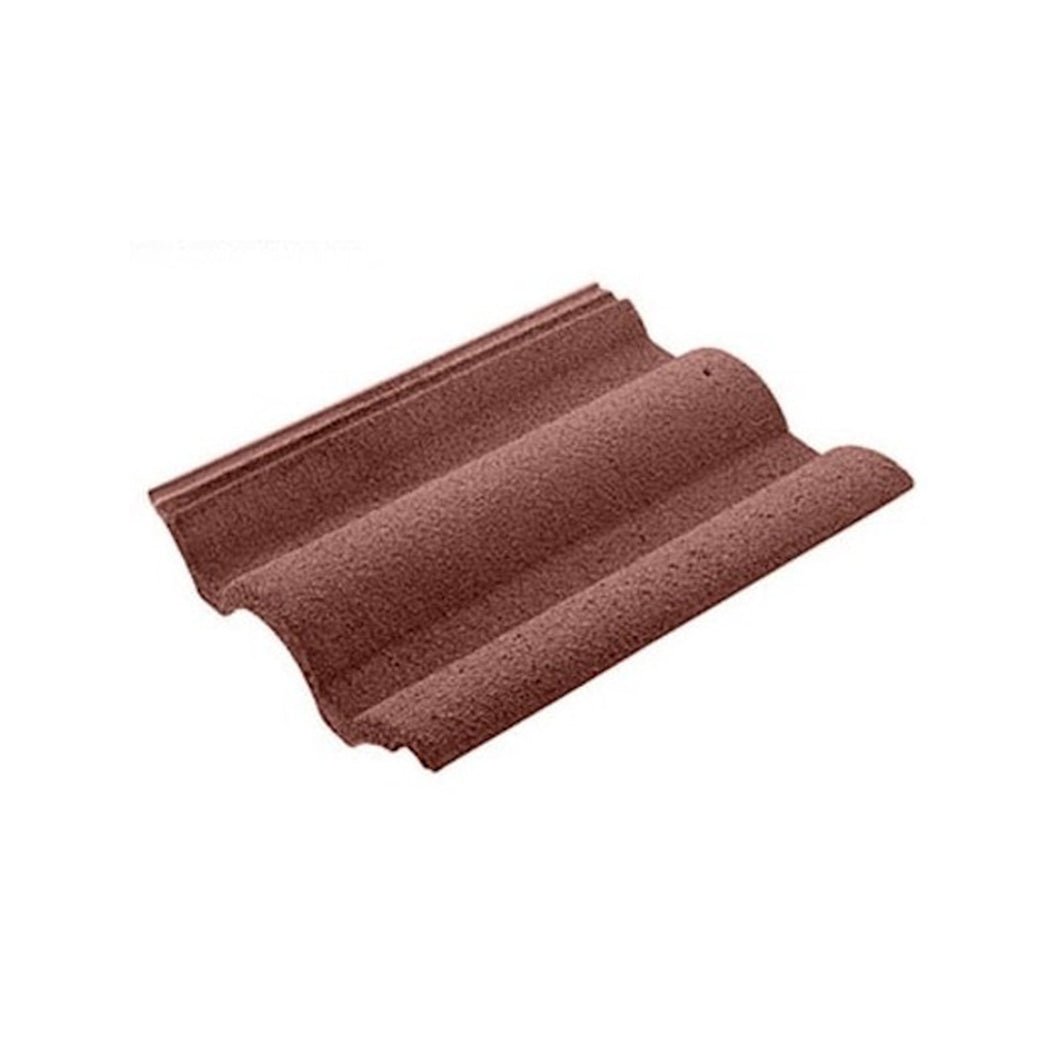

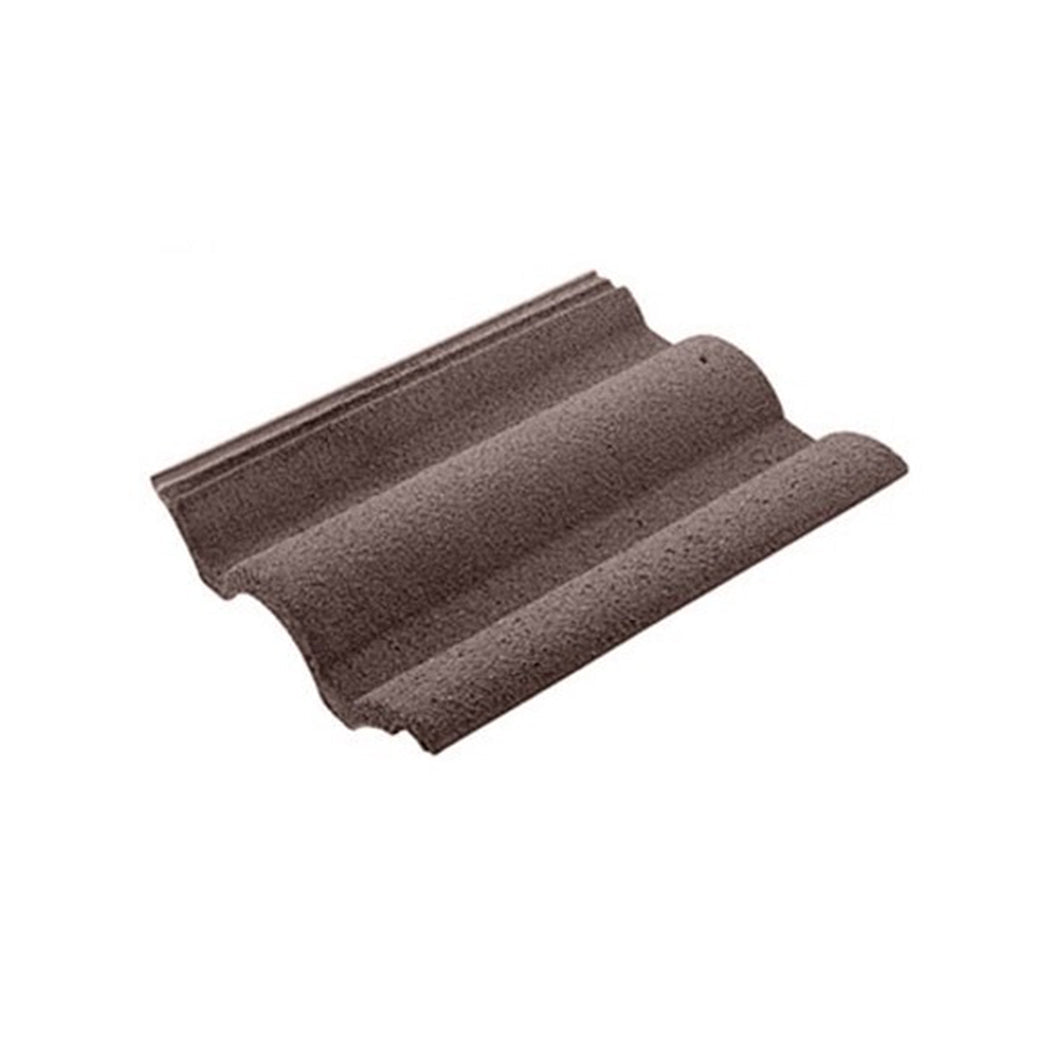

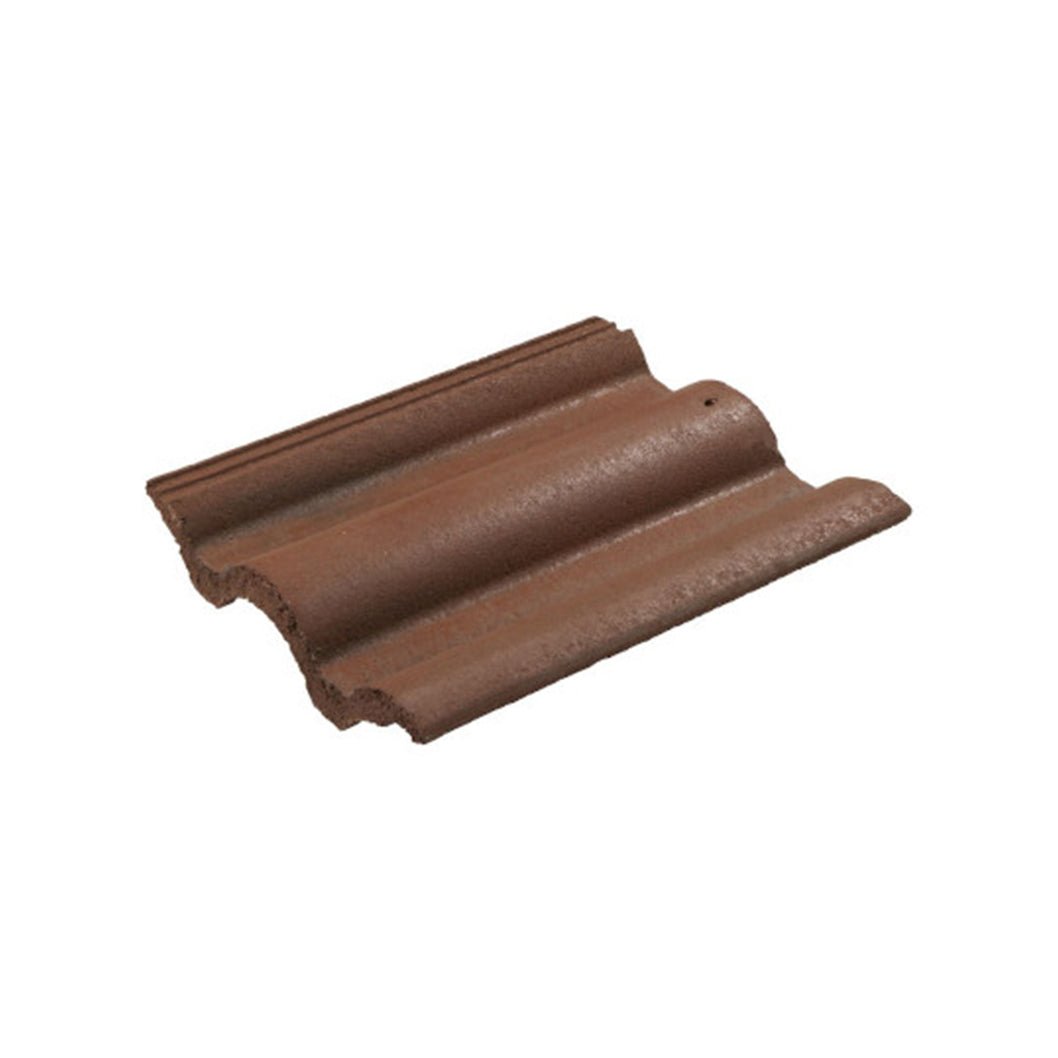

The BMI Redland Regent Roof Tile is a traditional concrete tile featuring a high, bold roll profile, creating a distinctive wavy effect that enhances the appearance of any roof. Its striking design, combined with varied colour options and surface treatments, allows it to seamlessly blend with both classic and contemporary architecture.
One of the standout features of the Redland Regent tile is its ability to be laid at pitches as low as 12.5 degrees for smooth finishes and 22.5 degrees for granulated finishes. This makes it an ideal choice for extensions and lean-to roofs, particularly where rafters must fit below existing window sills.
However, due to its high roll profile, there is a possibility of bird and insect infestation in the eave section. To prevent this, it is recommended to use an eaves comb filler, which acts as a protective barrier against unwanted pests, ensuring the longevity and functionality of the roof.
Key Features and Benefits
-
Generous Tile Dimensions – Each tile measures 418mm x 332mm, providing substantial coverage.
-
Efficient Coverage – Requires 10.5 tiles/m² at 318mm gauge or 9.7 tiles/m² at 343mm gauge, optimising material usage.
-
Versatile Pitch Range – Can be laid at a minimum pitch of 12.5° (smooth finish) and 22.5° (granulated finish), making it a suitable option for low-slope roofing applications.
-
Industry-Compliant – Thoroughly tested for performance and durability, meeting the BS 5534 British Standard for Slating and Tiling.
-

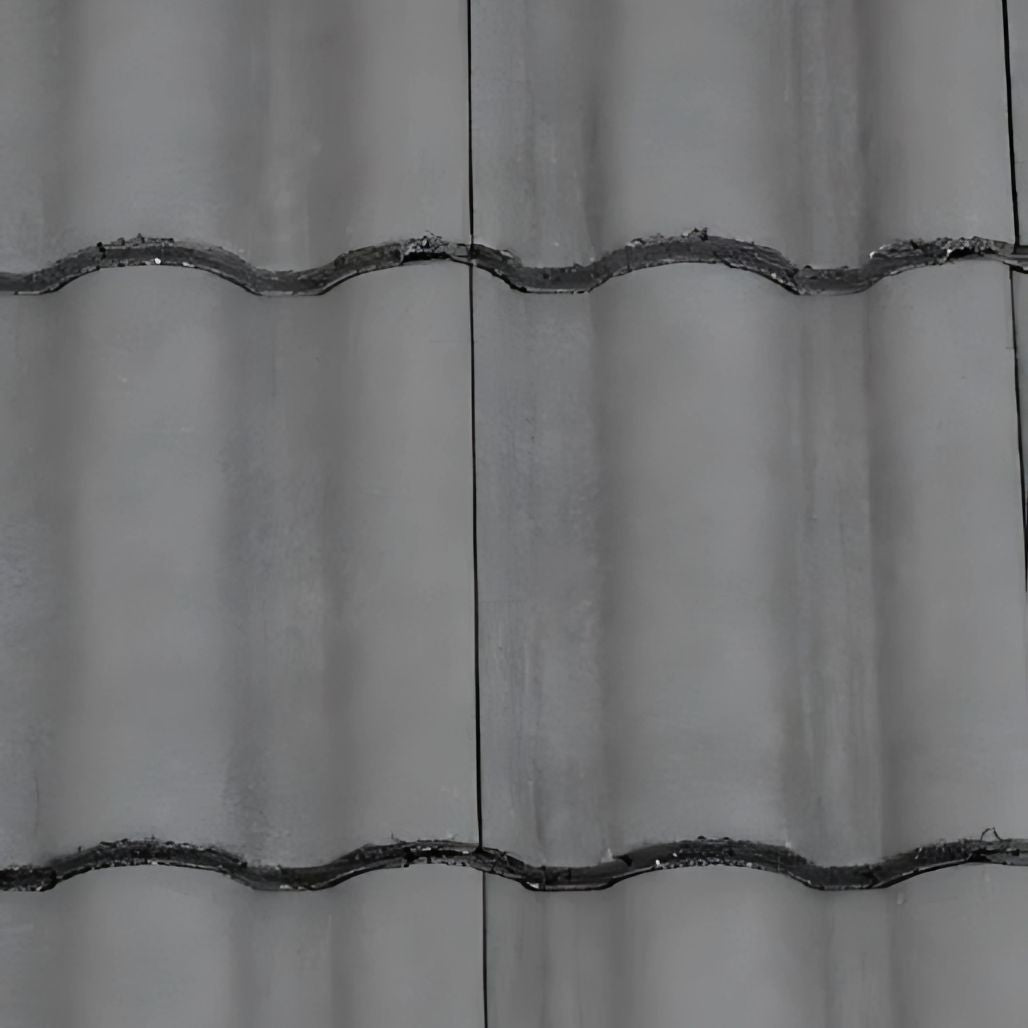

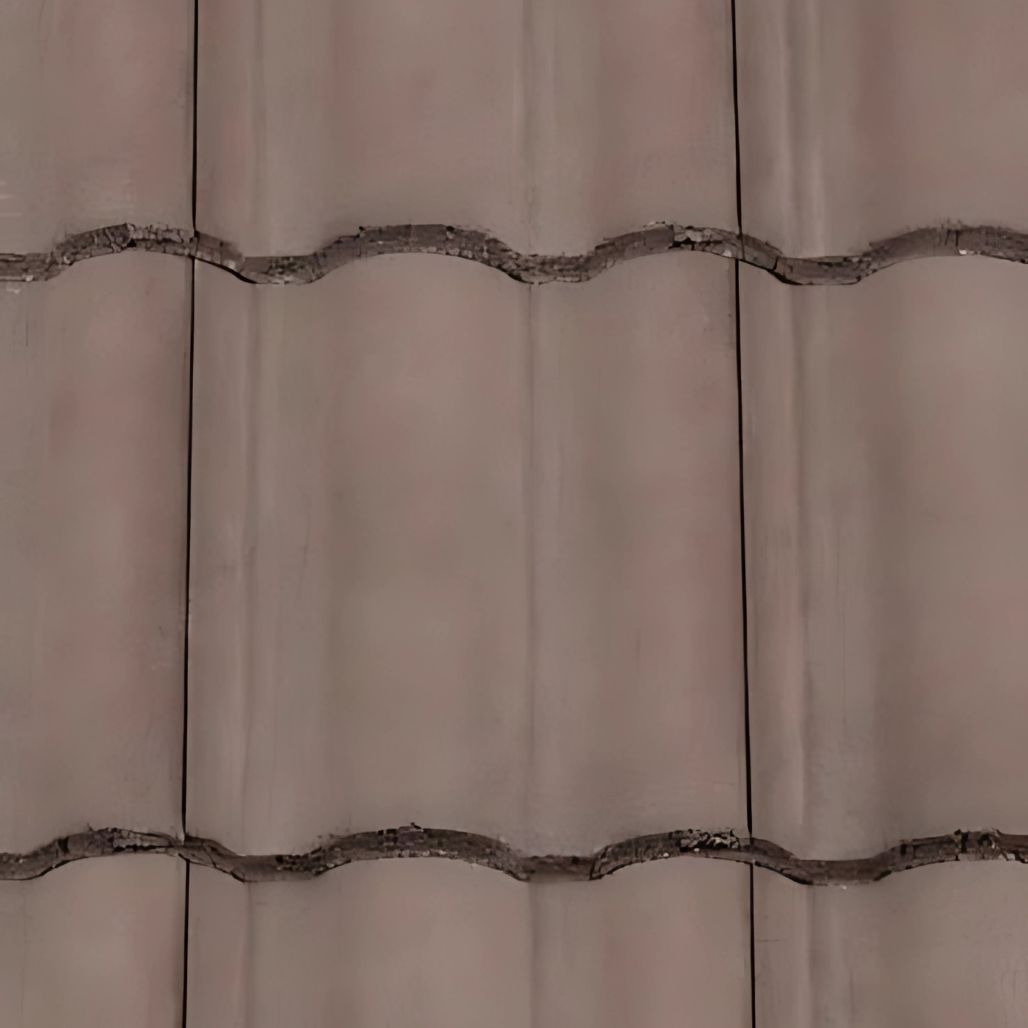

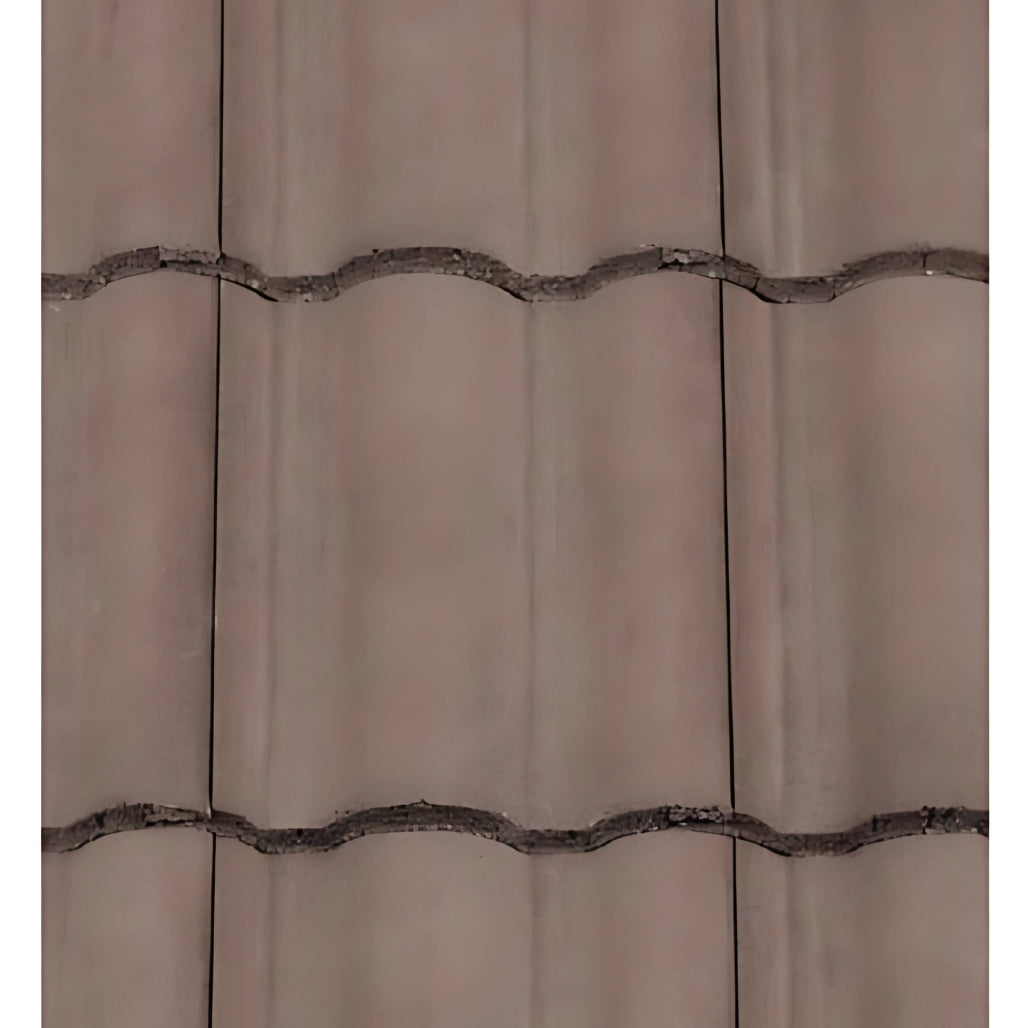

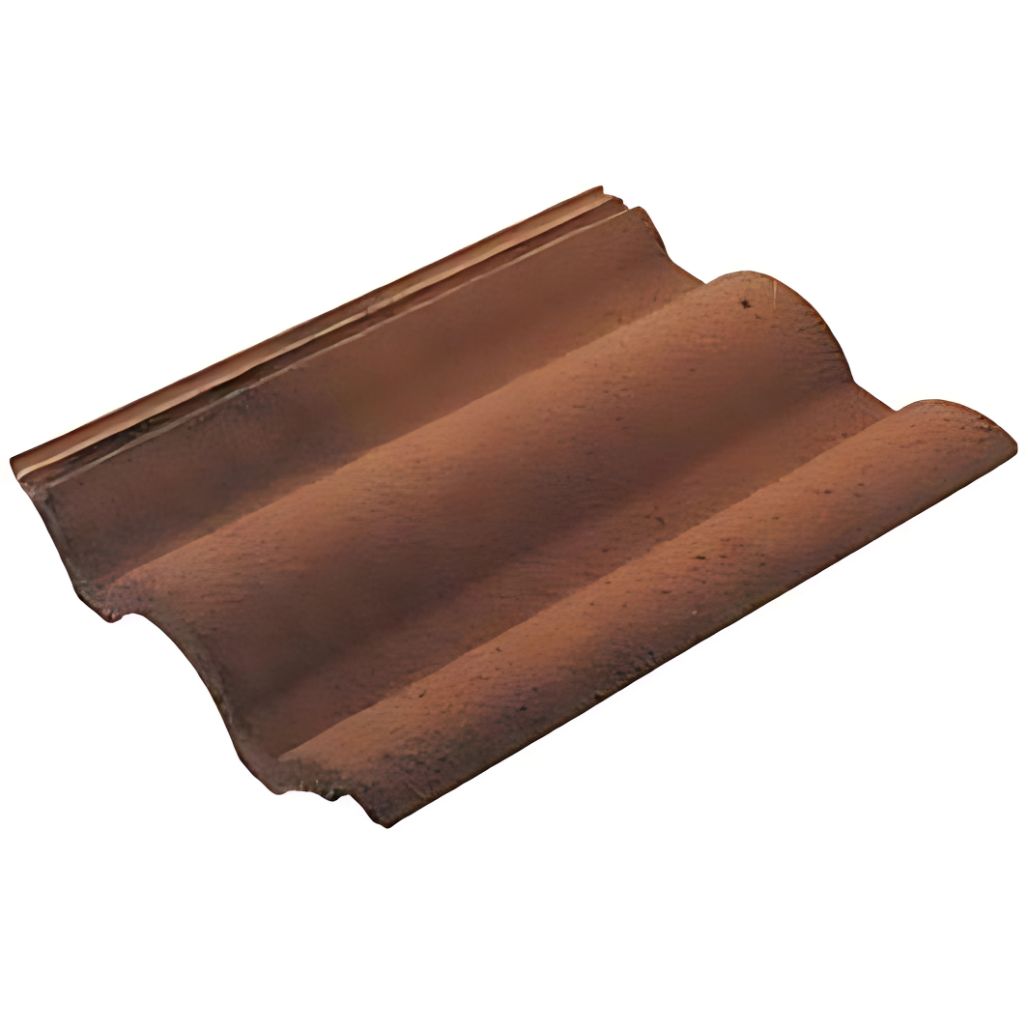

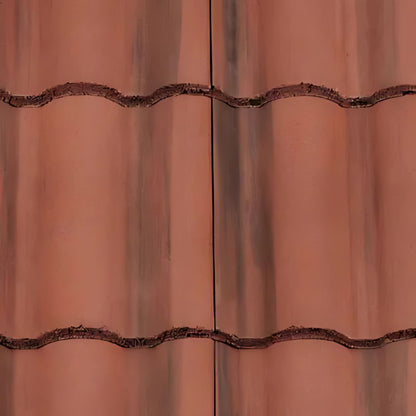

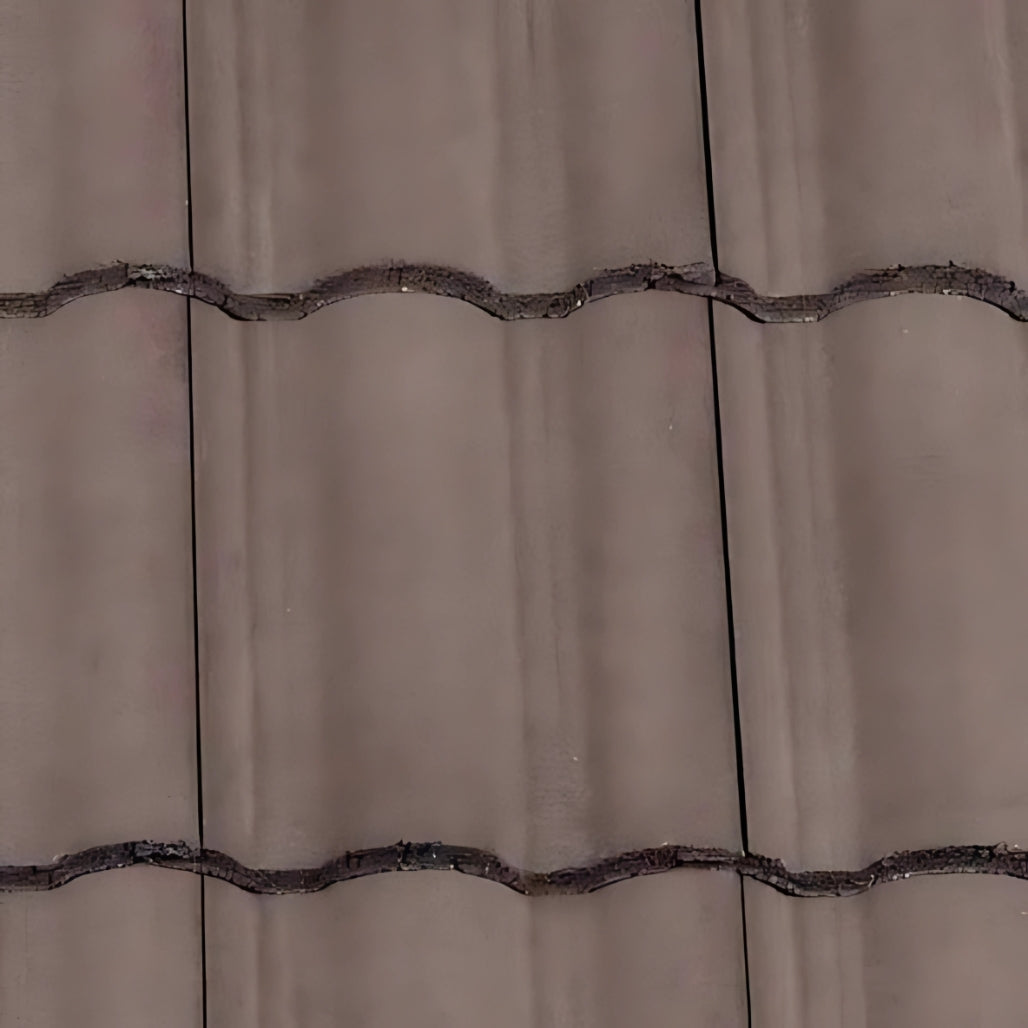

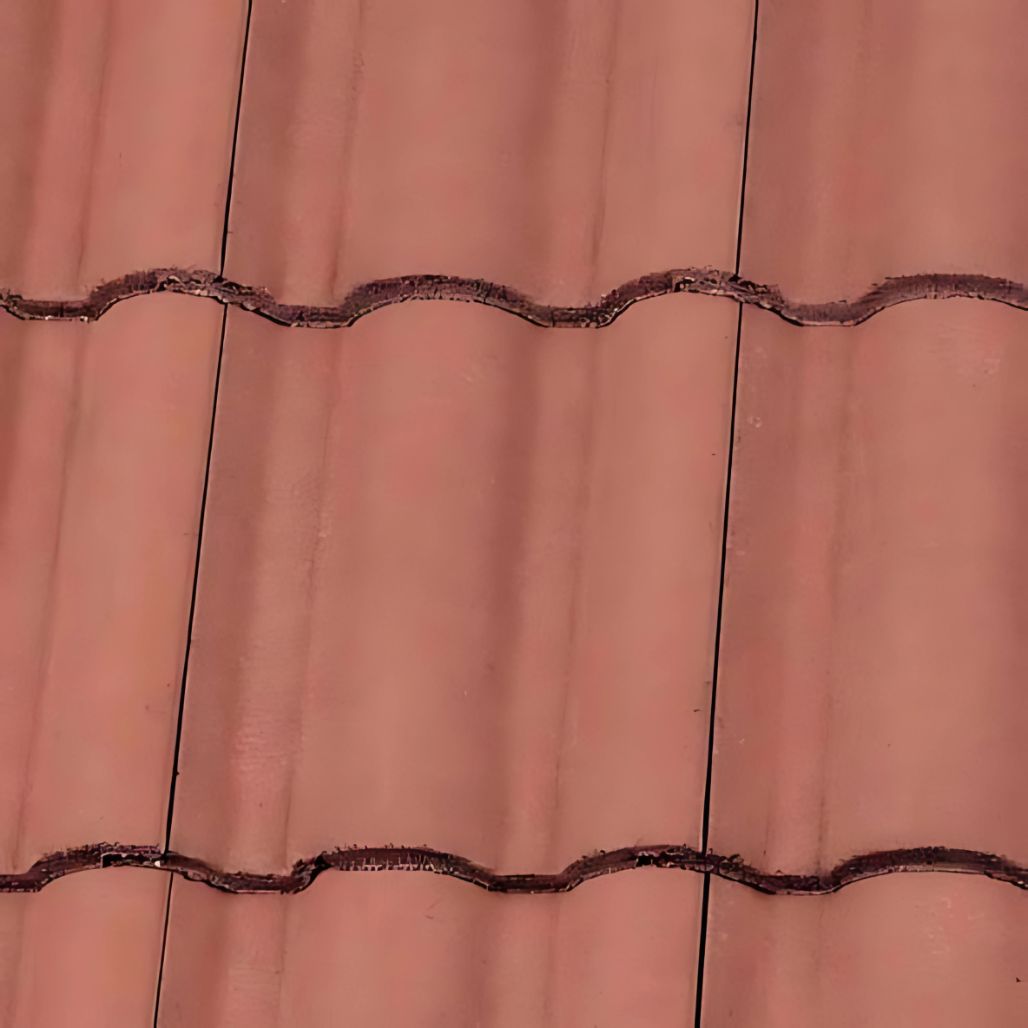

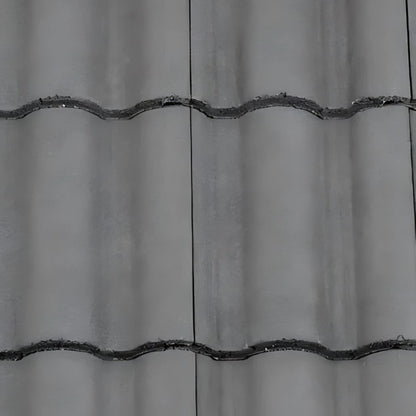

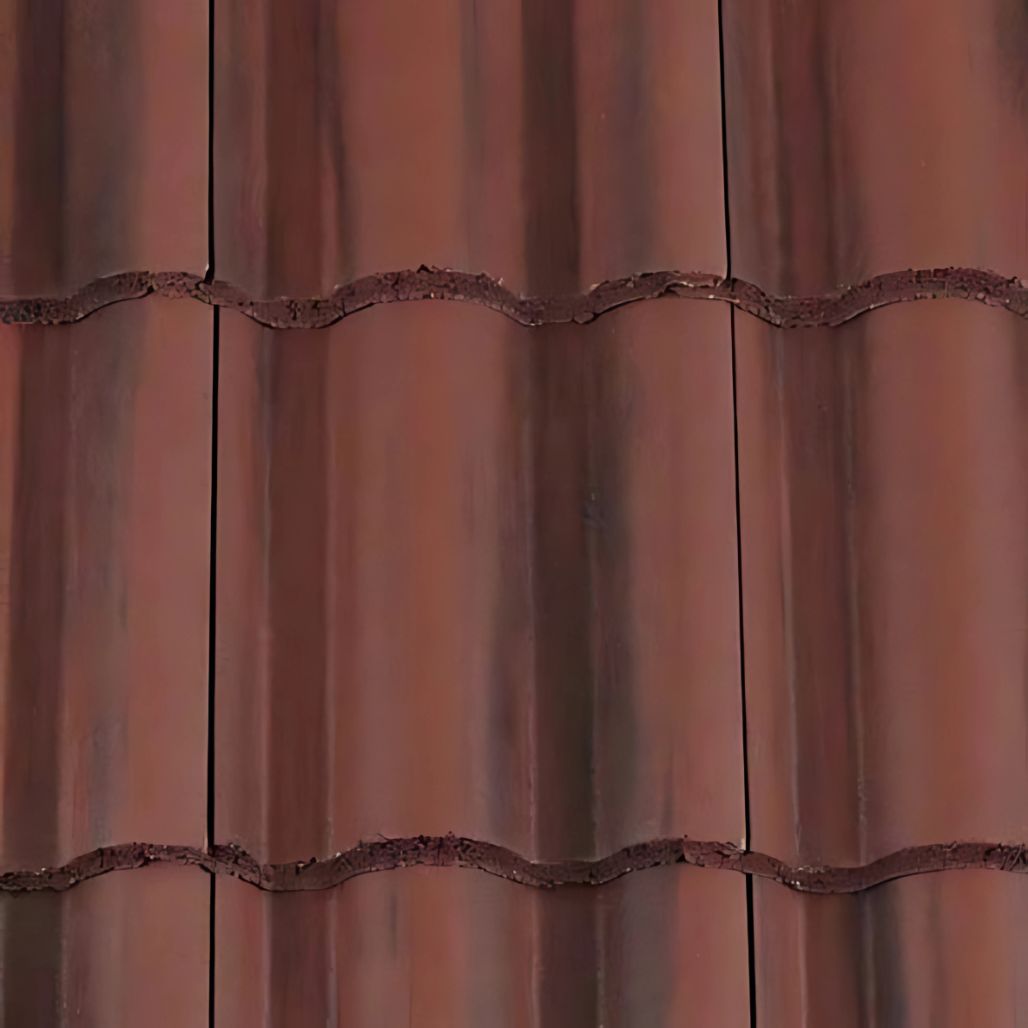

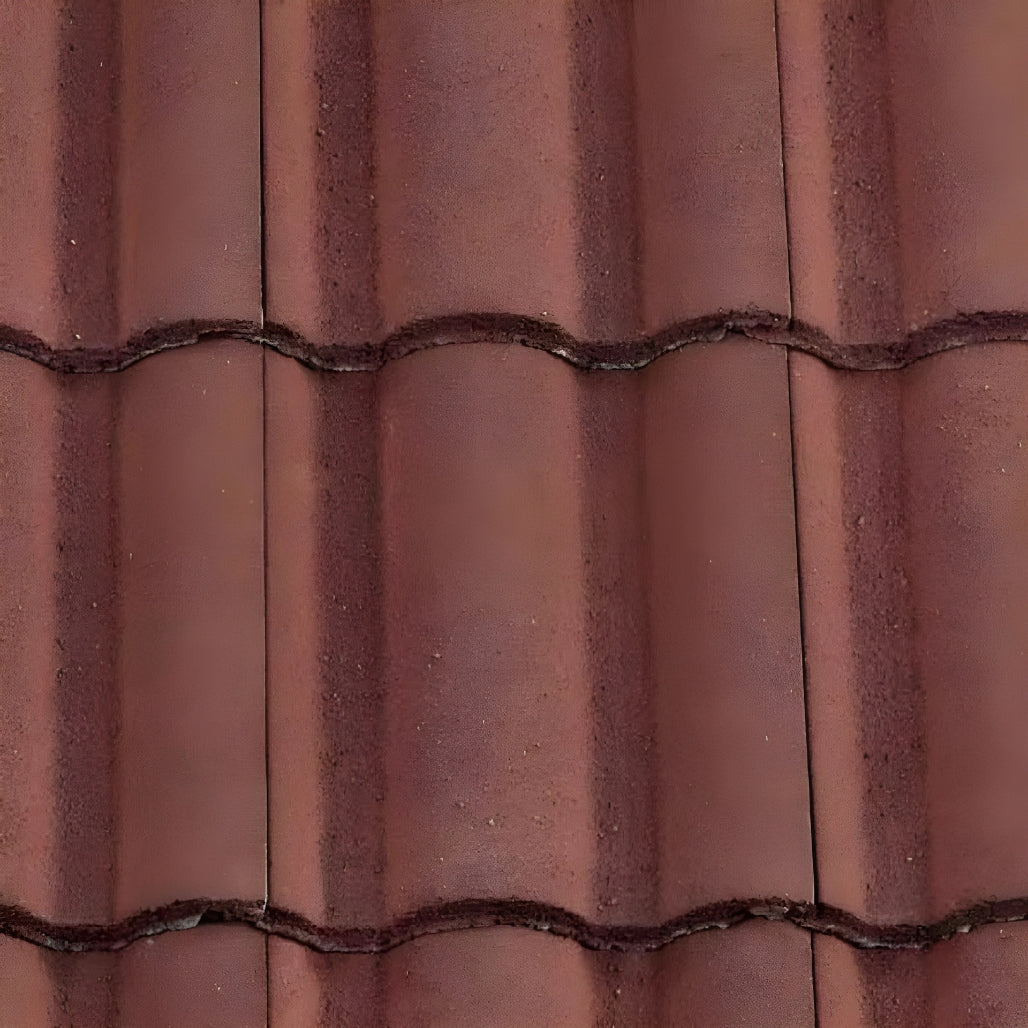

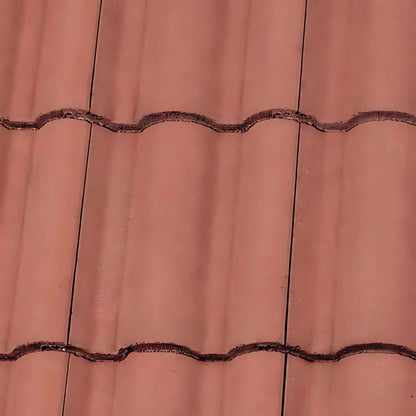

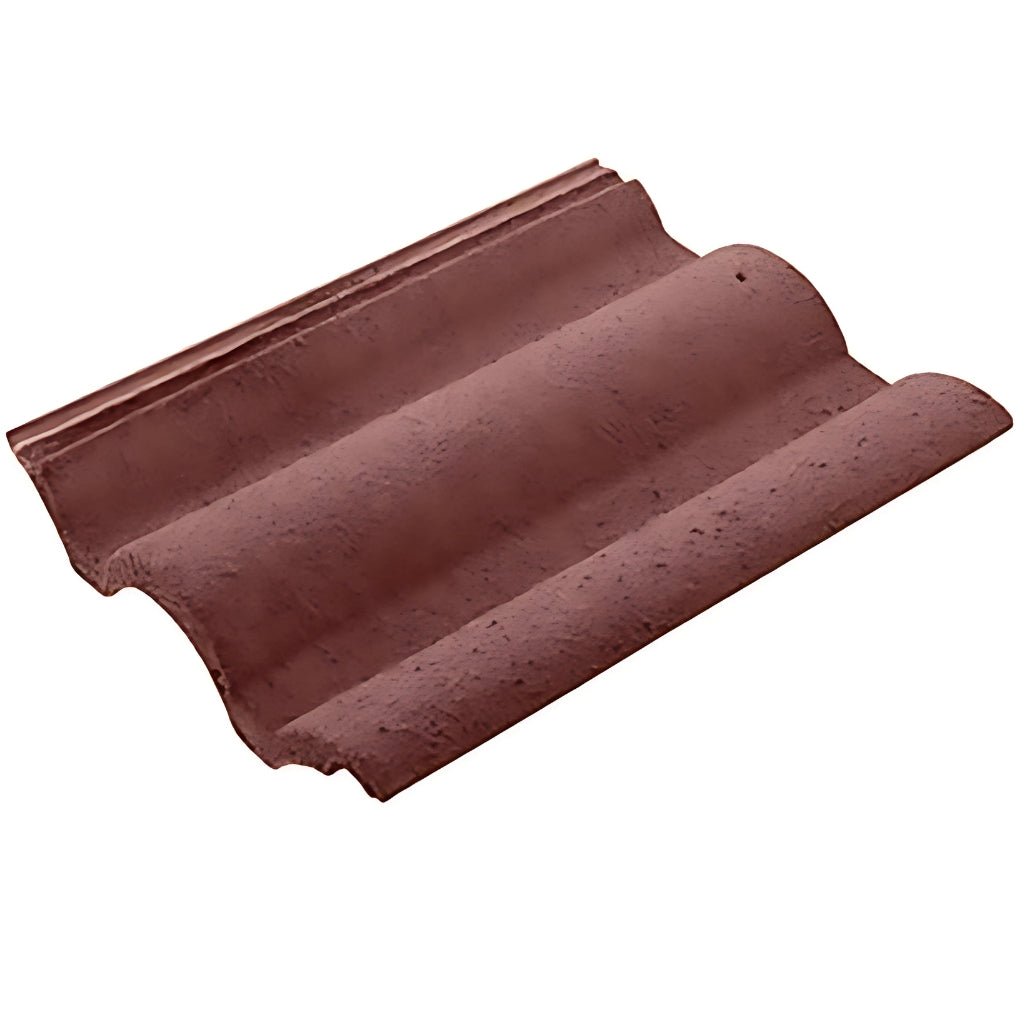

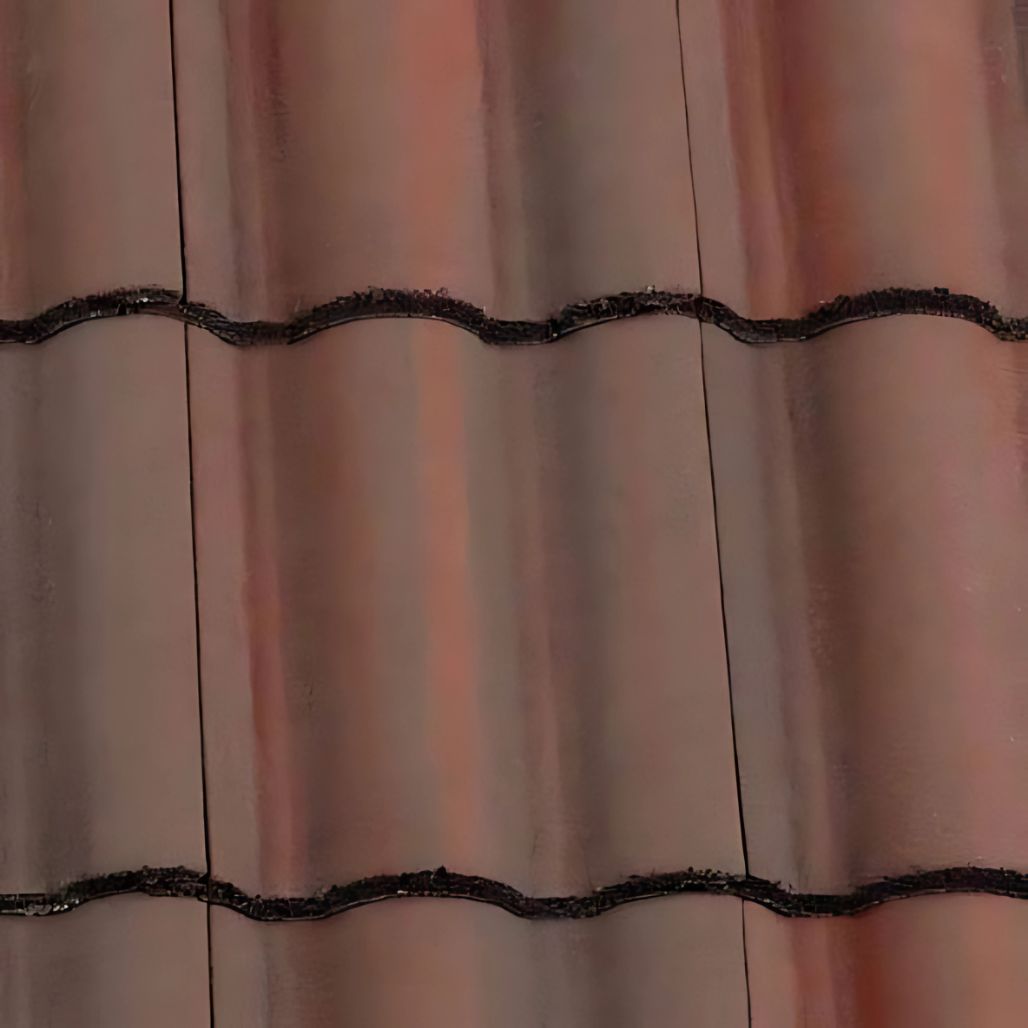

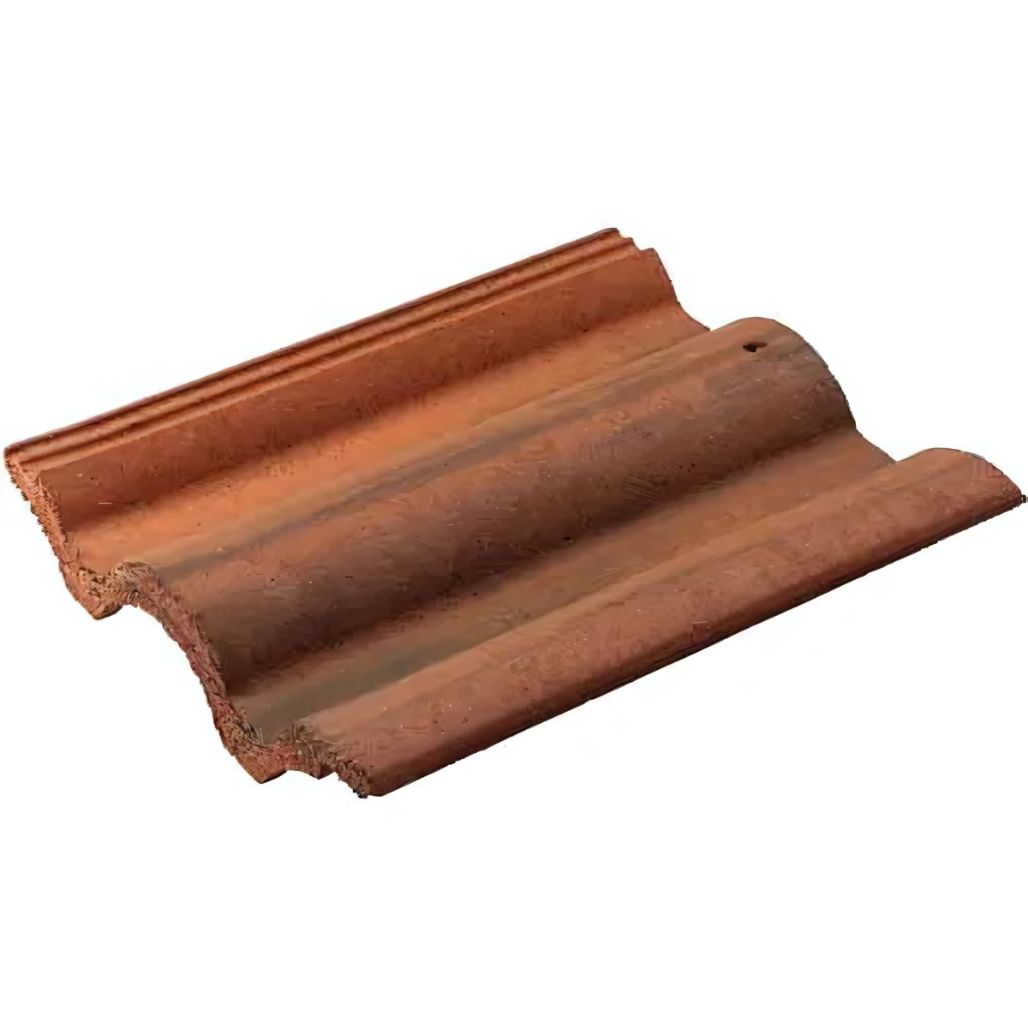

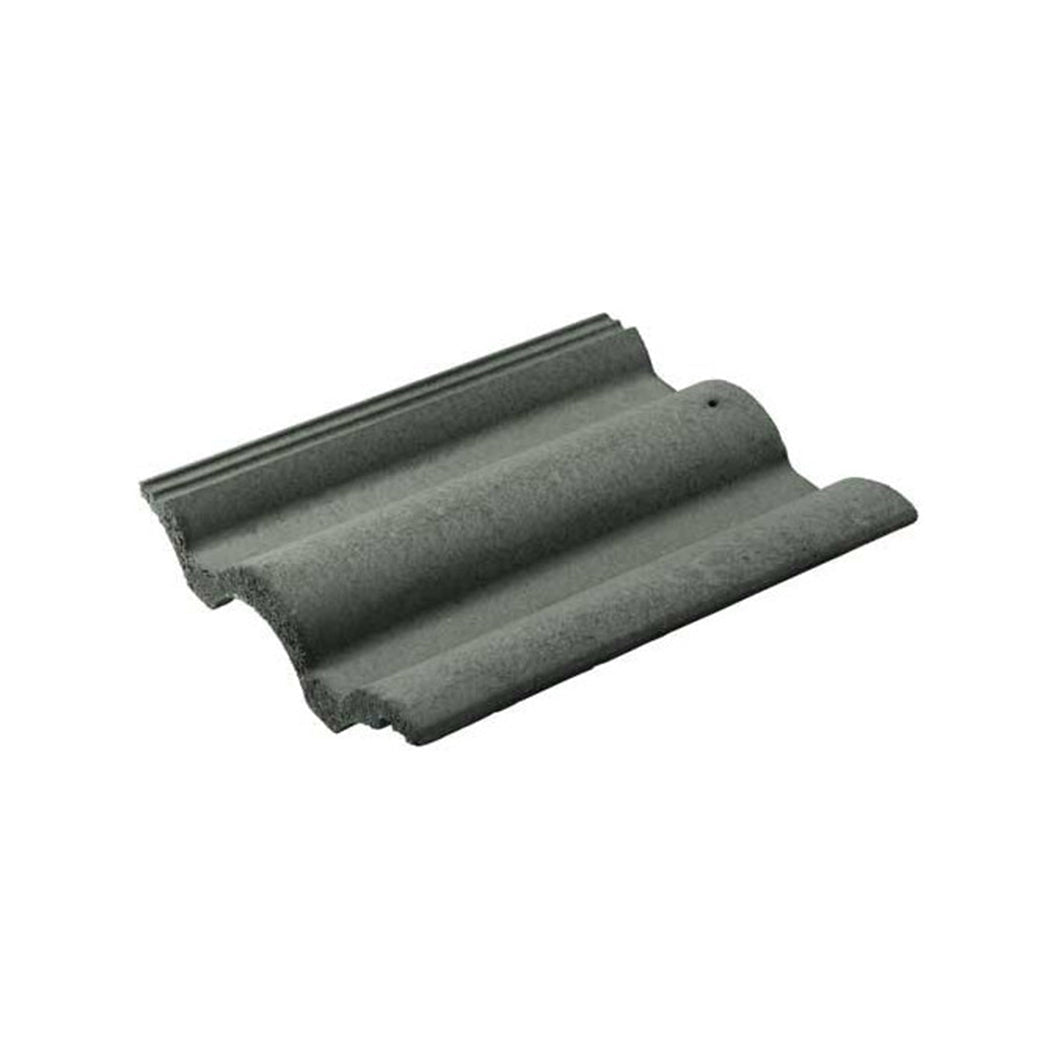

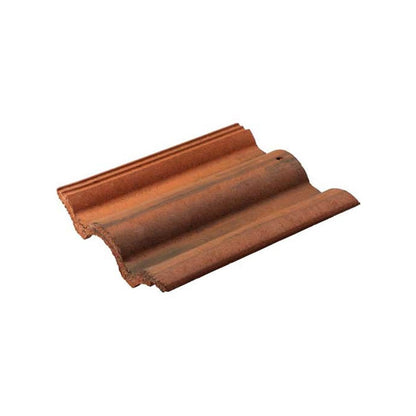

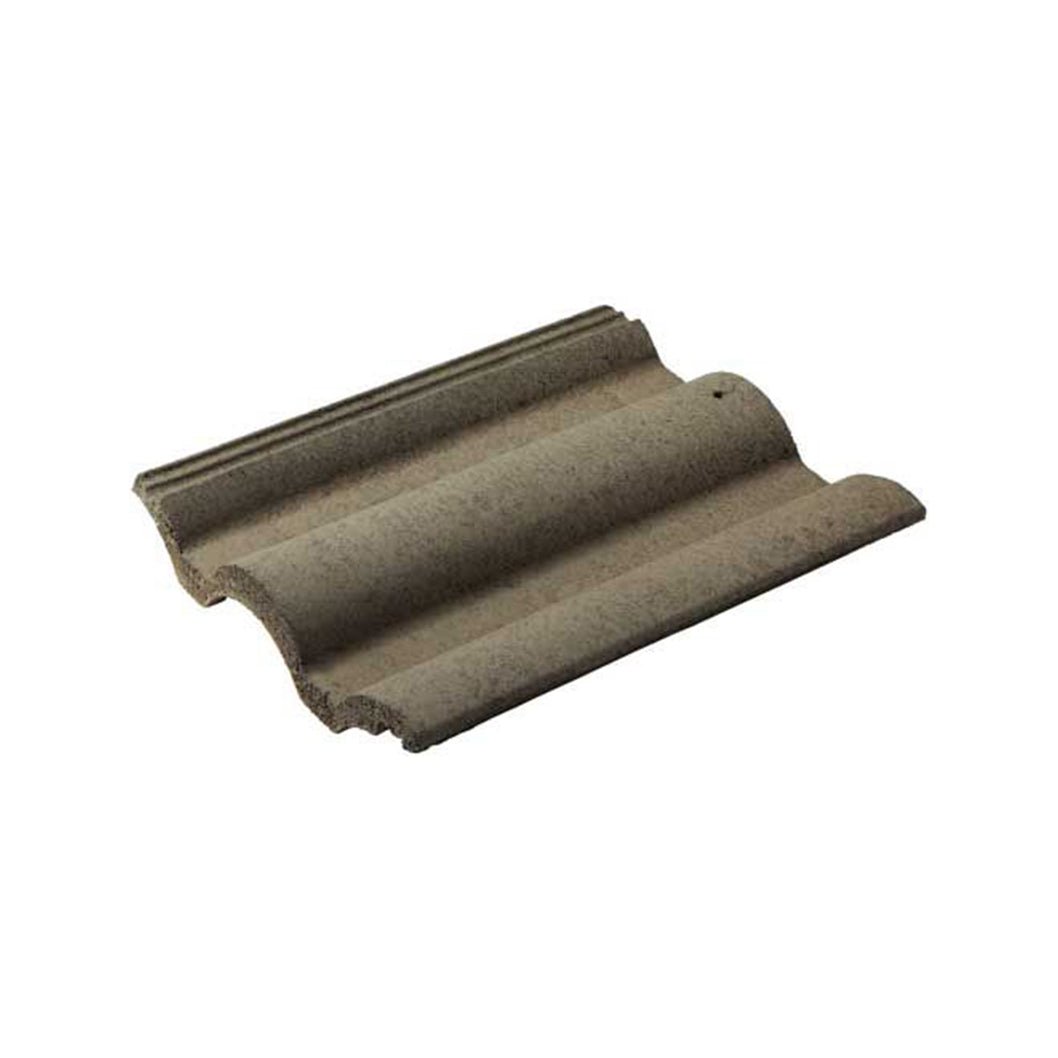

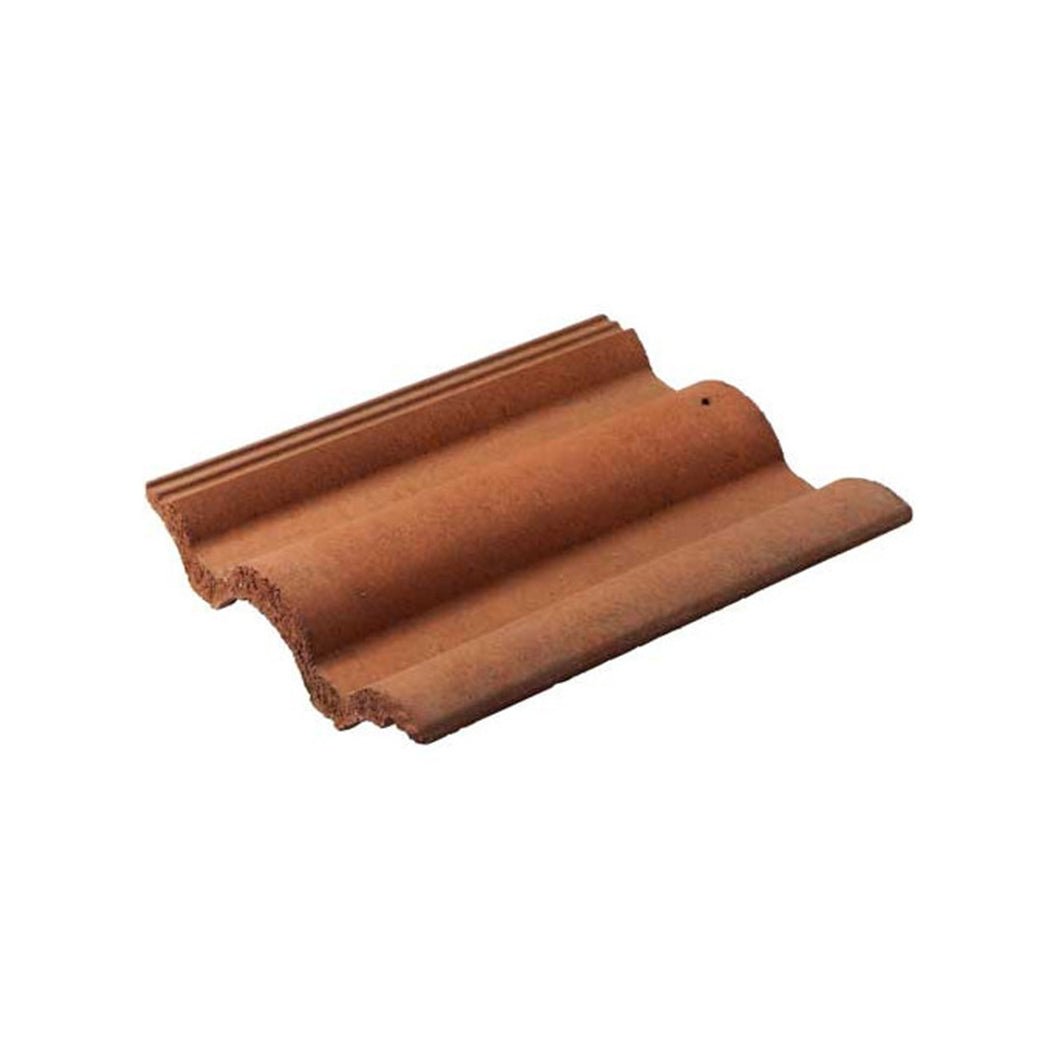

Long-Lasting Aesthetic Appeal – Available in nine visually appealing colours, including Brown, Antique Red, Slate Grey, Terracotta, Tudor Brown, Farmhouse Red, Breckland Black, Breckland Brown, and Rustic Red.
-
Quick and Cost-Effective Installation – Designed for ease of laying, reducing labour costs and installation time.
Applications
The BMI Redland Regent Roof Tile is suitable for a variety of roofing projects, including:
- Home Extensions and Lean-To Roofs
- Educational Buildings (Schools and Colleges)
- Places of Worship (Churches and Chapels)
- Agricultural and Storage Buildings (Barns and Outbuildings)
Technical Specifications
-
Brand: Redland
-

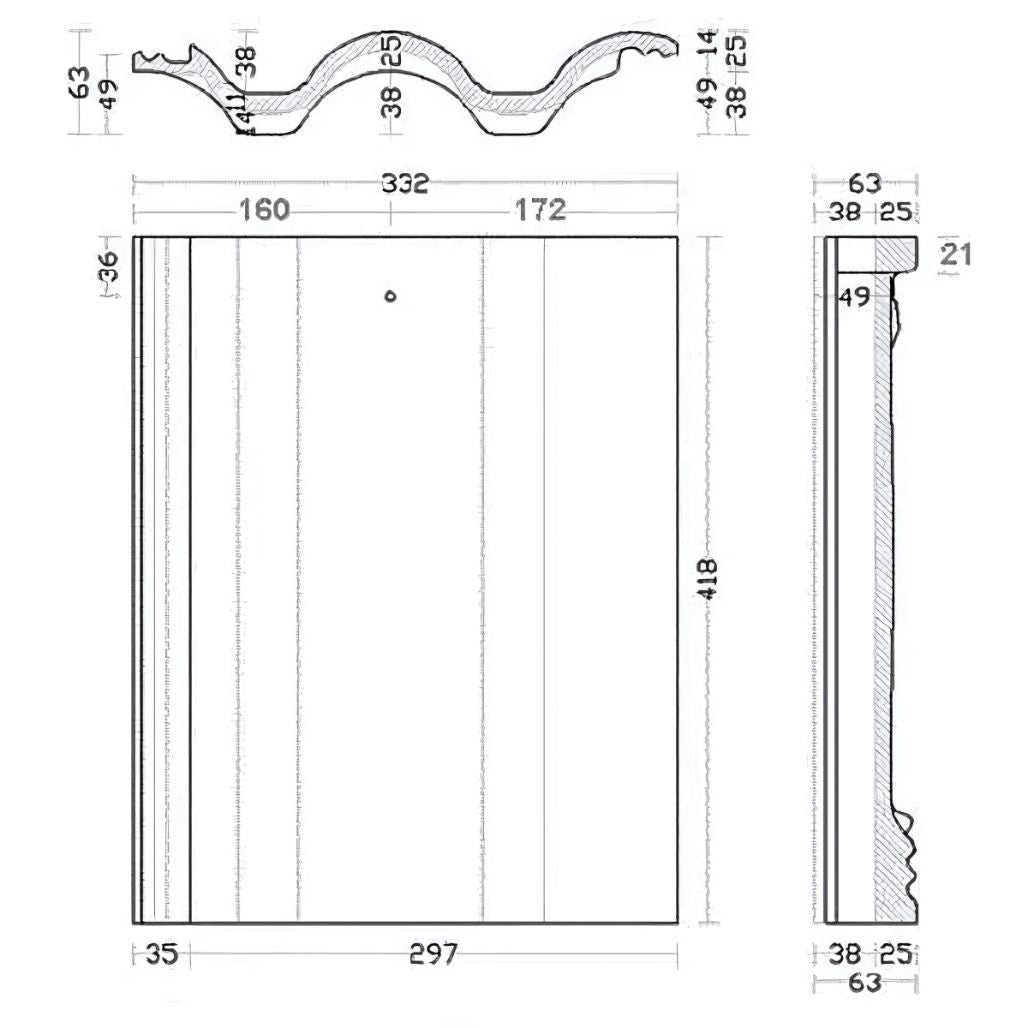

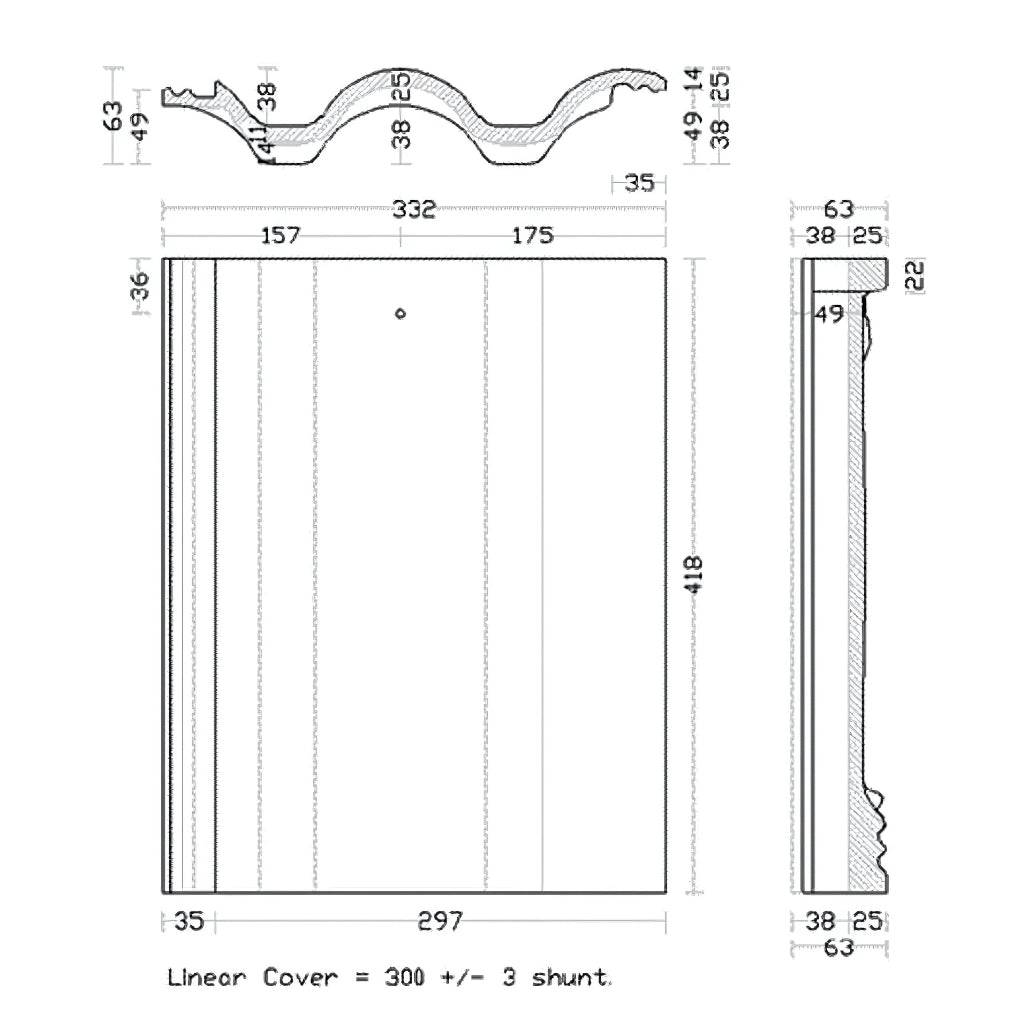

Tile Size: 418mm x 332mm
-
Coverage:
- 10.5 tiles/m² at 318mm gauge
- 9.7 tiles/m² at 343mm gauge
-
Material: Concrete
-
Minimum Pitch:
- 12.5° (smooth finish)
- 22.5° (granulated finish)
-
Maximum Pitch: 90º
-
Minimum Gauge: 293mm
-
Maximum Gauge:
- Below 22.5° (smooth finish): 318mm
- Above 22.5° (smooth finish): 343mm
- Below 30° (granular finish): 318mm
- Above 30° (granular finish): 343mm
-
Hanging Length: 397mm
-
Laid Weight:
- 49 kg/m² at 318mm gauge
- 46 kg/m² at 343mm gauge
-
Tiles per Pallet: 252
-
Recommended Nail Size: 70 x 3.75mm
Frequently Asked Questions (FAQs)
Why is the BMI Redland Regent Roof Tile ideal for extensions?
The low minimum pitch requirement of 12.5 degrees for smooth finishes and 22.5 degrees for granulated finishes makes it particularly suitable for extensions and lean-to roofs, especially where roof slopes need to fit below existing structures such as window sills.
How can I prevent bird and insect infestation in the eave section?
Due to its high roll profile, the Regent tile may leave gaps in the eave section that could allow birds and insects to enter. To counter this, it is recommended to install an eaves comb filler, which serves as a protective barrier against unwanted infestations.
Are Redland Regent Roof Tiles available in different finishes and colours?
Yes, these tiles are available in nine striking colours, including Brown, Antique Red, Slate Grey, Terracotta, Tudor Brown, Farmhouse Red, Breckland Black, Breckland Brown, and Rustic Red. Additionally, they come in smooth and granular finishes, offering flexibility in both aesthetics and function.
