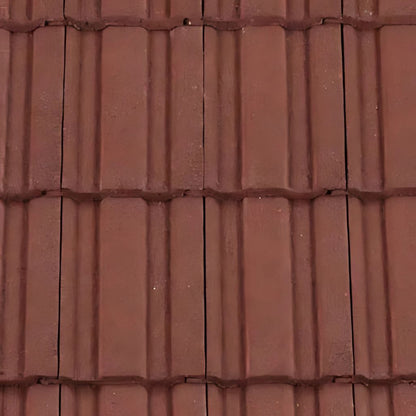

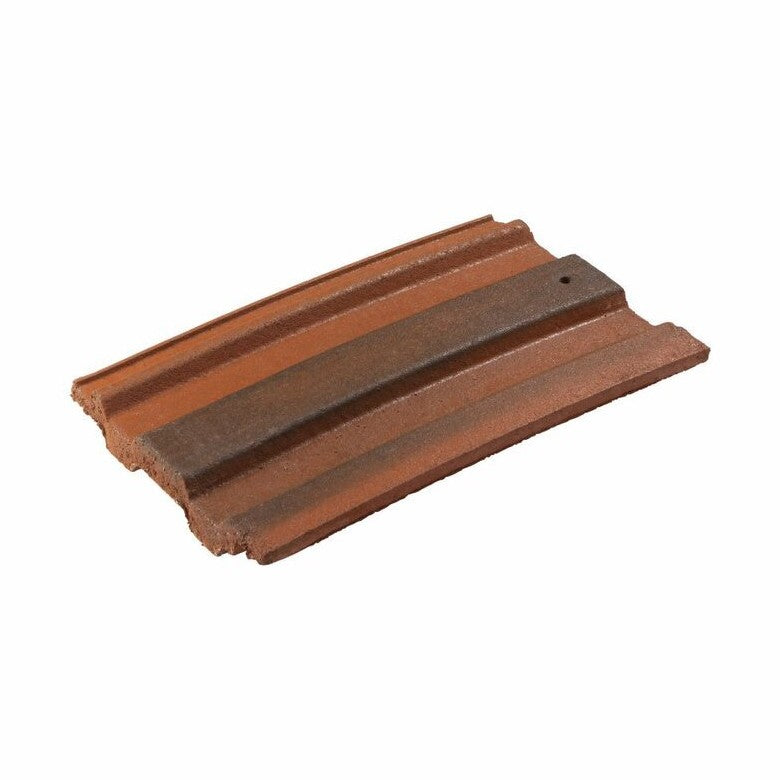

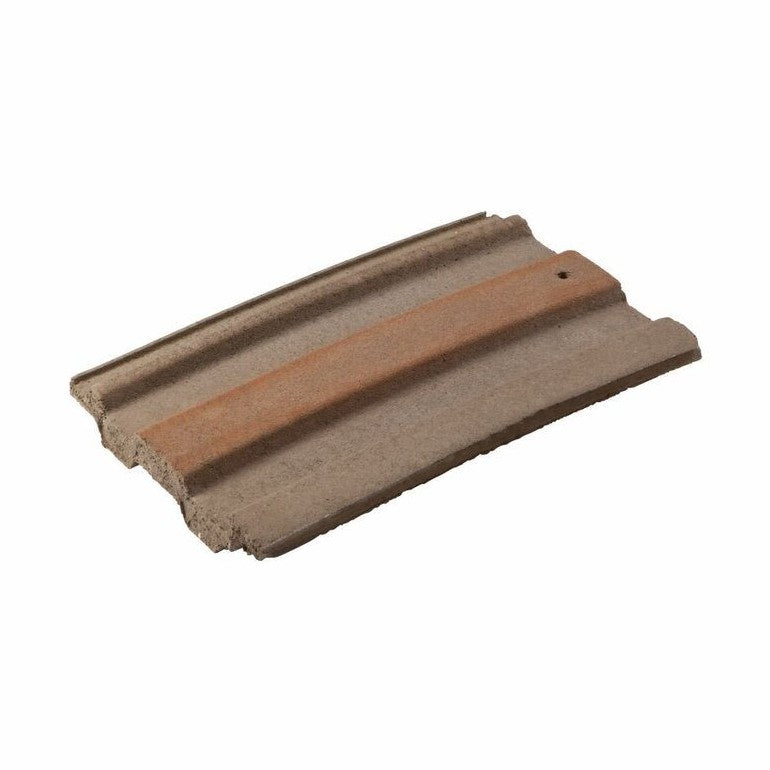

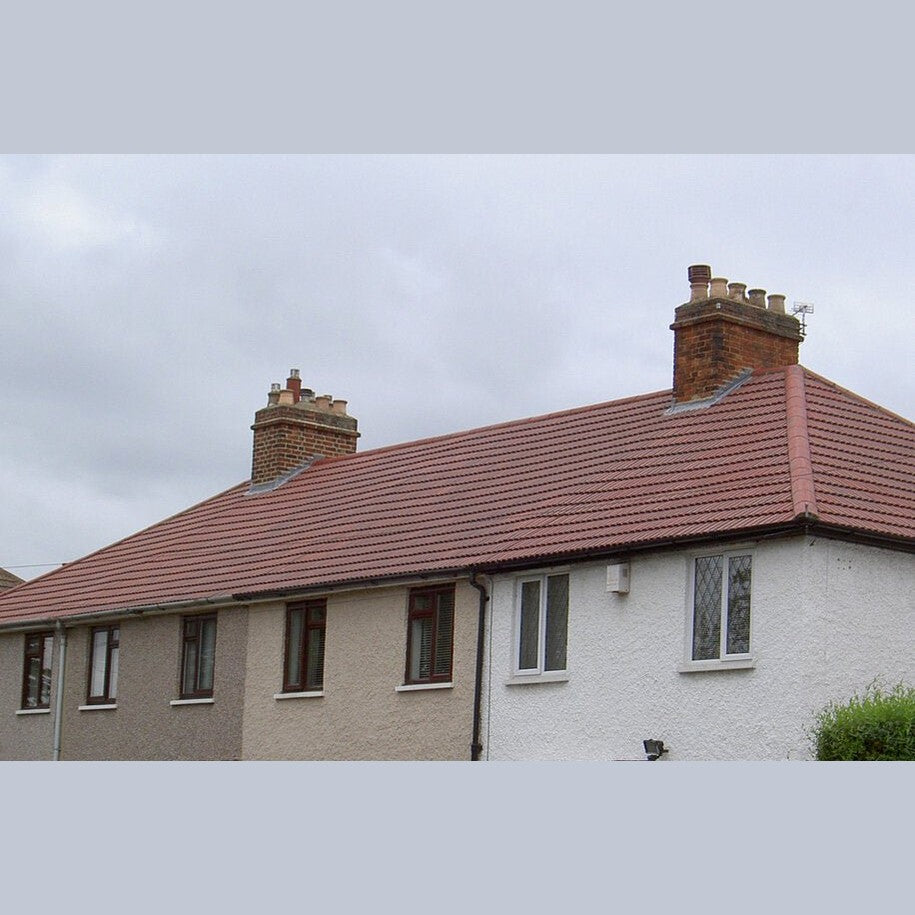

The BMI Redland 49 Concrete Roof Tile has been a defining feature of London and Southern England’s roofscapes for over 50 years. Known for its lightweight design and ease of installation, it remains a popular choice among homeowners and contractors alike. Available in a variety of finishes, it allows for flexibility in design, ensuring compatibility with both modern and traditional architecture.
Recent improvements in its construction and design have further streamlined the installation process, making it even more efficient to fit. The distinctive small cambered interlocking profile not only enhances the roof’s aesthetic appeal but also contributes to its structural strength. As a result, the BMI Redland 49 is a cost-effective solution for those seeking durability, ease of use, and a visually striking roof covering.
Key Features and Benefits
-
Optimised Size – Measuring 382 x 226mm, making it compact yet effective for various roof styles.
-
Versatile Pitch Range – Suitable for pitched roofs from 17.5° to 90°, catering to different project requirements.
-
Efficient Coverage – Requires 17.7 tiles per m², ensuring cost-effective use of materials.
-

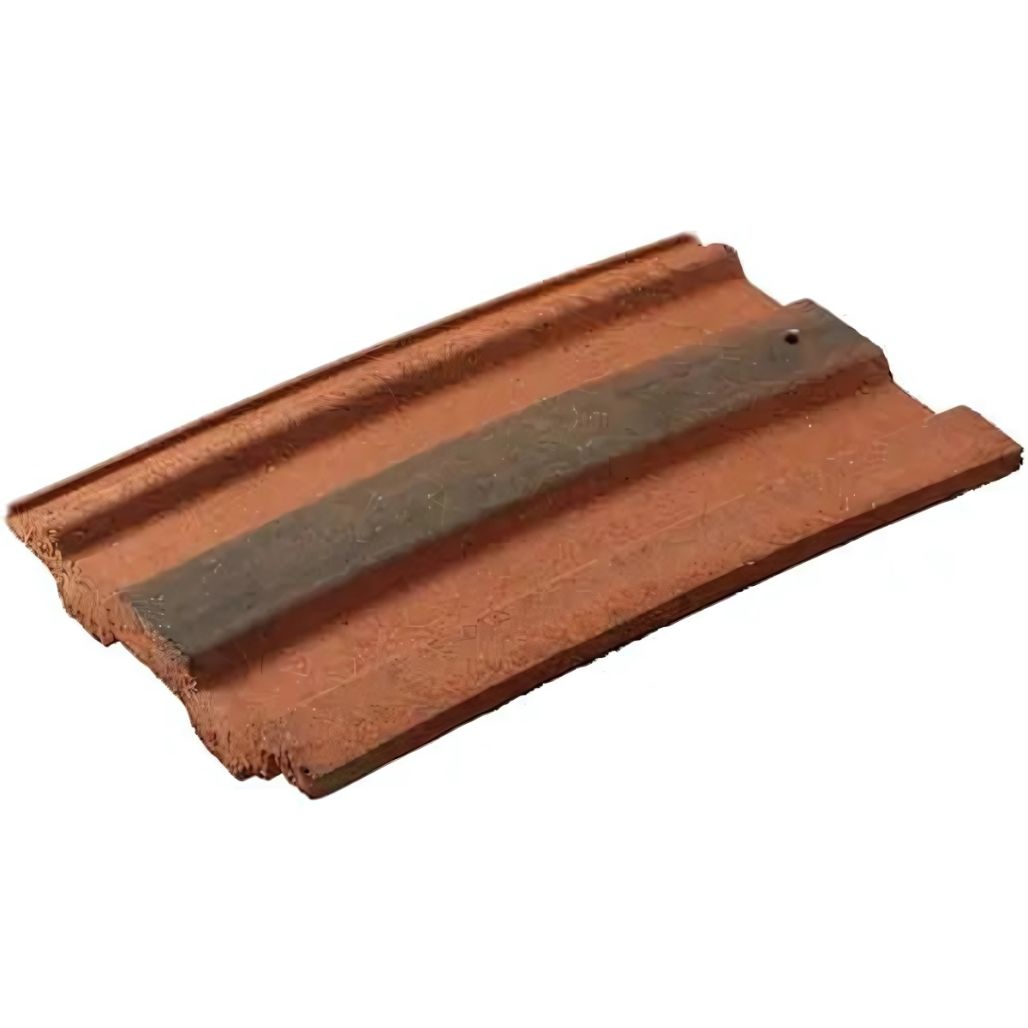

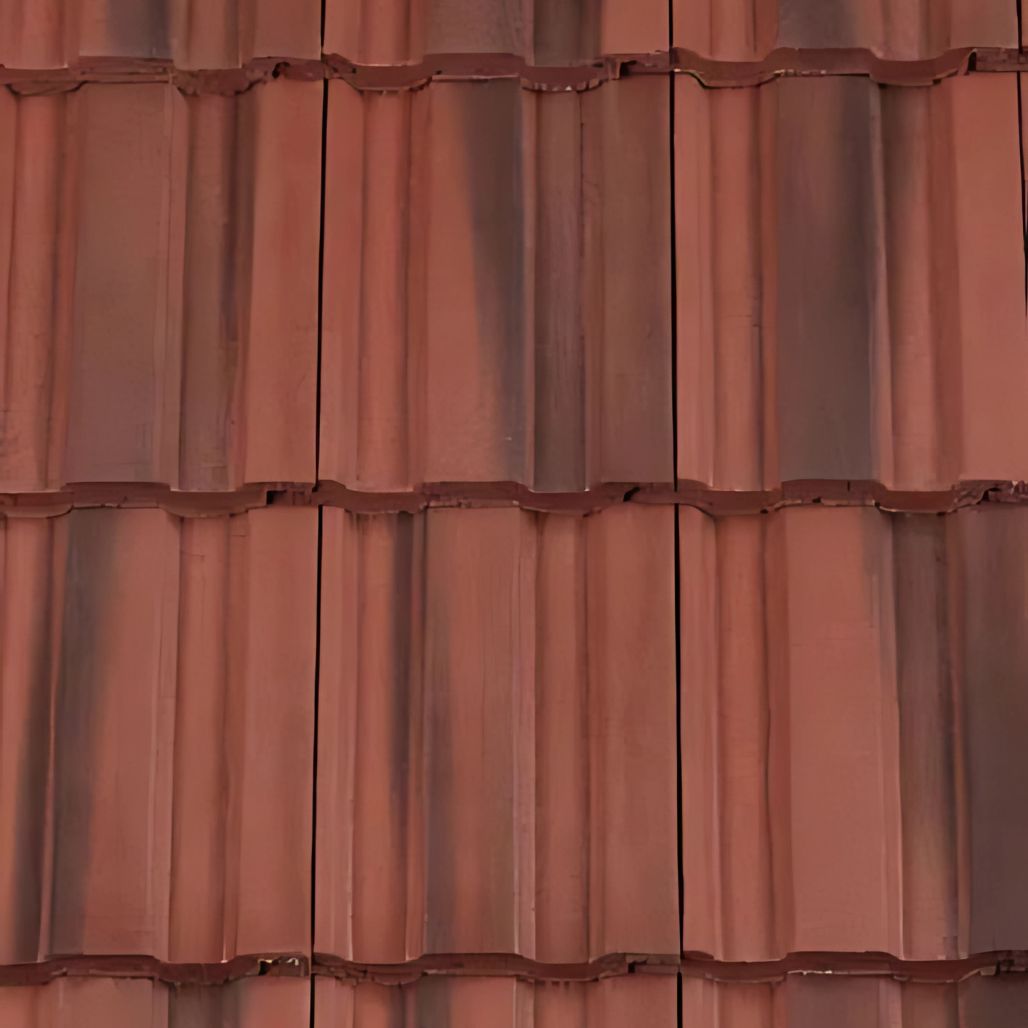

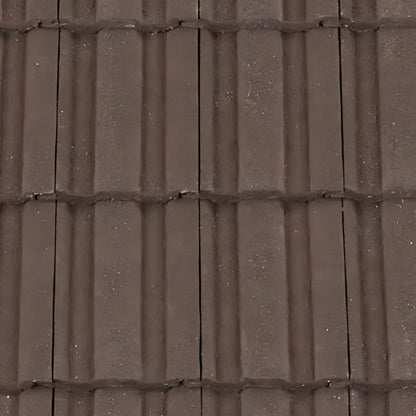

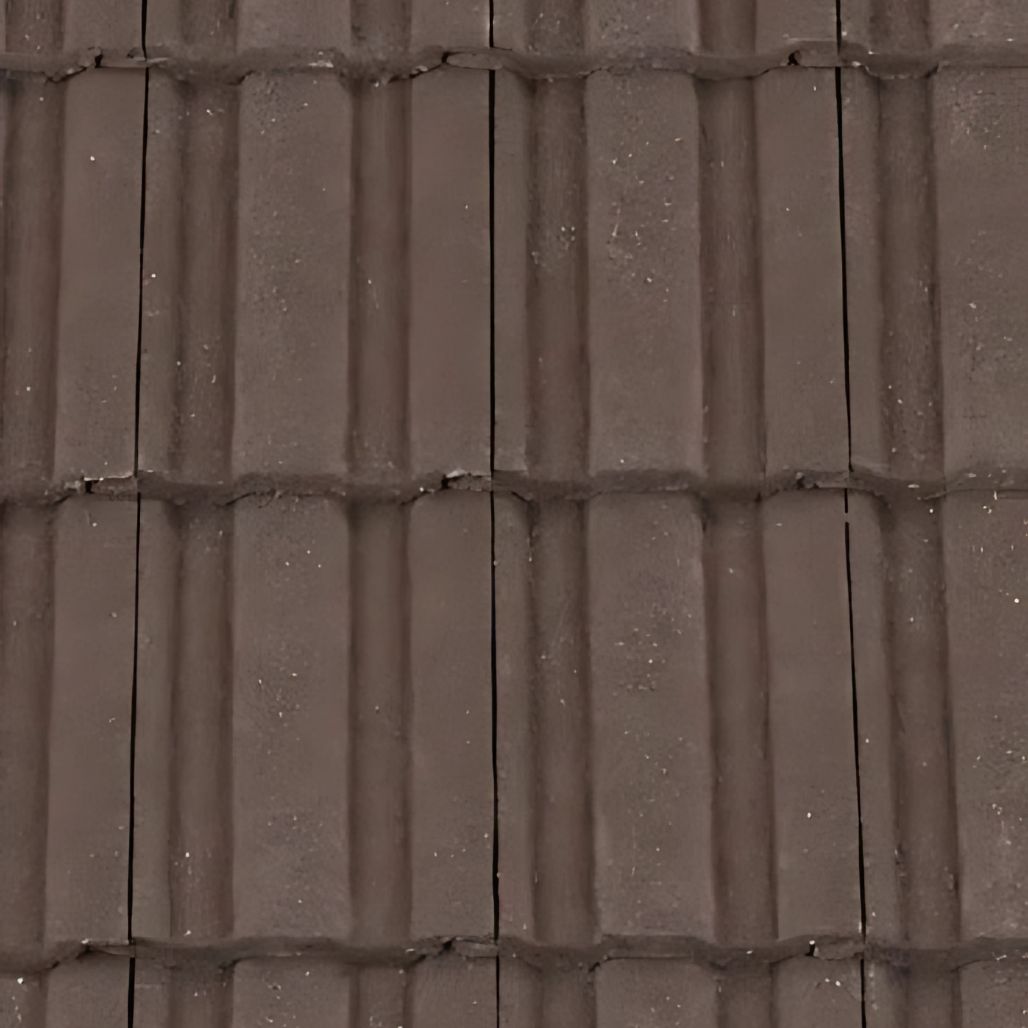

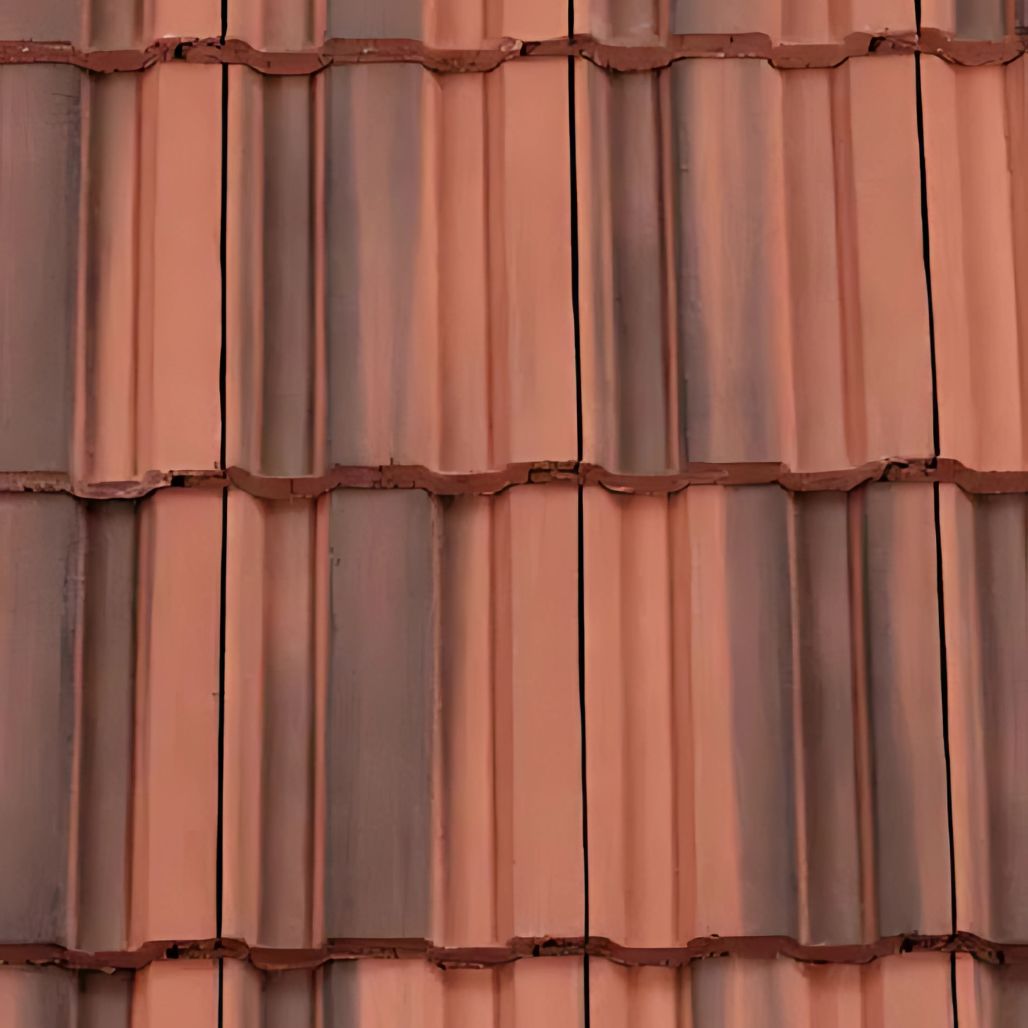

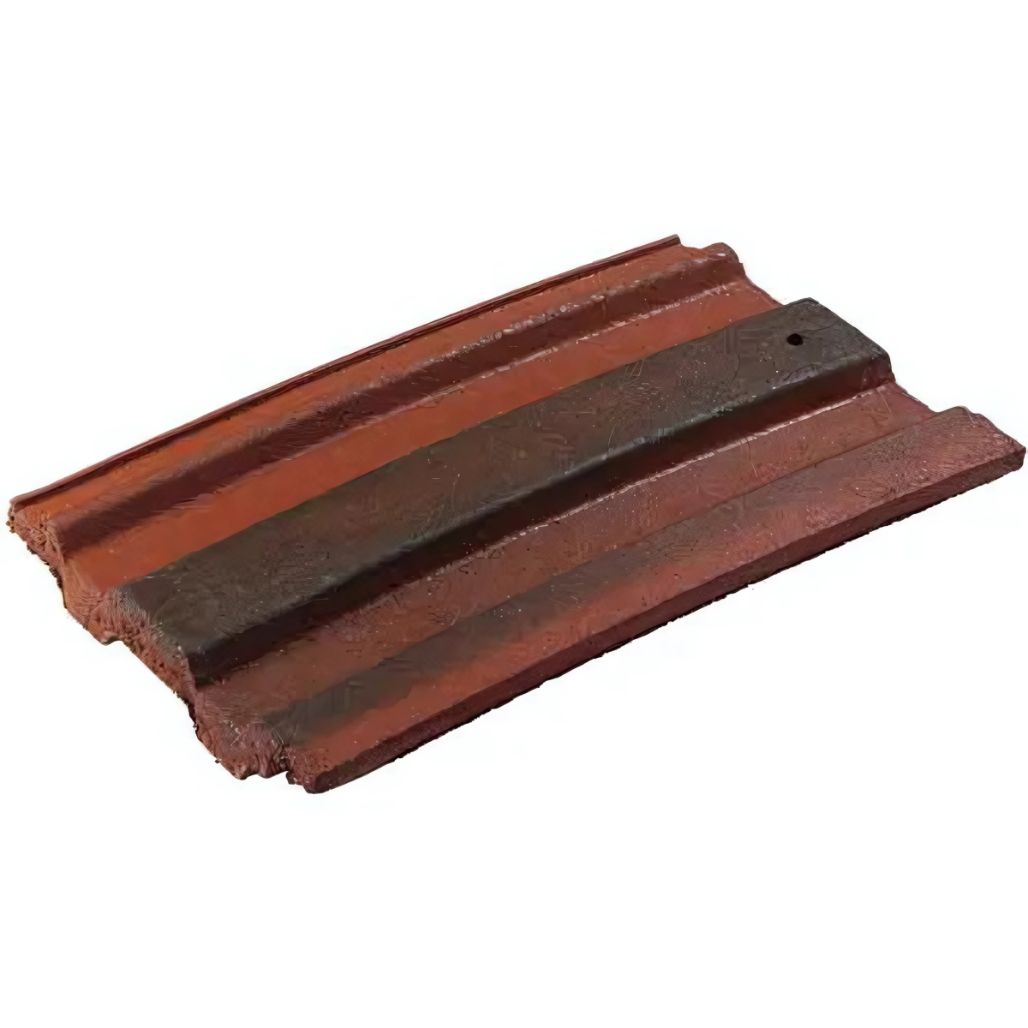

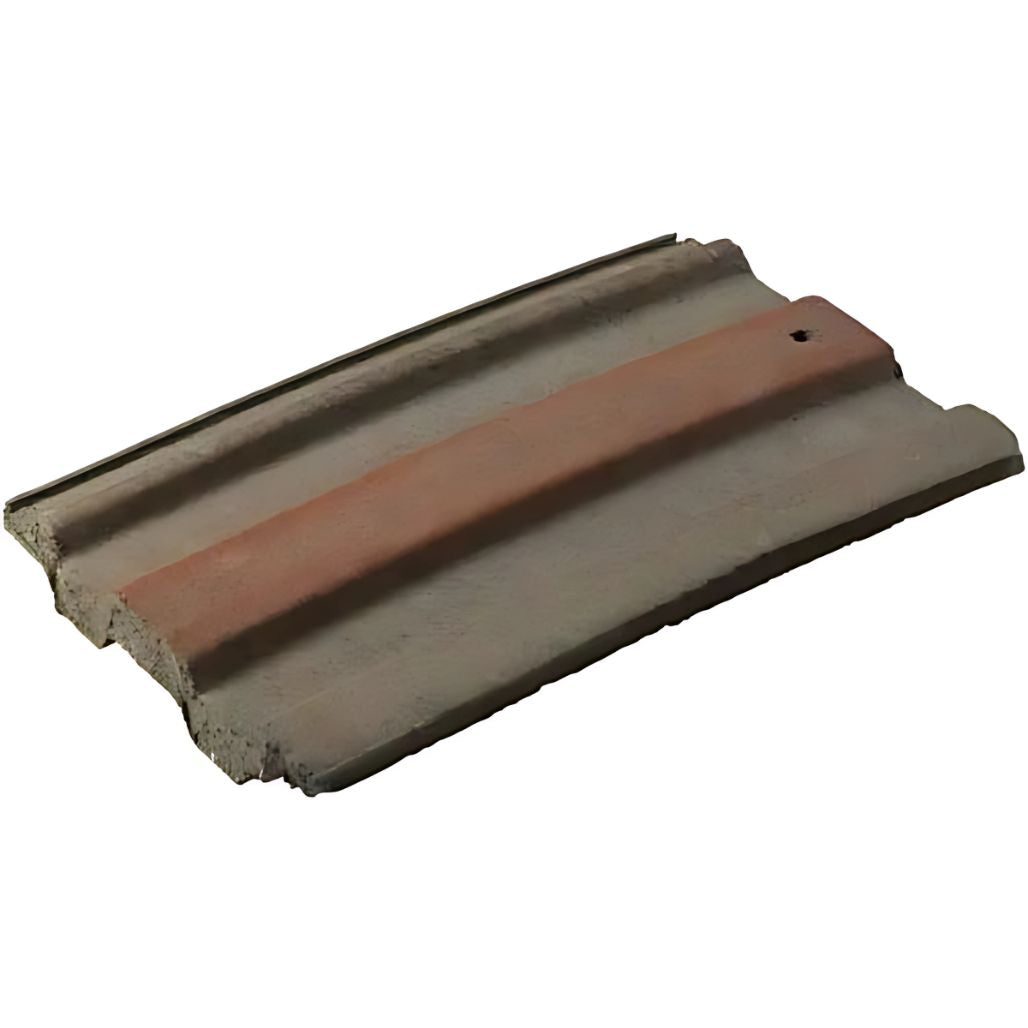

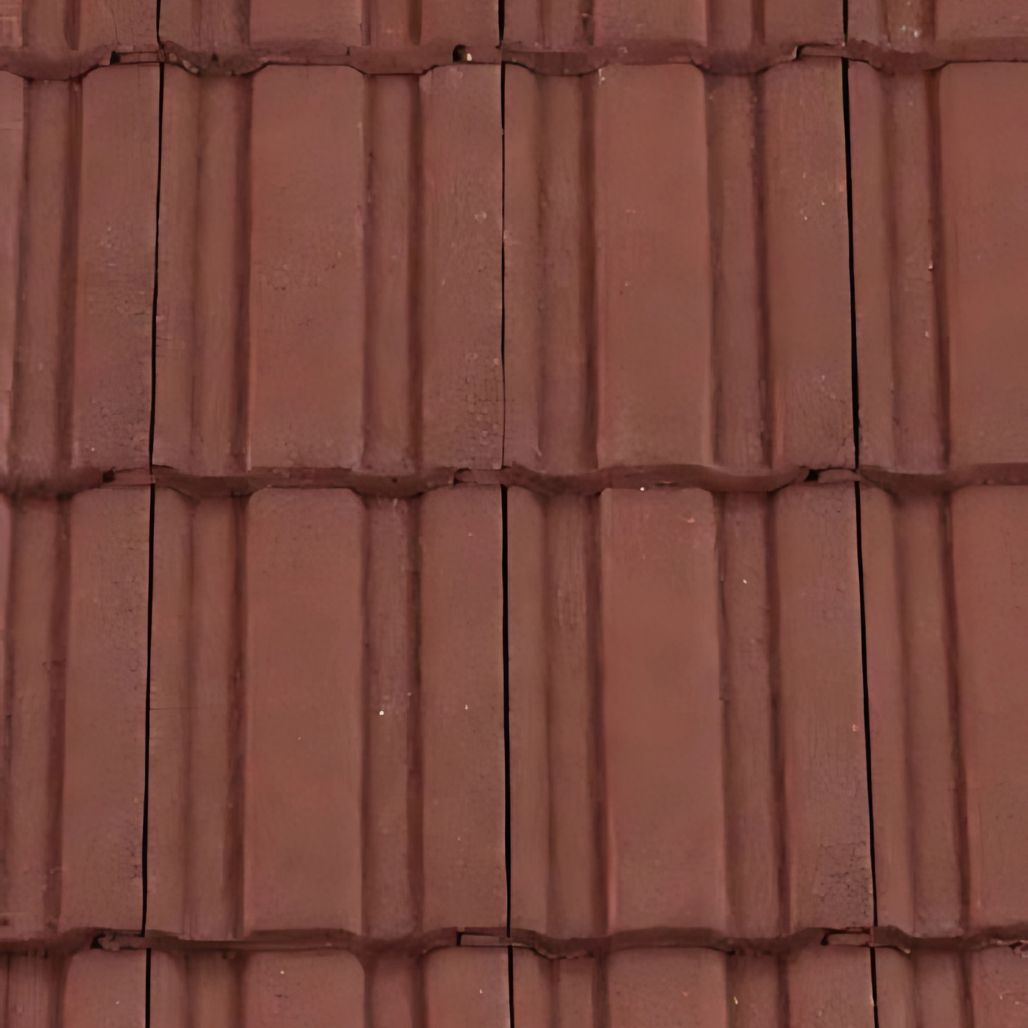

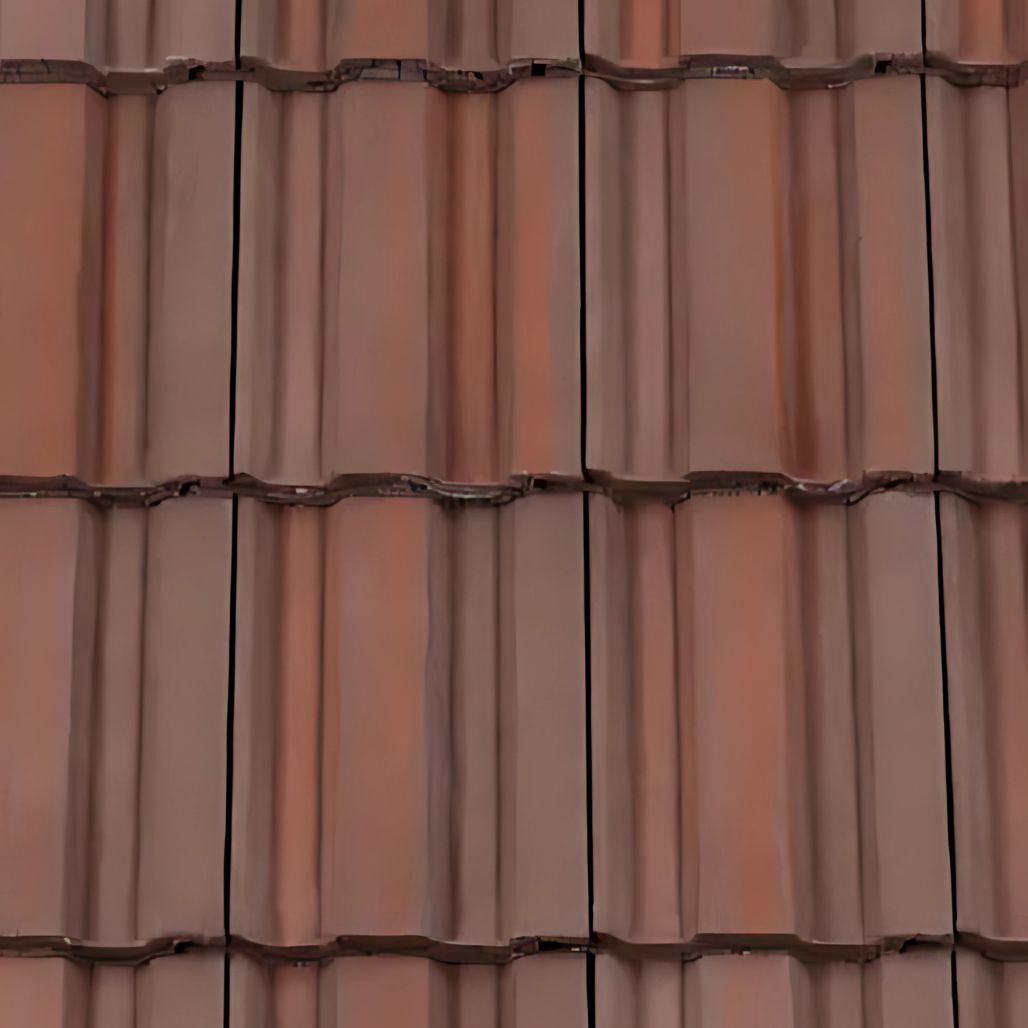

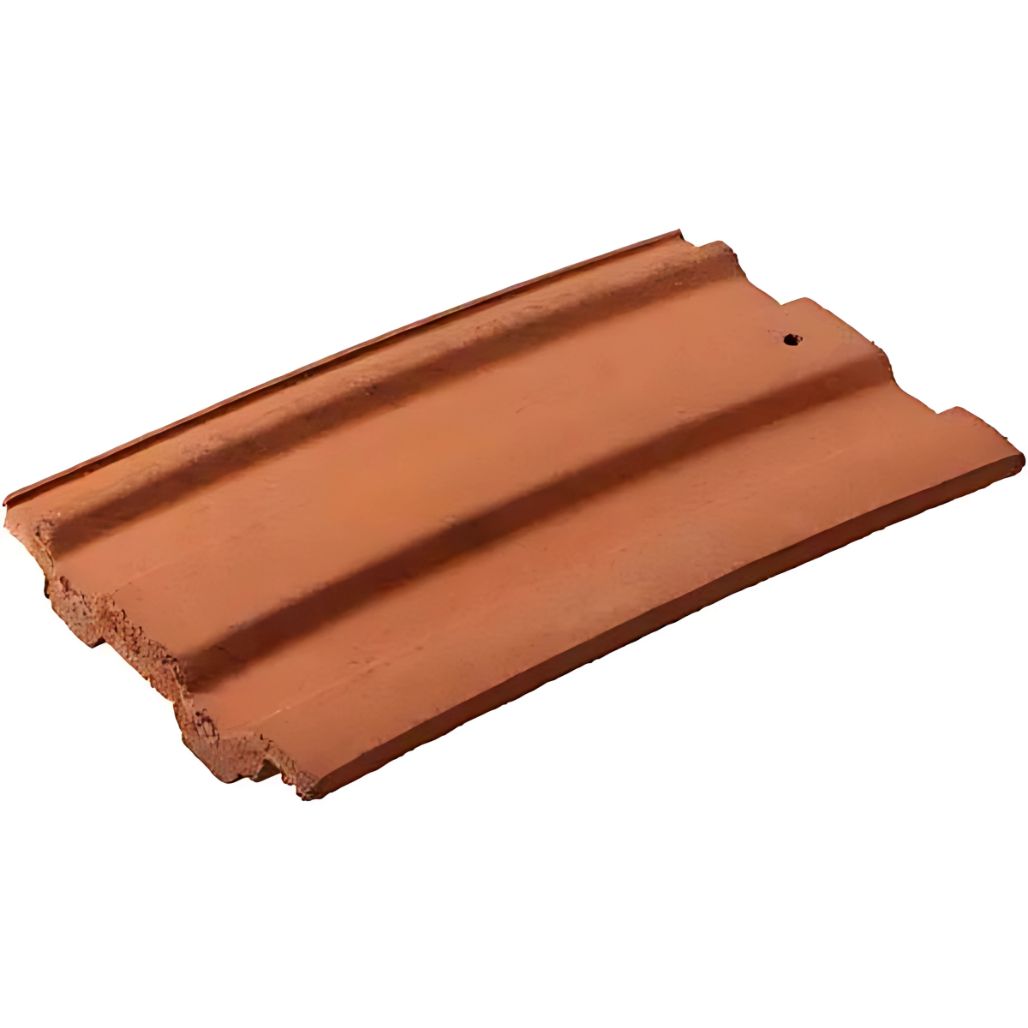

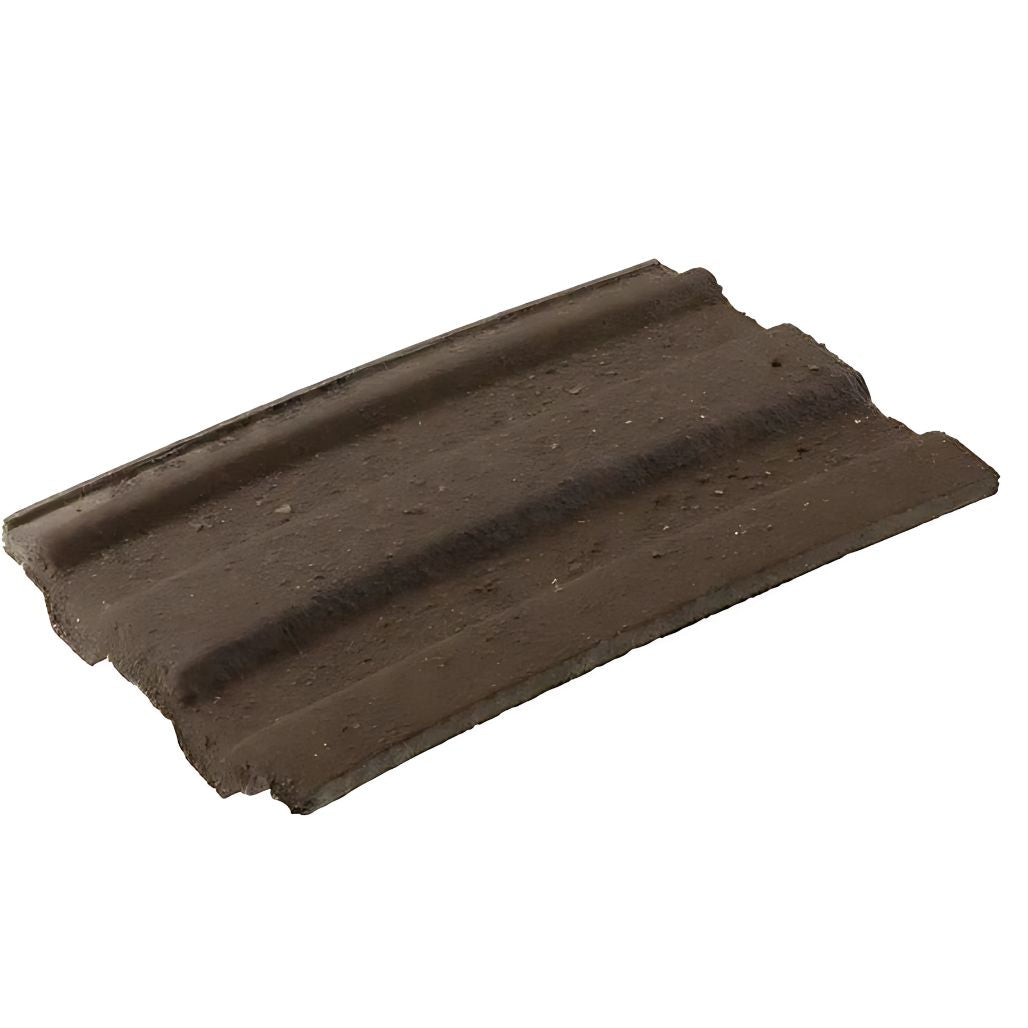

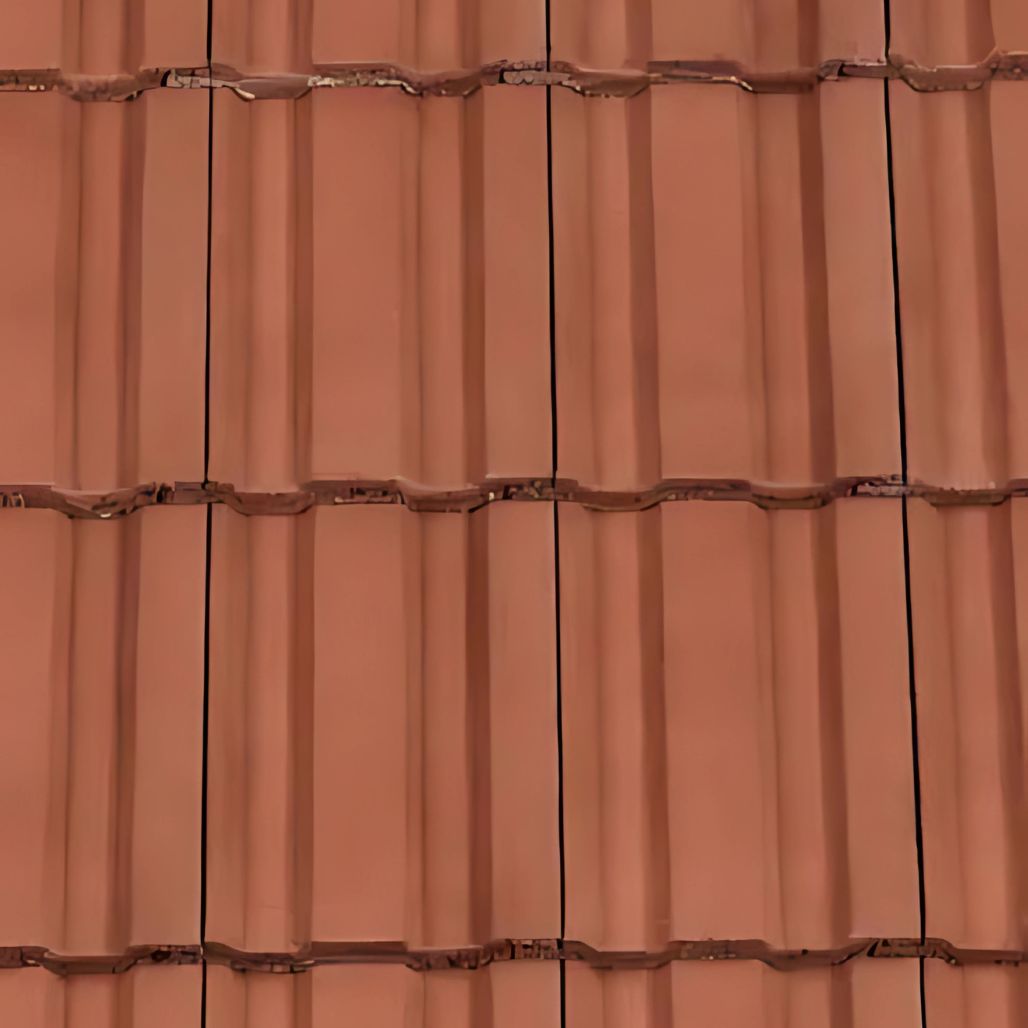

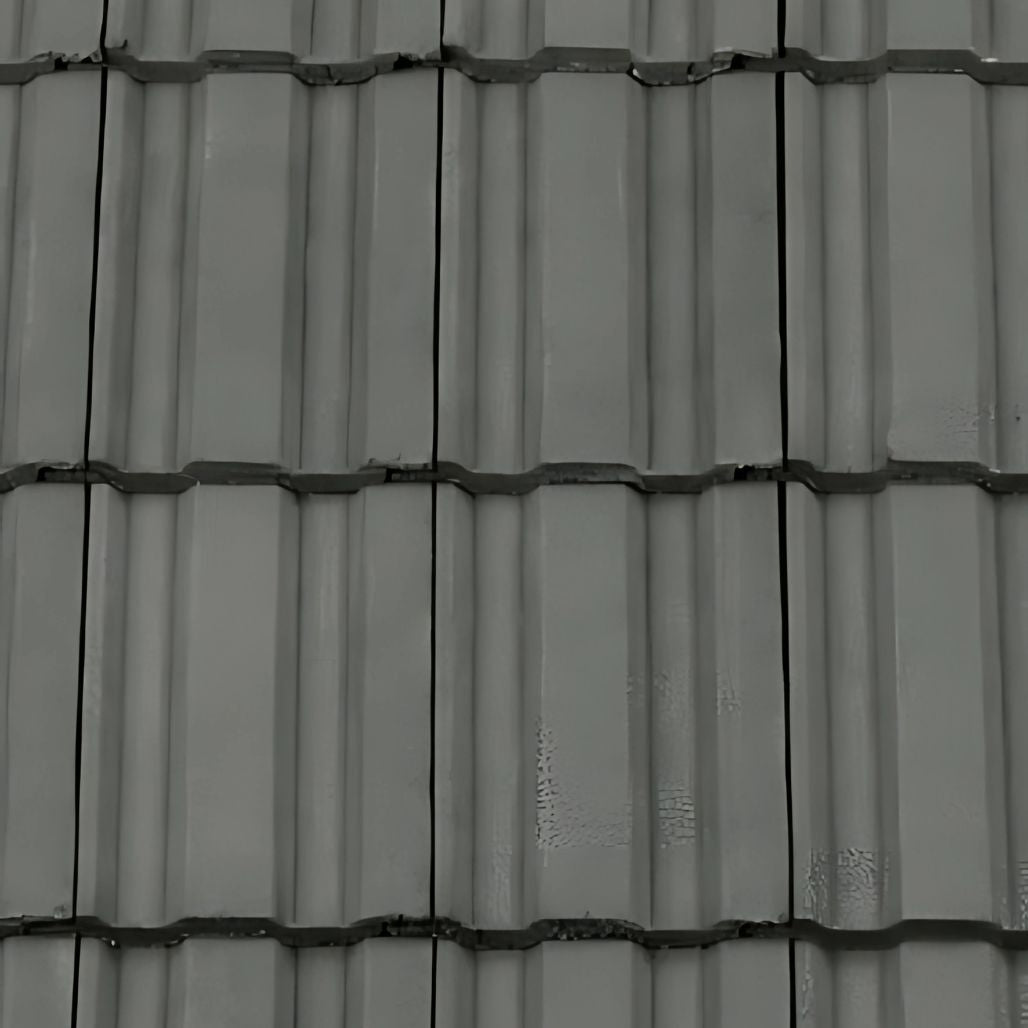

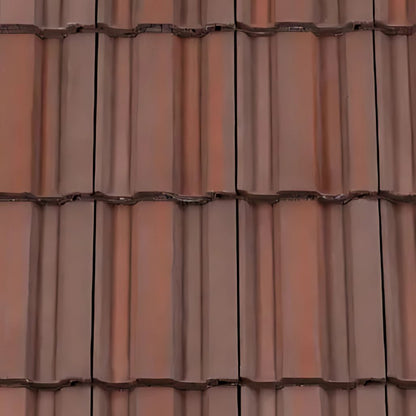

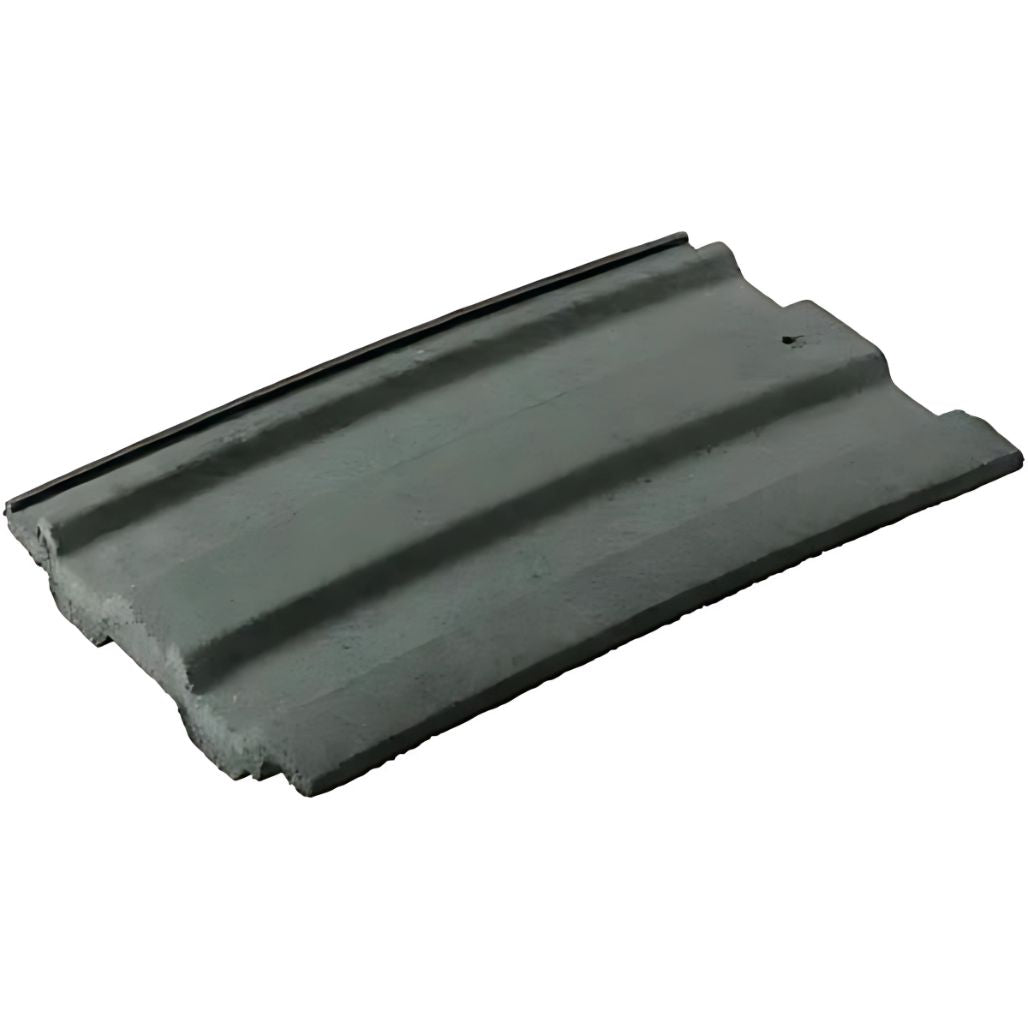

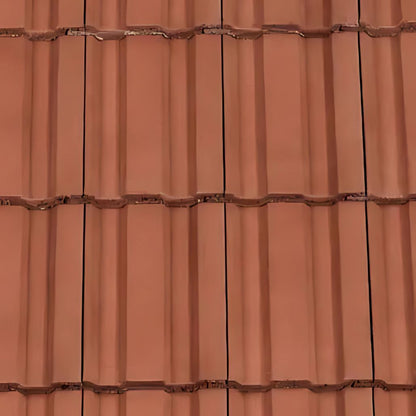

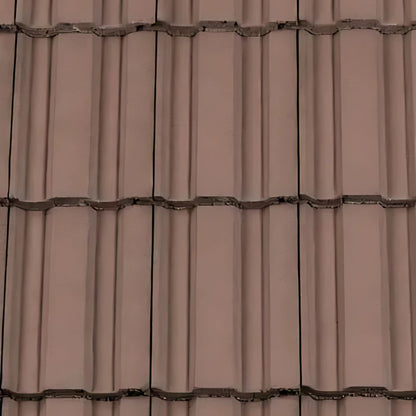

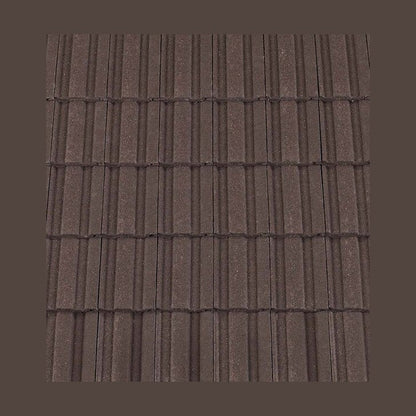

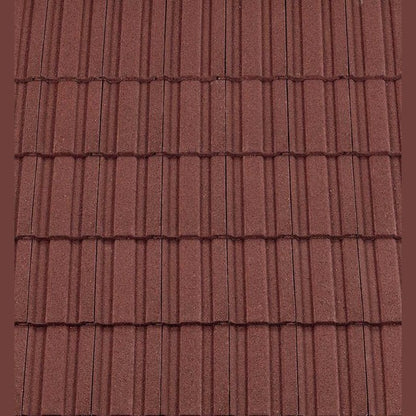

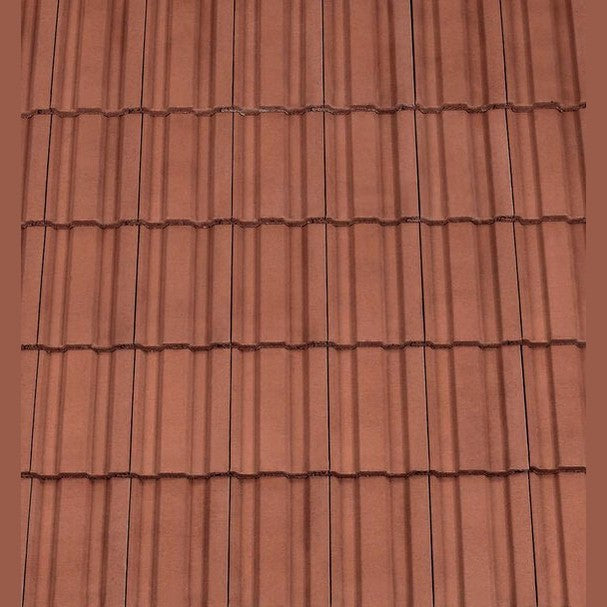

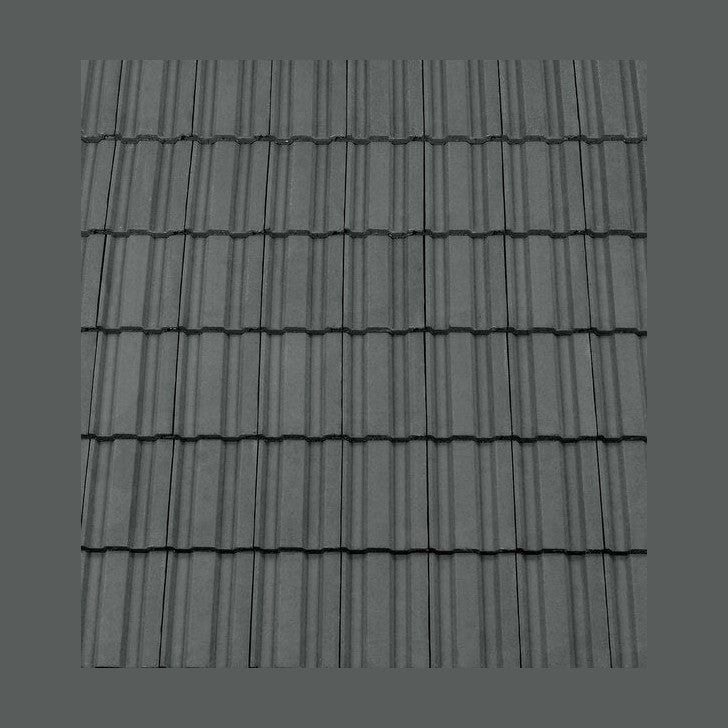

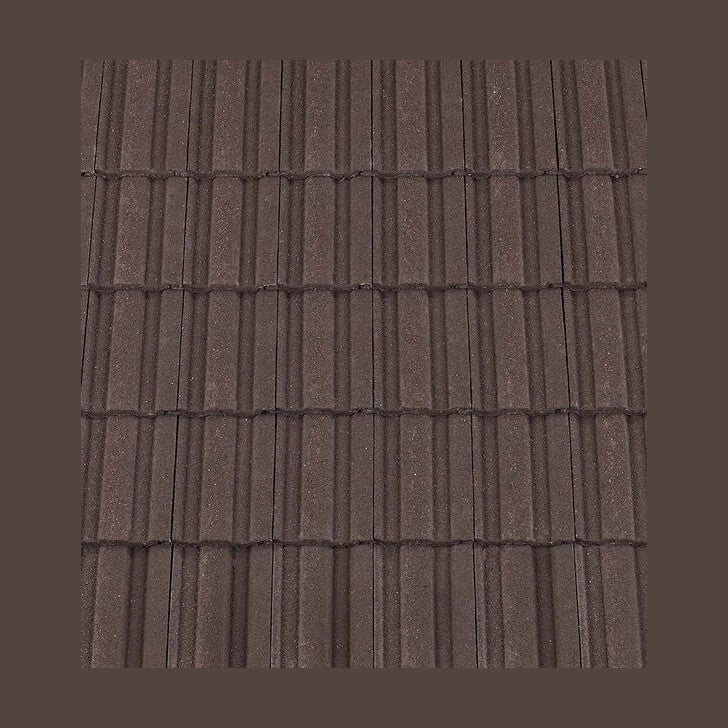

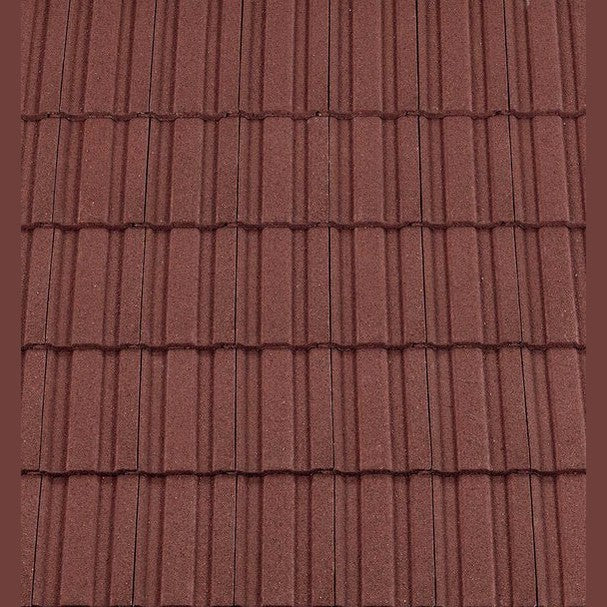

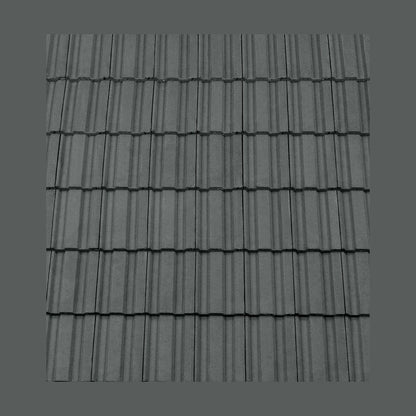

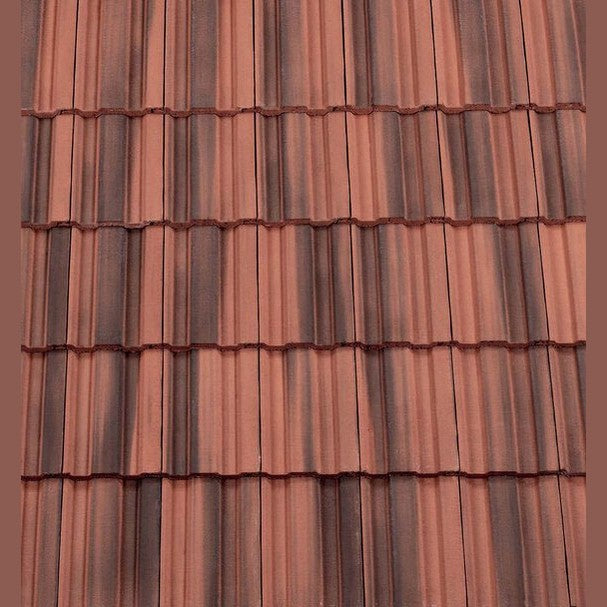

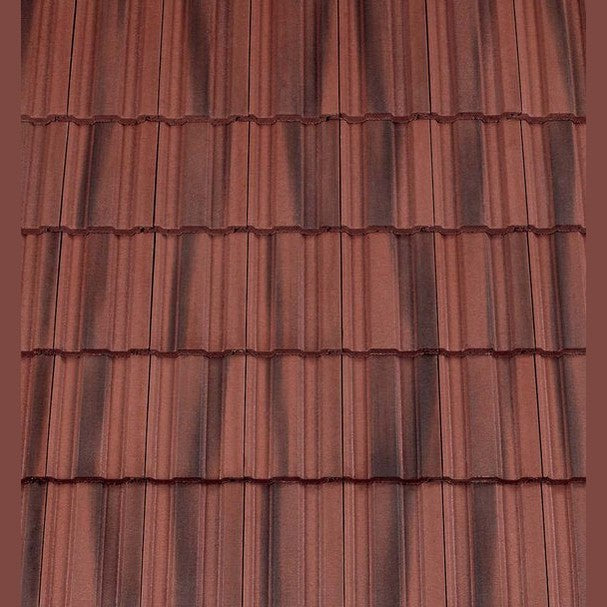

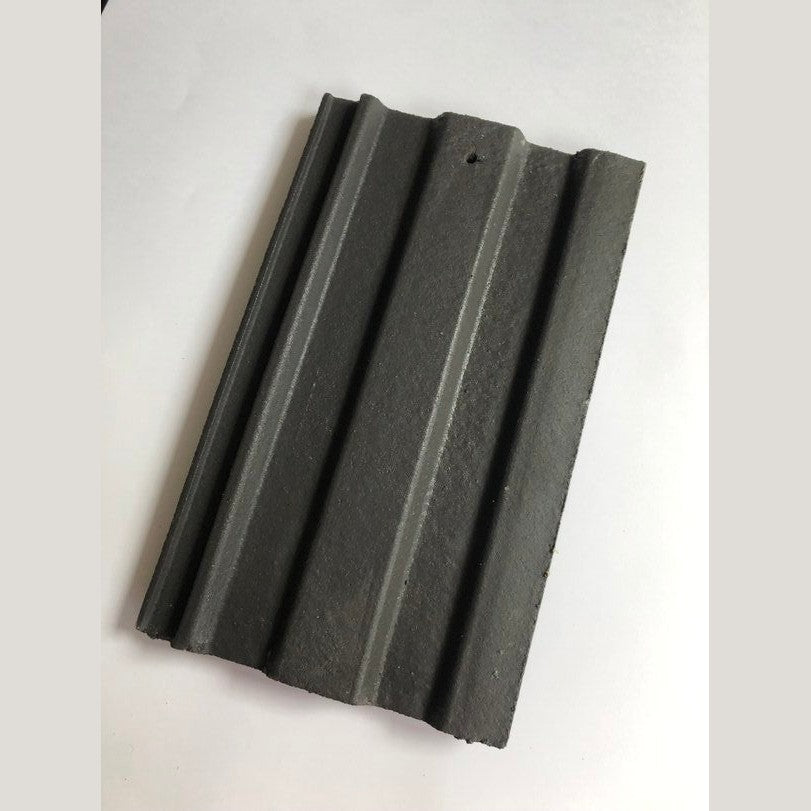

Varied Surface Finishes – Available in Brown, Antique Red, Terracotta, Tudor Brown, Farmhouse Red, Breckland Brown, Rustic Red, and Slate Grey to complement diverse property aesthetics.
-
High-Performance Standards – Rigorously tested for weather tightness, wind resistance, and compliance with BS5534, the British Standard for Slating and Tiling.
-
Durable and Long-Lasting – Engineered for maximum durability, with finishes that maintain their visual appeal over time.
-

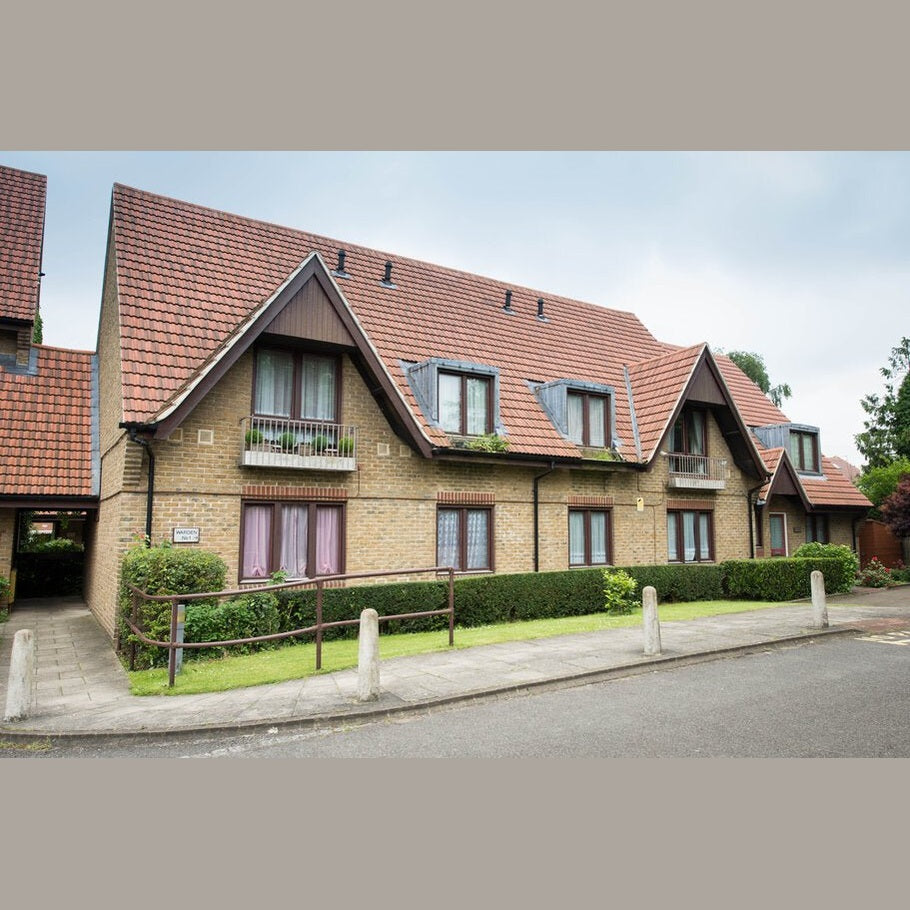

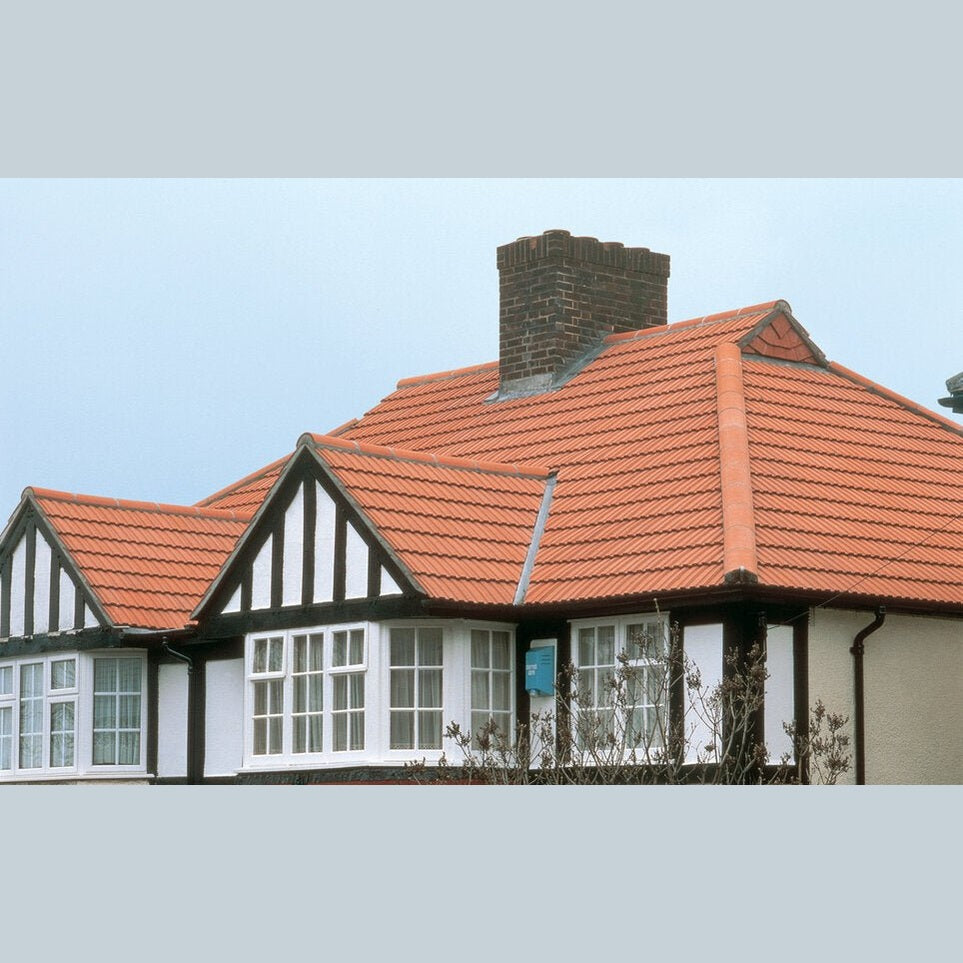

Ideal for Both New Builds and Refurbishments – A reliable option for both modern developments and heritage restorations.
Technical Specifications
-

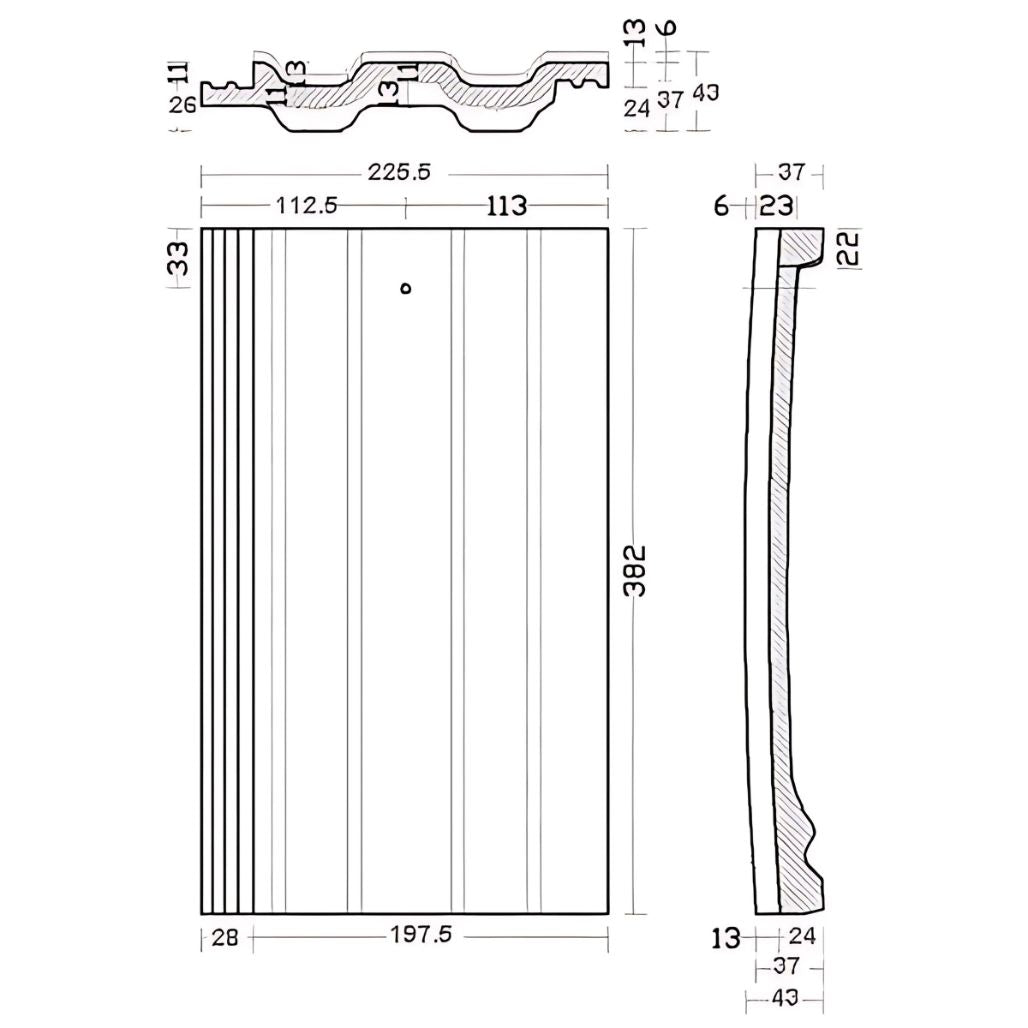

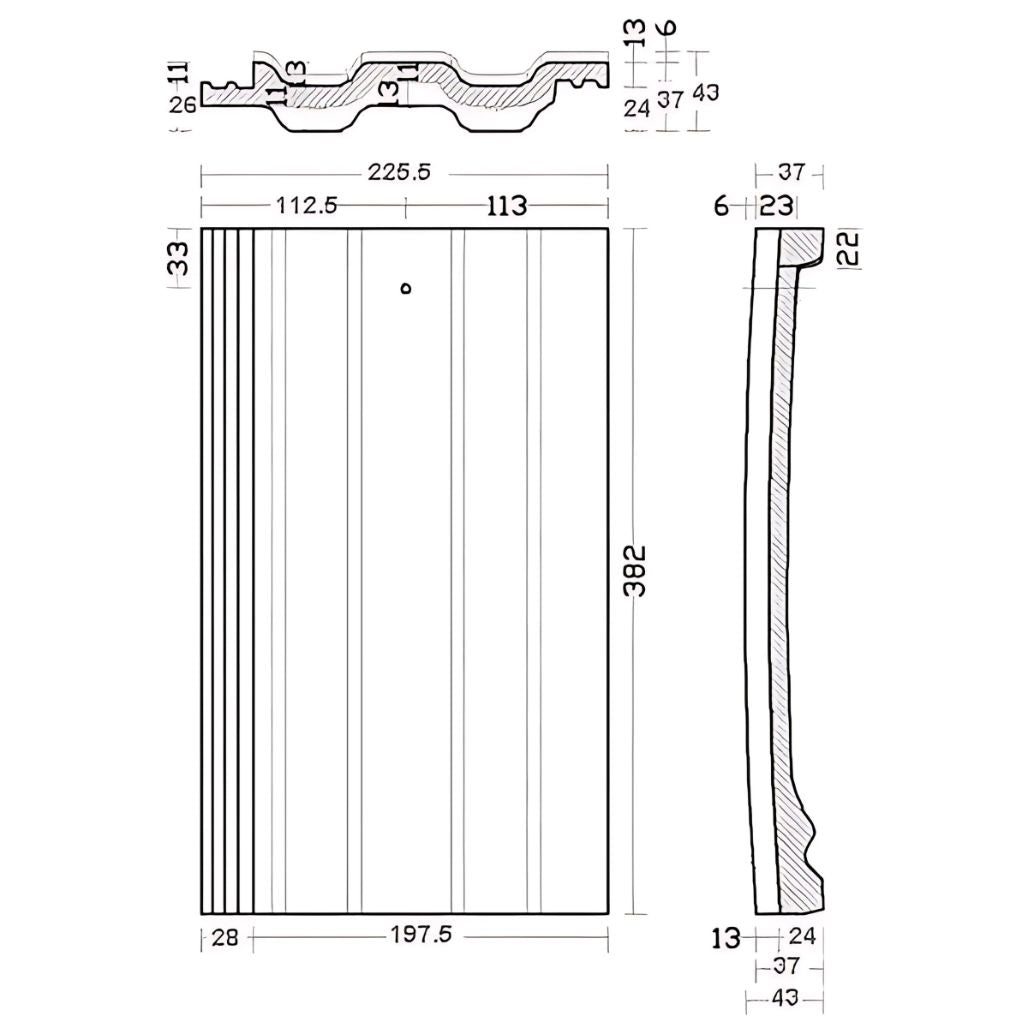

Tile Size: 382 x 226mm
-
Minimum Pitch & Headlap:
-
Through coloured: 17.5° at 100mm headlap, 25° at 75mm headlap
-

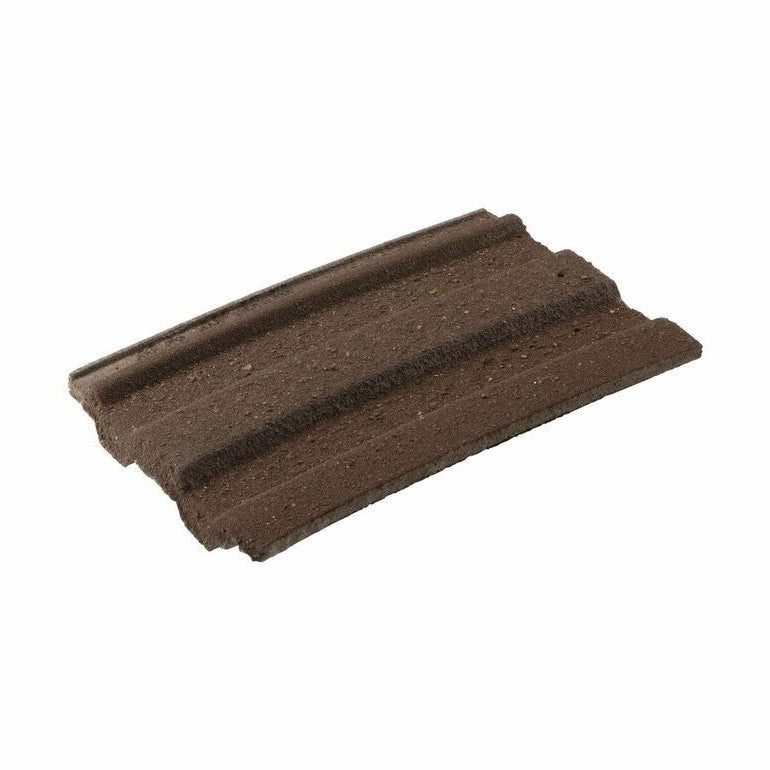

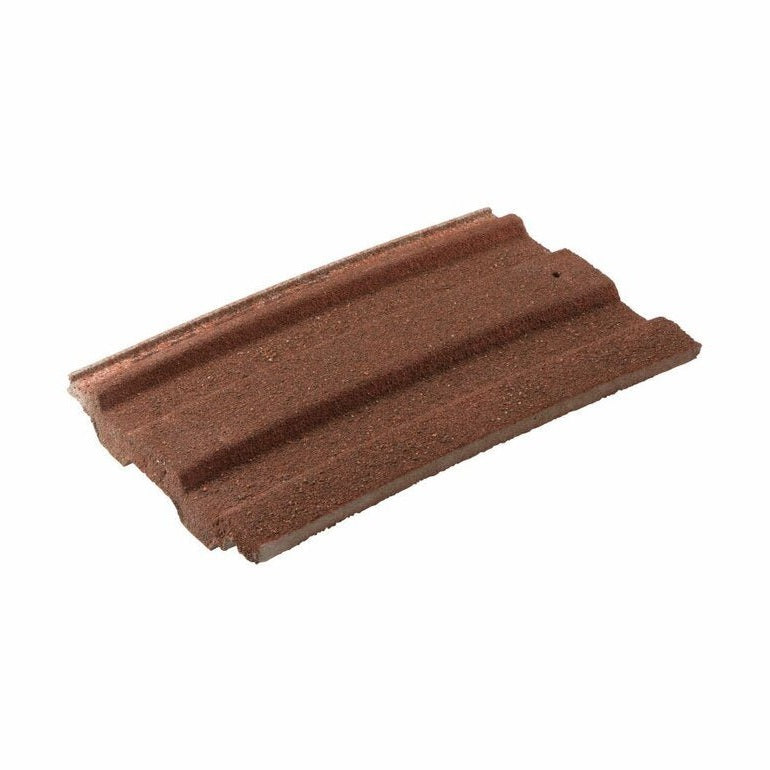

Granular Finish: 22.5° at 100mm headlap, 30° at 75mm headlap
-
Maximum Pitch: 90° (subject to fixing specification)
-
Headlap Range: Minimum 125mm
-
Gauge Range:
-
Through coloured: 257mm – 307mm
-
Granular: 282mm – 307mm
-
Hanging Length: 360mm
-
Linear Cover per Tile: 200mm
-
Covering Capacity (Net):
-
Through coloured: 17.8 tiles/m²
-
Granular: 16.3 tiles/m²
-
Laid Weight:
-
Through coloured: 53kg/m²
-
Granular: 49kg/m²
-
Weight per 1000 Tiles: 3.12 tonnes
-
Weight per Pallet: 1.42 tonnes
-
Battens Required:
-
Through coloured: 3.56m/m²
-
Granular: 3.26m/m²
-
Batten Size: 38 x 25mm or 50 x 25mm
-
Recommended Nail Size: 50 x 3mm
-
Tiles per Pallet: 450
-
Tiles per Pack: 50
Frequently Asked Questions (FAQs)
What makes BMI Redland 49 a cost-effective roofing solution?
The small cambered interlocking design enhances the structural strength of the tile while reducing material waste. With its efficient coverage of 17.7 tiles per m², it offers economical roofing without compromising on durability or aesthetics.
Can these tiles withstand extreme weather conditions?
Yes, BMI Redland 49 has been rigorously tested for wind resistance, weather tightness, and compliance with BS5534, ensuring optimal performance in harsh conditions, including heavy rain and strong winds.
Is BMI Redland 49 suitable for refurbishment projects?
Absolutely. With a variety of finishes and a design that blends traditional and contemporary aesthetics, this tile is ideal for restoring older properties while providing the benefits of a modern, durable material.
