Wall Panelling Quantities: Strip Kits, Frames and Full Panels

Wall-panelling quantities depend on what is actually in the pack. Six decorative strips, a kit making three frames and one full acoustic panel are different purchasing units, even when they are all described as wall panelling. This guide explains how to prepare a materials schedule from the wall panelling range, with worked examples for strip lengths, frame kits, panel widths and useful spare allowances.

Start with a finished-parts list

Use the agreed design to list the components that will actually be fitted. For a strip layout, record each finished length and quantity. For decorative frames, count the intended frames and identify their dimensions. For full panels, draw the panels across the wall and record the required cuts and edge details.

Keep the design calculation separate from the purchasing calculation. The first establishes what the wall needs; the second works out which available packs provide it. Combining them too early can encourage a layout to be changed unintentionally just to use a convenient kit, or hide a shortage behind a total linear-metre figure.

Six strips do not mean six finished wall panels

The Richard Burbidge 60mm x 1200mm PaintReady Shaker Kit contains six strips. It does not supply six complete rectangular panelled areas. The number of decorative spaces created depends on the layout, including which strips form continuous rails and which pieces fit between other components.

The 30mm x 1200mm Shaker Kit and 97mm x 1200mm Shaker Kit also contain six strips, but their widths differ. Keep the selected width in the schedule because changing it can alter the finished openings and cut lengths. A shared pack count does not make the kits interchangeable within an already dimensioned design.

Linear metres are a useful first check

Six 1200mm strips provide 7.2 linear metres of stock before cutting and trimming. The 60mm x 2400mm PaintReady Shaker Kit contains six longer strips, providing 14.4 linear metres. These totals help compare stock quantities, but they do not prove that every finished piece can be obtained from a particular pack.

For example, a requirement for six unjoined 1500mm pieces cannot be met from 1200mm strips merely because several packs contain enough total length. The required individual piece length matters. Confirm whether joints are permitted by the design and product guidance before assuming shorter stock can be combined into an equivalent component.

Draw cuts within individual stock lengths

Suppose a checked layout needs six pieces at 1000mm and six at 350mm. Six 1200mm stock strips can provide the six longer pieces, but their nominal 200mm remainders cannot provide the 350mm pieces. The shorter pieces therefore need additional stock, despite the total leftover length appearing useful when added together.

With an appropriate checked cutting allowance, three 350mm pieces may fit within one 1200mm strip, so two further strips could provide the six shorter pieces. That gives eight stock strips before any additional spare requirement, which would mean two six-strip kits. This example explains layout arithmetic, not a universal cutting tolerance or installation detail.

Longer stock can change the cutting layout

Compare the same finished-parts list against 2400mm stock where that product is suitable. Two 1000mm pieces might fit within one length with room for the actual cutting allowance, but the remaining section still needs to be checked before it is assigned to another finished part. Do not count nominal remainders twice.

The most efficient option is not always the one with the fewest offcuts. Handling, access, permitted joints and the available product width matter too. Compare a complete workable cutting plan for each suitable stock format, then choose the packs that support the agreed design rather than a theoretical minimum that cannot be fabricated as drawn.

Classic kits are counted by frame contents

The Richard Burbidge 420mm Classic Wall Panel Kit is identified as making three square decorative frames. The 700mm Classic Wall Panel Kit and 1000mm Classic Wall Panel Kit make three rectangular frames in their respective formats. These are moulding kits, not solid sheets covering the whole area inside each frame.

If a design requires eight matching frames of one format, three three-frame kits provide nine frames' worth of components before any permitted modification or spare policy. Keep the exact kit format identified. Do not combine different frame sizes into one generic quantity simply because each pack makes three decorative shapes.

Dado length needs a separate line

The Classic Wall Panel Kit with Dado Rail includes a 1.8m dado rail alongside its frame components. Count the rail requirement separately from the number of frames. A wall may need a different amount of continuous horizontal trim from the amount supplied by the frame kits chosen for the decorative layout.

For example, a nominal 3.6m rail requirement is not automatically a finished joint-free run from two 1.8m pieces once the actual joining and end details are considered. Prepare the required cut and joint arrangement, and check how any corners affect it. Keep additional rail or finishing components explicit rather than assuming they are included by the word kit.

Full acoustic panels use width and height

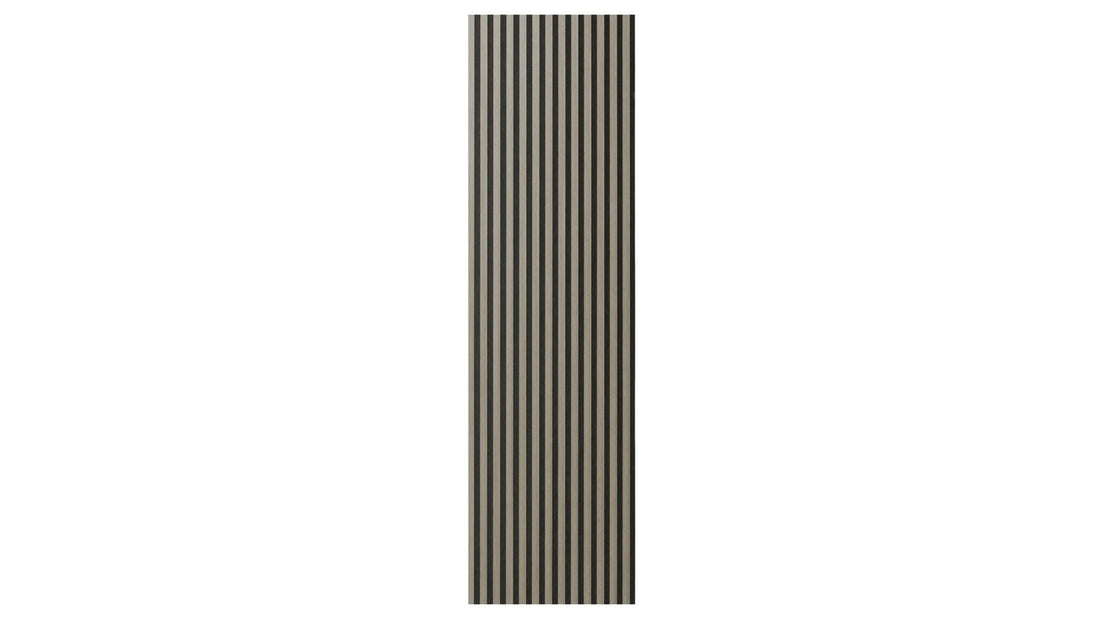

The Mendes Walnut Laminate Acoustic Wall Panel is listed at 2400mm x 608mm x 21mm. A single nominal face therefore has an area of 1.4592 square metres. That figure is useful for initial comparisons, but the panel's width and height still determine how it can be arranged across the actual wall.

The Mendes Oak Laminate Acoustic Wall Panel provides another finish in the same listed format. Keep the finish reference separate on the order even where dimensions match. A mixed quantity of two finishes should not be treated as one interchangeable stock pool unless the design deliberately calls for that combination.

Count panels across the actual width

For a geometric example, a 3000mm-wide area divided by a nominal 608mm panel width gives slightly less than five panels. Five full-width panels total 3040mm before any required joint, edge or installation details are considered. The final panel arrangement and permitted cutting still need checking against the product instructions and actual wall measurements.

Do not subtract the area of every socket or small opening from the purchase quantity. Such cut-outs may not create reusable pieces that reduce the number of full panels needed. Draw the panel boundaries and openings together, then identify which stock pieces are actually required to produce the finished arrangement.

Allow for pattern and edge constraints

A pre-finished panel may have a visible direction or edge treatment that affects how offcuts can be reused. Confirm permitted cutting and orientation before relying on a rotated piece to complete the wall. A mathematically efficient arrangement is not useful if it produces an unsuitable exposed edge or an unwanted break in the visual pattern.

Likewise, keep frame and strip widths consistent with the design. An offcut from a 97mm strip cannot replace a 60mm component without changing the product or modifying it appropriately, and such alteration should not be assumed permissible. Label offcuts so their dimensions and intended use remain clear throughout the job.

Choose spares after pack rounding

Review what remains once the required quantities have been rounded to whole kits or panels. A spare complete frame, an unused long strip and several tiny offcuts have different practical value. Decide whether the remainder meets the project's needs before automatically adding a standard percentage to every line.

If an extra trial or replacement piece is useful, state that purpose in the schedule. Keep the base quantity, pack rounding and additional spare allowance visible. This makes the order easier to review and avoids a well-intentioned reduction that removes material needed for a planned cut, trial or future repair.

Check the delivered units before cutting

Compare each pack with the selected product reference and expected contents. Confirm strip dimensions, frame kit format or full panel finish as appropriate. Resolve any uncertainty before cutting, especially where abbreviated catalogue titles could be mistaken for the dimensions of the finished decorative shape.

Keep the final schedule with the installation and decorating information. If more material is needed later, the record should show which exact product was used and how it was counted. That is more reliable than ordering another wall-panel kit without knowing whether the original purchase contained strips, frames or a full pre-finished panel.

Wall-panelling quantity FAQs

Does a six-strip kit make six complete panels?

No. It contains six individual strips for a layout you design. The number of decorative spaces depends on the rails, uprights and finished dimensions. Prepare a cut list before converting the requirement into kits.

Is total linear length enough to calculate Shaker kits?

It is a useful first check, but each finished piece must fit within the available stock lengths with appropriate allowances. Draw the cuts for individual strips and account for permitted joints before deciding the number of packs.

Are Classic frame kits solid wall panels?

No. They provide decorative mouldings for the stated frame shapes. The wall inside the frames remains part of the decorative arrangement. Count the required frames and any separate dado or finishing components rather than treating the kit as sheet coverage.

Can I subtract every opening from acoustic-panel area?

Not reliably. Small cut-outs may not reduce the number of whole panels needed. Plan the panel boundaries, openings and permitted reuse of offcuts together. Purchase quantities should come from the workable layout, not area subtraction alone.

Should I always add ten per cent spare material?

No fixed allowance suits every kit and layout. Check the actual cuts and the remainder after whole-pack rounding, then add a justified spare if needed. A complete spare component may be more useful than a percentage expressed only as theoretical area.

What units belong on the order?

State whether the quantity means strips, kits, frames' worth of components or full panels. Include the exact dimensions and finish. Clear units prevent a correct-looking number from being applied to the wrong purchasing format.
