Marley Ridge, Hip and Valley Fittings: Plan the Roof Junctions

Ridges, hips and valleys deserve their own place on a Marley roof materials list. These junctions are easy to overlook when most of the discussion centres on the colour of the main tiles. Yet a roof can be held up by a missing end fitting just as easily as by a shortage of field tiles. This guide explains the buying decisions around Marley roof junctions, helping you prepare a clearer schedule for your roofer and supplier.

Name each roof junction on the drawing

Start with a roof plan and label the lines where the slopes meet. A ridge is the upper meeting line of roof slopes. A hip forms an outward corner between adjoining slopes, while a valley forms an inward junction that receives water from the neighbouring roof areas. A mono-pitch roof has a different upper-edge arrangement from a conventional roof with two opposing slopes. These distinctions help you ask for the right family of fittings.

Mark every separate section, including short ridges above dormers and small hips on extensions. Give each line a reference such as R1 or H2 and record its measured length. This creates a useful link between the drawing, the roofer's specification and the order. Browse the Marley roofing fittings and tiles collection alongside that schedule, rather than selecting a fitting because its photograph resembles something already on the roof.

Choose a ridge shape as part of the whole roof

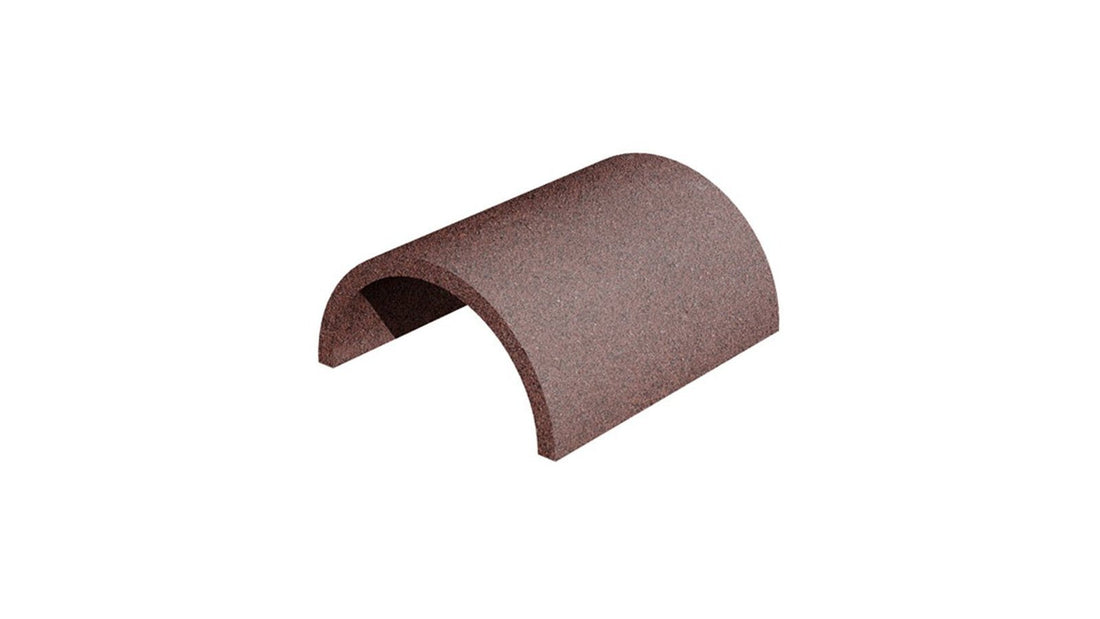

The Marley concrete 457mm segmental ridge tile has a curved profile, while the Marley concrete 457mm Modern ridge tile offers a different shape. Compare the intended appearance with the main tile, but ask the roofer to confirm the permitted combination and fixing system. The ridge is highly visible against the sky, so its shape and colour can have a noticeable effect even though it covers a relatively small part of the roof.

Nominal length is useful identification information, not a complete quantity calculation. The installed arrangement may include joints, end pieces and other details that affect the order. Do not simply divide the ridge length by the number in a product title and assume the result is final. Request an itemised ridge schedule with the fitting type, finish, system components and any end treatment identified separately.

Mono ridges and stop ends have specific jobs

A Marley segmental mono ridge tile is a distinct fitting for a specified mono-ridge arrangement. It should not be ordered as an interchangeable version of an ordinary ridge merely because the material and length look familiar. On an extension or lean-to design, ask the roofer to identify whether the upper edge is a mono ridge, an abutment or another detail. The building geometry decides the arrangement.

Similarly, a Marley segmental stop-end ridge tile belongs at the appropriate termination in a compatible design. Count the actual ends shown on the specification and confirm how each is finished. A small roof with several separate ridge runs may need a different mix of standard and end fittings from one long uninterrupted ridge, even when the total measured length is similar.

Keep left and right, top and bottom, and viewing direction explicit wherever a detail uses handed components. A note such as “two end pieces” leaves too much room for interpretation. Ask for the manufacturer's description or product reference and put it beside the drawing reference. That small administrative step can prevent a return or a last-minute search while the roof is open.

Hip fittings: do not confuse appearance with compatibility

The collection includes options such as the Marley concrete plain bonnet hip tile and the Marley concrete plain arris hip tile. These are specialist forms rather than general substitutes for any ridge fitting. The correct choice depends on the main tile system and the geometry of the hip. Ask your roofer which fitting and variant the design calls for, including any pitch or angle designation.

A bonnet-style appearance and an arris-style appearance create different lines down a roof corner. The visual choice matters, but it comes after the fitting has been shown to suit the roof. Do not estimate a required angle from an online product photograph. Provide the roof drawing and measured pitch to the person specifying the fitting, particularly where adjoining slopes differ or a refurbishment includes an unusual junction.

Clay fittings need their own range checks

For a clay plain-tile roof, distinguish between named families. A Marley Hawkins clay granny bonnet and a Marley Acme clay granny bonnet should be considered in relation to their corresponding tile ranges and approved details. Similar colour names or a broadly similar silhouette do not establish that two fittings can be exchanged without checking. Confirm the full product name and selected finish before the order is released.

Clay fittings can also show natural variation in shape. Marley's guidance on sorting clay roof fittings explains why installers assess and arrange suitable pieces before fixing. For the buyer, the practical implication is to allow the roofer to inspect the delivered fittings and plan their use. Do not dismiss every visible variation as a defect or assume every piece can be installed in any sequence without assessment.

Valleys need a deliberate design decision

A valley brings together water from adjacent slopes, so the proposed detail must be clear before you buy. The Marley concrete plain valley tile is one product to discuss for an appropriate plain-tile arrangement. Clay options include range-specific fittings, and the choice must follow the intended roof system. A valley tile is not a universal solution for any internal roof junction or a way to avoid specifying the underlying detail.

Ask whether the design uses purpose-made valley tiles or another valley arrangement, then request the exact components required. Record the length of each valley and any changes in geometry. The number of main tiles cut alongside a valley belongs in the roofer's quantity calculation, while specialist valley fittings belong on their own order line. Keeping those two quantities separate makes the estimate easier to check.

Confirm the dry-fix system by name

“Dry ridge” and “dry hip” describe categories of installation, not a single universal kit. Marley's Dry Hip System information identifies particular compatible hip fittings. Its Ventilated Dry Ridge System information has its own compatibility details. These examples show why a generic assurance that everything is Marley is not enough to establish the exact combination.

Ask the roofer to name the system and list the components, including the fittings, fixings and other items needed for the proposed detail. Clarify what is supplied with a product and what is ordered separately. Do not assume that buying a ridge tile includes the fixing kit, ventilation components or all the parts required along the complete ridge. The order should reflect the system specification, not just the visible ceramic or concrete pieces.

Build a junction schedule the supplier can check

Give every roof junction a line in the schedule. For each, include its drawing reference, measured length, fitting family, selected colour, nominal size and any angle or handed designation. Add separate lines for end components and the associated fixing system. If the same fitting serves several locations, retain the location breakdown even if the final purchase quantity is combined into one order line.

Have the roofer review that schedule against the drawings before ordering. A supplier can help identify products from clear information, but cannot infer an unseen roof's geometry from a colour choice. Where a detail remains unresolved, label it as awaiting confirmation. This is preferable to ordering a guessed fitting and discovering later that it does not suit the approved installation.

Delivery checks that protect the installation programme

When fittings arrive, compare the labels and quantities with the schedule while the delivery paperwork is available. Check visible condition and record any concerns according to the supplier's delivery process. Keep different fitting types and finishes identifiable. A pallet of similar-looking roof components is much easier to manage when each group can be traced to its intended roof location.

Agree storage and handling with the roofer. Avoid repeatedly moving fragile fittings around a crowded site because the delivery area was not planned. Before installation starts, confirm that the special components needed to finish each junction are present. This check is particularly valuable on roofs with several small dormers or hips, where a modest overall tile quantity can conceal a surprisingly varied fittings list.

Frequently asked questions

Can a ridge tile also be used on a hip?

Some products are suitable in specified ridge and hip arrangements, but that is product- and system-dependent. Confirm the exact fitting, roof geometry and installation system. Do not transfer approval from one combination to another because the fittings look similar.

Does a 457mm ridge tile cover 457mm of finished ridge?

Treat the stated size as nominal product information. Ask the roofer to use the installed detail and manufacturer guidance when calculating quantities, including joints, ends and allowances. A simple length division is only a rough starting point unless the relevant coverage basis is confirmed.

Are all Marley dry-fix components interchangeable?

No universal compatibility should be assumed. Identify the named system and its permitted fittings. Check the current instructions and the contents of each product before ordering components from different systems or substituting a visually similar part.

Why does the order include both standard and stop-end ridges?

They perform different roles within an appropriate ridge arrangement. Standard units form the run, while specified end fittings finish particular terminations. The number and type depend on the roof's layout, so count the actual details on the drawing.

What information helps identify a hip fitting?

Provide the main tile range, material, roof pitch, junction geometry, required finish and any existing product references. For repairs, clear photographs and measurements from a roofer can help. An image of the visible face alone may not establish the correct fitting.
