GTEC Fire Board: System Documents and Substitution Checks

Ordering GTEC fire-resistant plasterboard should follow a current construction specification. The board is an important component, but the fire performance of a partition or ceiling also depends on how the complete system is defined and built. This guide helps buyers check the relevant documents, identify the correct Siniat product and manage changes without turning a retail description into an unsupported fire-rating promise.

Ask for the system reference before the shopping list

Begin with the wall or ceiling's required function and the current specified system reference. Ask which drawing and supporting information apply to the actual location. A note saying “pink board” leaves too much unresolved: the product, thickness, layers, framing and other details may all be important to the intended performance.

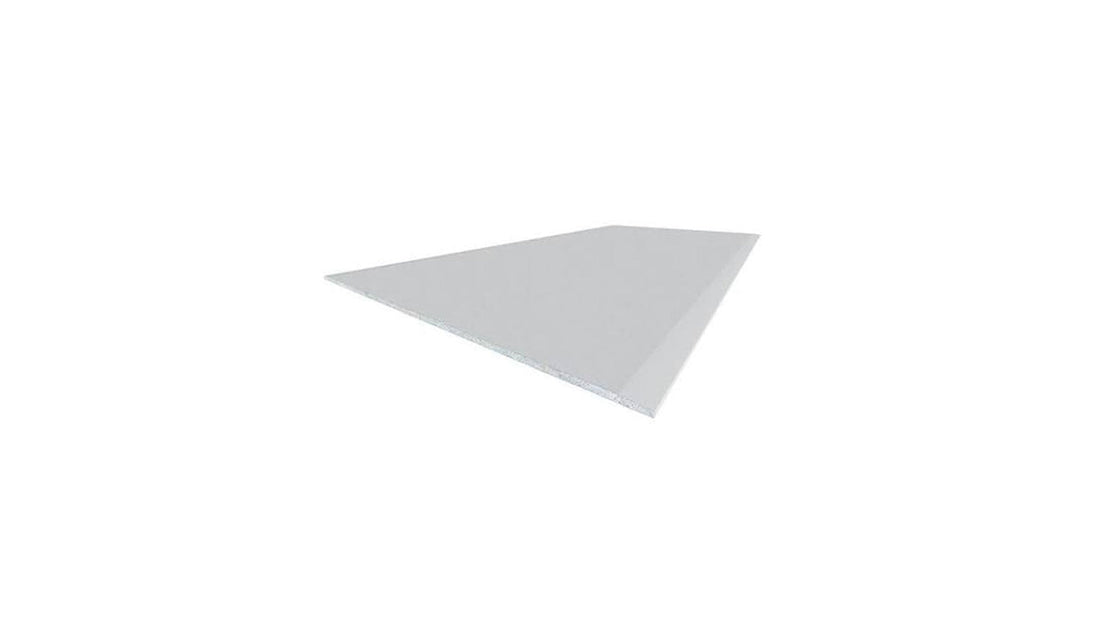

GTEC Fire Resistant Tapered Edge Plasterboard is listed in 12.5mm and 15mm thicknesses at 2400 × 1200mm. Those options should be matched to the specification, not ranked as a general good-and-better choice. A product option becomes useful when it corresponds to the supported construction that the project actually requires.

Write the reference beside the purchasing line. If the project contains several fire-resisting walls or ceilings, keep their requirements separate until identical specifications have been confirmed. Similar-looking surfaces can serve different roles, and one room's approved arrangement should not be copied to another location merely to simplify the order.

Understand what each document is for

A product technical sheet identifies characteristics of the board. A test report records a tested arrangement and its results. A classification report provides a formal classification and its applicable scope. These documents are related, but one should not be treated as a complete substitute for the others when deciding whether a proposed construction is supported.

Ask the responsible specifier to confirm the evidence for the exact system, including any permitted variations. The buyer does not need to invent an interpretation of every technical document. The practical aim is to obtain a clear, traceable specification that can be converted into an accurate materials order and checked at delivery.

Siniat explains that direct and extended application rules determine what variations can be supported beyond a tested arrangement. Do not assume that a change is acceptable because it appears more substantial or more protective. A different board, stud profile or other component can move the proposal outside the supported scope unless the relevant evidence permits it.

Match the fire board's edge and thickness

The collection includes GTEC Fire Resistant Square Edge Plasterboard, 12.5mm as well as the tapered-edge product. The square-edge listing identifies a 2400 × 1200mm sheet. Keep the edge profile in the order description and confirm its suitability for the specified joint and finishing arrangement instead of treating edge choice as a purely cosmetic matter.

If a drawing names a particular thickness, record it exactly. Do not swap 12.5mm for 15mm, or the reverse, without confirmation. The change can affect the construction, dimensions, interfaces and associated materials. A thicker board is not automatically an approved substitute in every system, even if it seems like a cautious choice.

Check every layer rather than just the visible outer face. A multi-layer arrangement may have requirements for the board and treatment of each layer. The schedule should show which product goes where, with enough detail for the installer to distinguish it during work. Do not reduce a layered specification to an unexplained total thickness.

Keep the surrounding components in the specification

The framing, supports, fixings, insulation and junctions belong to the system too. A list that names the board precisely but describes all other components generically can leave room for unintended substitutions. Ask for those items to be identified in the same current construction detail and use that information when arranging associated purchases.

Openings, services and interfaces deserve particular attention. A door opening or penetration may require a specific detail, and the adjoining construction can affect what is supported. Keep these questions with the responsible designer and installer. Do not improvise a fire-stopping or fixing method from a general article or a product photograph.

Avoid accepting a familiar detail without checking its version. Manufacturers can revise system evidence and application guidance. A saved brochure or an old project drawing may not be the appropriate basis for new work. Obtain the current information for the intended application and retain the version used for the purchasing decision.

Do not transfer a partition detail to structural protection

A fire-resistant board used in a partition is not automatically suitable for every structural protection proposal. Encasement of steel or another structural application needs its own supported system. Do not assume that boxing a member in a familiar number of plasterboard layers creates the required protection merely because the boards are described as fire resistant.

Siniat has published changes to its encasement range, illustrating why current application-specific guidance matters. For a new structural protection enquiry, ask for the manufacturer's current supported solution and the relevant project design information. Do not base the order on an old recollection of how a previous beam was enclosed.

This distinction helps the merchant respond to the right question. “Which exact product is specified in this system?” is a purchasing enquiry that can be checked against the catalogue. “How should this structural member be protected?” requires appropriate design information. Keeping those questions separate prevents a product recommendation being mistaken for a completed design.

Coordinate acoustic and vapour requirements

GTEC dB Soundboard may be relevant where a project also has acoustic requirements, but its name does not establish the fire performance of an unspecified wall. Where a supported design uses more than one board type, retain the exact arrangement. Do not combine a fire detail and an acoustic detail independently and assume their benefits simply add together.

GTEC Vapour Board is another distinct product, with an integrated backing and its own characteristics. It should not be substituted for a fire board because both are 12.5mm thick. Nor should a fire board be assumed to provide the vapour-control function of that separately identified product. Obtain a coherent design where several requirements apply.

Use the Siniat and GTEC collection to compare product identities against the agreed specification. If an alternative brand is being considered, the GYPFOR plasterboard range is a separate catalogue comparison, not evidence of system equivalence. Any alternative needs appropriate confirmation for the complete construction rather than a size-only match.

Set a clear substitution process

Tell everyone involved in purchasing that changes to specified components need recorded confirmation. This includes changes proposed because stock is limited, delivery dates differ or a similar product costs less. Identify the issue early so that an appropriate alternative can be considered before the programme puts pressure on an installer to make an informal decision.

An approval should identify the replacement precisely and refer to the revised supporting information where relevant. Update the order schedule and drawings used by the team, not just one email thread. If the same product has already been delivered to several areas, check that the change is communicated to everyone affected.

Do not rely on verbal descriptions such as “equivalent fire board”. Ask equivalent in which specified construction, on what evidence and with what conditions. The question is not whether the alternative is a reputable product in general. It is whether it is supported in the particular arrangement being built.

Check delivery and keep the handover record

At delivery, compare the labels with the confirmed product, thickness, edge and quantities. Keep different board types identifiable and record any discrepancy before material is distributed. Inspect the condition as well as the count. Damaged or wet boards should not be treated as acceptable merely because the product name on the delivery note is correct.

Retain the order, delivery information, current construction reference and agreed changes. Where the project requires inspection before work is concealed, arrange that as part of the programme. The final decorated surface cannot show every hidden component, so a useful record should be planned while those details can still be checked.

GTEC fire-board ordering FAQs

Does one sheet of fire board provide a fixed fire period?

No general period can be assigned to an isolated sheet. Fire resistance concerns the supported complete construction. Use the applicable system evidence, including its details and permitted scope, instead of converting the retail product name into a duration for an unspecified wall or ceiling.

Is a product data sheet enough to approve a partition?

It provides information about the product, but the proposed partition needs appropriate system evidence. Ask the responsible specifier to confirm the relevant construction and supporting documents. Keep the board's individual characteristics distinct from the performance of the assembled wall.

Can I change the board thickness if the original is unavailable?

Only after the proposed change has been appropriately confirmed. A different thickness can affect the supported arrangement and interfaces. Record the exact replacement and update the materials schedule rather than allowing an availability problem to become an undocumented substitution.

Are square-edge and tapered-edge fire boards interchangeable?

Do not assume so. Check the specified product and joint treatment for the construction. Keep the edge profile visible in the order and seek confirmation before changing it, even where the board family, thickness and nominal sheet dimensions otherwise appear to match.

Can a partition detail be used to protect a steel beam?

No such general transfer should be made. Structural protection requires an appropriate application-specific system and design information. Obtain current manufacturer guidance and the relevant project specification instead of adapting a familiar wall detail or relying on an old encasement example.

What should the buyer retain for handover?

Keep the confirmed specification, relevant document versions, product identification, delivery records and any approved substitutions. These records should explain what was intended and supplied. They support traceability without relying on the appearance of a finished surface or memories of packaging removed during installation.

Match the GTEC fire board to a current supported system, then keep that specification intact through ordering and delivery. Clear product identification and controlled changes make the buying process more reliable for everyone involved.
