Dual-Outlet Electric Showers: Headroom, Layout and Kit Choices

Dual-outlet electric showers combine a handset with an overhead head, giving you a choice of spray positions without changing to a mixer-shower system. The additional outlet also needs space, a suitable layout and realistic performance expectations. This guide helps you compare complete kits, check ceiling and enclosure clearances, and decide whether a dual arrangement improves the way your bathroom is used.

Understand what a dual electric shower provides

A dual arrangement offers two outlets, but the way they are selected depends on the exact product. Many models use a diverter to switch between a handset and overhead head. Do not assume that both can operate simultaneously, or that two heads mean twice the available heated water. Read the selected model's operating instructions and supplied-kit information before deciding how it will fit your routine.

Start with the electric showers collection and distinguish electric dual models from dual mixer or digital mixer showers also listed there. Similar overhead heads can appear on different shower types. An instantaneous electric shower heats incoming cold water within its own system, while a mixer relies on a suitable hot and cold supply. The external appearance does not establish the installation type.

Compare the complete supplied kit

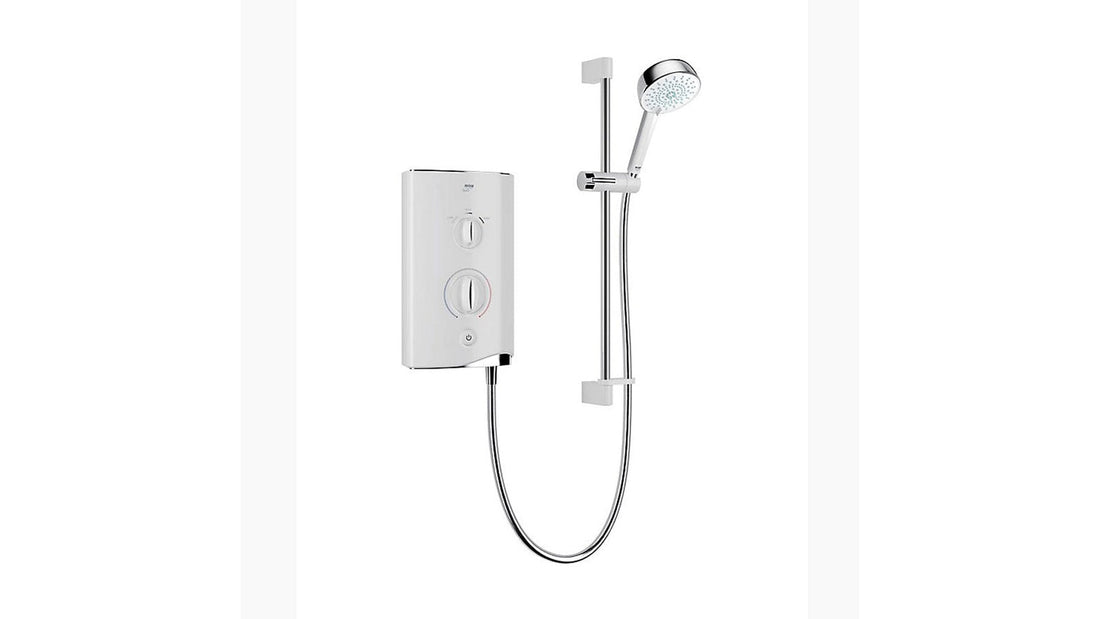

The Mira Jump Dual Multi-Fit 9.5kW electric shower and Mira Sport Manual Dual 9.0kW electric shower provide different packages to investigate. Compare the unit, rail or rigid riser, handset, overhead head, arm and diverter as a complete assembly. Confirm what is included rather than assuming every item visible in a room photograph comes in the box.

Record the overall installed dimensions and the position of each fixing. A replacement that suits the existing electrical unit footprint may still require different holes for the dual kit. Ask the installer to compare the full arrangement with the wall and enclosure. This gives a more accurate view of the work than comparing only the height and width of the shower's main case.

Measure the available headroom

Check the ceiling height and the tallest user's comfortable standing position beneath the overhead head. Include the depth of the tray or finished floor level in your measurements. The head, arm and any vertical components need to fit within the product's permitted arrangement. Do not judge clearance from a photograph of a tall display enclosure that may be very different from your bathroom.

Sloping ceilings, beams and over-bath installations need particular attention. Draw the side elevation with the overhead outlet in its proposed position and check the manufacturer's dimensions. If there is limited headroom, ask whether the exact kit permits the arrangement you need. Do not shorten or modify components on an assumption that the visible pipework is freely adjustable.

Check where the overhead spray will fall

Plan the outlet position relative to the usable standing area, enclosure opening and nearby fittings. A large overhead head may look attractive but direct water too close to a door or screen edge in a compact layout. Assess the full enclosure and drainage arrangement with the installer. An outlet position should be chosen for how the shower is used, not only for symmetry on the wall.

The Mira Azora Dual 9.8kW thermostatic electric shower is another option to compare, with its own head and arm arrangement. Use the actual product drawing when planning projection. Check whether the arm can be positioned as intended and what limits apply. Adjustment described for one model should not be assumed to exist on another because their overhead heads look similar.

Keep the handset useful

An overhead outlet should add an option rather than make the handset awkward to reach. Consider the range of handset heights, the holder's operation and the hose route. Different users may prefer the handset for everyday showering, while the overhead outlet is used occasionally. Plan both positions so the arrangement remains practical for the whole household.

The Mira Sport Max Dual Outlet electric shower offers a further range to investigate. Compare the supplied handset and the controls with your priorities, but keep manufacturer performance claims within their stated conditions. A spray-enhancing feature or wider head does not remove the limits of the selected heating rating and water supply. The experience should be assessed alongside the installation requirements.

Position the diverter for comfortable use

Find out where the outlet selector sits and how it operates. Can the intended user reach it without stretching or moving into an awkward position? Does the control remain clear of a door, shelf or grab support? The answer may differ for someone showering seated and someone standing. Include the diverter in the layout drawing rather than treating it as a small detail to resolve later.

If a demonstration is available, try the movement and understand which position supplies each outlet. Otherwise, read the user guide and ask for a clear handover after installation. Do not assume all dual systems use the same sequence. The control arrangement should be intuitive for the people using the room, especially where several users prefer different outlets.

Match the heating rating and supply independently

A dual kit does not establish electrical suitability. The exact shower and rating must be assessed by a competent installer, with any required electrical work identified before purchase. The water supply also needs to meet the manufacturer's requirements. Increasing the number of outlets should not be confused with increasing heating capacity or correcting an inadequate inlet supply.

If replacing a single-outlet electric shower, explain that the project now includes a dual arrangement. Ask the installer to assess the main unit, kit position, fixings and any changes to the surrounding finish. A product marketed for replacement flexibility can help in some installations, but it does not guarantee a direct swap or eliminate the need for these checks.

Compare decorative finishes without losing the specification

The Mira Decor Dual 10.8kW electric shower provides a different visual approach from conventional white cases. Consider the main unit and the metalwork together, then compare them with the enclosure and taps. Finish names and screen images are not precise colour samples, so obtain further information where a close match is important.

Keep the selected finish and rating tied to the exact product reference. A range may offer different combinations, and not every finish necessarily appears at every power rating. Avoid building the room's design around an assumed variant. Confirm availability and suitability first, then coordinate the remaining visible fittings around the product that can actually be installed.

Ceiling-fed arrangements need their own planning

The Triton ENVi 9.0kW thermostatic electric shower with ceiling-fed kit is a distinct arrangement to investigate rather than treating it as a conventional wall-mounted dual kit. Read the complete installation guide for the components, routing and service access required. A cleaner-looking visible layout can involve different concealed work, which should be included in the project from the beginning.

Clarify where every component will be located and how it can be accessed for servicing. Coordinate the ceiling, wall finish and electrical work before those areas are completed. The product's appearance in the showering area is only part of the installation. Ask the fitter to explain the proposed arrangement using the actual model documentation so the project scope is clear before ordering.

Use approved heads, hoses and accessories

Electric shower accessories form part of the intended outlet arrangement. Do not replace the supplied overhead head with a larger decorative model, add a flow-restricting fitting or change the hose simply because the connections appear to match. Confirm compatibility with the shower manufacturer. Physical fit alone does not establish that an accessory will work safely and correctly with the unit.

This matters when trying to create a custom dual arrangement from a single-outlet shower. Use only a conversion or kit specifically approved for the exact model, if one is available. Otherwise, compare complete dual products designed for the purpose. Combining unrelated components can create a system that no longer matches the manufacturer's tested or instructed arrangement.

Plan cleaning and access to both outlets

An overhead head may be harder to reach than a handset, so think about how the specified cleaning routine will be carried out. Follow the manufacturer's instructions for cleaning the spray outlets and surfaces. Do not assume a household chemical suitable for tiles is approved for the head or finish. Keep the user guide so the correct method remains available after the installation paperwork is put away.

Check that the arrangement allows access for service without unnecessary removal of finished surfaces. Keep product references and photographs of the completed installation with the records. If an outlet's performance changes, use the approved maintenance guidance and obtain service advice where needed. Avoid compensating with unapproved accessories or internal adjustments that could alter the intended operation.

Decide whether the extra outlet earns its place

Compare the dual arrangement with a good single-handset setup using your actual routine. If the overhead head will be used often and fits comfortably, it may be a worthwhile addition. If headroom is limited or most users prefer a handset, a simpler layout may provide more practical space. This is a design decision, not a universal upgrade hierarchy.

Include installation, wall finishing and future cleaning in the comparison, alongside the product price. Ask everyone who regularly uses the shower which features matter to them. A well-chosen layout should make the room more pleasant to use without adding controls or components that create inconvenience. The best arrangement is the one that fits the space, supplies and household together.

Frequently asked questions about dual electric showers

Can both heads run at the same time?

Check the exact model's operating instructions. Many dual electric showers use a diverter to select one outlet at a time. Do not assume simultaneous operation from the presence of two heads or from another product's features. The supplied arrangement and permitted operation are model-specific.

Does a bigger overhead head mean a more powerful shower?

Not necessarily. Head size changes spray coverage and feel, while the heating rating and supply conditions constrain the available warm-water flow. Compare the manufacturer's product information and realistic installation conditions. A larger-looking head is not a direct pressure or performance measurement.

Can I add an overhead head to my existing electric shower?

Only use a kit or conversion explicitly approved for the exact model. Do not combine unrelated parts because their connections fit. If no approved arrangement is available, compare complete dual electric showers and have the replacement assessed by a competent installer.

How much ceiling clearance do I need?

Use the dimensions and positioning requirements for the selected kit, together with the finished floor or tray level and user height. There is no single clearance suitable for every model. Check sloping ceilings and the complete arm and head arrangement before ordering.

Is a dual electric shower the same as a dual mixer shower?

No. The outlets can look similar, but the water-heating and supply arrangements differ. An electric shower heats incoming cold water, while a mixer uses suitable hot and cold supplies. Identify the exact shower type before comparing installation requirements or treating one as a replacement for the other.
