Basin and Sink Waste Surveys: Planning Fittings Around Furniture

Replacing a basin, sink or cabinet often changes the space available for waste pipework even when the main outlet stays where it is. A short survey before ordering can prevent a new fixture from arriving alongside fittings that cannot connect it neatly. This guide explains what to measure, photograph and confirm when planning with our push-fit waste fittings collection, so the plumber receives a useful brief and the basket reflects the real job.

Record the existing arrangement before removing it

Take a wide photograph showing the fixture, trap, cabinet and downstream pipe route together. Then take close views of joints and readable product markings. Note what currently works and what is being changed. A replacement basin in the same position may still have a different waste outlet location, while a new cabinet may introduce drawers where the old unit had open storage. Those differences belong in the survey.

Keep measurements tied to fixed points that will remain after the old unit is removed. The finished wall and floor are often more useful references than a cabinet that is about to be replaced. If tiling or flooring thickness will change, include that in the information given to the installer. A plan based on temporary surfaces can become inaccurate once the room reaches its final dimensions.

Separate the fixture waste, trap and pipe fittings

The connection directly beneath a fixture, the trap and the downstream waste fittings are distinct parts of the arrangement. A FloPlast push-fit waste coupling is intended to join compatible pipework; it is not a substitute for choosing the correct fixture waste or trap. Establish what the new basin or sink includes and what must be purchased separately. Product bundles can vary, so check the actual contents rather than assuming every visible item is supplied.

Ask the plumber to identify the complete route from the fixture outlet to the existing drainage connection. This reveals whether the work is a straightforward replacement or an adaptation involving several components. Keep the trap choice and its maintenance access visible in the plan. A shopping list that begins halfway down the pipe can overlook the very connection that determines the rest of the layout.

Measure outlet position and usable cabinet space

Measure the position of the new fixture outlet from the relevant wall and cabinet references, using the manufacturer's dimensions where the product is not yet installed. Record the available height and depth beneath it. Include shelves, drawers, hinges and any pull-out storage. Usable plumbing space is the space left after those items are considered, not the empty volume shown when a cabinet door is first opened.

The downstream outlet position needs the same care. Record where it enters a wall or floor and what is known about the existing system. If the connection is hidden behind a panel, arrange access for assessment before finalising the fittings. Do not assume a pipe emerging from a wall continues in the expected direction or belongs to the system used in the visible section of the room.

Check whether a branch is actually required

A FloPlast push-fit waste tee may be part of a specified branch arrangement, but its inclusion should follow the plumber's design. If more than one fixture is being connected, explain which ones and where their outlets sit. A branch needs more consideration than whether the physical parts can be pushed together. The planned drainage arrangement, available space and access all need to be assessed together.

For a simple fixture replacement, do not add a tee just because a future appliance might be installed one day. Discuss the future requirement explicitly if it is real. The installer can then decide whether provision is appropriate and how it should be detailed. An unplanned extra connection can complicate a small cabinet and leave a component whose purpose or closure is unclear to the next person working there.

Treat size changes as a specified detail

The FloPlast push-fit waste reducer offers defined combinations of nominal sizes. If the new fixture arrangement calls for a transition, record both sizes and the exact variant required. Do not infer the pipe specification solely from the hole in the basin or the apparent size of an old trap connection. The plumber should confirm the route and suitable components for the particular fixture and system.

If old and new materials differ, that is a separate compatibility question. A reducer should not be treated as a universal adapter between systems merely because its smaller end appears close to the existing pipe. Photograph markings and provide accurate measurements where identification is uncertain. Resolving the transition early can prevent the rest of the materials from being ordered around an assumption that later proves wrong.

Choose direction changes around the final furniture layout

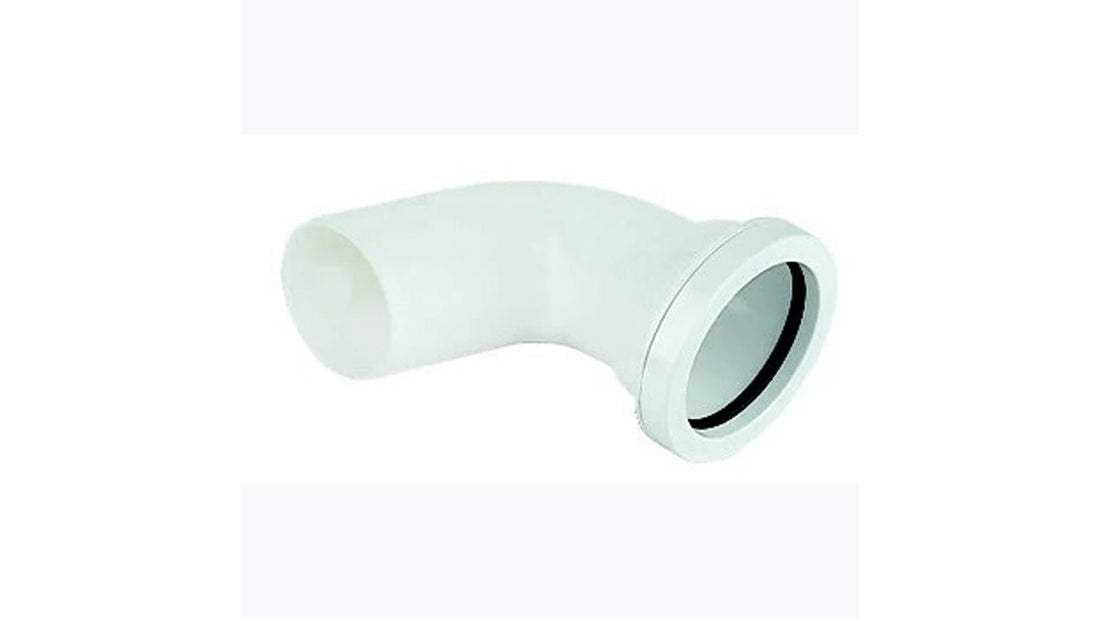

A FloPlast 92.5 degree push-fit waste bend is one of the direction-changing components to assess for the agreed route. The fitting's overall geometry matters in a confined unit. Confirm the space needed for both the bend and its connections, rather than looking only at the line the pipe will follow. A drawing that ignores fitting dimensions can appear to fit while leaving no practical assembly space.

Discuss whether a more direct route is possible before adding several turns to avoid furniture. Sometimes the cabinet selection or position needs review; sometimes the plumbing route can be revised. Those decisions are easiest before installation. Avoid cutting a new unit or altering fixed building elements simply to accommodate a speculative collection of fittings without agreement from the relevant installer or responsible trade.

Plan support without using the cabinet as a prop

Compatible push-fit waste pipe clips should be included in the support plan. Pipework should not rely on stored bottles, a shelf edge or the trap itself to hold it in a convenient position. Ask the installer where supports will be fixed and whether those surfaces are suitable. The finished arrangement needs to remain practical after the cupboard is filled and used in everyday life.

Keep the support locations clear of moving drawers and panels that need to be removed. If a cabinet back is intended to remain removable for access, explain that before fixings are chosen. A useful survey considers both installation and future servicing. It is frustrating to discover that the only access panel cannot be removed because a pipe support has been fixed through it without considering its purpose.

Do not confuse a tank connector with a fixture connection

The FloPlast push-fit waste tank connector is another item in the collection, but its name does not make it a universal connector for every basin or sink opening. It is intended for a suitable tank connection within its specified application. Compare the actual component required by the fixture and system, rather than selecting a product merely because it appears to pass through a hole and connect to waste pipe.

This distinction is useful when researching parts online, where similar-looking fittings may serve different purposes. Read the full product description and check the selected size. If you cannot confidently name the connection, send photographs and dimensions to the plumber or supplier. A small amount of identification work is preferable to buying a part that seems plausible but does not belong in the planned installation.

Make access and closure decisions before finishing

A FloPlast push-fit waste socket plug may be required where the approved arrangement includes closing a compatible socket. Confirm that purpose with the installer and record it on the drawing. Do not leave an unused branch unresolved or assume any available plug will fit. Likewise, a closure should not be confused with a designed maintenance access point unless the system arrangement supports that use.

Before boxing in or finishing the cabinet, agree how the installation will be checked and which components must remain reachable. Keep photographs of the completed route before panels hide it. Include the selected products in the job record. This gives a future plumber useful information and makes it easier to understand what sits behind the furniture without unnecessary dismantling.

Frequently asked questions

Will a new basin use the old waste pipe layout?

Possibly, but check the new outlet position, trap arrangement and furniture clearances first. A similar basin width does not establish that everything beneath it is identical. Compare the manufacturer's dimensions with the existing route and ask the plumber which parts can remain and which need to change before ordering replacements.

Is the trap included in this push-fit fittings range?

The components discussed here are waste fittings and accessories, and a coupling or bend should not be mistaken for a trap. Check the specific fixture package and separate trap specification. Establish the complete connection arrangement before ordering so a missing trap or fixture waste does not delay installation.

What should I measure inside a vanity unit?

Record the usable height, depth and width around the proposed outlet, along with drawer travel, shelves and access panels. Tie the measurements to fixed references and include the finished wall and floor positions. The empty cabinet opening alone does not show whether the plumbing will fit once all furniture components are in place.

Can a tank connector be used instead of a basin waste?

Do not assume that from its appearance or name. Select the connection specified for the fixture and intended service. The tank connector in this collection has its own application and compatibility requirements. If the required part is unclear, obtain identification advice before buying rather than experimenting with similar-looking fittings.

Should I leave space to remove the trap?

Plan suitable servicing access with the installer before the unit is finished. A neat arrangement is only practical if the required components can be reached when maintenance is needed. Consider drawers, shelves and removable panels, and avoid filling every available space with pipework simply because the initial assembly can be completed.

What should be handed to the plumber before ordering?

Provide the new fixture details, cabinet dimensions, photographs of the existing route, outlet measurements and any known pipe markings. Explain which items are changing and which are staying. Ask for a reviewed component list with exact sizes and quantities so the purchase follows the intended installation rather than assumptions.
