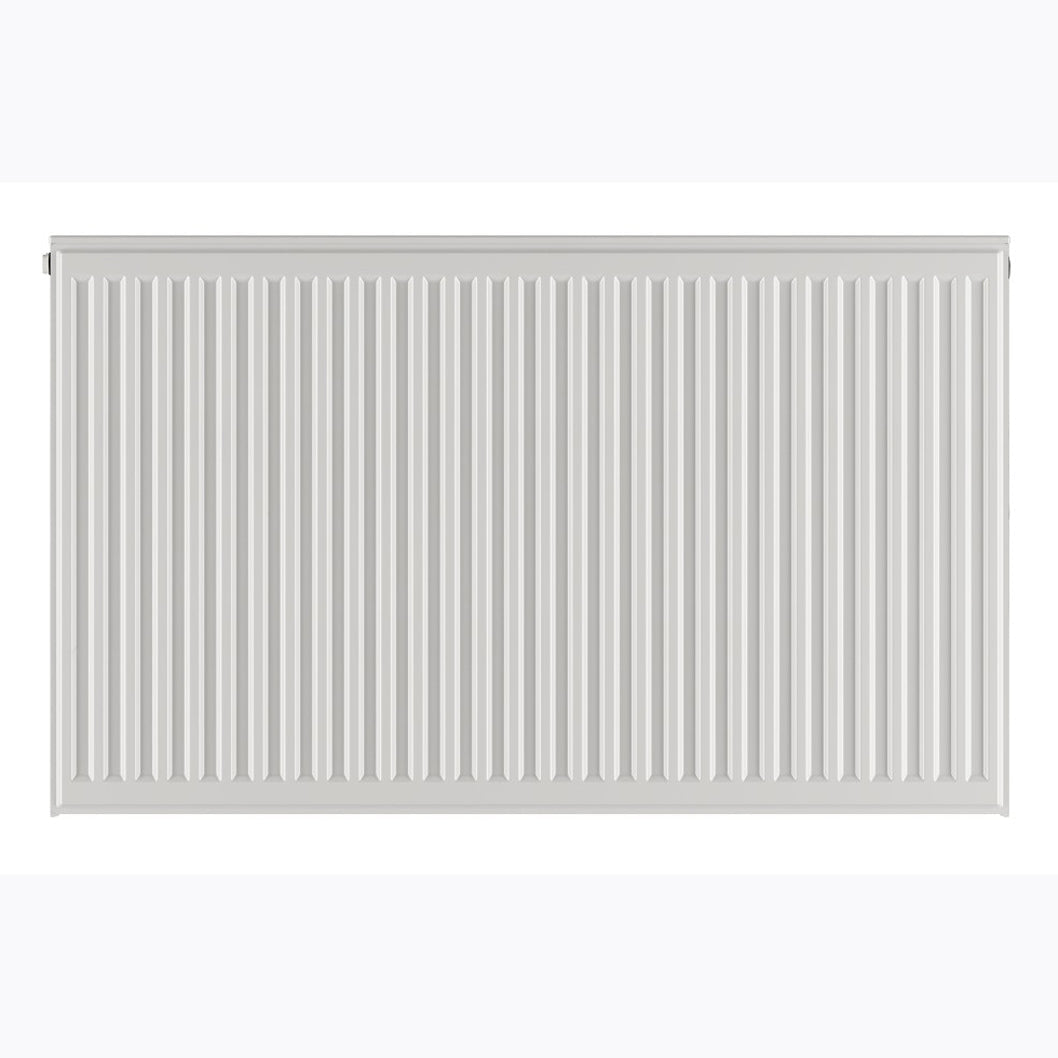

Stelrad Compact P+ Double Panel Plus Horizontal Radiator
The Stelrad Compact P+ Double Panel Plus Horizontal Radiator is designed to deliver reliable heating performance while maintaining a neat and compact profile. As part of Stelrad's popular Compact range, it offers a practical heating solution for both domestic and commercial central water heating systems, particularly in areas where available wall space is limited.
The radiator features an elegant integrated top grille and side panels, carefully designed to minimise movement and provide a secure, professional fit. These components are built to remain firmly in place throughout storage, transportation and installation, helping the radiator retain its clean appearance once fitted.
Efficient Heating Performance
The Compact P+ is a Type 21 (P+) radiator with a double panel and single convector. The convector is precision welded directly onto the waterways to help improve heat transfer and provide efficient, economical heating performance.
Manufactured from durable steel, the radiator has a smooth powder-coated Traffic White finish. Its classic styling and clean lines make it easy to complement a wide range of interior designs, while the horizontal format provides a practical solution for standard wall installations.
Quality and Durability
The Stelrad Compact P+ is manufactured under an ISO 9001 quality system and conforms to BS EN 442 standards. It is designed to operate at a maximum working pressure of 10 bar (145 psi), making it suitable for a wide range of domestic and commercial central heating applications.
Each radiator is supplied in robust, practical packaging to help protect it during storage and transportation, keeping the product in good condition until installation. BIM information is also available for projects that require Building Information Modelling data. A 10-year warranty provides additional reassurance about the radiator's long-term reliability.
Available Sizes
The Stelrad Compact P+ Double Panel Plus Horizontal Radiator is available in four sizes, all measuring 600mm in height. The different widths provide flexibility when selecting a radiator to suit the available wall space and required heating output.
- 600 x 400mm
- 600 x 500mm
- 600 x 600mm
- 600 x 800mm
The 600 x 400mm variant has a heat output of 538 Watts, equivalent to approximately 1,836 BTU/h. The wider 600 x 500mm, 600 x 600mm and 600 x 800mm variants provide progressively greater heating capacity, making it easier to select a suitable option for different room sizes and heat requirements.
Key Features
- Type 21 (P+) double panel radiator with single convector
- Available in 600 x 400mm, 600 x 500mm, 600 x 600mm and 600 x 800mm sizes
- Suitable for domestic and commercial central water heating systems
- Horizontal orientation
- Wall-mounted installation
- Manufactured from durable steel
- Precision-welded convector for efficient heat transfer
- Integrated top grille and side panels for a neat, secure fit
- Maximum operating pressure of 10 bar (145 psi)
- Conforms to BS EN 442
- Manufactured under an ISO 9001 quality system
- BIM available
- 1/2 inch BSP pipe inlet size
- Powder-coated Traffic White finish
- 77mm radiator depth
- 101mm projection from the wall
- Robust protective packaging
- 10-year warranty
- Heat outputs available across the range from 190W to 5,883W
- BTU outputs available across the range from 648 to 20,079 BTU/h
Frequently Asked Questions
What sizes is the Stelrad Compact P+ Double Panel Plus Radiator available in?
The Stelrad Compact P+ is available in four sizes: 600 x 400mm, 600 x 500mm, 600 x 600mm and 600 x 800mm. All variants are 600mm high, with the different widths providing flexibility for various wall spaces and heating requirements.
What type of radiator is the Stelrad Compact P+?
The Stelrad Compact P+ is a Type 21 radiator, also known as a Double Panel Plus radiator. It features two panels and a single convector, providing an effective combination of heat output and compact construction.
Is the Stelrad Compact P+ suitable for domestic and commercial use?
Yes. The Stelrad Compact P+ is suitable for both domestic and commercial central water heating systems. It has a maximum operating pressure of 10 bar (145 psi), conforms to BS EN 442 and comes with a 10-year warranty.
