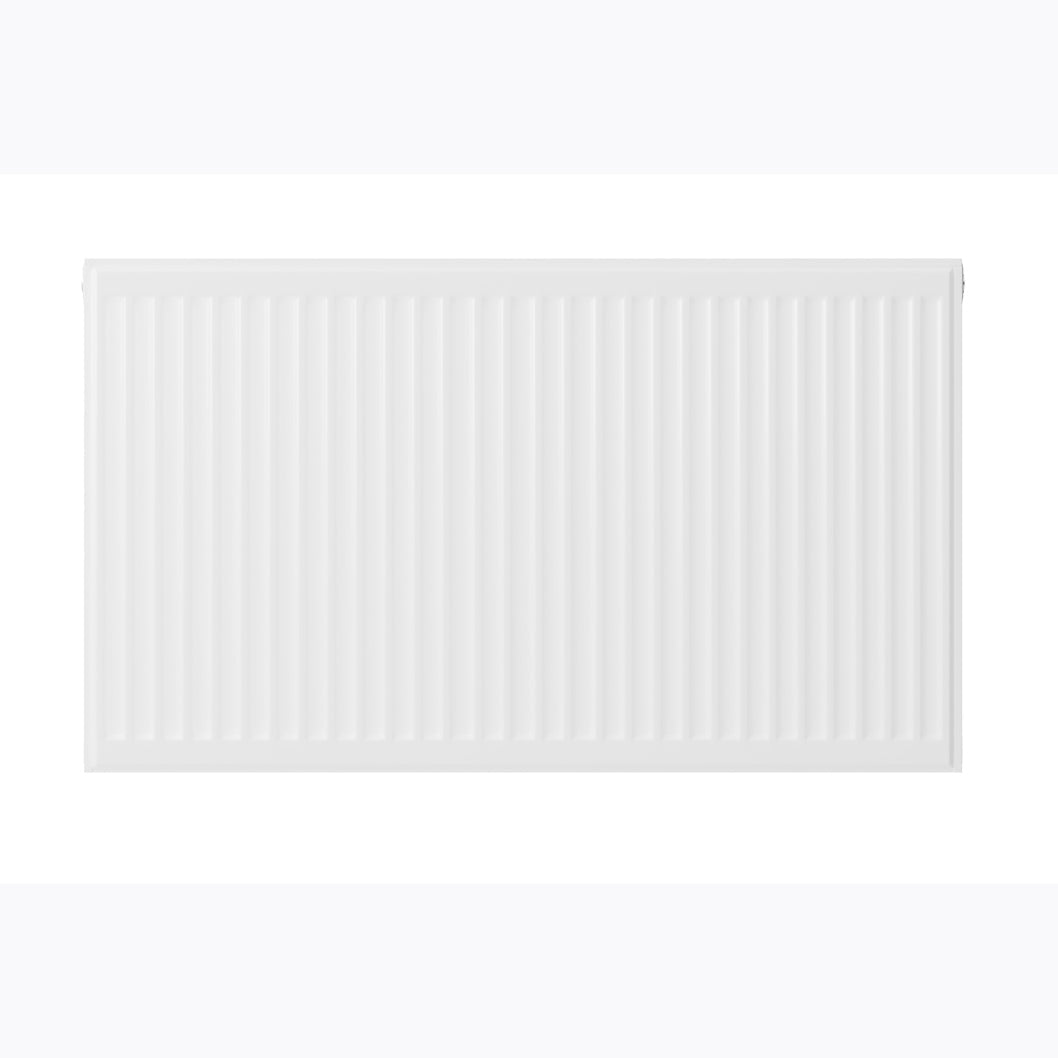

Stelrad Compact K2 Double Panel Horizontal Radiator
The Stelrad Compact K2 Double Panel Horizontal Radiator offers dependable heating performance with a practical, compact design. As part of Stelrad's popular Compact range, it is suitable for both domestic and commercial central water heating systems and provides a versatile solution for a wide range of rooms and applications.
Designed with a horizontal orientation, the radiator is a practical choice for standard wall installations. Its compact construction provides excellent sizing flexibility, while the clean Traffic White finish gives it a simple, professional appearance that can complement a variety of interior styles.
Efficient Heating Performance
The Stelrad Compact K2 is a Type 22 radiator featuring a double panel and double convector configuration. The convectors are precision welded directly onto the waterways to help improve heat transfer, providing efficient and economical heating performance.
Manufactured from durable steel, the radiator is finished with a smooth powder-coated Traffic White coating. The compact design combines effective heat output with a practical profile, making it suitable for both domestic and commercial environments.
Quality and Durability
The Stelrad Compact K2 is manufactured to recognised quality standards and conforms to BS EN 442. It is produced under an ISO 9001 quality system and is designed to perform at a maximum working pressure of 10 bar (145 psi).
Each radiator is supplied in robust protective packaging to help keep it in excellent condition during storage and transportation until it is ready for installation. BIM information is also available for projects requiring Building Information Modelling data. A 10-year manufacturer's warranty provides additional peace of mind.
Available Sizes
The Stelrad Compact K2 Double Panel Horizontal Radiator is available in seven different sizes, all with a height of 600mm. The range of widths makes it easier to choose a radiator that fits your available wall space while providing the required level of heat output.
- 600 x 500mm
- 600 x 600mm
- 600 x 800mm
- 600 x 900mm
- 600 x 1000mm
- 600 x 1200mm
- 600 x 1400mm
The 600 x 500mm variant has a heat output of 2,956 BTU/h. The wider options provide progressively greater heating capacity, allowing you to select a suitable size for different room dimensions and heating requirements.
Key Features
- Type 22 (K2) double panel radiator
- Double convector design
- Available in 600 x 500mm, 600 x 600mm, 600 x 800mm, 600 x 900mm, 600 x 1000mm, 600 x 1200mm and 600 x 1400mm sizes
- Suitable for domestic and commercial central water heating systems
- Horizontal orientation
- Wall-mounted installation
- Manufactured from durable steel
- Precision-welded convectors for efficient heat transfer
- Maximum operating pressure of 10 bar (145 psi)
- Conforms to BS EN 442
- Manufactured under an ISO 9001 quality system
- BIM available
- 1/2 inch BSP pipe inlet size
- Powder-coated Traffic White finish
- 100mm radiator depth
- 124mm projection from the wall
- Wall-mounted fixing system
- Robust protective packaging
- 10-year warranty
Frequently Asked Questions
What sizes is the Stelrad Compact K2 Double Panel Radiator available in?
The Stelrad Compact K2 is available in seven sizes: 600 x 500mm, 600 x 600mm, 600 x 800mm, 600 x 900mm, 600 x 1000mm, 600 x 1200mm and 600 x 1400mm. Each variant is 600mm high, with different widths available to suit different wall spaces and heating requirements.
What type of radiator is the Stelrad Compact K2?
The Stelrad Compact K2 is a Type 22 radiator with two panels and two convectors. This configuration provides effective heat transfer and a good level of heat output while maintaining a practical horizontal design.
Is the Stelrad Compact K2 suitable for domestic and commercial applications?
Yes. The Stelrad Compact K2 is suitable for both domestic and commercial central water heating systems. It has a maximum operating pressure of 10 bar (145 psi), conforms to BS EN 442 and comes with a 10-year warranty.
