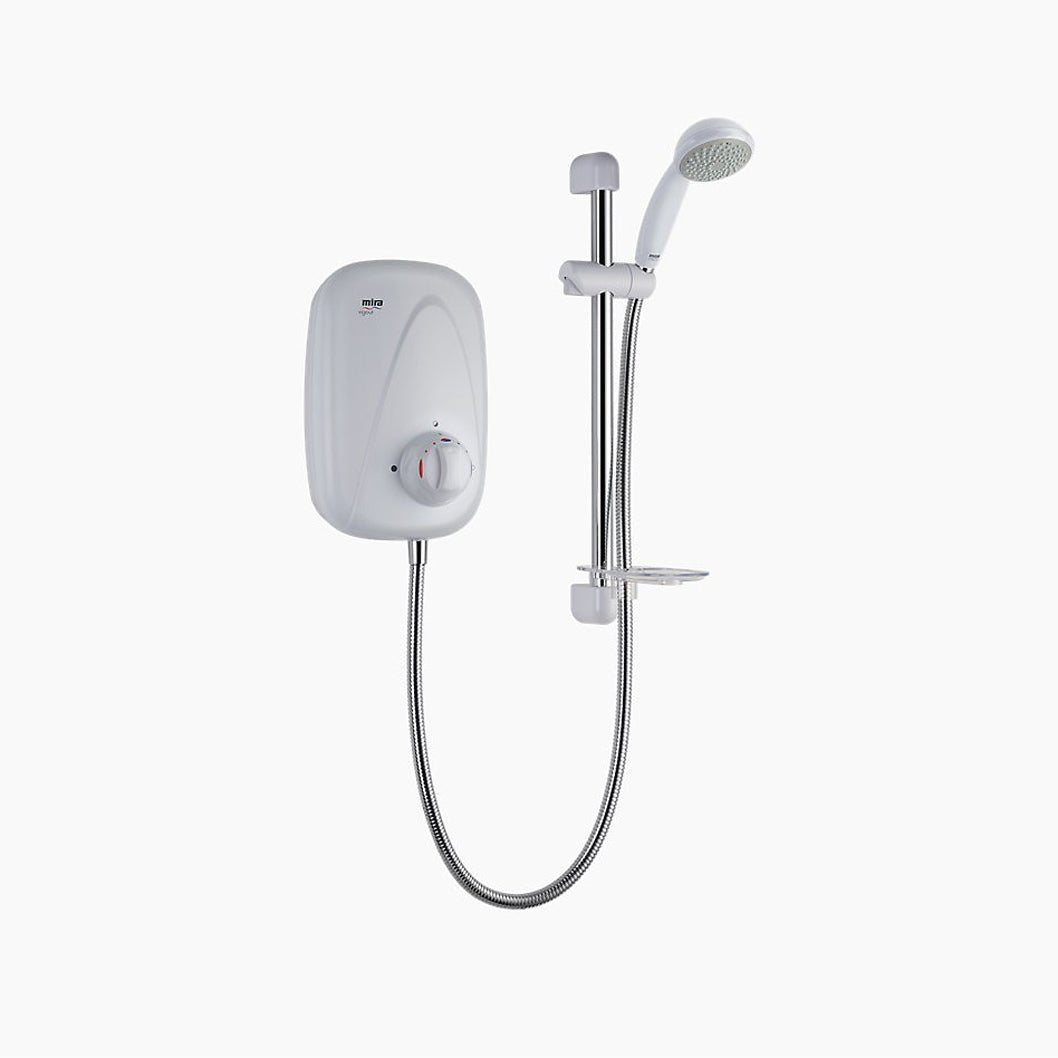

Mira Vigour Manual Power Shower
The Mira Vigour Manual Power Shower is designed to provide an invigorating and enjoyable showering experience, even in homes with low water pressure. With its integrated power shower performance and practical controls, it is a great choice for properties with a low-pressure water system and a plentiful supply of hot water.
Simple Flow and Temperature Control
The Mira Vigour features separate manual controls for water flow and temperature, allowing you to fine-tune the shower to suit your preferences. A phased shutdown function helps improve safety after use, while the unit is factory set to a safe maximum temperature for additional peace of mind.
Comfortable Shower Performance
With a flow rate of up to 12 litres per minute, the Mira Vigour delivers a strong and refreshing shower experience. The showerhead provides multiple spray options, allowing users to choose their preferred spray pattern for greater comfort.
The showerhead also features rub-clean nozzles, making it easier to remove limescale and everyday build-up. This helps keep the spray outlets clean and maintain effective shower performance over time.
Suitable for Low Pressure Systems
The Mira Vigour is designed for low-pressure water systems and can operate with a minimum maintained pressure of just 0.008 bar (80mm head). The maximum maintained pressure is 0.5 bar (5 metre head), while the maximum static pressure is 1.0 bar (10 metre head).
It is suitable for hot water supplies between 55°C and 65°C and cold-water temperatures of up to 25°C. A minimum cistern capacity of 230 litres is required for the shower to operate correctly.
Easy Installation and Maintenance
The Mira Vigour has been designed to make installation and servicing straightforward. There is no need to prime the unit, while removable filters and check valves make routine maintenance easier.
Water and cable entry points are located on the left and can accommodate rising, falling or rear entry. The shower uses a 15mm dual-entry push-fit inlet connection and 1/2" BSP male outlet connections.
The unit operates on a 230V supply with a ±10% tolerance and has a 3 amp supply rating. Its terminal block accepts connections up to 2.5mm².
Key Features
- Manual power shower
- Designed for low-pressure water systems
- Suitable for homes with a plentiful supply of hot water
- Separate temperature and flow controls
- Flow rate of up to 12 litres per minute
- Four-spray showerhead
- Rub-clean nozzles for easier limescale removal
- Phased shutdown function
- Factory-set safe maximum temperature
- Temperature stability of +6°C
- No need to prime
- Removable filters for easier maintenance
- Removable check valves
- 15mm dual-entry push-fit inlet connection
- 1/2" BSP male outlet connections
- Left-hand water and cable entry for rising, falling or rear entry
- 230V supply with ±10% tolerance
- 3 amp supply rating
- Terminal block connections up to 2.5mm²
- Minimum cistern capacity: 230 litres
- Minimum maintained pressure: 0.008 bar (80mm head)
- Maximum maintained pressure: 0.5 bar (5 metre head)
- Maximum static pressure: 1.0 bar (10 metre head)
Frequently Asked Questions
Is the Mira Vigour suitable for low water pressure?
Yes. The Mira Vigour is designed for low-pressure water systems and can operate with a minimum maintained pressure of 0.008 bar (80mm head). It is also suitable for homes with a plentiful supply of hot water.
Does the Mira Vigour have separate temperature and flow controls?
Yes. The shower has separate manual controls for temperature and water flow, allowing you to adjust each setting independently to create a more comfortable showering experience.
Is the Mira Vigour easy to clean and maintain?
Yes. The showerhead has rub-clean nozzles that make it easier to remove limescale and keep the spray outlets clear. The unit also has removable filters and check valves, making routine maintenance and servicing more straightforward.
