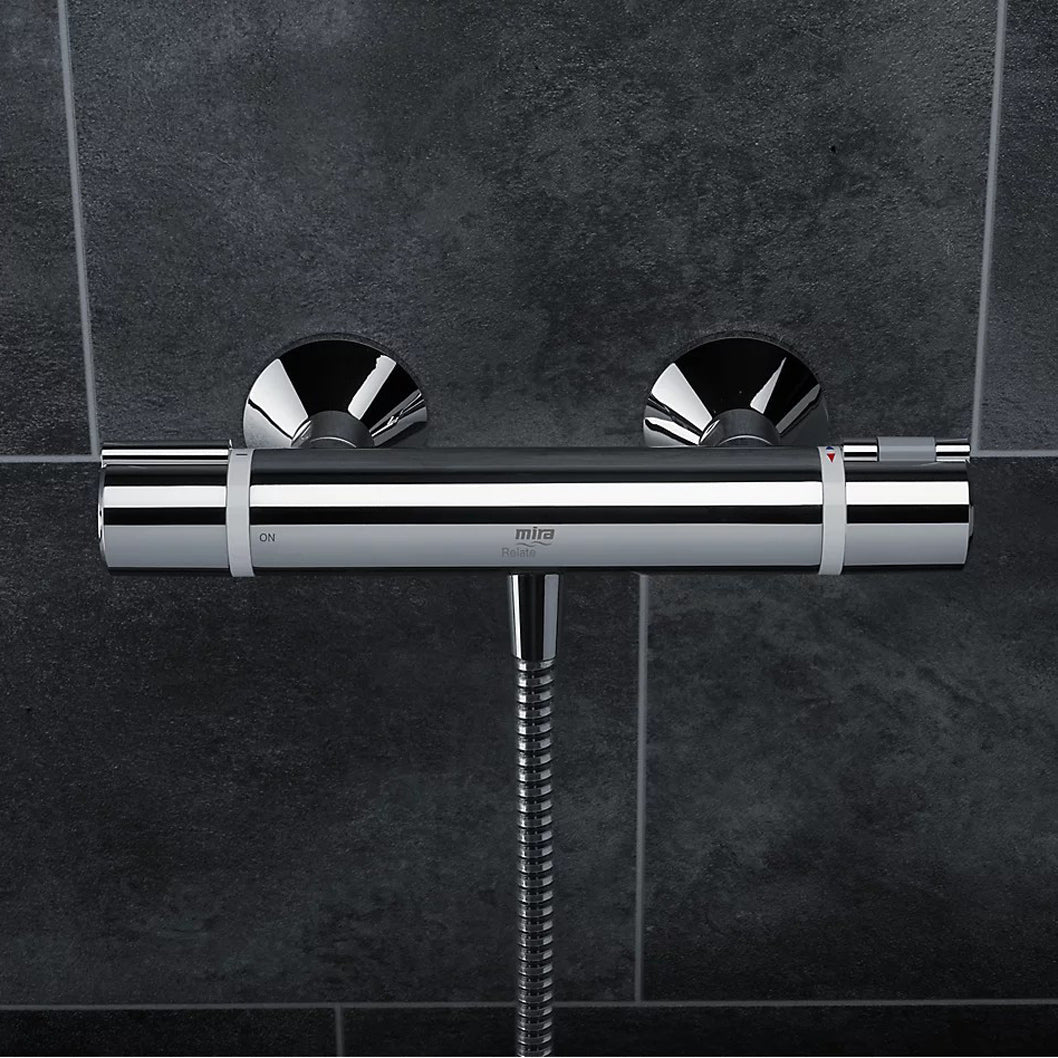

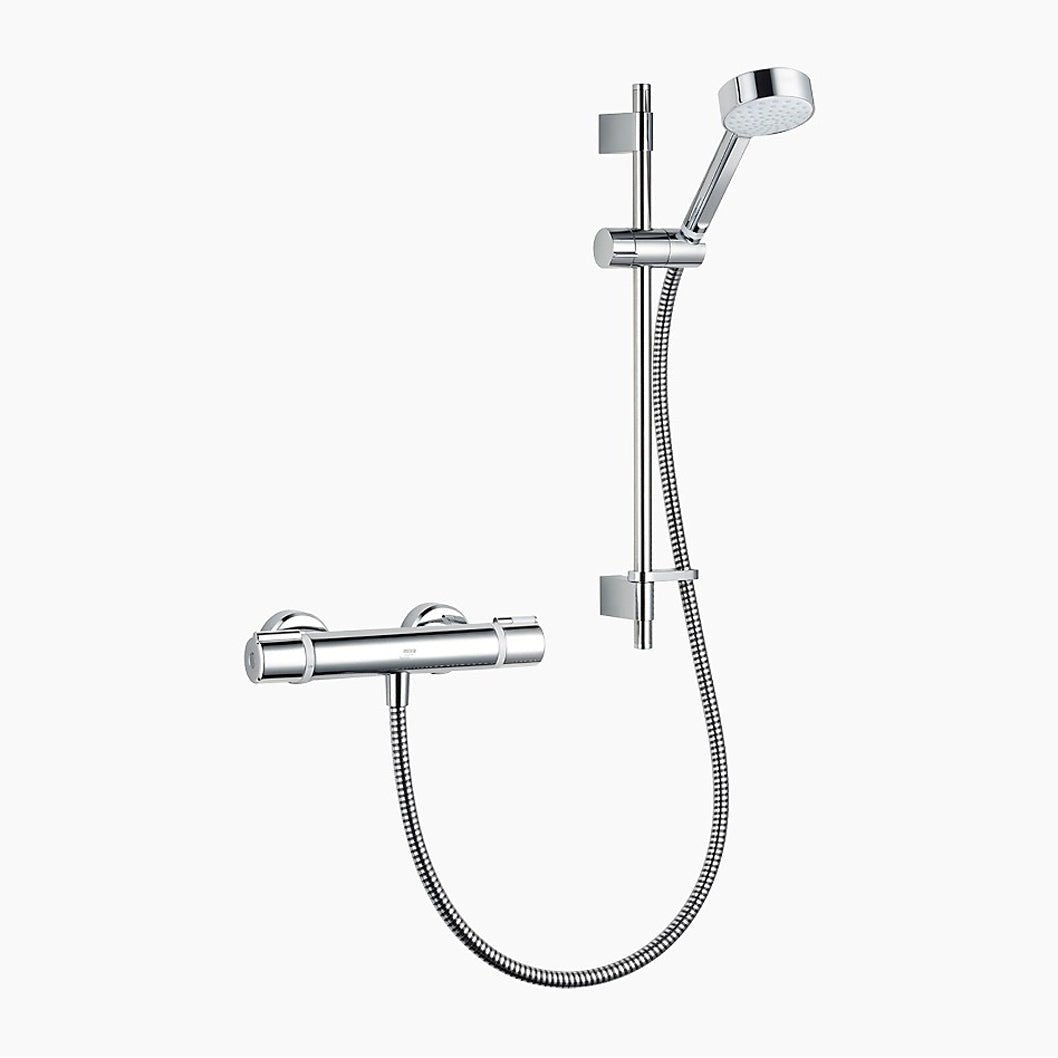

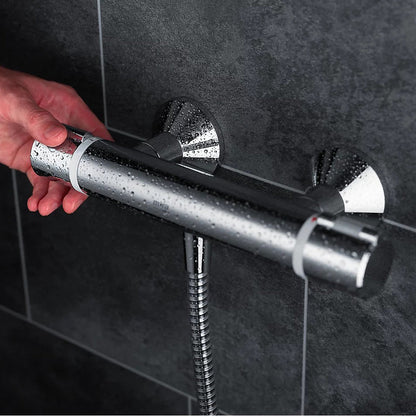

Mira Relate Exposed Bar Mixer Shower

Mira Relate Exposed Bar Mixer Shower

The Mira Relate Exposed Bar Mixer Shower combines classic styling with dependable everyday performance, making it a practical choice for a wide range of bathrooms. Also known as the Mira Relate EV, this thermostatic mixer shower features a clean, stylish design with flexible fittings and straightforward controls, making it easy to install and simple to use.

Powerful and Comfortable Showering

Mira Magni-flo™ technology delivers up to three times more flow than standard mixer showers, even when operating at lower water pressures. The 90mm showerhead provides a comfortable spray, while the rub-clean nozzles make it easier to remove limescale and keep the showerhead performing at its best. Separate flow and temperature controls allow you to adjust your shower exactly to your preference. Thermostatic temperature control helps maintain a stable water temperature, while the adjustable maximum temperature stop provides added protection against excessively hot water.

Easy Installation and Maintenance

Designed with installation in mind, the Mira Relate features an adjustable slide bar that can help align with existing grout lines and cover marks or fixing holes left by a previous shower. It is suitable for use on a wide range of water systems and pressures, including lower-pressure installations. The shower also features large, long-life filters and a replaceable cartridge to make ongoing maintenance straightforward. Cool Shield™ technology helps prevent the exposed valve from becoming excessively hot during showering, making it more comfortable and safer to touch.

Technical Information

The Mira Relate is a thermostatic exposed bar mixer with rear water entry and 150mm pipe centres. It has 1/2" BSP connections to the pipework and a 3/4" BSP connection to the shower unit, with a 1/2" BSP male outlet. The valve is designed for standard hot-left and cold-right installation and does not support reversed inlets. It operates with a hot water temperature range of 60°C–65°C, a minimum maintained pressure of 0.1 bar (1 metre head), a maximum maintained pressure of 5.0 bar (50 metre head), and a maximum static pressure of 10.0 bar (100 metre head). The thermostatic system provides shutdown within two seconds and allows the maximum temperature to be adjusted to suit on-site conditions.

Key Features and Benefits

• Thermostatic exposed bar mixer shower for reliable temperature control
• Mira Magni-flo™ technology delivers up to 3x more flow, even at low pressure
• Separate temperature and flow controls for precise adjustment
• Maximum temperature stop for added safety
• Cool Shield™ technology helps keep the valve cool during showering
• 90mm single-spray showerhead for comfortable everyday use
• Rub-clean showerhead nozzles help make limescale removal easier
• Adjustable slide bar helps cover previous fittings and align with grout lines
• Suitable for all water systems and pressures, including low-pressure systems
• Large, long-life filters for easier maintenance
• Replaceable cartridge for convenient servicing
• Stylish design suitable for traditional and contemporary bathrooms

Frequently Asked Questions

Is the Mira Relate suitable for low water pressure?

Yes. The Mira Relate features Magni-flo™ technology, which is designed to provide up to three times more flow, even when used with lower water pressure. It has a minimum maintained pressure requirement of 0.1 bar.

Does the Mira Relate have thermostatic temperature control?

Yes. The Mira Relate is a thermostatic mixer shower designed to maintain a stable shower temperature. It also includes an adjustable maximum temperature stop and thermostatic shutdown within two seconds for added safety.

Is the Mira Relate easy to install and maintain?

Yes. Its adjustable slide bar can help cover existing fixing marks and align with grout lines, while the large long-life filters and replaceable cartridge make routine maintenance and servicing easier.
