LPD Doors Vancouver FD30 4 Light Fire Door

LPD Doors Vancouver FD30 4 Light Fire Door

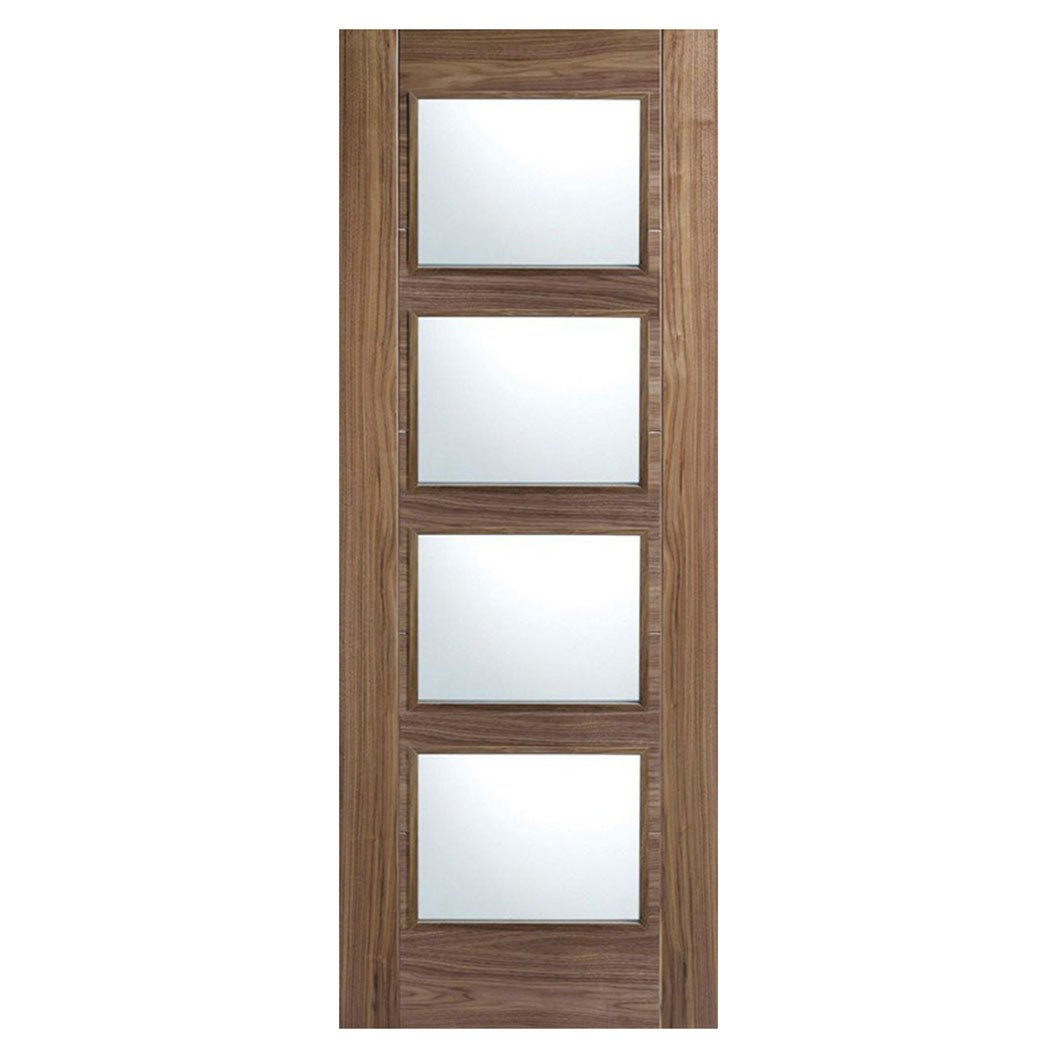

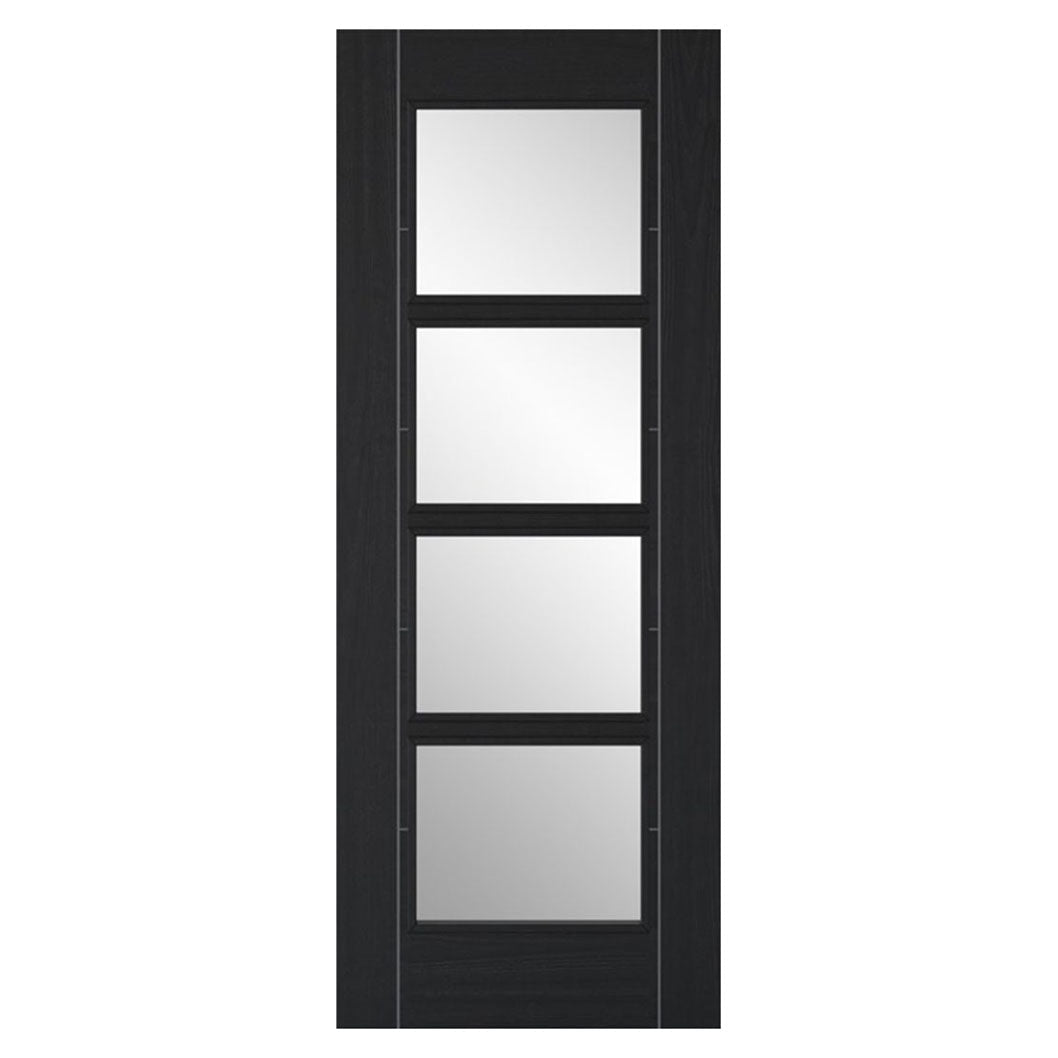

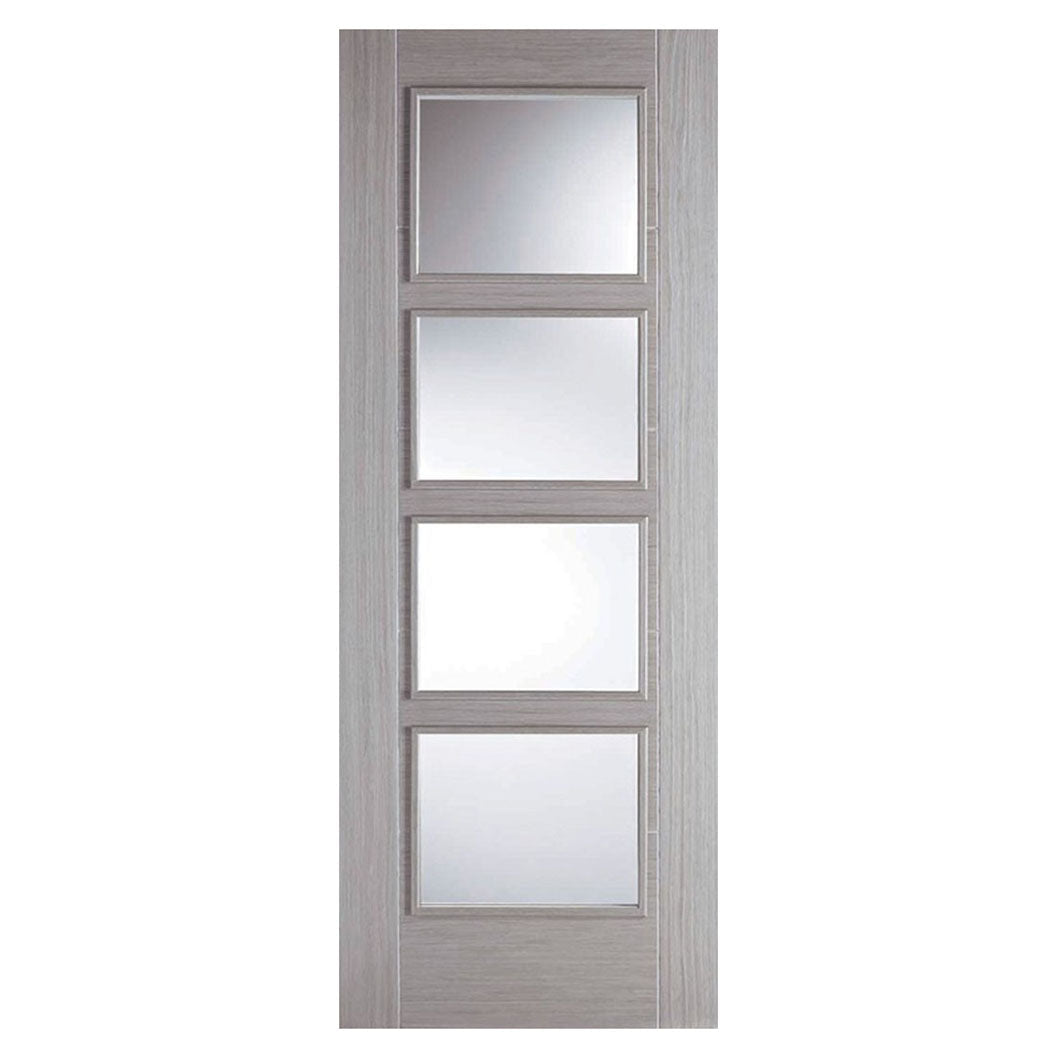

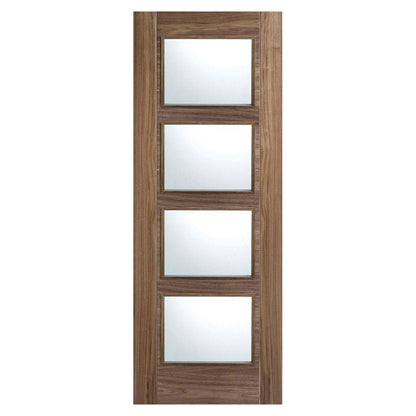

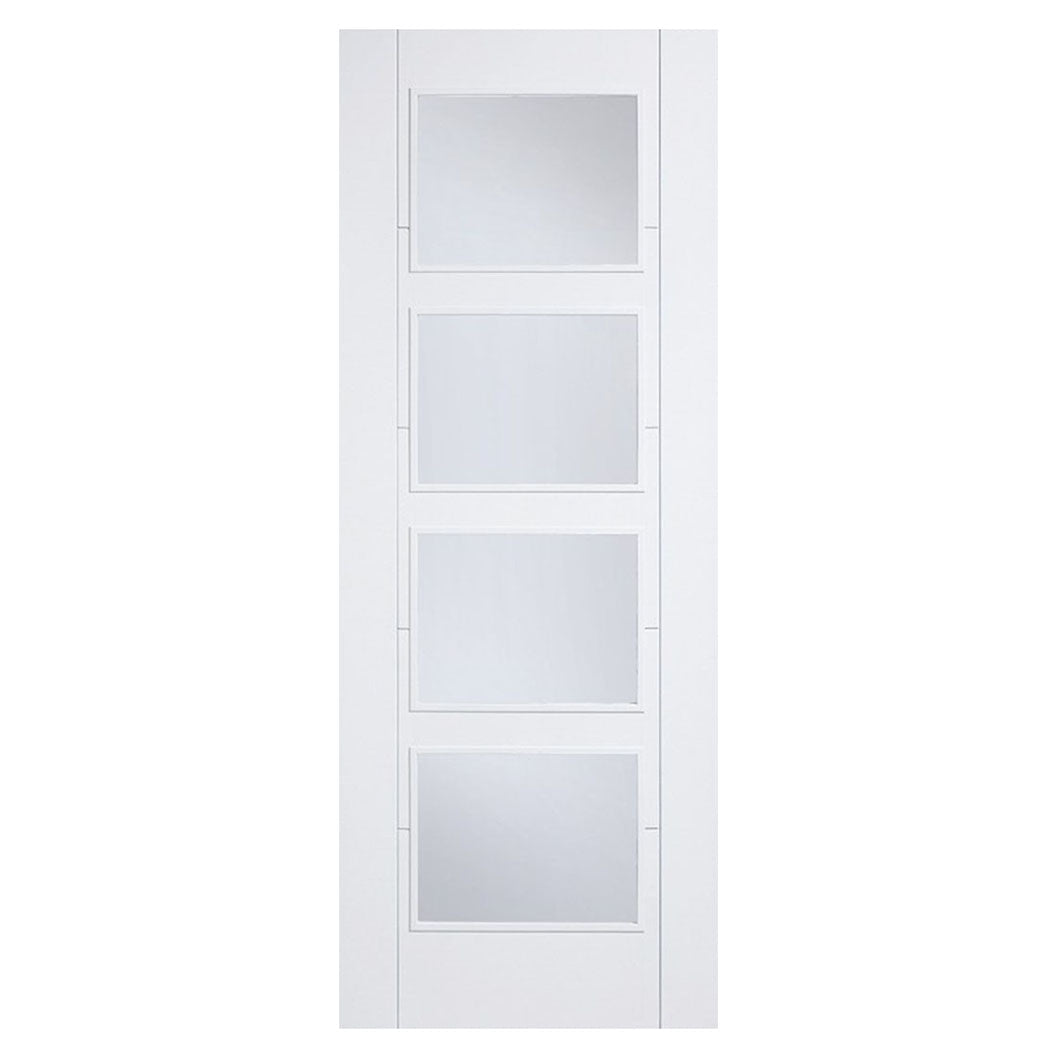

Add style, natural light and practical fire protection to your interior with the LPD Doors Vancouver FD30 4 Light Fire Door. Featuring four clear glazed panels framed by raised moulding, this contemporary design combines a clean, modern appearance with the distinctive styling of the Vancouver range. The door is supplied pre-finished and features a solid engineered core, making it a strong and durable choice for internal applications. Its four clear glazed panels allow natural light to flow between rooms, helping create a brighter and more open feel while maintaining the character of a traditional panelled door.

Contemporary Vancouver Design

The Vancouver 4 Light features four evenly arranged glazed panels surrounded by raised moulding on both sides of the door. V-cut detailing creates a subtle ladder-style effect, adding further definition to the overall design. With a choice of contemporary finishes in the supplied Excel variants, including Light Grey, Charcoal Black, Walnut and White, the door can complement a variety of interior colour schemes and décor styles.

Solid Engineered Construction

Manufactured with a solid engineered core, the Vancouver 4 Light is designed to provide strength and durability for everyday internal use. The pre-finished surface means the door is supplied ready for installation, helping to reduce the amount of preparation required. The supplied Excel variants are all 44mm thick. The technical information supplied lists the 44mm Vancouver 4 Light configurations with a 30-minute fire rating where specified, making this range suitable for applications where FD30 performance is required when correctly installed as part of an appropriate fire doorset.

Glazed Panels and Natural Light

The four clear glazed panels are a key feature of the Vancouver design. They allow natural light to pass between adjoining rooms, making the door particularly useful for spaces where you want to improve light levels without completely opening up the room. The raised moulding around the glazing gives the door an attractive, refined appearance, while the vertical arrangement of the four lights maintains a balanced and contemporary look.

Available Variants

The supplied Excel data includes all 16 finish and size combinations below:

• Light Grey: 1981 x 686 x 44mm
• Light Grey: 1981 x 762 x 44mm
• Light Grey: 1981 x 838 x 44mm
• Charcoal Black: 1981 x 686 x 44mm
• Charcoal Black: 1981 x 762 x 44mm
• Charcoal Black: 1981 x 838 x 44mm
• Charcoal Black: 2040 x 726 x 44mm
• Charcoal Black: 2040 x 826 x 44mm
• Walnut: 1981 x 686 x 44mm
• Walnut: 1981 x 762 x 44mm
• Walnut: 1981 x 838 x 44mm
• Walnut: 2040 x 726 x 44mm
• Walnut: 2040 x 826 x 44mm
• White: 1981 x 686 x 44mm
• White: 1981 x 762 x 44mm
• White: 1981 x 838 x 44mm

All supplied Excel variants are 44mm thick. The technical specification gives the Vancouver 4 Light 44mm configuration a 30-minute fire rating, with 14mm lipping along the long edge and a maximum trimming allowance of 5mm from both the short and long edges.

Key Features

• Four light glazed design: Four clear glazed panels allow natural light to flow between rooms.
• FD30 specification: The supplied technical information lists the 44mm fire-rated configuration with a 30-minute fire rating.
• Solid engineered core: Provides strength and durability for internal applications.
• Pre-finished surface: Supplied ready for installation with minimal additional finishing required.
• Raised moulding: Adds definition and character around the glazed panels.
• V-cut ladder-style detailing: Provides the Vancouver range with its distinctive contemporary appearance.
• Multiple finishes: Available in the supplied Excel variants in Light Grey, Charcoal Black, Walnut and White.
• 44mm thickness: All supplied Excel variants are 44mm thick.
• Trim-able design: Can be trimmed within the manufacturer's specified limits.
• Environmentally friendly timber: Manufactured using environmentally considerate timber.
• Full product suite: Matching products are available from LPD Doors.
• 10-year manufacturer's conditional warranty: Provides additional reassurance.

Trimming and Fire Performance

The supplied technical specification gives the 44mm Vancouver 4 Light fire-rated doors a 14mm lipping allowance along the long edge. The stated trimming allowance for these 44mm versions is up to 5mm from both the short and long edges. The technical table specifically identifies the 1981 x 686mm, 1981 x 762mm and 1981 x 838mm 44mm configurations as having a 30-minute fire rating. The Excel data additionally lists Charcoal Black and Walnut options at 2040 x 726 x 44mm and 2040 x 826 x 44mm, as well as the other finish combinations. These additional finish/size combinations should be checked against the manufacturer's current fire certification before being specified for a fire-rated installation.

FAQs

What finishes are available for the Vancouver 4 Light Fire Door?

The supplied Excel variants include four finishes: Light Grey, Charcoal Black, Walnut and White. Light Grey, Charcoal Black and Walnut are available in multiple sizes, while the supplied White variants are available in 1981 x 686 x 44mm, 1981 x 762 x 44mm and 1981 x 838 x 44mm.

How many glazed panels does the Vancouver door have?

The Vancouver 4 Light features four clear glazed panels. The glazing allows natural light to pass between rooms, while the raised moulding around each panel adds definition to the overall design.

Can the Vancouver FD30 door be trimmed?

Yes. The supplied technical information allows the 44mm fire-rated configuration to be trimmed by up to 5mm from both the short and long edges. Fire-rated doors should only be altered within the manufacturer's specified limits and installed correctly with suitable compatible hardware and doorset components.
