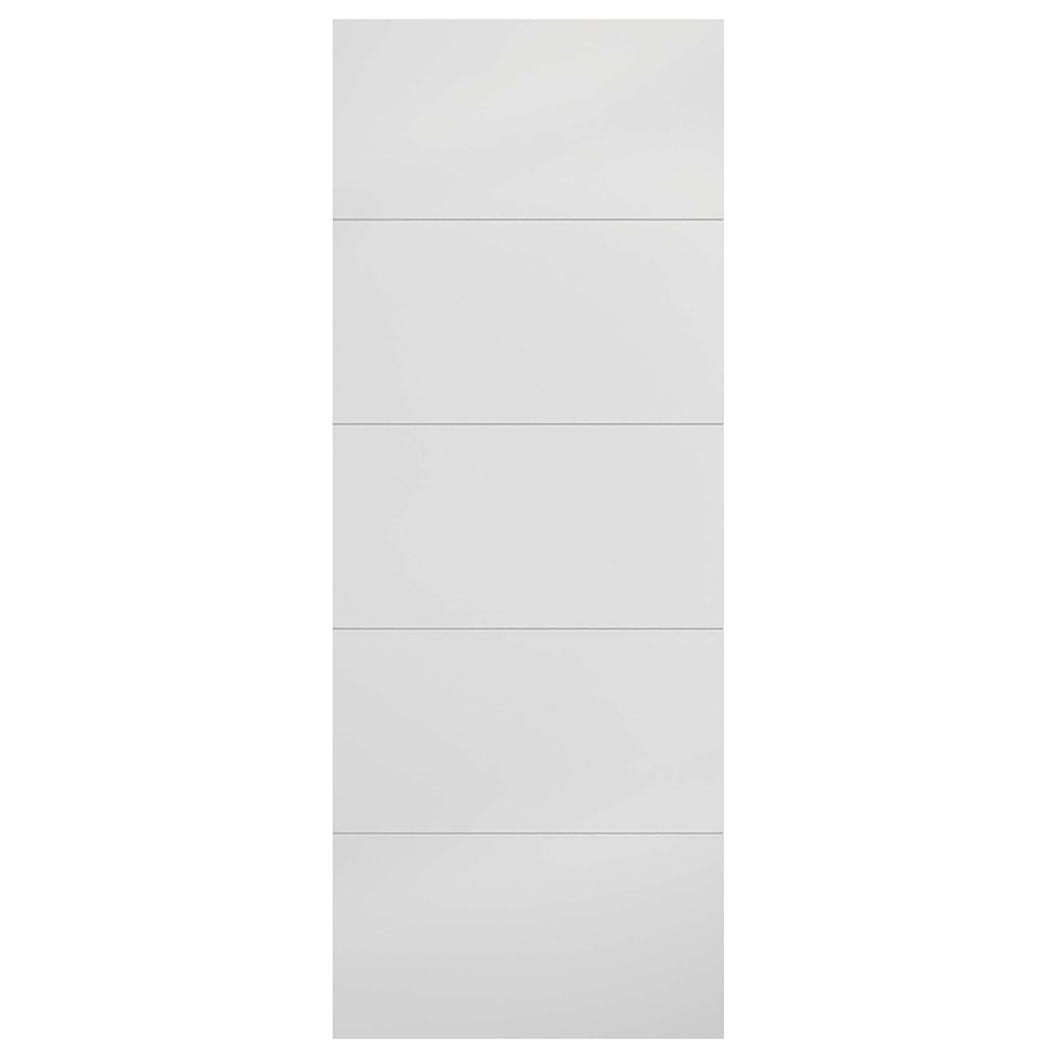

LPD Doors Smooth Horizontal 4-Line Moulded FD30 Fire Door

Contemporary Horizontal 4-Line Design

The LPD Doors Smooth Horizontal 4-Line Moulded FD30 Fire Door offers a clean, contemporary look with a distinctive ladder-style design. The door features five panels created using V-cut grooves positioned flush to the edge, giving it a simple yet stylish appearance that can enhance both modern and understated interiors.

Solid Engineered FD30 Construction

The 44mm fire-rated versions are constructed with a solid engineered core, providing strength, stability and durability. These variants have a 30-minute fire rating, making them suitable for internal applications where an FD30-rated door is required. The doors are supplied with a primed finish and are ready for the appropriate final finishing treatment. They can be trimmed within the stated allowances, providing flexibility when fitting the door to an existing opening.

Available Sizes and Variants

The Excel variants supplied for this product are:

• 1981 x 686 x 44mm / 27" – Code: FCSMOHOR27 – 23kg
• 1981 x 762 x 44mm / 30" – Code: FCSMOHOR30 – 26kg
• 1981 x 838 x 44mm / 33" – Code: FCSMOHOR33 – 28kg

All three Excel variants are 44mm thick, feature a solid engineered core and have a 30-minute fire rating. They are supplied primed with an RAL 9010 reference and 40% glossiness.

Finish and Installation

The primed finish provides a suitable base for a final top coat, allowing the door to be finished to complement your interior scheme. The 44mm variants have 40mm long-edge lipping and allow up to 3mm trimming from both the short and long edges, subject to the manufacturer's requirements. Designed for internal use, the Horizontal 4-Line door combines modern styling with the practical construction expected from an FD30 fire door.

Key Features

• Contemporary five-panel design
• Distinctive V-cut grooves create a ladder-style appearance
• 44mm FD30 fire-door construction
• 30-minute fire rating
• Solid engineered core for added strength and durability
• Primed finish with RAL 9010 reference
• 40% glossiness reference
• Available in 1981 x 686mm, 1981 x 762mm and 1981 x 838mm sizes
• 40mm long-edge lipping
• 3mm trimming allowance on short and long edges
• Suitable for internal use
• Manufactured using environmentally friendly timber
• 10-year manufacturer's conditional warranty

Product Specifications

• Door style: Horizontal Four Line
• Height: 1981mm
• Thickness: 44mm
• Finish type: Primed
• Colour reference: RAL 9010
• Core type: Solid Engineered
• Fire rating: 30 minutes
• Long-edge lipping: 40mm
• Short-edge trimming: 3mm
• Long-edge trimming: 3mm
• Application: Internal use

Frequently Asked Questions

Is this door an FD30 fire door?

Yes. The 44mm variants supplied for this product feature a solid engineered core and are rated for 30 minutes of fire resistance.

What sizes are available?

The Excel variants are available in 1981 x 686 x 44mm, 1981 x 762 x 44mm and 1981 x 838 x 44mm. All three sizes have the same 30-minute fire rating and solid engineered core.

Can the door be painted?

Yes. The door is supplied primed, providing a suitable base for a final top coat. When finishing an FD30 fire door, use a compatible finishing system and follow the manufacturer's requirements to help maintain its specified fire performance.
